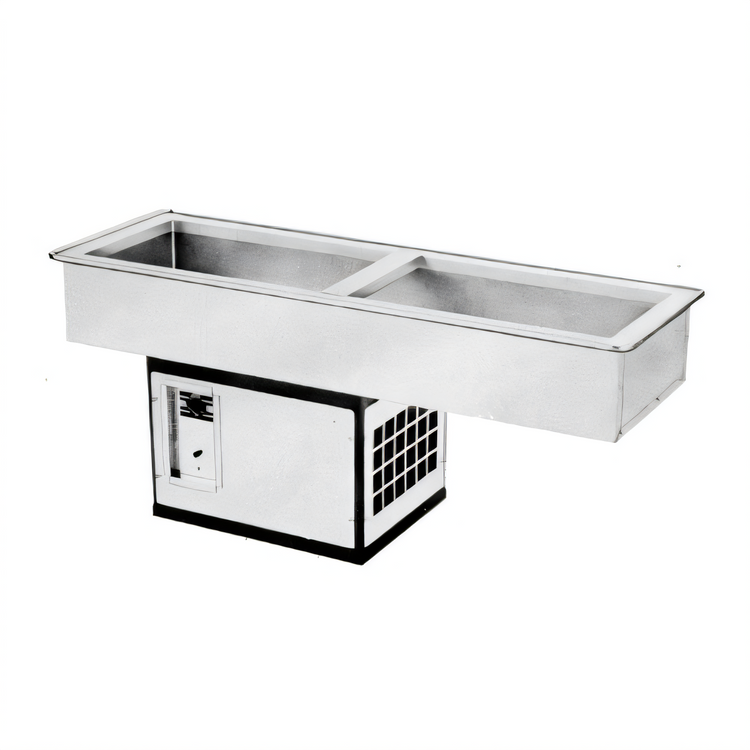

Atlas Metal Slim-Line 2-Pan Self-Contained Refrigerated Drop-In Cold Well

16-Inch Wide, 4-5/8-Inch Standard Depth, 120V

This slim-line drop-in cold well keeps two full-size pans cold with self-contained refrigeration and insulated stainless steel construction.

  • Slim-line design installs neatly into narrow counters and food bar lines.
  • Self-contained refrigeration system includes a hermetically sealed compressor and thermostat control.
  • Holds two standard 12 x 20 pans with removable separator channels; optional adapter bars support fractional pans.
  • 18-gauge stainless steel top and welded 304 stainless steel inner liner help ensure durability and sanitation.
  • Fully insulated pan construction improves holding efficiency and energy savings.
  • Includes a 120V electrical package with on/off thermostat switch, pilot light, 6-foot cord, and NEMA 5-15P plug.
  • Requires a 14-1/4 x 44-1/4 cutout and proper counter ventilation for installation.

Overall Dimensions:

46.0"W x 16.0"D x 19.63"H

Product Weight:

166.0 lb

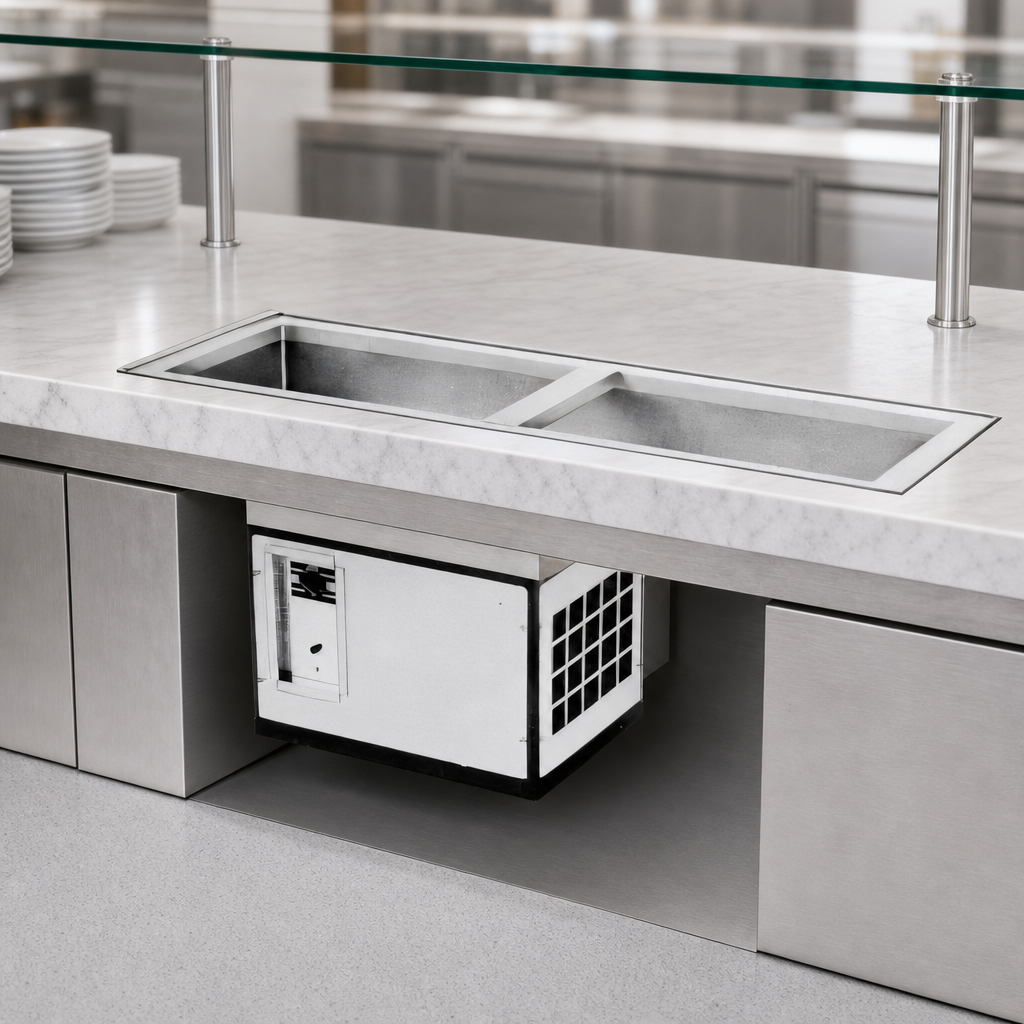

Slim-Line Drop-In Design

Narrow 16-inch-wide configuration is designed to install directly into counters and serving lines.

Slim-Line Drop-In Design

Self-Contained Refrigeration

Built-in condensing unit with hermetically sealed compressor and thermostat control; ready to operate.

Fully Insulated Pan

High-density polystyrene insulation surrounds the pan to help maintain cold temperatures and improve efficiency.

Stainless Steel Top And Liner

18-gauge type 304 stainless steel top and one-piece welded inner liner with coved corners for durability and easy cleaning.

Two Full-Size Pan Capacity

Accommodates two standard 12 x 20 pans with removable separator channels; optional adapter bars allow fractional pans.

Sealed Countertop Installation

Factory-applied vinyl gasket helps seal the unit to the countertop and reduce seepage or marring.

Integrated Drain Assembly

Includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.

120V Electrical Package

Wired for single-phase operation with on/off thermostat switch, pilot light, 6-foot cord, and NEMA 5-15P plug.

Type Cold Well
Style Slim-Line
Installation Type Drop-In
Pan Capacity 2
Pan Size 12 Inches x 20 Inches
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Stainless Steel & Galvanized Steel
Refrigeration Type Self-Contained
Controls On/Off Thermostat Switch
Voltage 120 Volts
Amps 4.2 Amps
Breaker Size 15 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Horsepower 1/5 HP
BTU 450 BTU
Refrigerant Type R513A
Temperature Range 32°F to 40°F
Drain Connection Size 3/4 Inch
Drain Connection Required
Cutout Required 14-1/4 Inches x 44-1/4 Inches
Shipping Width 46 Inches
Shipping Depth 16 Inches
Shipping Height 20 Inches
Shipping Weight 166 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It accommodates two standard 12 x 20 pans using separator channels, and optional adapter bars can be used for fractional pans.
Yes. The unit includes a fully self-contained condensing system with a hermetically sealed compressor and thermostat control.
The unit is wired for 120 volts, single-phase operation and includes a 6-foot cord with a NEMA 5-15P plug.
The required cutout is 14-1/4 inches by 44-1/4 inches.
Yes. The manufacturer notes that proper ventilation must be provided in the counter.
The manufacturer notes that it has not been performance tested for use with potentially hazardous foods and must be used with ice.
