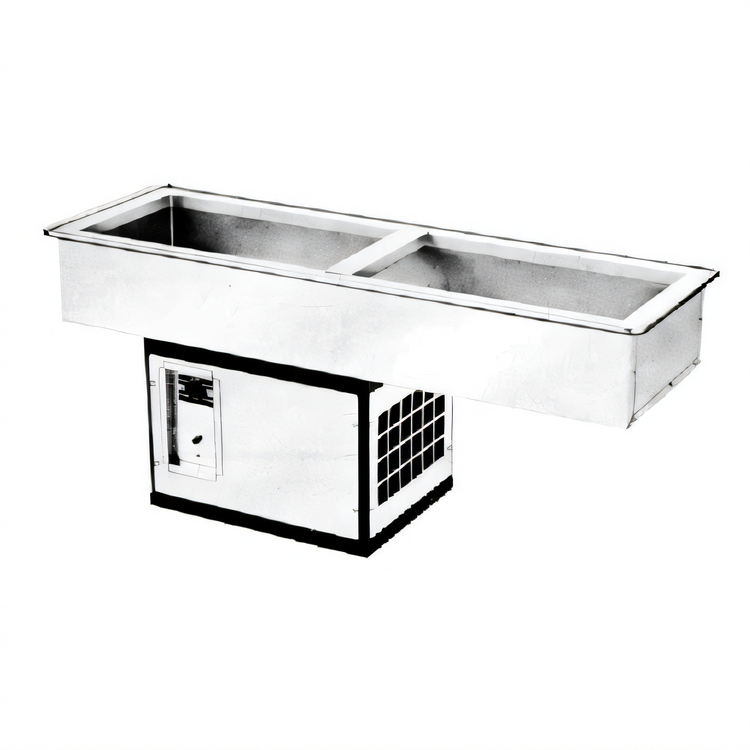

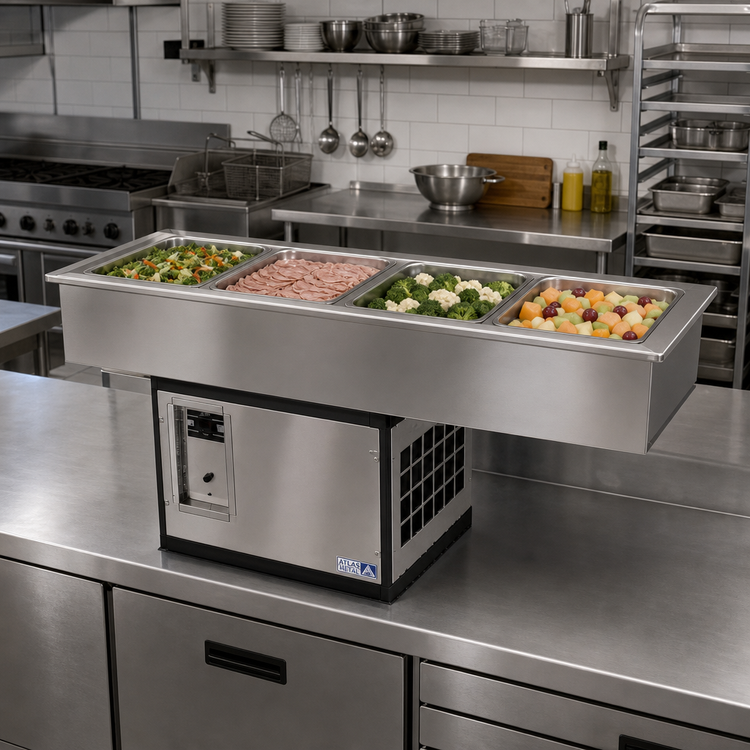

Atlas Metal WCMDCL-4 Slim-Line 4-Pan Refrigerated Cold Food Drop-In Well
Full-Size, 9-3/4" Deep, Self-Contained Refrigeration
Keep your cold foods perfectly chilled and ready for serving with this slim-line, deep design, self-contained refrigerated drop-in unit, ideal for any commercial buffet or serving line.
- Accommodates four full-size 12" x 20" pans, with a deep 9-3/4" design for maximum capacity.
- Features a self-contained refrigeration system with copper tubing on all sides and base for superior cooling performance.
- Fully insulated with high-density polystyrene for maximum efficiency and energy savings.
- Durable 18 gauge Type 304 stainless steel top and inner liner ensure longevity and easy cleaning.
- Slim-line 16-inch width allows for installation in narrow counters.
- Factory-applied gasket ensures a secure seal to the counter, preventing seepage and simplifying installation.
Overall Dimensions:
89.5"W x 16.0"D x 14.75"HProduct Weight:

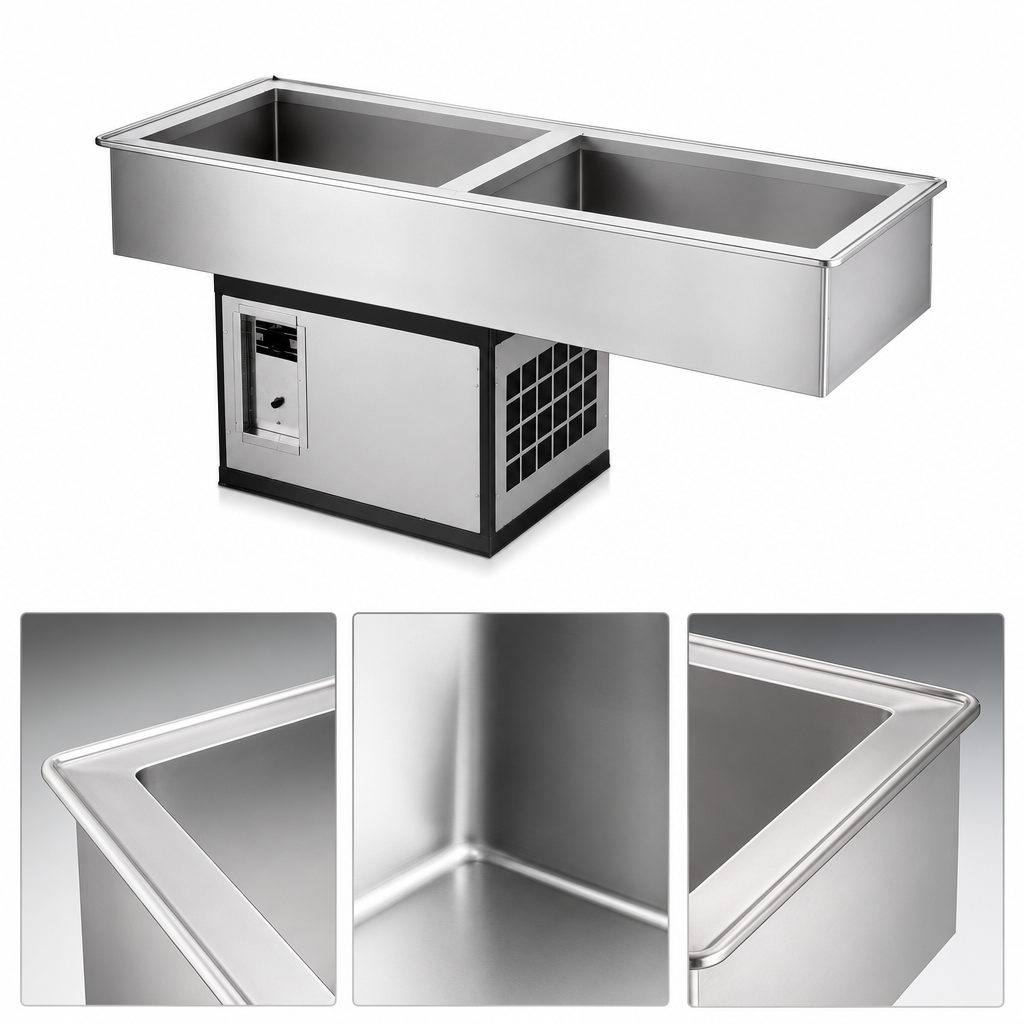

278.0 lbDurable Stainless Steel Construction
Top and inner liner are constructed of 18 gauge, type 304 stainless steel, die stamped with a raised perimeter bead for durability and hygiene. The inner liner is a one-piece construction with coved corners for easy cleaning.
Deep Pan Capacity
Designed to accommodate your deepest pans or inserts, with a 9-3/4" internal depth and a capacity for four standard 12" x 20" pans using removable separator channels.
Efficient Self-Contained Refrigeration
A fully self-contained condensing unit with a hermetically sealed compressor and thermostat control. The system is charged with CFC-free R513A refrigerant and features copper tubing firmly soldered to the exterior bottom and all sides of the liner for consistent cooling.
Slim-Line Design
With a 16-inch overall width, this unit is configured for installation in counters with limited space, providing a compact yet spacious cold well solution.
Full Insulation
The pan is fully insulated with 1" thick high-density polystyrene on all sides and 1-1/2" thick on the bottom, enclosed by a 22 gauge galvanized steel outer case, ensuring maximum thermal efficiency.
Easy Installation & Sealing
A solid vinyl gasket is factory-applied under the beaded edge of the top, forming a secure seal to the counter top to prevent seepage and marring, making installation quick and easy.
Drainage System
Includes a 4" diameter drain with strainer, 4" PVC nipple, and valve for convenient emptying and cleaning.
User-Friendly Controls
Equipped with an on/off thermostat switch and pilot light for simple temperature management.
Certifications & Compliance
Warranty & Protection
1-Year Parts & Labor Warranty
