Atlas Metal WCMDCL-3 Slim-Line 3-Pan Drop-In Self-Contained Refrigerated Cold Food Well

SKU: WCMDCL-3
$4,901.57
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

Atlas Metal WCMDCL-3 Slim-Line 3-Pan Drop-In Self-Contained Refrigerated Cold Food Well

Full-Size Pan Capacity, Deep Design, Stainless Steel

Designed for efficiency and hygiene, the Atlas Metal WCMDCL-3 provides reliable, self-contained refrigeration to keep your cold foods at optimal temperatures in a compact, drop-in format.

  • Self-contained refrigeration with copper tubing on all sides and base for superior, uniform cooling.
  • Slim-line design (16" wide) ideal for counter installations where space is a premium.
  • Deep 9-3/4" well accommodates full-size and fractional pans for versatile food presentation.
  • Fully insulated with high-density polystyrene for maximum energy efficiency and retention.
  • Easy installation with a factory-applied gasket for a seamless, sealed counter fit.
  • UL Listed and NSF Certified (non NSF-7) for commercial use.

Overall Dimensions:

67.75"W x 16.0"D x 14.75"H

Product Weight:

232.0 lb

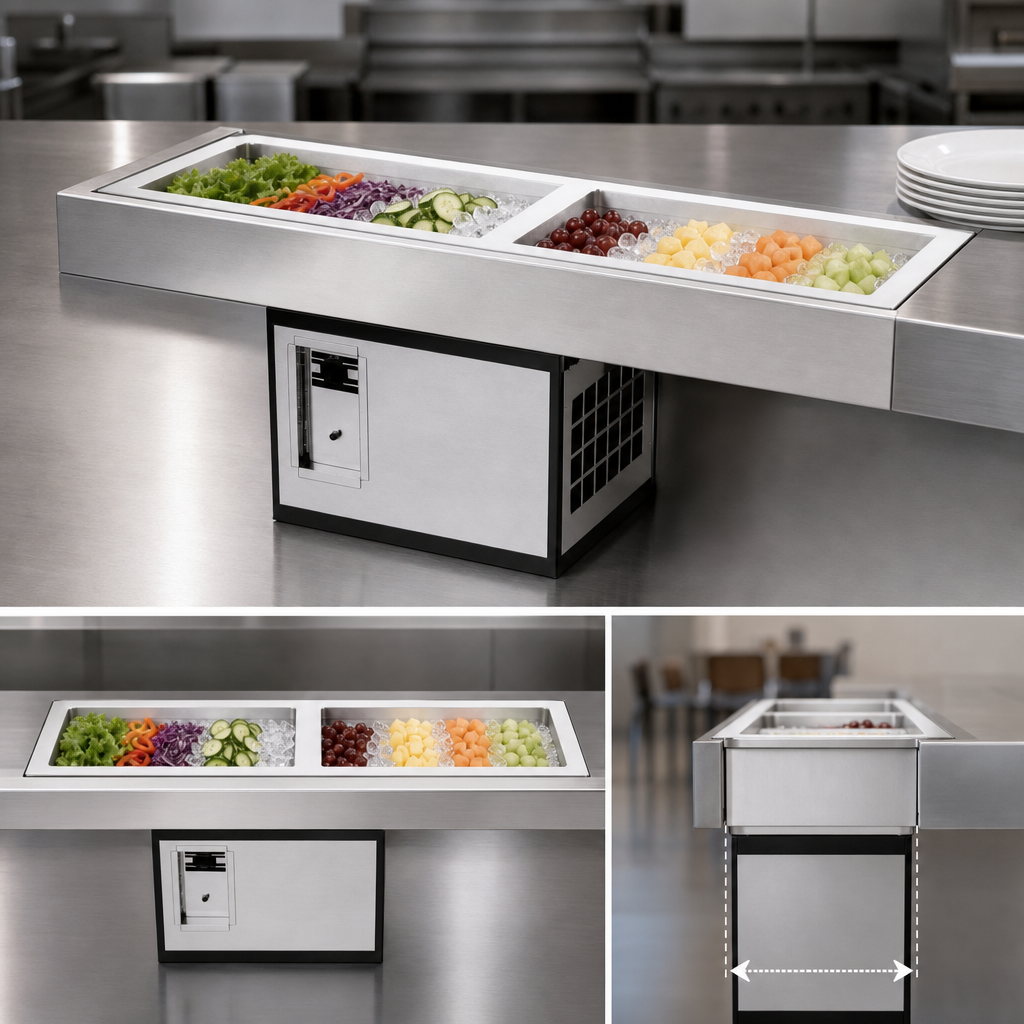

Slim-line Configuration

Designed for drop-in installation in counters only, with a narrow 16-inch width to fit space-constrained environments.

Slim-line Configuration

Deep Well Design

Features a 9-3/4 inch full depth pan opening, allowing it to accommodate your deepest full-size pans or inserts.

Efficient Refrigeration System

Equipped with refrigerated copper tubing around all sides and the base of the liner, ensuring uniform cooling and meeting stringent health department standards.

Fully Insulated Pan

The pan is fully insulated with high-density polystyrene, 1 inch thick on all sides and 1-1/2 inches thick on the bottom, maximizing efficiency and energy savings.

Factory Applied Gasket

Includes a factory-applied solid vinyl gasket under the beaded edge for a secure seal to the counter top, preventing seepage and marring during installation.

Durable Stainless Steel Construction

The top and inner liner are constructed from 18 gauge, type 304 stainless steel, with all corners coved to a minimum 1/4 inch radius for easy cleaning and hygiene.

Galvanized Steel Outer Case

The insulation is enclosed within a robust 22 gauge galvanized steel outer case, providing durability and protection.

Integrated Drain System

Comes with a 4 inch diameter drain, strainer, 4 inch PVC nipple, and valve for easy water removal.

Thermostat Control

Features an on/off thermostat switch and pilot light for simple and effective temperature management.

Type Cold Food Drop-In Unit
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 3
Pan Size Full-Size (12" x 20")
Interior Finish 304 Stainless Steel
Material Stainless Steel, Galvanized Steel
Controls Thermostat
Refrigerant Type R513A
Horsepower 1/5 HP
Operating Temperature 32 to 40 F
Voltage 120 Volts
Amps 4.2 Amps
Watts 504 Watts
Phase 1-Phase
Hertz 60 Hz
Plug Type NEMA 5-15P
Cord Length 6 Feet
Cut-Out Dimensions 14-1/4" x 66"
Shipping Width 68 Inches
Shipping Depth 16 Inches
Shipping Height 15 Inches
Shipping Weight 232 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The Atlas Metal WCMDCL-3 requires a counter cutout of 14-1/4 inches by 66 inches for proper installation.
This unit is designed to accommodate standard 12 inch x 20 inch full-size pans when using separator channels. It can also hold fractional size pans with the use of optional adapter bars, and features a 9-3/4 inch deep pan to fit your deepest inserts.
Yes, proper ventilation must be provided within the counter where the unit is installed to ensure efficient operation of its self-contained condensing unit.
The WCMDCL-3 comes with a 1-year parts and labor warranty. An optional 5-year compressor warranty (model 5YW) is also available for purchase.
No, these units have not been performance tested for use with potentially hazardous foods and must be used with ice to maintain safe holding temperatures.
The self-contained refrigeration system in the WCMDCL-3 is fully charged with CFC-free R513A refrigerant.
