Atlas Metal Slim-Line 2-Pan Self-Contained Refrigerated Drop-In Cold Well, 9-3/4-Inch Deep

Narrow 16-Inch Profile, Full-Size Pan Compatible, 120V

This slim-line, self-contained refrigerated drop-in cold well delivers dependable two-pan cold storage in a compact, narrow footprint.

  • Slim-line drop-in design fits tight counter spaces and seals neatly to the countertop with a factory gasket.
  • Self-contained refrigeration simplifies installation with no remote compressor required.
  • Holds two standard 12" x 20" pans with separator channels; fractional pans can be used with optional adapter bars.
  • Stainless steel top and inner liner with insulated pan construction help improve durability and temperature retention.
  • 120V, single-phase operation includes a 6-foot cord and NEMA 5-15P plug for easy connection.
  • Operates at 32 to 40 F and includes an on/off thermostat switch for simple control.

Overall Dimensions:

46.0"W x 16.0"D x 14.75"H

Product Weight:

179.0 lb

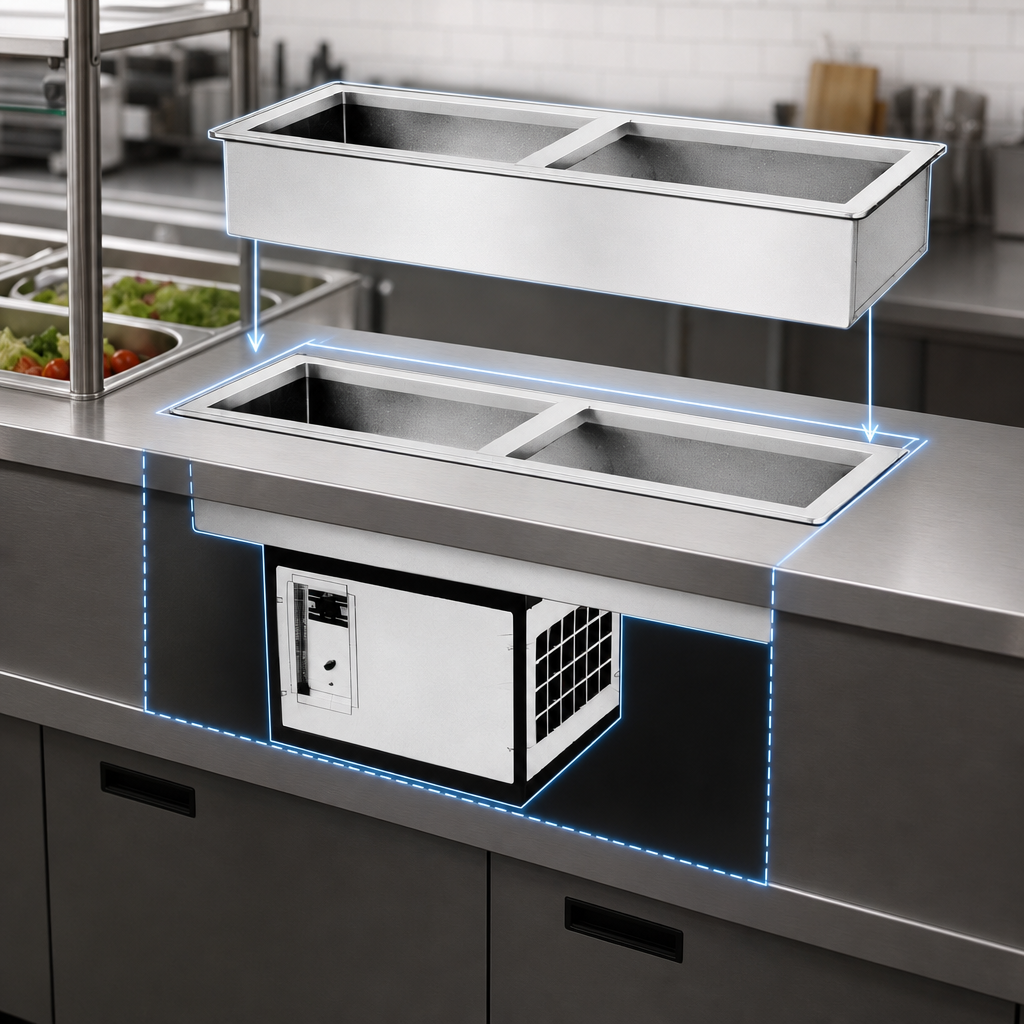

Slim-Line Drop-In Profile

Narrow configuration is designed to install into counter openings and save space.

Slim-Line Drop-In Profile

Self-Contained Refrigeration System

Built-in condensing unit with hermetically sealed compressor simplifies installation and operation.

Two-Pan Capacity

Accommodates two standard full-size pans using separator channels.

Stainless Steel Top And Inner Liner

18-gauge 304 stainless steel construction helps provide durability and a clean finish.

Fully Insulated Pan

High-density polystyrene insulation helps maintain temperature and improve energy efficiency.

Copper Tubing Cooling Design

Copper tubing is soldered to the bottom and all sides for even cold distribution.

On/Off Thermostat Switch

Simple thermostat control with pilot light supports straightforward operation.

Factory-Applied Counter Gasket

Vinyl gasket helps seal the unit to the countertop and reduce seepage.

Ready-To-Operate Electrical Setup

Wired for 120V single-phase service with a 6-foot cord and NEMA 5-15P plug.

Type Cold Well
Style Slim-Line
Installation Type Drop-In
Refrigeration Type Self-Contained
Pan Capacity 2 Full-Size Pans
Pan Size Full-Size (12 Inches x 20 Inches)
Controls Thermostatic
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Stainless Steel & Galvanized Steel
Voltage 120 Volts
Amps 4.2 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Refrigerant Type R513A
BTU 450 BTU
Temperature Range 32 to 40 F
Compressor Horsepower 1/5 HP
Cut-Out Required 14-1/4 Inches x 44-1/4 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

It accommodates two standard 12" x 20" pans with separator channels, and fractional pans can be used with optional adapter bars.
Yes. The unit includes a fully self-contained condensing unit with a hermetically sealed compressor and thermostat control.
The required cut-out is 14-1/4" x 44-1/4".
The unit is wired for 120V, single-phase operation and includes a 6-foot cord with a NEMA 5-15P plug. The specification chart lists 4.2 amps.
The operating temperature range is 32 to 40 F.
The document states that these units have not been performance tested for use with potentially hazardous foods and must be used with ice.
