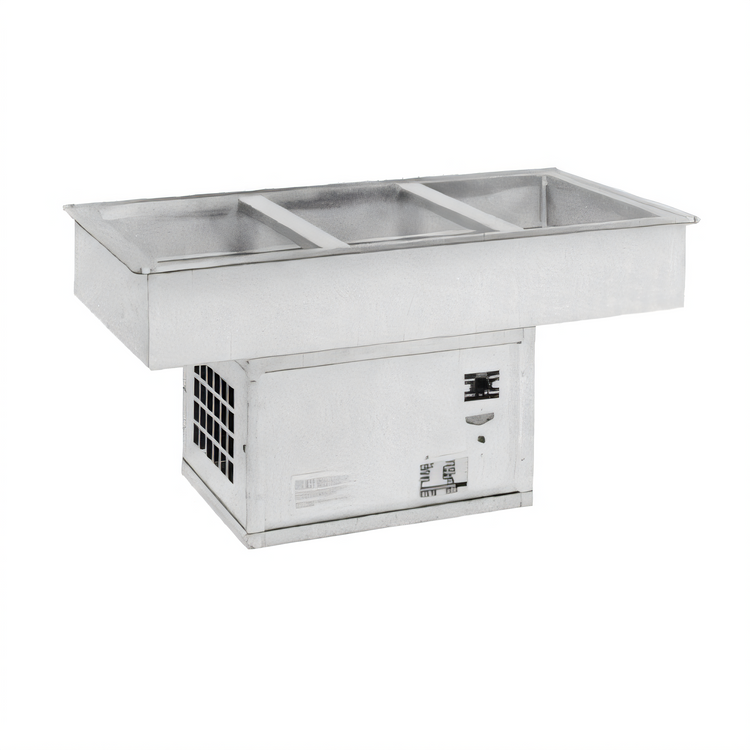

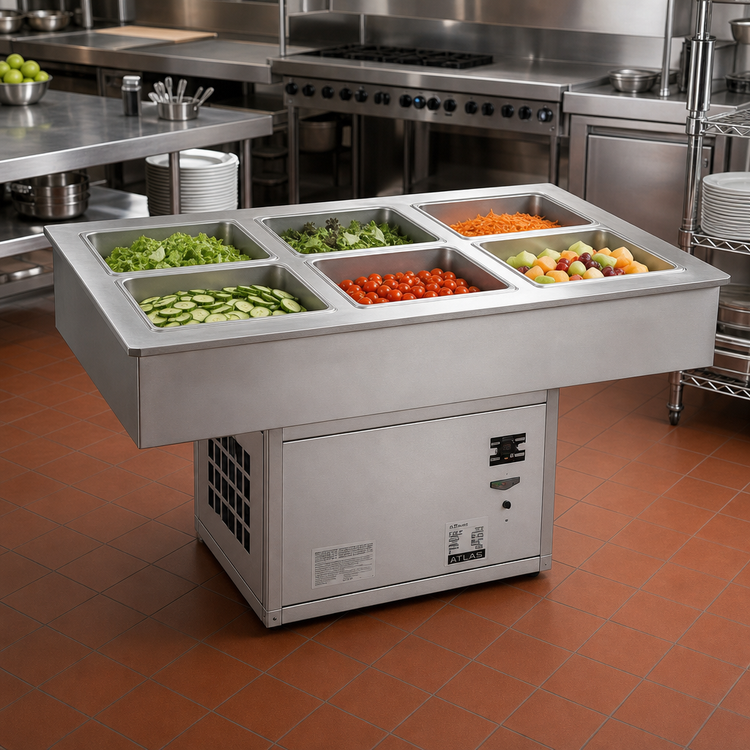

Atlas Metal WCMD-C-X-6 6-Pan Deep Refrigerated Drop-In Cold Food Well (Remote Refrigeration)

SKU: WCMD-C-X-6
$5,442.33
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

Atlas Metal WCMD-C-X-6 6-Pan Deep Refrigerated Drop-In Cold Food Well (Remote Refrigeration)

Deep Design, 6-Pan Size, Less Compressor

This Atlas Metal deep drop-in cold food well is designed for remote refrigeration systems, providing optimal cold holding for up to six full-size pans while integrating seamlessly into your counter.

  • Accommodates up to six full-size 12" x 20" pans or fractional pans with adapter bars.
  • Deep design with 9-3/4" interior depth allows for holding your deepest pans or inserts.
  • Equipped with refrigerated copper tubing around the bottom and all sides for uniform cooling.
  • Fully insulated with high-density polystyrene for maximum efficiency and energy savings.
  • Factory-applied gasket ensures a secure and sealed installation to your counter top.
  • Constructed with durable 18 gauge type 304 stainless steel interior and top, with a galvanized steel outer case.
  • Designed for remote refrigeration systems, providing flexibility in kitchen layout.

Product Weight:

292.0 lb

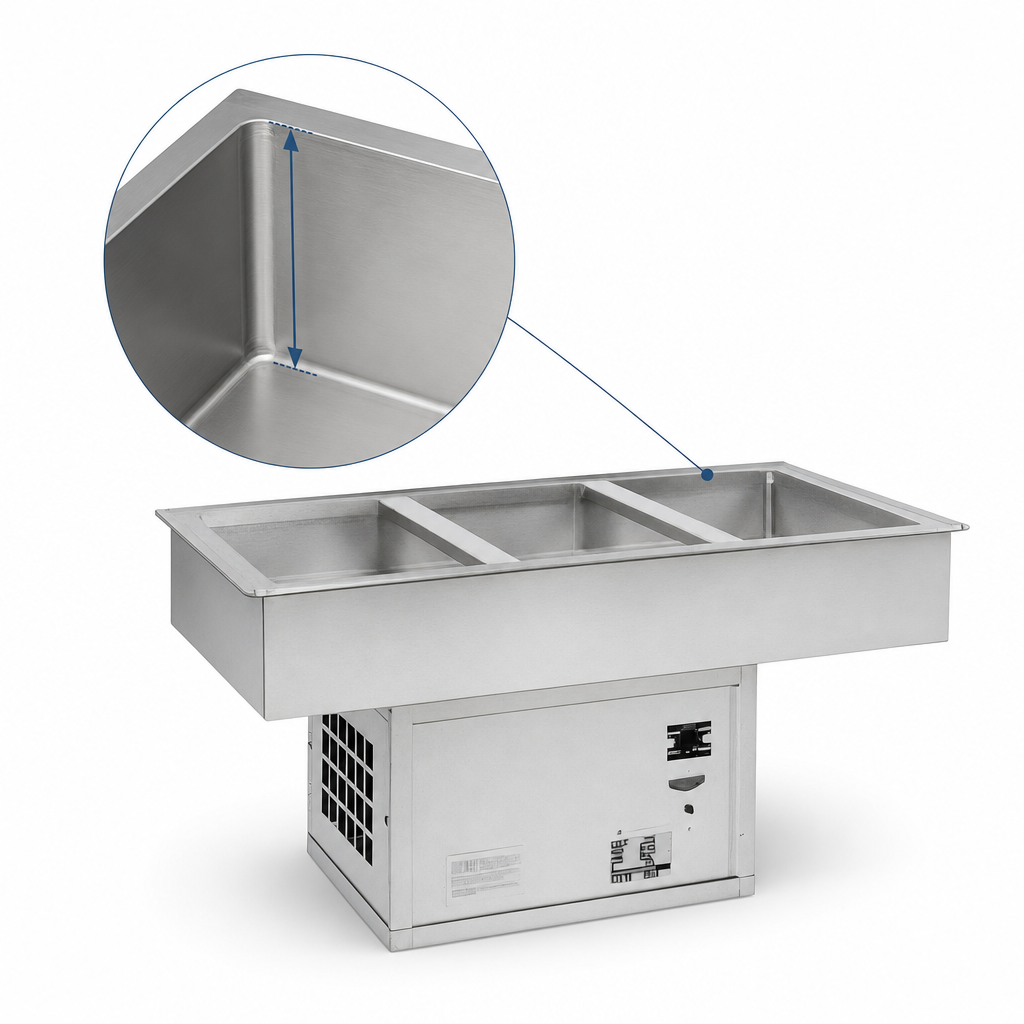

Deep Pan Accommodation

Designed to accommodate your deepest pan or insert, with an interior depth of 9-3/4 inches.

Deep Pan Accommodation

All-Around Refrigeration

Features refrigerated copper tubing firmly soldered to the exterior bottom and all sides of the liner, meeting strict health department standards.

Efficient Insulation

The pan is fully insulated with 1/2" thick high-density polystyrene on all sides and 1-1/2" thick on the bottom for maximum thermal efficiency and energy savings.

Seamless Countertop Seal

A factory-applied solid vinyl gasket under the beaded edge of the top forms a seal to the counter top, preventing seepage and marring during installation.

Versatile Pan Configuration

Accommodates standard 12" x 20" pans with the use of removable separator channels, and fractional size pans with optional adapter bars.

Durable Construction

Top and inner liner are constructed of 18 gauge, type 304 stainless steel; the outer case is 22 gauge galvanized steel.

Integrated Drain System

Includes a 3/4" diameter drain with strainer, 4" PVC nipple, and valve for easy water removal.

Type Cold Food Drop-In Unit
Style Refrigerated Cold Pan
Installation Type Drop-In
Pan Capacity 6 Full-Size Pans
Pan Size 12" x 20" (standard pan accommodation)
Interior Finish Dimensions 19-7/8" W x 80-1/2" L x 9-3/4" D
Material Stainless Steel
Interior Finish 304 Stainless Steel
Outer Liner Material Galvanized Steel
Insulation High-Density Polystyrene
Refrigeration Type Remote (Less Compressor)
Refrigerant Type R513A
Operating Temperature 32 to 40 F
Drain Connection Size 3/4"
Shipping Weight 290 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

The WCMD-C-X-6 is a remote refrigeration model, meaning it is designed to be connected to an external compressor and does not include a self-contained condensing unit or compressor within the drop-in unit itself.
This unit accommodates six full-size 12" x 20" pans and has a deep interior liner of 9-3/4 inches, allowing for your deepest inserts.
Yes, the pan is fully insulated with 1/2" thick high-density polystyrene on all sides and 1-1/2" thick on the bottom for maximum thermal efficiency and energy savings.
You will require a solenoid package (solenoid valve, coil, and copper fitting) for remote refrigeration models. For WCMD-C-X-6, a 1/3 HP compressor like model 2029-4M7 is recommended. Other optional accessories include false bottoms, adapter bars for fractional pans, cover plates, and a remote on/off switch.
No, as a remote refrigeration model, this unit does not come with a self-contained condensing unit, compressor, or any integrated electrical cord and plug. These components are part of the external refrigeration system it connects to.
