Atlas Metal WCMD-C-X-4 4-Pan Remote Refrigerated Drop-In Cold Well

Deep design, side coils, full-size pan capacity, compressor sold separately

Built for remote refrigeration, this insulated drop-in cold well delivers reliable chilled service without taking up space for an onboard compressor.

  • Remote refrigeration model ships without a compressor for flexible installation.
  • Deep 4-pan layout is designed for full-size 12" x 20" pan service.
  • Copper tubing on the bottom and all sides provides all-around cooling.
  • High-density insulation helps retain temperature and improve efficiency.
  • 18-gauge type 304 stainless steel top and inner liner support durable foodservice use.
  • Vinyl gasket, mounting lugs, and built-in drain help simplify counter installation.
  • WCMD-C-X models require a solenoid package for remote refrigeration operation.

Product Weight:

167.0 lb

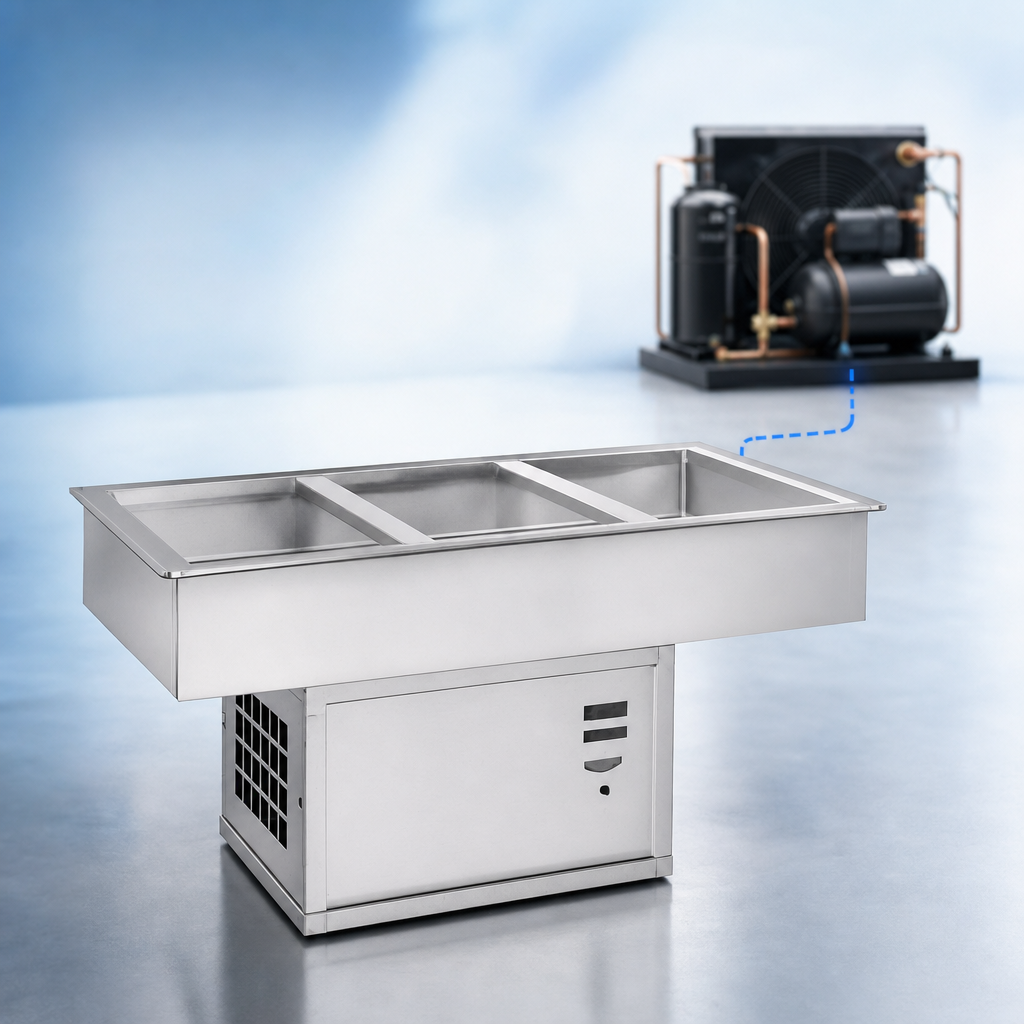

Remote Refrigeration Design

Designed for remote refrigeration installations; the compressor is not included with the unit.

Remote Refrigeration Design

Deep Pan Capacity

Accommodates pans up to 9-3/4 inches deep for greater serving capacity.

Full-Size Pan Compatibility

Accepts standard 12" x 20" pans with separator channels and fractional pans with optional adapter bars.

Stainless Steel Top and Liner

Built with an 18-gauge type 304 stainless steel top and one-piece inner liner for durability and easy cleaning.

Side Coil Cooling Tubing

Copper tubing is soldered to the exterior bottom and all sides for even refrigeration coverage.

Insulated Pan Construction

High-density polystyrene insulation and a galvanized steel outer case help improve temperature retention.

Built-In Drain Assembly

Includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.

Installation Gasket and Lugs

A solid vinyl gasket and embossed mounting lugs help seal the unit to the countertop and secure installation.

Remote Refrigeration Requirement

The WCMD-C-X series requires a solenoid package for remote refrigeration operation.

Type Cold Food Well
Refrigeration Type Remote Refrigeration
Installation Type Drop-In
Style Deep
Pan Capacity 4 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls Thermostat
Interior Finish 304 Stainless Steel
Material Stainless Steel
Shipping Weight 184 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

No. WCMD-C-X-4 is a remote refrigeration model and ships without a compressor.
It accommodates standard 12" x 20" pans, and fractional pans can be used with optional adapter bars.
The unit is designed to accommodate pans up to 9-3/4 inches deep.
The unit features an 18-gauge type 304 stainless steel top and inner liner, with a galvanized steel outer case and insulated pan construction.
Yes. The document states that WCMD-C-X models require a solenoid package for remote refrigeration operation.
The document states these units have not been performance tested for use with potentially hazardous foods and must be used with ice.
