Atlas Metal 3-Pan Drop-In Remote Refrigerated Cold Well with Side Coils, Deep Design

Fits Full-Size 12" x 20" Pans; Insulated Stainless Steel and Galvanized Steel Construction

This deep 3-pan cold well is built for remote refrigeration, giving you flexible installation and dependable cold holding without an onboard compressor.

  • Remote refrigeration design keeps the compressor off the unit for a cleaner drop-in installation.
  • Deep pan layout accommodates deeper inserts up to 9-3/4 inches.
  • Accepts standard 12" x 20" full-size pans with separator channels; fractional pans can be used with optional adapter bars.
  • 18-gauge Type 304 stainless steel top and inner liner provide durability and easy cleaning.
  • High-density polystyrene insulation and a galvanized steel outer case help improve temperature efficiency.
  • Copper tubing on the bottom and sides supports even cooling throughout the pan.
  • Built-in drain assembly includes a strainer, PVC nipple, and valve for easier maintenance.

Product Weight:

132.0 lb

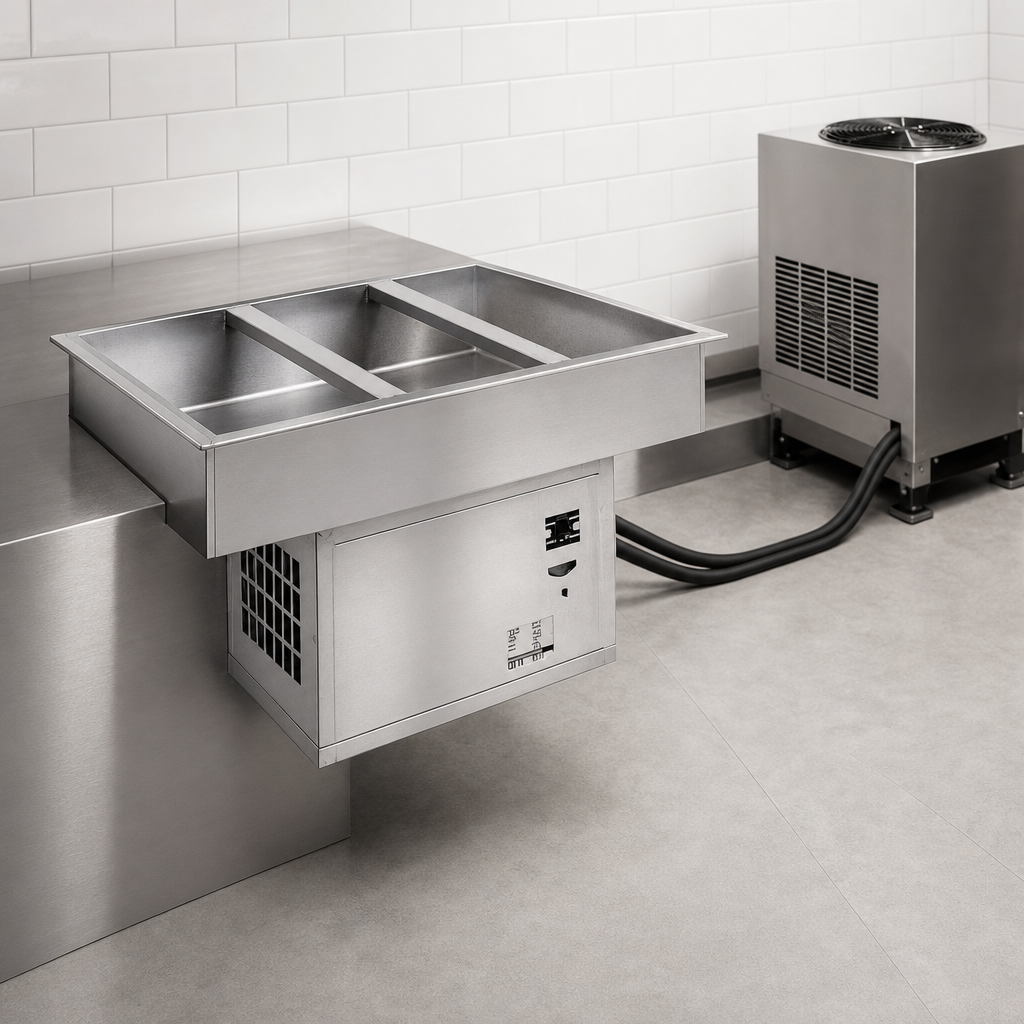

Remote Refrigeration Design

Built without an onboard compressor for remote installation flexibility.

Remote Refrigeration Design

Deep Pan Capacity

Designed to accommodate deeper pans or inserts, up to 9-3/4 inches deep.

Full-Size Pan Compatibility

Accepts standard 12" x 20" pans with separator channels; fractional pans can be used with optional adapter bars.

304 Stainless Steel Interior

The top and inner liner are constructed of 18-gauge Type 304 stainless steel for durability and sanitation.

Insulated Cabinet Construction

High-density polystyrene insulation is enclosed by a galvanized steel outer case to help maintain temperature.

Side and Bottom Cooling Tubing

Copper tubing is soldered to the exterior bottom and sides for consistent chilling.

Sealed Countertop Fit

A factory-applied vinyl gasket under the beaded edge helps seal the unit to the countertop and reduce seepage.

Drain Assembly Included

Includes a 3/4 inch drain with strainer, 4 inch PVC nipple, and valve.

Removable Separator Channels

Embossed mounting lugs hold removable separator channels in place.

Type Cold Pan
Style Remote Refrigeration
Installation Type Drop-In
Pan Capacity 3 Pans
Pan Size Full-Size 12 Inches x 20 Inches
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Stainless Steel & Galvanized Steel
Drain Connection Size 3/4 Inch
Drain Connection Required
Cut-Out Required 22-1/4 Inches x 41-3/4 Inches
Shipping Weight 171 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

No. This is a remote refrigeration model and is supplied without an onboard compressor.
It accommodates standard 12" x 20" pans with separator channels and can use fractional pans with optional adapter bars.
The unit is designed to accommodate pans up to 9-3/4 inches deep.
The unit has an 18-gauge Type 304 stainless steel top and inner liner, high-density polystyrene insulation, and a galvanized steel outer case.
It includes a 3/4 inch drain with strainer, a 4 inch PVC nipple, and a valve.
The unit includes a 1-year parts and labor warranty.
