Atlas Metal Deep Remote Refrigerated Drop-In Cold Pan, 1 Full-Size Pan
No Compressor Included; Stainless Steel Top and Inner Liner
Built for remote refrigeration, this deep drop-in cold pan keeps one full-size pan chilled in a fully insulated stainless steel design.
- Remote refrigeration model is sold without a compressor and requires a solenoid package.
- Deep 1-pan layout accommodates standard 12 x 20 pans and deep inserts up to 9-3/4 inches.
- 18-gauge type 304 stainless steel top and inner liner with a galvanized steel outer case.
- High-density polystyrene insulation and a factory-applied gasket help retain temperature and seal to the counter.
- Copper tubing around the bottom and sides supports consistent cooling performance.
- Includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.
- Proper counter ventilation is required during installation.
- Backed by a 1-year parts and labor warranty.
Product Weight:

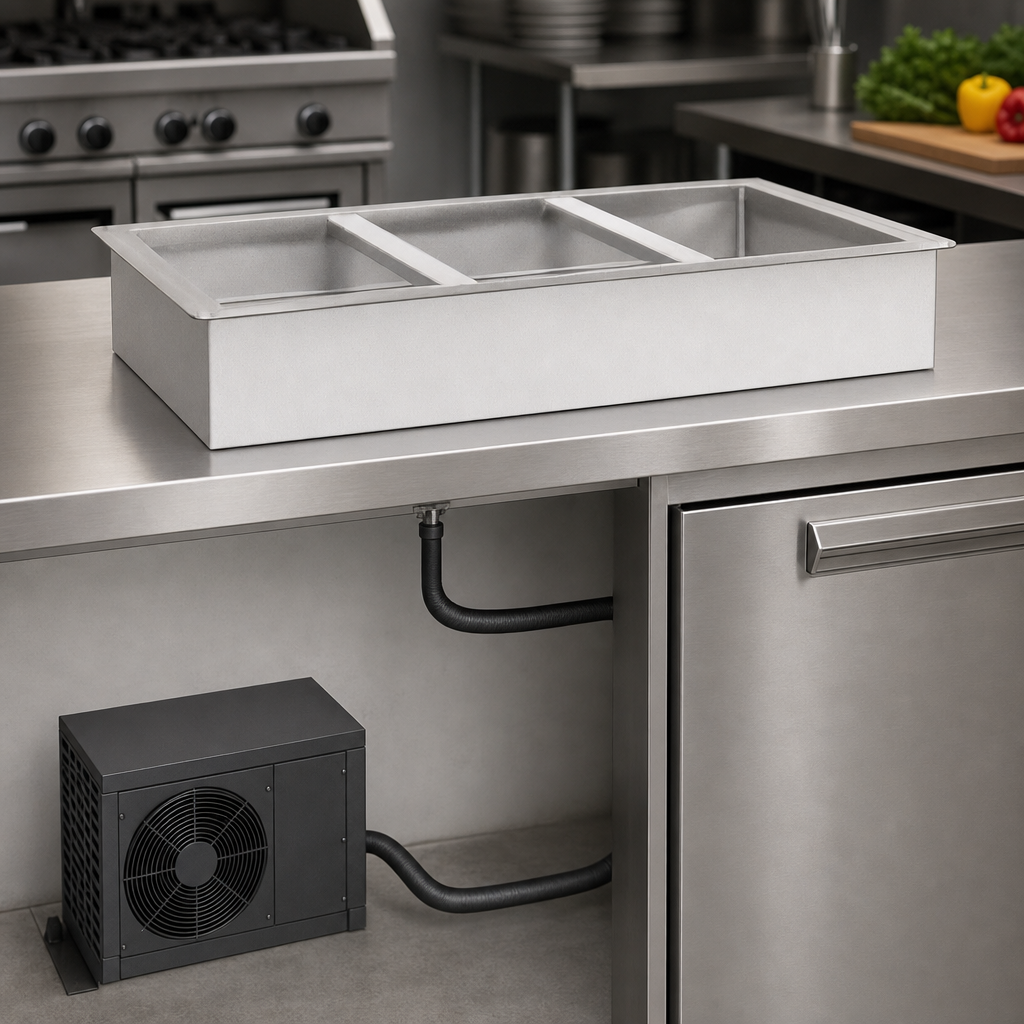

67.0 lbRemote Refrigeration Design
Designed for a remote condensing system with no compressor included in the unit.
Deep Pan Capacity
Accommodates the deepest pan or insert, up to 9-3/4 inches deep.
304 Stainless Steel Interior
Built with an 18-gauge type 304 stainless steel top and one-piece welded inner liner for durability and easy cleaning.
Insulated Construction
High-density polystyrene insulation on all sides and the bottom helps improve efficiency and energy savings.
Galvanized Steel Outer Case
A 22-gauge galvanized steel outer case supports the insulated pan assembly.
Copper Refrigeration Tubing
Copper tubing is soldered to the exterior bottom and sides for refrigerated cooling performance.
Countertop Sealing Gasket
A solid vinyl gasket under the beaded edge helps seal the unit to the countertop and prevent seepage.
Drain Assembly
Includes a 3/4-inch drain with strainer, 4-inch PVC nipple, and valve.
Fractional Pan Flexibility
Designed for standard 12 x 20 pans with separator channels; optional adapter bars or plates support fractional pans.
Installation Note
Proper ventilation must be provided in the counter, and the WCMD-C-X remote refrigeration models require a solenoid package.
Warranty & Protection
1-year parts and labor
