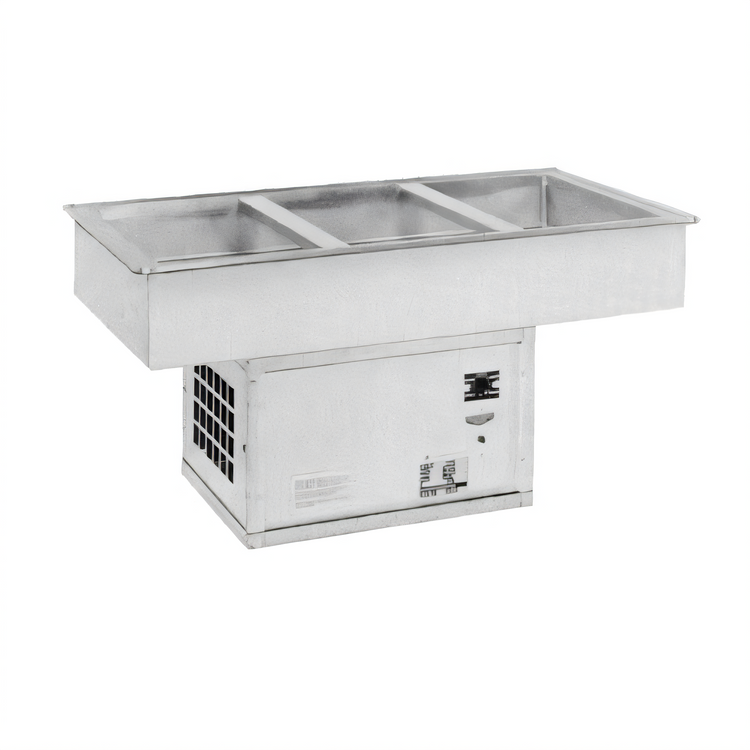

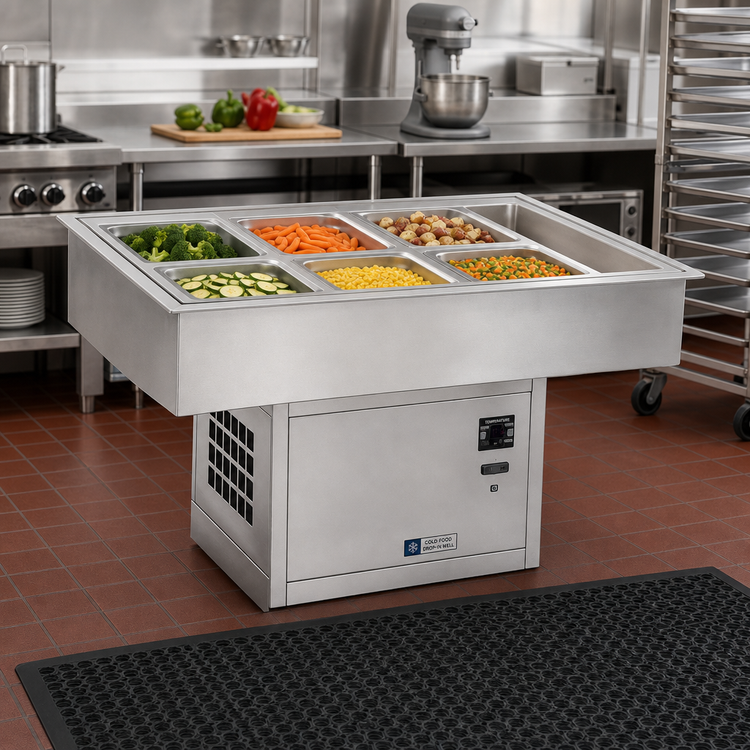

Atlas Metal WCMD-C-6 Self-Contained Refrigerated 6-Pan Cold Food Drop-In Well

SKU: WCMD-C-6
$6,340.47
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

Atlas Metal WCMD-C-6 Self-Contained Refrigerated 6-Pan Cold Food Drop-In Well

Full-Size, Deep Design, Self-Contained Refrigeration

Keep your culinary creations perfectly chilled and ready for service with the Atlas Metal WCMD-C-6, a high-efficiency 6-pan self-contained cold food drop-in unit designed for seamless integration into any serving line.

  • Accommodates up to six full-size 12" x 20" food pans, 9-3/4" deep.
  • Features self-contained refrigeration with copper tubing on the bottom and all sides for superior cold retention.
  • Fully insulated with high-density polystyrene for maximum energy efficiency.
  • Durable 18 gauge 304 stainless steel top and inner liner ensure longevity and easy cleaning.
  • Factory-applied gasket simplifies installation and prevents seepage into the counter top.
  • Equipped with an on/off thermostat switch and pilot light for straightforward operation.

Overall Dimensions:

84.75"W x 24.0"D x 24.75"H

Product Weight:

326.0 lb

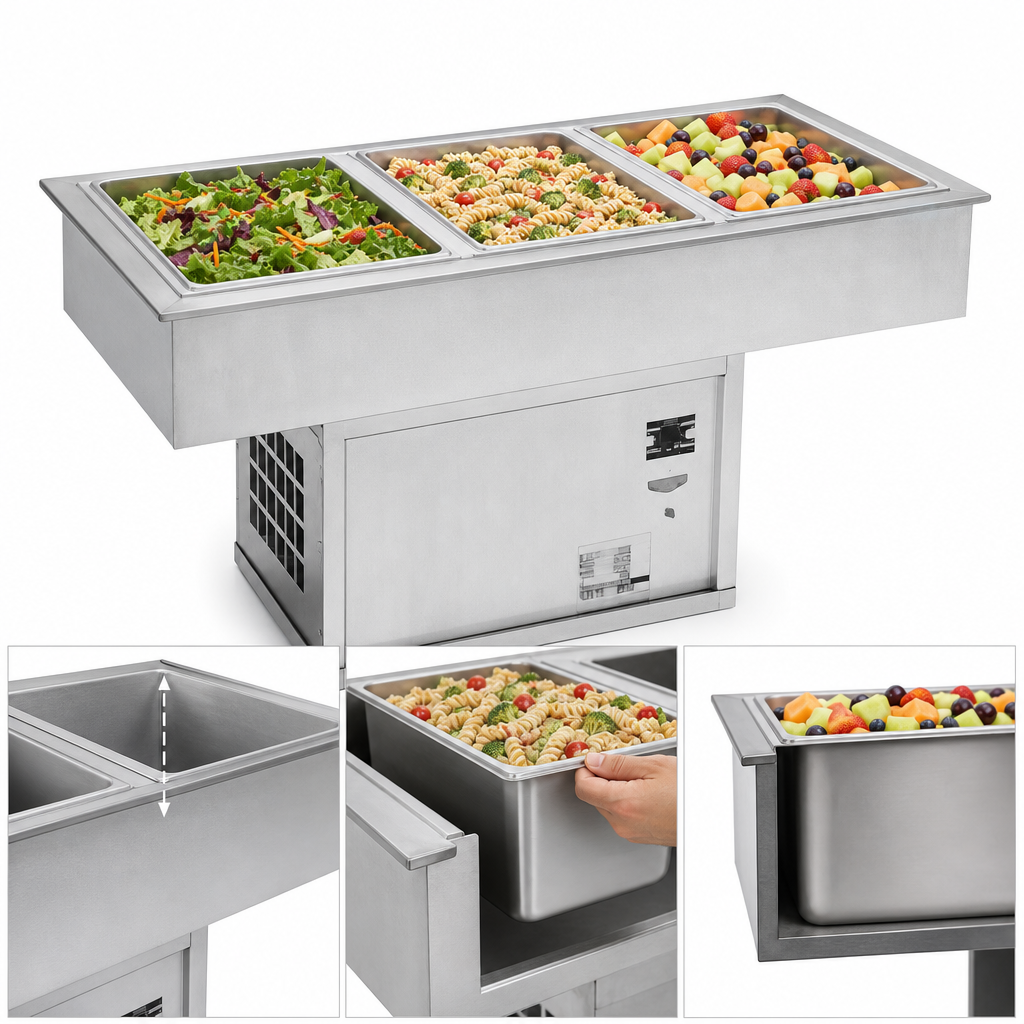

Accommodates Deep Pans

Designed to accommodate your deepest food pans or inserts, up to 9-3/4 inches deep, providing versatile storage for various menu items.

Accommodates Deep Pans

Advanced Refrigeration System

Features refrigerated copper tubing firmly soldered around the bottom and all sides of the inner liner, ensuring even cooling and meeting stringent health department standards for food safety.

Energy Efficient Insulation

The pan is fully insulated with 1/2-inch thick high-density polystyrene on all sides and 1-1/2 inches thick on the bottom, maximizing efficiency and saving energy.

Durable Stainless Steel Construction

Constructed with an 18 gauge, type 304 stainless steel top and inner liner, providing excellent corrosion resistance and a long service life.

Easy Installation with Gasket

A solid vinyl gasket is factory-applied under the beaded edge of the top, ensuring a quick and easy installation while creating a reliable seal to the counter top, preventing seepage and marring.

Flexible Pan Configuration

Accommodates standard 12" x 20" full-size pans with removable separator channels, and can also hold fractional size pans with the use of optional adapter bars.

Integrated Drain System

Includes a 3/4 inch diameter drain with a strainer, 4-inch PVC nipple, and valve for convenient and efficient water removal.

User-Friendly Controls

Comes wired with an on/off thermostat switch and a pilot light for simple and intuitive temperature management.

Type Cold Food Drop-In Unit
Style Self-Contained Refrigeration
Pan Capacity 6 Full-Size Pans
Pan Size 12" x 20" Full-Size
Pan Depth Accommodation 9-3/4 Inches
Installation Type Drop-In
Material Stainless Steel Top & Liner, Galvanized Steel Outer Case
Interior Finish 304 Stainless Steel
Exterior Finish Galvanized Steel
Insulation High Density Polystyrene
Refrigeration Type Self-Contained
Refrigerant Type R513A
Refrigerant Charge 13.5 oz
Horsepower 1/3 HP
BTU M10 90A 850
Operating Temperature 32 to 40 F
Voltage 120 Volts
Amps 6.5 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Controls On/Off Thermostat Switch
Drain Connection Size 3/4 Inch
Cut-Out Width 83 Inches
Cut-Out Depth 22-1/4 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 85 Inches
Shipping Depth 24 Inches
Shipping Height 25 Inches
Shipping Weight 326.0 lb.

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

This cold food drop-in unit is designed to accommodate food pans or inserts up to 9-3/4 inches deep, allowing for deep storage of various food items.
Yes, the unit includes a 3/4 inch diameter drain with a strainer, a 4-inch PVC nipple, and a valve, which requires connection to a suitable drain system.
The WCMD-C-6 operates on 120 Volts, single phase, drawing 6.5 Amps. It comes with a 6-foot, 3-wire cord and a NEMA 5-15P plug.
No, these units have not been performance tested for use with potentially hazardous foods without ice. They must be used with ice to maintain proper food temperatures.
Yes, the self-contained refrigeration system is fully charged with CFC-free R513A refrigerant and is ready to operate upon installation, provided proper ventilation is ensured.
