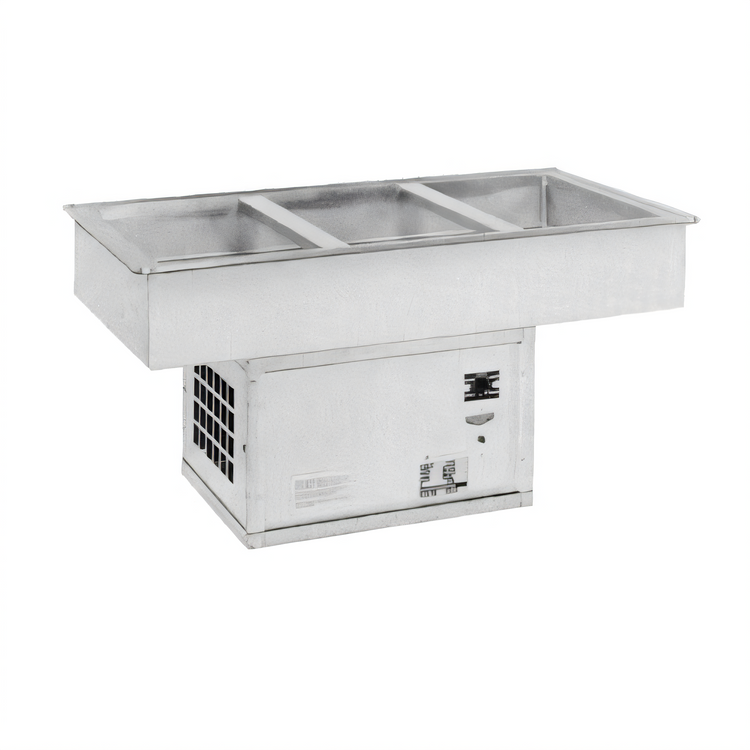

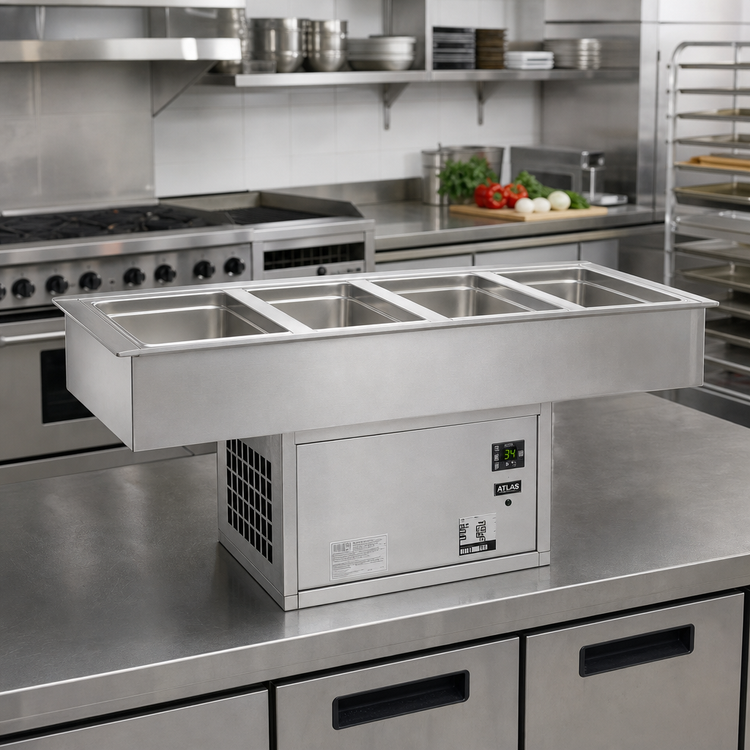

Atlas Metal WCMD-C-5 5-Pan Cold Food Drop-In Well with Self-Contained Refrigeration

5 Full-Size Pan Capacity, Self-Contained, Deep Design, Stainless Steel

Keep your cold foods perfectly chilled and ready for serving with the durable and efficient Atlas Metal WCMD-C-5 self-contained cold food drop-in well.

  • Accommodates up to five full-size 12" x 20" pans, offering ample capacity for various cold dishes.
  • Features self-contained refrigeration with copper tubing on bottom and all sides for uniform, efficient cooling.
  • Fully insulated with high-density polystyrene for maximum temperature retention and energy savings.
  • Constructed with 18 gauge 304 stainless steel top and inner liner, ensuring durability and easy cleaning.
  • Deep design liner (9-3/4" deep) accommodates your deepest pans or inserts.
  • Factory-applied gasket simplifies installation and provides a secure, leak-proof seal to the countertop.

Overall Dimensions:

71.0"W x 24.0"D x 24.75"H

Product Weight:

258.0 lb

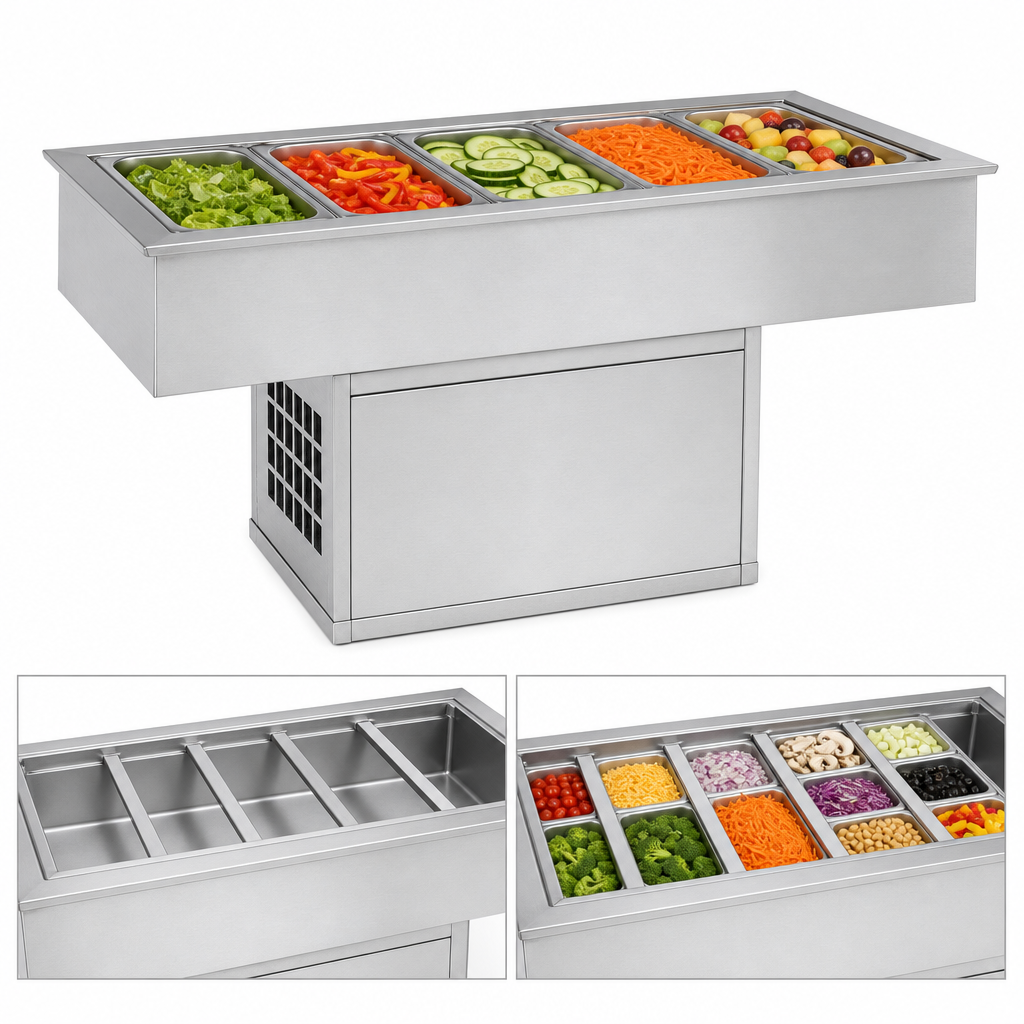

Pan Capacity

Designed to accommodate five standard 12" x 20" pans using removable separator channels, or fractional size pans with optional adapter bars.

Pan Capacity

Deep Design Liner

The 9-3/4" deep inner liner can hold your deepest pans or inserts, meeting strict health department standards.

Efficient Refrigeration

Equipped with refrigerated copper tubing soldered around the bottom and all sides of the liner for consistent, even cooling.

Self-Contained System

Includes a fully self-contained condensing unit with a hermetically sealed compressor and thermostat control for immediate operation.

Superior Insulation

Pan is fully insulated with 1/2" thick high-density polystyrene on all sides and 1-1/2" thick on the bottom for maximum thermal efficiency and energy conservation.

Durable Construction

Top and inner liner are constructed from 18 gauge, type 304 stainless steel, with a 22 gauge galvanized steel outer case, ensuring longevity and hygiene.

Easy Installation

Features a factory-applied vinyl gasket under the beaded edge for quick installation and a tight seal to the countertop, preventing seepage.

Integrated Drain

A 3/4" diameter drain with strainer, 4" PVC nipple, and valve is provided for easy cleaning and water removal.

User-Friendly Controls

Wired with an on/off thermostat switch and pilot light for simple operation and temperature management.

CFC-Free Refrigerant

System is fully charged with CFC-free refrigerant (R513A), supporting environmental sustainability.

Type Cold Food Drop-In
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 5 Full-Size Pans
Pan Size 12" x 20"
Controls On/Off Thermostat Switch & Pilot Light
Interior Finish 304 Stainless Steel
Material Stainless Steel & Galvanized Steel
Finish Stainless Steel & Galvanized Steel
Refrigeration Type Self-Contained
Refrigerant Type R513A
Refrigerant Charge 13 oz.
Horsepower 1/3 HP
BTU 850
Temperature Range 32 to 40 F
Voltage 120 Volts
Amps 6.5 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Drain Connection Size 3/4 Inches
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 71 Inches
Shipping Depth 24 Inches
Shipping Height 25 Inches
Shipping Weight 258.0 lb.

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The WCMD-C-5 is designed to hold five full-size (12" x 20") pans. It can also accommodate fractional size pans with the use of optional adapter bars.
No, the WCMD-C-5 features a fully self-contained refrigeration system with a hermetically sealed compressor, making it ready to operate upon installation.
The unit requires 120 Volts, 1-Phase, 6.5 Amps, and comes with a 6-foot cord and NEMA 5-15P plug.
Yes, the pan is fully insulated with high-density polystyrene, 1/2" thick on all sides and 1-1/2" thick on the bottom, for maximum efficiency and energy savings.
The manufacturer states that these units have not been performance tested for use with potentially hazardous foods without ice, and therefore must be used with ice.
The recommended countertop cut-out dimensions for the WCMD-C-5 are 22-1/4" X 69-1/4" (56.5 X 175.8 cm).
