Atlas Metal WCMD-C-4 4-Pan Self-Contained Refrigerated Drop-In Cold Well
Deep Design, Stainless Steel, Self-Contained Refrigeration
Keep your cold foods perfectly chilled and ready for serving with this efficient 4-pan self-contained drop-in cold well, designed for seamless integration into your counter.
- Accommodates up to four full-size 12" x 20" food pans, 9-3/4" deep.
- Features self-contained refrigeration with side and bottom coils for consistent temperature control (32 to 40 F).
- Fully insulated with high-density polystyrene for maximum efficiency and energy savings.
- Durable 304 stainless steel inner liner and top, with a galvanized steel outer case.
- Factory-applied gasket ensures easy installation and a tight seal to the counter top.
- Equipped with a 3/4" diameter drain, strainer, PVC nipple, and valve for convenient maintenance.
Overall Dimensions:
57.25"W x 24.0"D x 24.75"HProduct Weight:

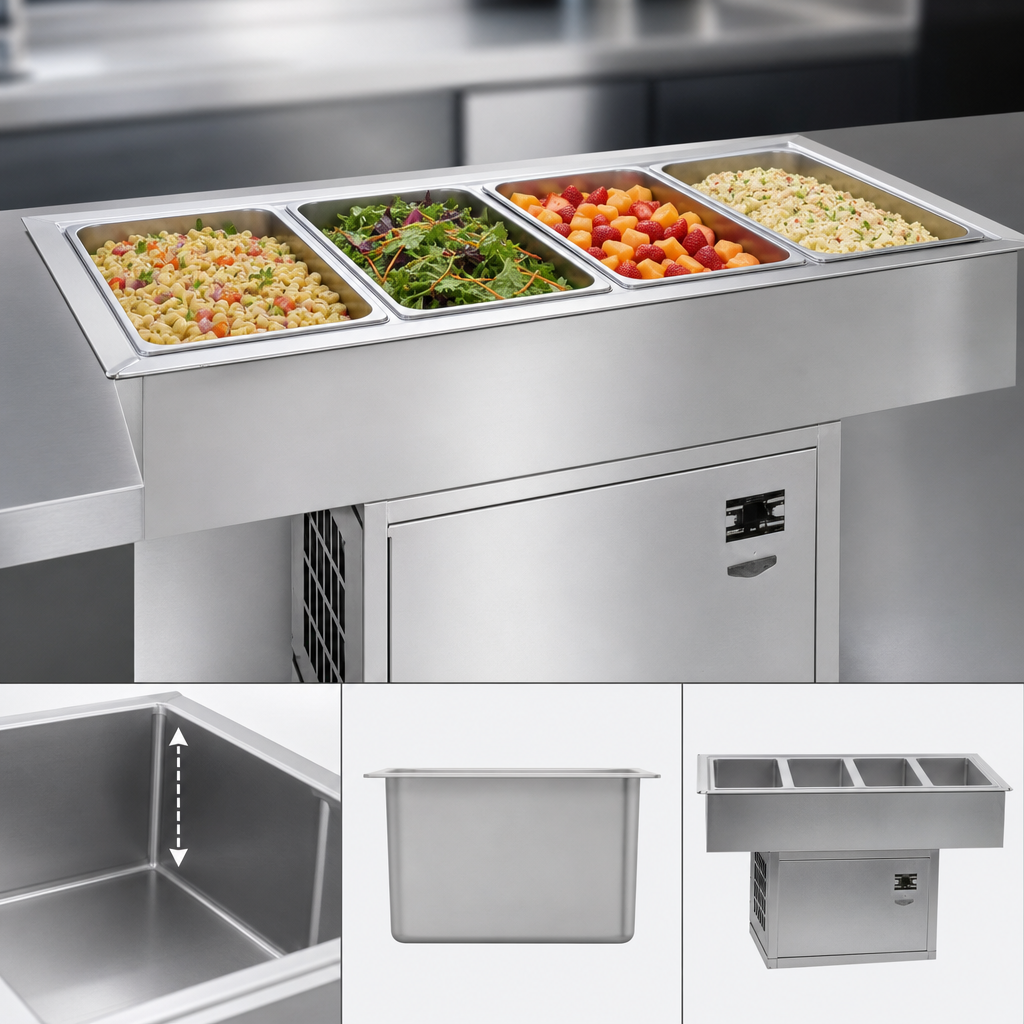

242.0 lbDeep Pan Accommodation
Designed to accommodate your deepest pan or insert, up to 9-3/4 inches deep, allowing for versatile food presentation and increased capacity.
Efficient Refrigeration System
Refrigerated copper tubing is firmly soldered around the bottom and all sides of the inner liner, ensuring uniform cooling and meeting strict health department standards. The system is fully charged with CFC-free refrigerant.
Self-Contained Condensing Unit
Includes a hermetically sealed compressor and a thermostat control for convenient and independent operation, requiring proper counter ventilation.
Superior Insulation
The pan is fully insulated with 1/2-inch thick high-density polystyrene on all sides and 1-1/2-inch thick on the bottom, maximizing efficiency and promoting energy savings.
Easy Installation
A factory-applied solid vinyl gasket under the beaded edge of the top forms a seal to the counter top, preventing seepage and marring, and simplifying the installation process.
Durable Construction
Constructed with an 18-gauge, type 304 stainless steel top and inner liner, with a 22-gauge galvanized steel outer case, ensuring longevity and resistance to corrosion.
Integrated Drain System
A 3/4-inch diameter drain with a strainer, 4-inch PVC nipple, and valve is provided for easy water removal and cleaning.
Warranty & Protection
1-Year Parts & Labor Warranty
