Atlas Metal WCMD-C-3 3-Pan Refrigerated Drop-In Cold Pan, Deep Design
Self-Contained, Side-Coil Cooling, 120V
Keep three full-size pans chilled in a durable, deep drop-in cold pan with self-contained refrigeration and stainless steel food-contact surfaces.
- Self-contained refrigerated cold pan sized for 3 full-size pans.
- Deep layout accommodates pans or inserts up to 9-3/4 inches deep.
- 18 gauge 304 stainless steel top and inner liner with galvanized steel outer case.
- Fully insulated for improved efficiency and temperature retention.
- Standard 120V, 15A, single-phase electrical package with 6-foot cord and NEMA 5-15P plug.
- Includes drain assembly, on/off thermostat switch, and pilot light.
- Compatible with standard 12 x 20 pans using separator channels; optional adapter bars support fractional pans.
Overall Dimensions:
43.5"W x 24.0"D x 24.75"HProduct Weight:

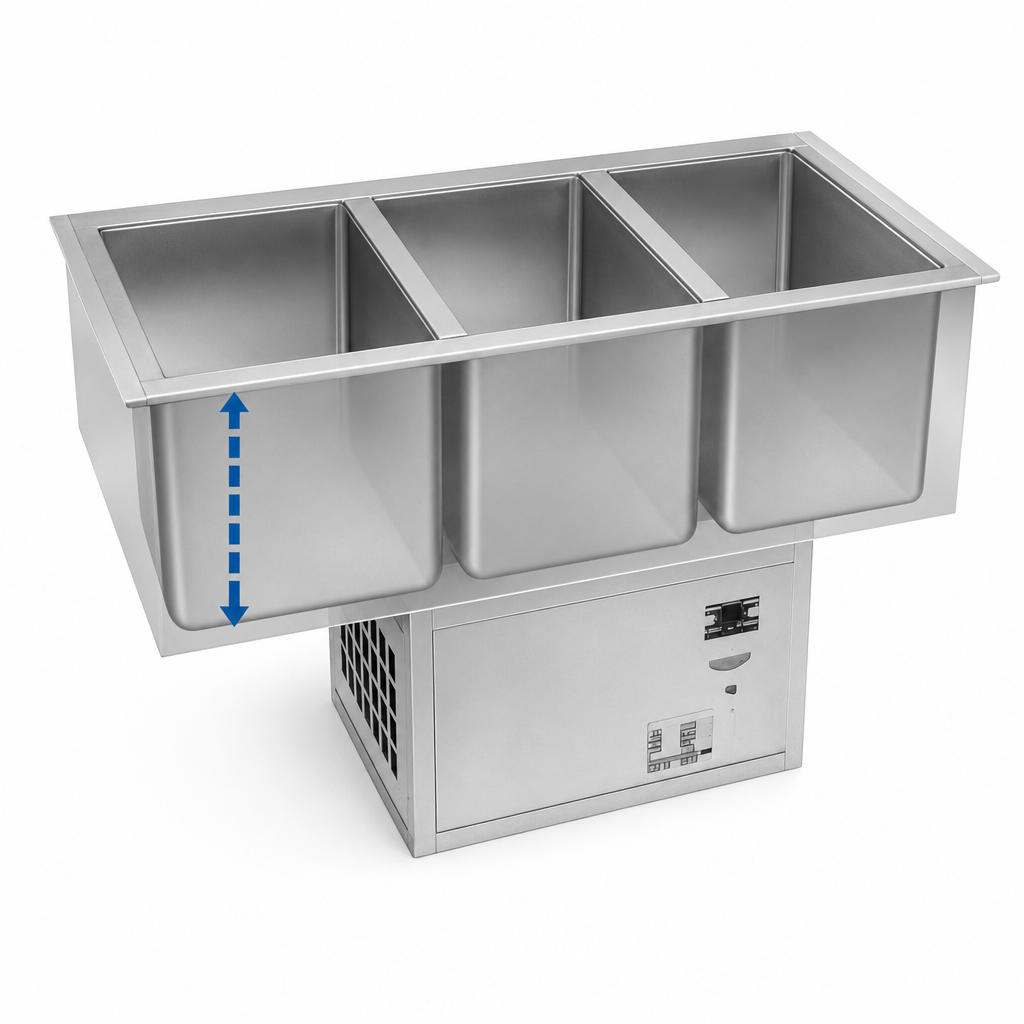

210.0 lbDeep Drop-In Design
Accommodates the deepest pans or inserts up to 9-3/4 inches deep.
Stainless Steel Top
18 gauge type 304 stainless steel top with a raised perimeter bead and solid vinyl gasket for a clean countertop seal.
One-Piece Inner Liner
18 gauge type 304 stainless steel liner is welded, ground, and polished with coved corners for easier cleaning.
Side-Coil Refrigeration
Copper tubing is soldered to the exterior bottom and sides to help chill product evenly.
Fully Insulated Body
High-density polystyrene insulation and a galvanized steel outer case help improve efficiency.
Self-Contained Condensing Unit
Factory-installed condensing unit uses a hermetically sealed compressor and thermostat control and is charged with CFC-free refrigerant.
Electrical Package
Wired for 15 amps, 120 volts, single-phase operation with an on/off thermostat switch, pilot light, 6-foot cord, and NEMA 5-15P plug.
Drain Assembly Included
Supplied with a 3/4-inch drain, strainer, 4-inch PVC nipple, and valve.
Pan Compatibility
Accepts standard 12 x 20 pans with separator channels and fractional pans with optional adapter bars.
Use Limitation
Not performance tested for potentially hazardous foods and must be used with ice.
Warranty & Protection
1-year parts and labor
