Atlas Metal WCMD-C-2 2-Pan Drop-In Refrigerated Cold Well, Deep Design, Self-Contained

Fits Standard 12" x 20" Pans

Keep cold foods ready for service with a deep, self-contained drop-in cold well built for two full-size pans and durable stainless steel construction.

  • Deep drop-in refrigerated cold pan with side coils for dependable cold holding.
  • Self-contained refrigeration system arrives ready to install and operate.
  • 18-gauge 304 stainless steel top and inner liner with galvanized steel outer case.
  • Fully insulated design helps improve efficiency and temperature retention.
  • Holds standard 12" x 20" pans; fractional pans can be used with optional adapter bars.
  • 120V electrical package includes an on/off thermostat switch, pilot light, and NEMA 5-15P plug.

Overall Dimensions:

29.75"W x 24.0"D x 24.75"H

Product Weight:

156.0 lb

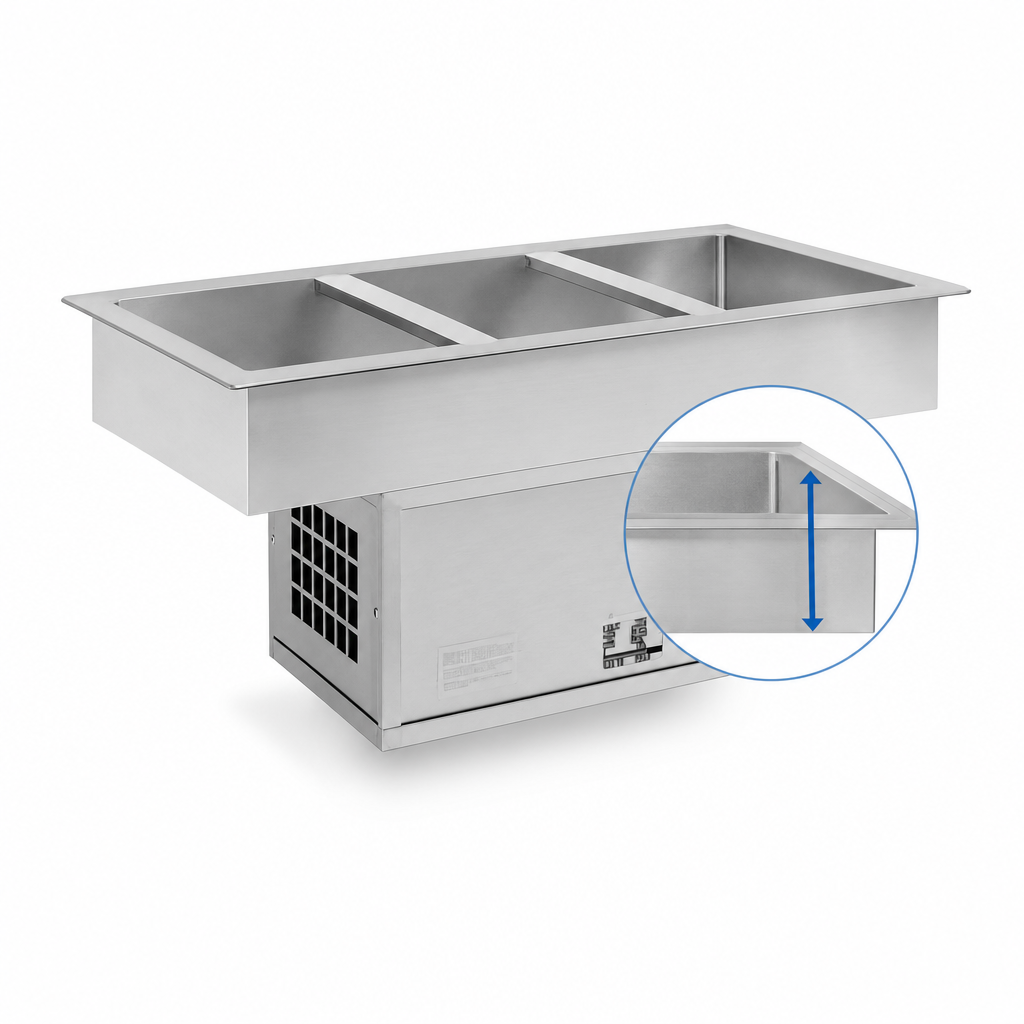

Deep Drop-In Design

Built for counter installation with a deep layout that accommodates your deepest inserts.

Deep Drop-In Design

Side Coil Refrigeration

Copper tubing is soldered to the exterior bottom and all sides for efficient cold transfer.

Self-Contained Condensing Unit

Includes a hermetically sealed compressor and thermostat control, fully charged and ready to operate.

Stainless Steel Food Zone

18-gauge type 304 stainless steel top and one-piece welded inner liner provide a durable food-contact surface.

Insulated Pan Construction

High-density polystyrene insulation and a galvanized steel outer case help improve efficiency.

Standard Pan Compatibility

Designed to accept standard 12" x 20" pans with separator channels; fractional pans can use optional adapter bars.

Drain Assembly Included

Supplied with a 3/4" drain, strainer, 4" PVC nipple, and valve.

120V Electrical Package

Wired for 15 amps, 120 volts, single-phase operation with a 6' cord, NEMA 5-15P plug, on/off thermostat switch, and pilot light.

Type Refrigerated Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 2 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls On/Off Thermostat
Temperature Range 32 to 40 Degrees F
Refrigerant Type R513A
BTU 450 BTU
Voltage 120 Volts
Amps 15 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Material Stainless Steel
Interior Finish 304 Stainless Steel
Finish Galvanized Steel
Shipping Width 30 Inches
Shipping Depth 24 Inches
Shipping Height 25 Inches
Shipping Weight 156 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-Year Parts & Labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It accommodates standard 12" x 20" pans with separator channels, and fractional pans can be used with optional adapter bars.
Yes. The unit uses a fully self-contained condensing system with a hermetically sealed compressor and thermostat control.
The unit is wired for 120 volts, 15 amps, single-phase operation and includes a 6' cord with a NEMA 5-15P plug.
The refrigeration chart lists an operating temperature range of 32 to 40 F.
Yes. The documentation notes that proper ventilation must be provided in the counter.
The standard warranty is 1 year parts and labor, and a 5-year compressor warranty is available as accessory 5YW.
