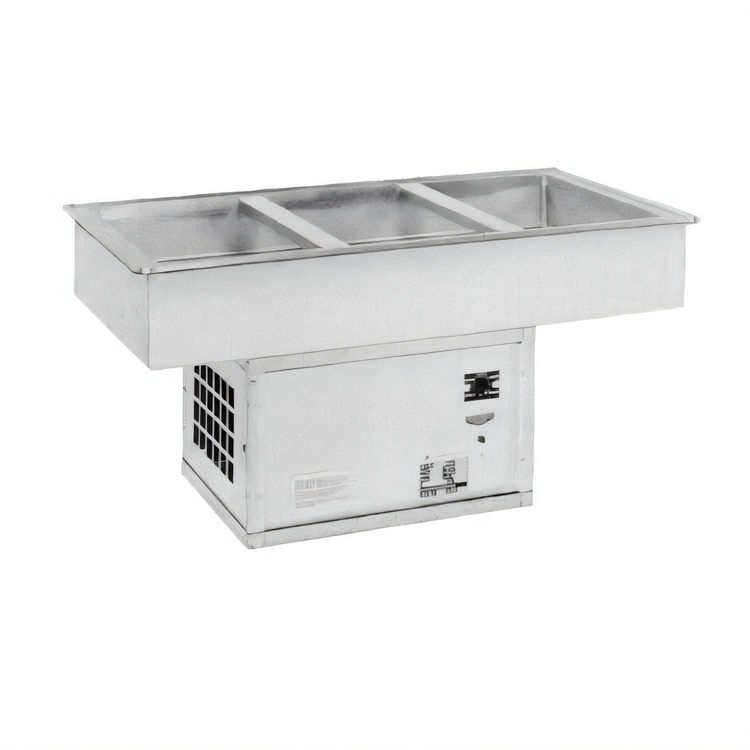

Atlas Metal WCMD-C-1 Self-Contained Refrigerated Drop-In Cold Pan, 1 Full-Size Pan, Deep Design
Atlas Metal WCMD-C-1 Self-Contained Refrigerated Drop-In Cold Pan, 1 Full-Size Pan, Deep Design
Side Coils, 120V, 1-Phase, Stainless Steel Top and Liner

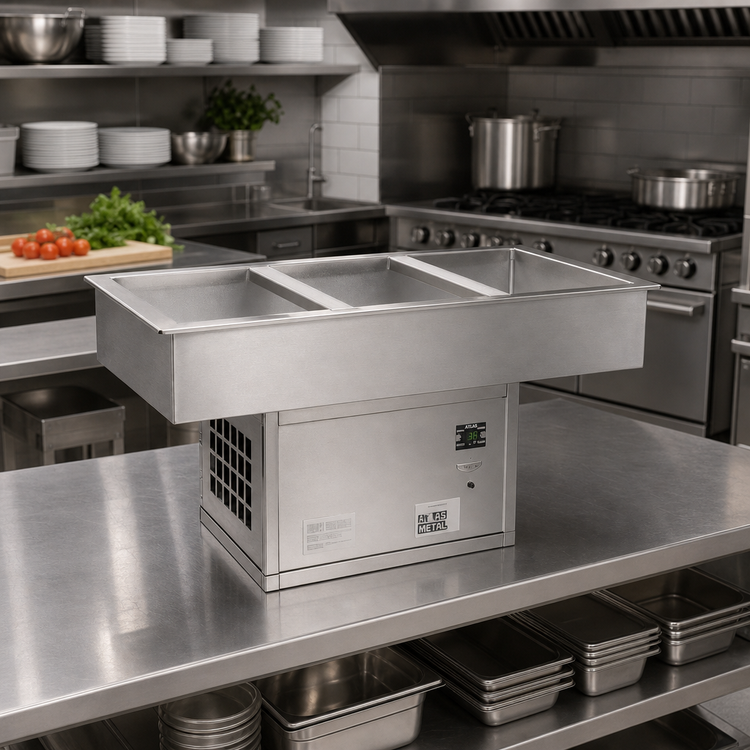

A compact, self-contained refrigerated drop-in cold pan that keeps one full-size pan of ingredients chilled in a deep, fully insulated design.
- Self-contained refrigerated cold pan for drop-in serving lines and buffet applications.
- Fits 1 full-size 12" x 20" pan and supports fractional pans with optional adapter bars.
- Deep 9-3/4" pan capacity accommodates taller inserts and larger ingredient volume.
- 304 stainless steel top and inner liner with a galvanized steel outer case for durability.
- On/off thermostat switch, pilot light, 6-foot cord, and NEMA 5-15P plug included.
- Factory-applied gasket and insulated construction help seal to the countertop and improve efficiency.
Overall Dimensions:
16.0"W x 24.0"D x 24.75"HProduct Weight:

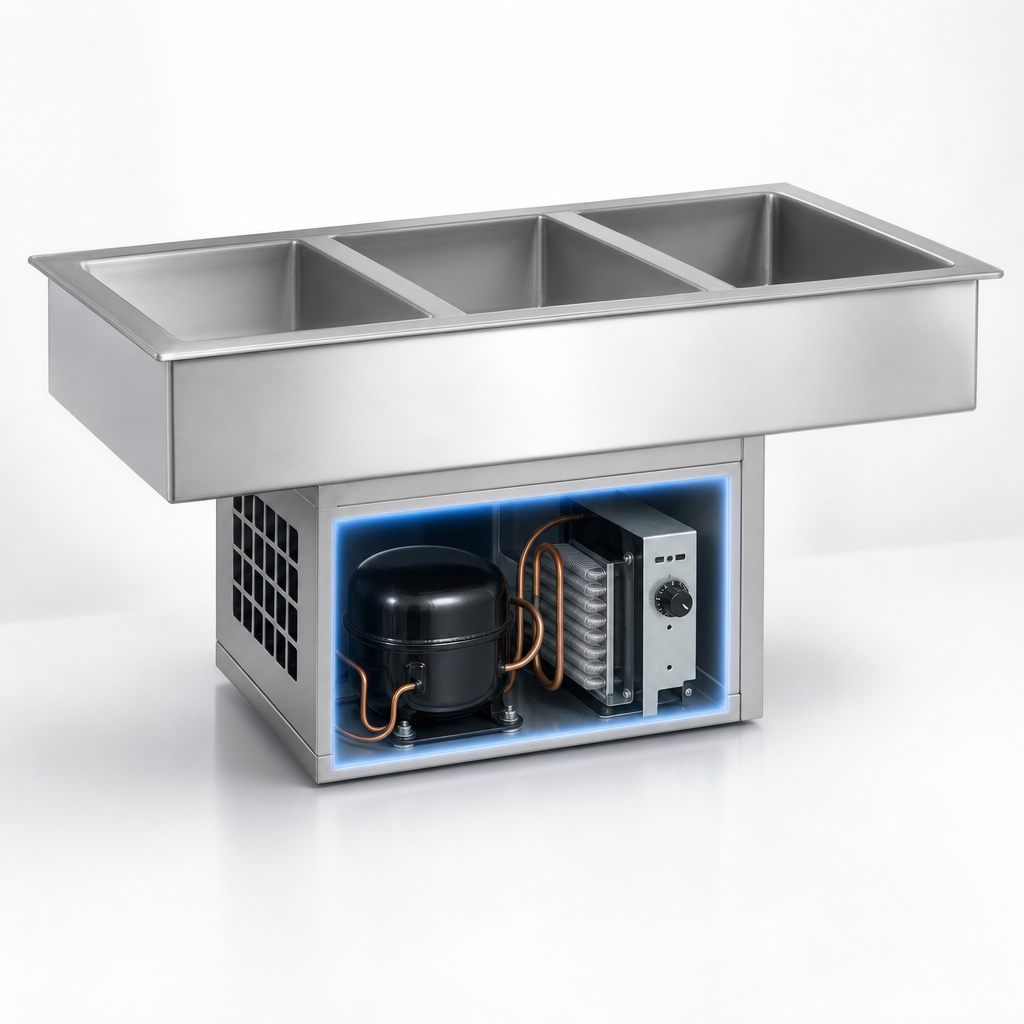

118.0 lbSelf-Contained Refrigeration
Built-in condensing unit with a hermetically sealed compressor and thermostat control; ready to operate.
Side Coil Cooling
Copper tubing is soldered to the exterior bottom and all sides for even refrigeration.
Full-Size Pan Compatibility
Accommodates standard 12" x 20" pans with separator channels; optional adapter bars support fractional pans.
Deep Pan Capacity
Designed to hold deep inserts up to 9-3/4 inches.
304 Stainless Steel Top and Liner
Die-stamped top and welded inner liner provide durability and a cleanable food-contact surface.
Fully Insulated Cabinet
High-density polystyrene insulation and a galvanized steel outer case help hold temperature efficiently.
Electrical and Drain Package
Includes an on/off thermostat switch, pilot light, 6-foot cord with NEMA 5-15P plug, and a 3/4-inch drain with strainer, PVC nipple, and valve.
Countertop Sealing Gasket
Factory-applied vinyl gasket helps seal the unit to the counter and reduce seepage.
Warranty & Protection
1-Year Parts & Labor
