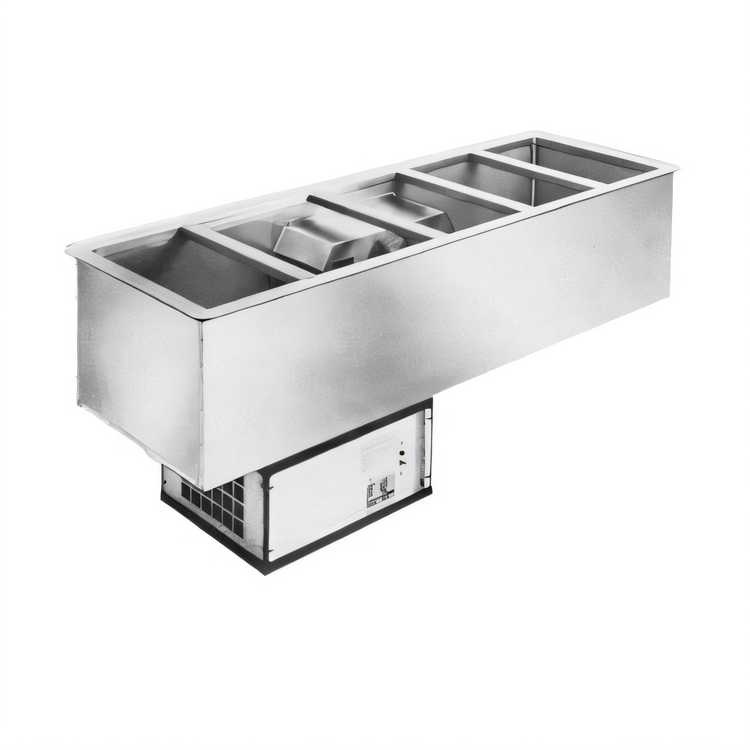

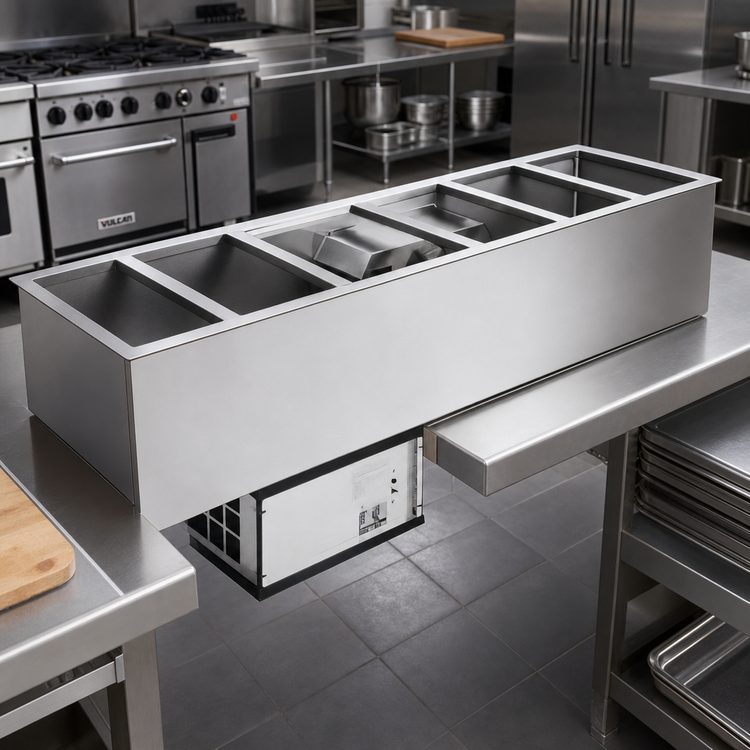

Atlas Metal WCM-BT-6 6-Pan Full-Size Drop-In Refrigerated Cold Pan with Air Flow System

Self-Contained, 120V, Stainless Steel

Keep your cold food items perfectly chilled and accessible with this Atlas Metal WCM-BT-6 self-contained drop-in cold pan, designed for maximum efficiency and energy savings.

  • Accommodates six full-size (12" x 20") food pans for ample serving capacity.
  • Features a forced air evaporator system for consistent and efficient cooling, maintaining optimal food product temperatures.
  • Fully self-contained refrigeration system with an automatic defrost ensures hassle-free operation and easy maintenance.
  • Constructed with durable 304 stainless steel top and inner liner, providing long-lasting performance and easy cleaning.
  • Insulated pan design with high-density polystyrene promotes maximum energy efficiency and retains cold temperatures effectively.
  • Simple drop-in installation with a factory-applied gasket for a secure seal to your countertop.

Overall Dimensions:

84.75"W x 24.0"D x 26.75"H

Product Weight:

345.0 lb

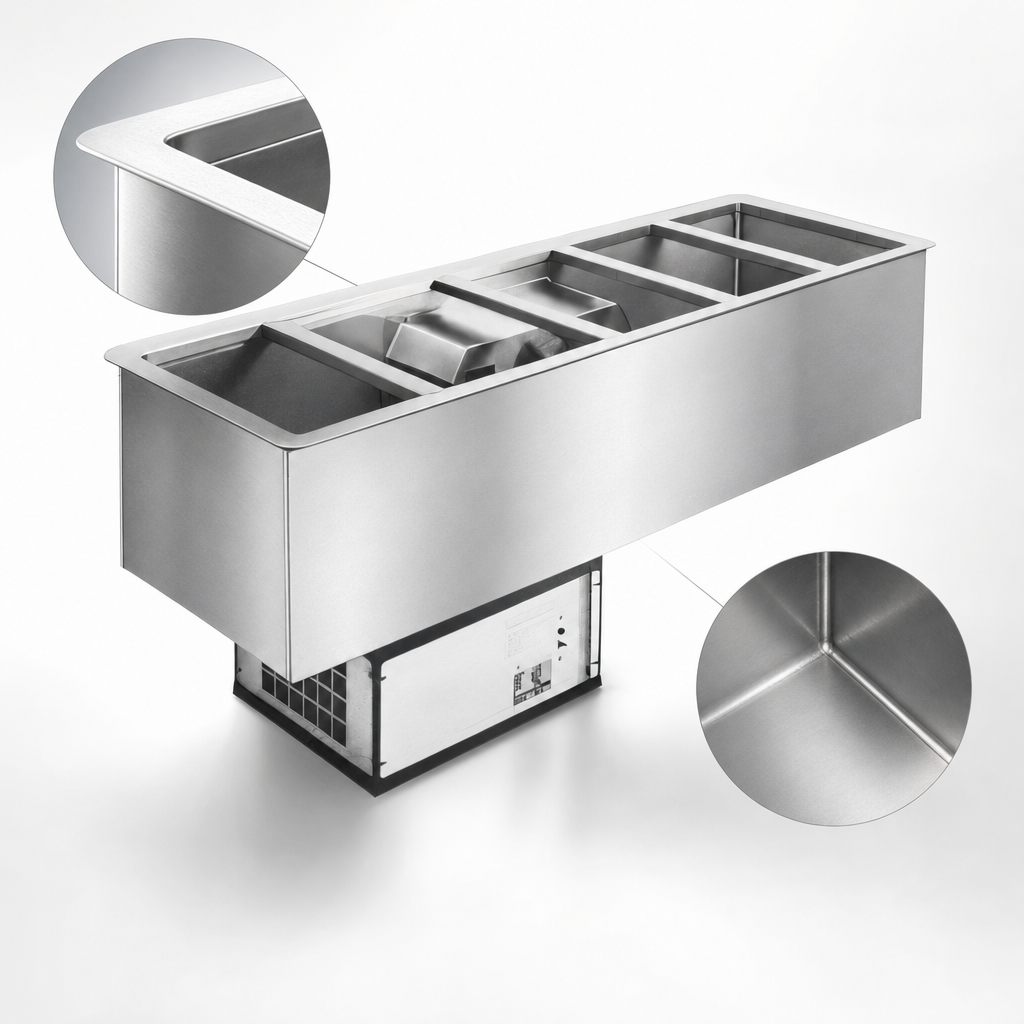

Durable Stainless Steel Construction

Top is constructed of 18 gauge, type 304 stainless steel with a raised perimeter bead. The inner liner is 18 gauge, type 304 stainless steel, one-piece construction, all welded, ground and polished to a uniform finish with coved corners.

Durable Stainless Steel Construction

Efficient Air Flow Refrigeration System

Equipped with a forced air evaporator blower system for maximum cooling efficiency and more consistent food product temperatures throughout the pan.

Self-Contained Refrigeration

Features a fully self-contained condensing unit with a hermetically sealed 1/3 HP compressor and a thermostat control, pre-charged with CFC-free R513A refrigerant.

Automatic Defrost System

Includes an automatic defrost system and a condensate evaporator pre-wired in the unit, simplifying maintenance and ensuring continuous optimal performance.

Maximum Insulation

The pan is fully insulated with high-density polystyrene (1" thick on all sides, 2" thick on the bottom) for maximum efficiency and energy savings.

Easy Installation

A solid vinyl gasket under the beaded edge provides a seal to the countertop, preventing seepage and marring, and makes installation a snap.

Flexible Pan Configuration

Accommodates standard 12" x 20" pans with removable separator channels, or fractional size pans with optional adapter bars.

User-Friendly Controls

Wired for 120V single-phase operation with an on/off thermostat switch and pilot light, featuring a 6' long, 3-wire cord and NEMA 5-15P plug.

Type Cold Pan
Style Refrigerated Air Flow System
Installation Type Drop-In
Pan Capacity 6 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Material Stainless Steel, Galvanized Steel
Interior Finish 304 Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R513A
Horsepower 1/3 HP
Temperature Range 32 to 40 F
Controls Thermostat with Pilot Light & Automatic Defrost
Voltage 120 Volts
Amps 6.5 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Shipping Width 85 Inches
Shipping Depth 24 Inches
Shipping Height 27 Inches
Shipping Weight 345 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

For the WCM-BT-6 model, the required counter cut-out size is 22 1/4 inches x 83 inches.
Proper ventilation must be provided in the counter. It is recommended that the operator side of the counter be completely open for air circulation. If in an island counter, two grill openings of approximately 18" x 18" of free air for intake and exhaust at opposite ends of the counter are recommended.
The unit should be turned on one hour before serving and turned off after the serving period. It is designed for daily use and should not operate 24/7.
Clean the pans with soapy warm water and rinse thoroughly. Never use chloride-based products, steel wool, or abrasive materials, as this can void the warranty. The condenser coil should also be cleaned regularly.
Yes, the WCM-BT-6 is equipped with an automatic defrost system. A timer is installed to shut down the compressor for 15 minutes every 8 hours for defrosting.
