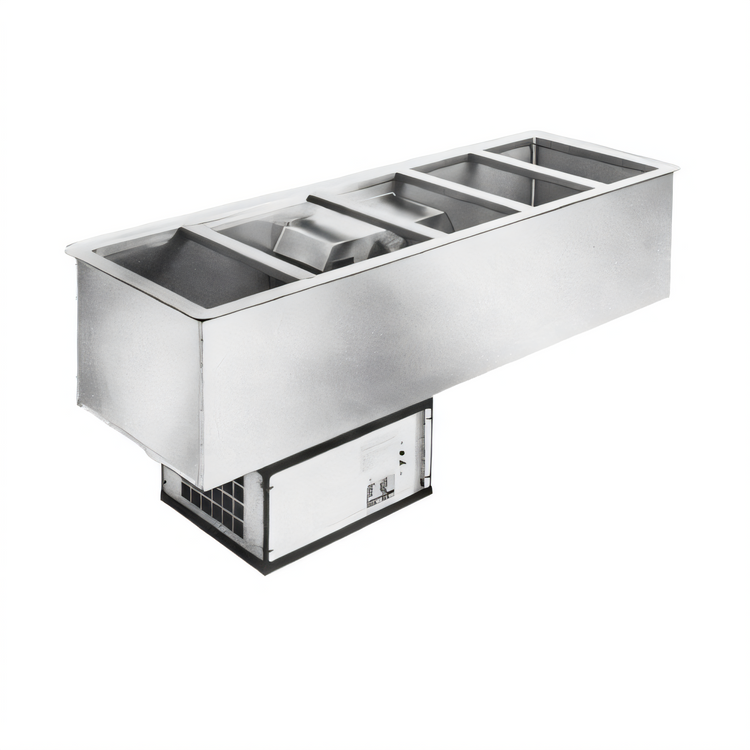

Atlas Metal WCM-BT-5 5-Pan Self-Contained Refrigerated Cold Food Drop-In Unit

5-Pan, Self-Contained Refrigeration, Full-Size Pan Capacity

Keep your cold food items at safe, consistent temperatures with the Atlas Metal WCM-BT-5 self-contained refrigerated drop-in cold pan, designed for maximum efficiency and easy installation.

  • Designed to hold 5 standard 12" x 20" full-size food pans.
  • Self-contained refrigeration with a forced air evaporator ensures consistent cold temperatures throughout.
  • Features an automatic defrost system for hassle-free operation and maintenance.
  • Fully insulated with high-density polystyrene for maximum efficiency and energy savings.
  • Durable 18 gauge, type 304 stainless steel inner liner and top construction ensures longevity.
  • Easy drop-in installation with a factory-applied gasket creating a secure seal to the countertop.
  • Equipped with an on/off thermostat switch and pilot light for simple temperature control.

Overall Dimensions:

71.0"W x 24.0"D x 26.75"H

Product Weight:

311.0 lb

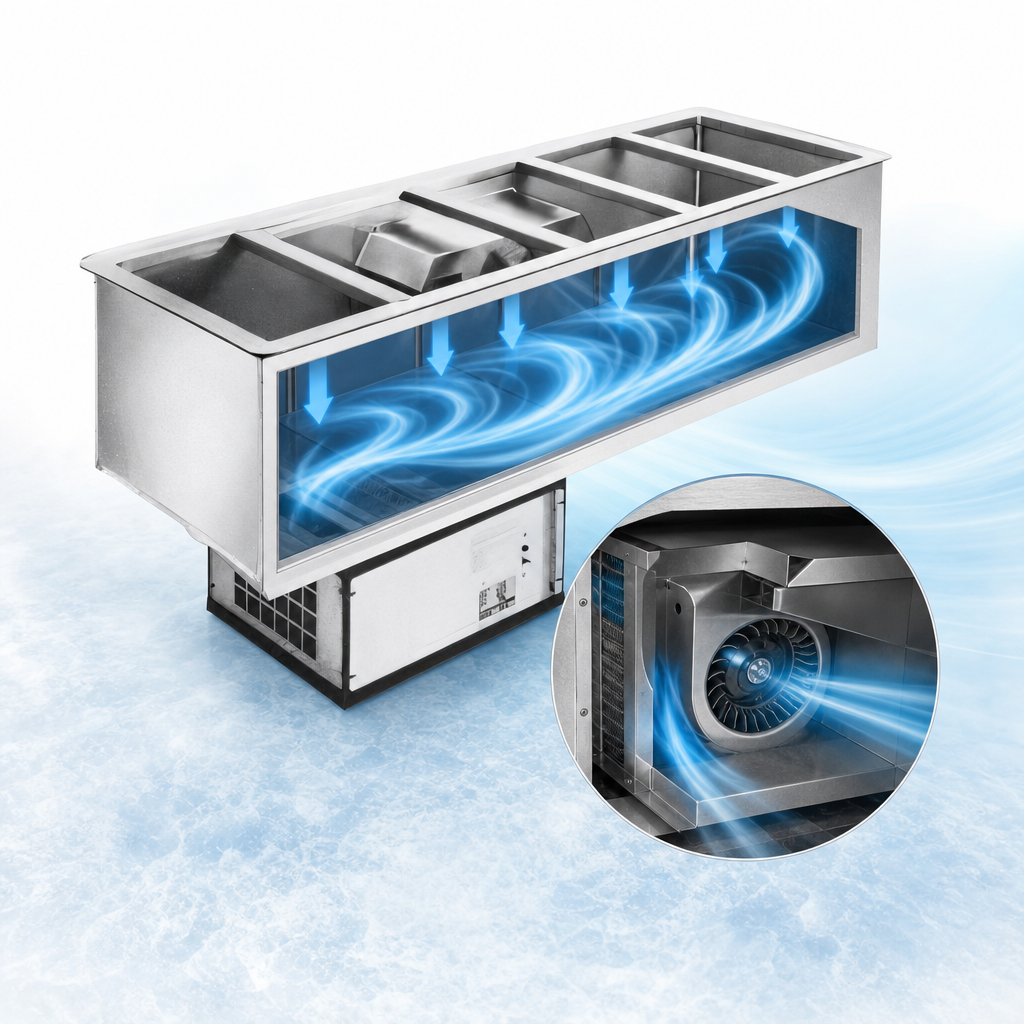

Forced Air Evaporator Blower System

Ensures maximum cooling efficiency and consistent food product temperatures throughout the pan for optimal food preservation.

Forced Air Evaporator Blower System

Automatic Defrost System

Automatically shuts down the compressor for 15 minutes every 8 hours, preventing ice buildup and ensuring continuous efficient operation without manual intervention.

Full Insulation

The pan is fully insulated with 1" thick high-density polystyrene on all sides and 2" thick on the bottom, enclosed in a 22 gauge galvanized steel outer case, for superior energy retention and efficiency.

Factory Applied Gasket

A solid vinyl gasket is factory-applied under the beaded edge of the top, ensuring a quick and easy drop-in installation while providing a tight seal to the countertop, preventing seepage and marring.

Accommodates Standard Pans

Designed to hold five standard 12" x 20" full-size pans with the use of removable separator channels, and can also accommodate fractional size pans with optional adapter bars.

Durable Stainless Steel Construction

The top and inner liner are constructed of heavy-duty 18 gauge, type 304 stainless steel, ensuring durability, hygiene, and resistance to corrosion, with a 22 gauge galvanized steel outer case.

Coved Corners

The inner liner features coved corners with a minimum 1/4" radius, making it easier to clean and maintain hygiene.

Self-Contained Condensate Evaporator

The unit includes a pre-wired condensate evaporator that drains condensed water, eliminating the need for external plumbing or manual emptying of a drip pan.

User-Friendly Controls

Equipped with an on/off thermostat switch and pilot light, offering temperature control settings from #1 (warmest) to #7 (coldest).

Type Cold Food Drop-In Unit
Style Refrigerated Cold Pan
Installation Type Drop-In
Pan Capacity 5 Full-Size Pans
Pan Size Accommodates 12" x 20" Full-Size Pans
Interior Finish 304 Stainless Steel
Material 18 Gauge 304 Stainless Steel Top & Liner, 22 Gauge Galvanized Steel Outer Case
Insulation High-Density Polystyrene
Refrigeration Type Self-Contained
Refrigerant Type R513A
Horsepower 1/3 HP
BTU 850 BTU
Temperature Range 32 to 40 F
Voltage 120 Volts
Amps 6.5 Amps
Phase 1-Phase
Hertz 60 Hz
Plug Type NEMA 5-15P
Cord Length 6 Feet
Controls Thermostat with On/Off Switch and Pilot Light
Shipping Width 71 Inches
Shipping Depth 24 Inches
Shipping Height 27 Inches
Shipping Weight 311 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Installation & operation PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The Atlas Metal WCM-BT-5 is designed to maintain food product temperatures within a range of 32 to 40 F.
This unit is designed to accommodate 5 standard 12" x 20" full-size food pans, using removable separator channels. It can also hold fractional size pans with optional adapter bars.
The WCM-BT-5 requires a 120 Volt, 1-Phase, 60 Hz electrical connection. It comes with a 6-foot long cord and a NEMA 5-15P plug, drawing 6.5 Amps.
Regular maintenance includes cleaning the condenser coil, which should be done regularly. Pans should be cleaned with soapy warm water and rinsed thoroughly; avoid chloride-based products, steel wool, or abrasives, as they can void the warranty.
No, the unit features a self-contained condensate evaporator system that drains condensed water, eliminating the need for external plumbing connections.
No, the unit should not operate 24/7. It is recommended to turn the unit on one hour before serving and turn it off after the serving period is complete. A timer is installed for automatic defrosting every 8 hours for 15 minutes.
