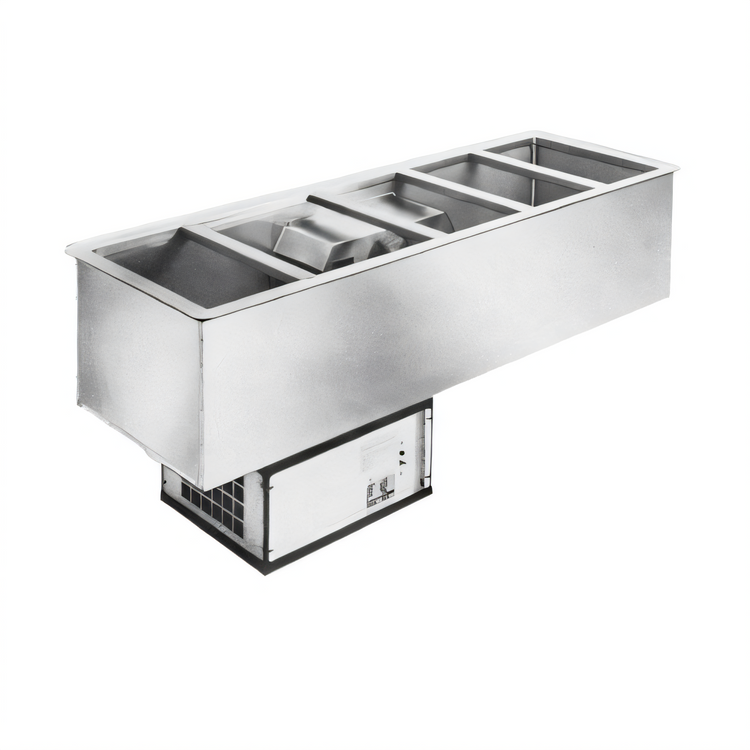

Atlas Metal WCM-BT-4 4-Pan Self-Contained Refrigerated Drop-In Cold Well
Full-Size, Air Flow System, Insulated
Keep your cold food items at safe and consistent temperatures with the Atlas Metal WCM-BT-4, a self-contained refrigerated drop-in cold well designed for maximum efficiency and easy installation.
- Accommodates four full-size 12" x 20" food pans with versatile separator channels.
- Features a forced air evaporator blower system for consistent cooling and optimal food product temperature.
- Includes a fully self-contained refrigeration system with automatic defrost for hassle-free operation.
- Fully insulated with high-density polystyrene for superior energy efficiency and temperature retention.
- Constructed with durable 18 gauge, type 304 stainless steel interior and top for long-lasting commercial use.
- Equipped with a factory-applied vinyl gasket for quick installation and a tight seal to your countertop.
Overall Dimensions:
57.25"W x 24.0"D x 26.75"HProduct Weight:

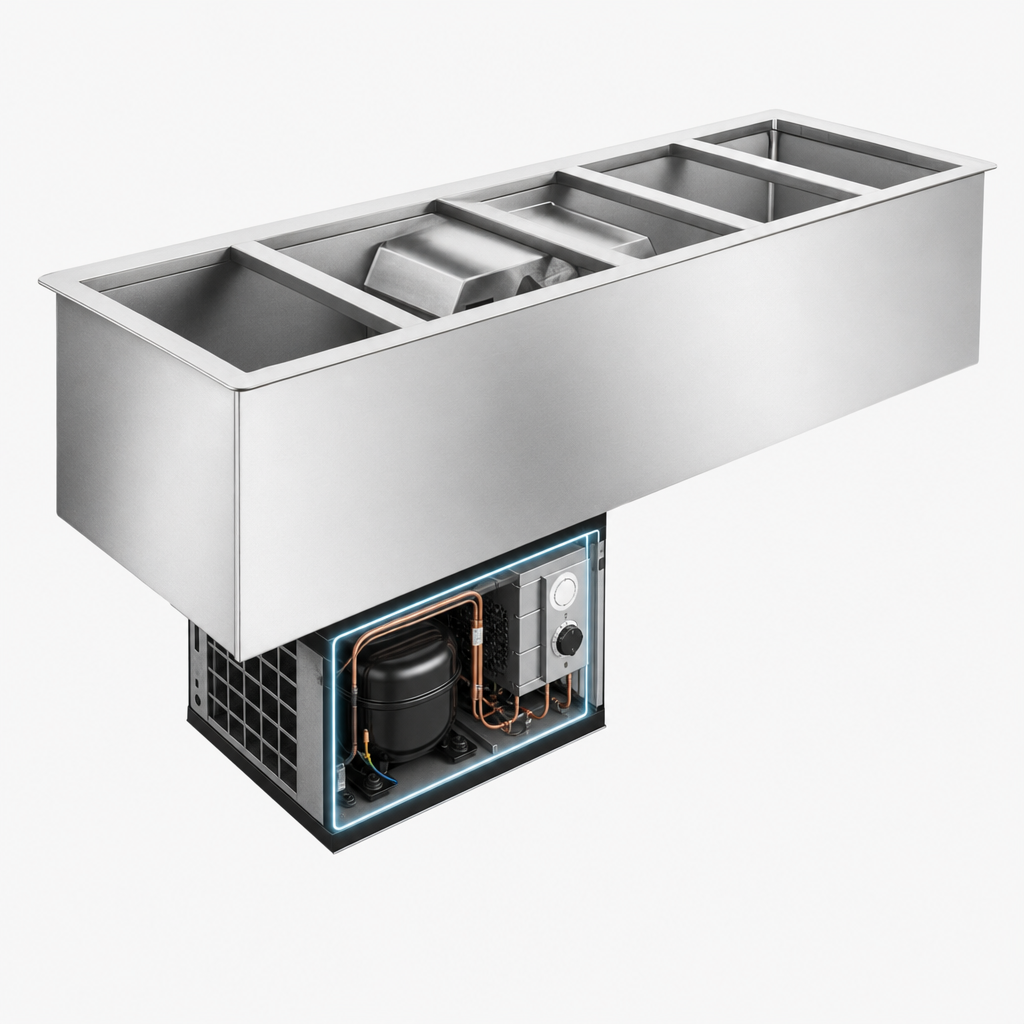

268.0 lbSelf-Contained Refrigeration System
A complete refrigeration system with a hermetically sealed compressor and thermostat control, pre-charged with CFC-free refrigerant and ready to operate, simplifying installation.
Forced Air Evaporator
A forced air evaporator blower system ensures even temperature distribution throughout the pan for consistent food product cooling and maximum efficiency.
Automatic Defrost System
An integrated automatic defrost system, controlled by a timer that shuts down the compressor for 15 minutes every 8 hours, ensures efficient operation and minimizes manual intervention.
Heavy-Duty Stainless Steel Construction
The top and inner liner are constructed of 18 gauge, type 304 stainless steel, with a die-stamped raised perimeter bead and coved corners for durability, hygiene, and easy cleaning.
High-Density Insulation
The pan is fully insulated with 1" thick high-density polystyrene on all sides and 2" thick on the bottom, encased in a 22 gauge galvanized steel outer case, providing maximum efficiency and energy savings.
Factory Applied Gasket
A solid vinyl gasket is factory-applied under the beaded edge of the top to create a secure seal to the counter top, preventing seepage and marring during installation and use.
Pan Capacity
Designed to accommodate four standard 12" x 20" food pans with the use of removable separator channels, or fractional size pans with optional adapter bars.
Electrical Controls
Features an on/off thermostat switch and pilot light, pre-wired for 15 amps, 120 volt, single phase operation with a 6' long, 3-wire cord and NEMA 5-15P plug.
Certifications & Compliance
Warranty & Protection
1-Year Parts & Labor Warranty
