Atlas Metal RMX-5 5-Pan Cold Food Drop-In Unit with Remote Refrigeration

5-Pan, Remote Refrigeration, Recessed Top, Insulated

Effortlessly maintain optimal food temperatures with the Atlas Metal RMX-5 cold food drop-in unit, designed for seamless integration and reliable performance in commercial settings.

  • Designed for 5 full-size (12" x 20") food pans.
  • Features remote refrigeration (compressor sold separately) for flexible installation.
  • Constructed with a stainless steel inner liner and top, and a galvanized steel outer liner for durability.
  • Includes a digital thermostat for precise temperature control.
  • Insulated pan helps maintain cold temperatures efficiently.
  • Recessed 3" top allows for flush mounting into countertops.

Product Weight:

222.0 lb

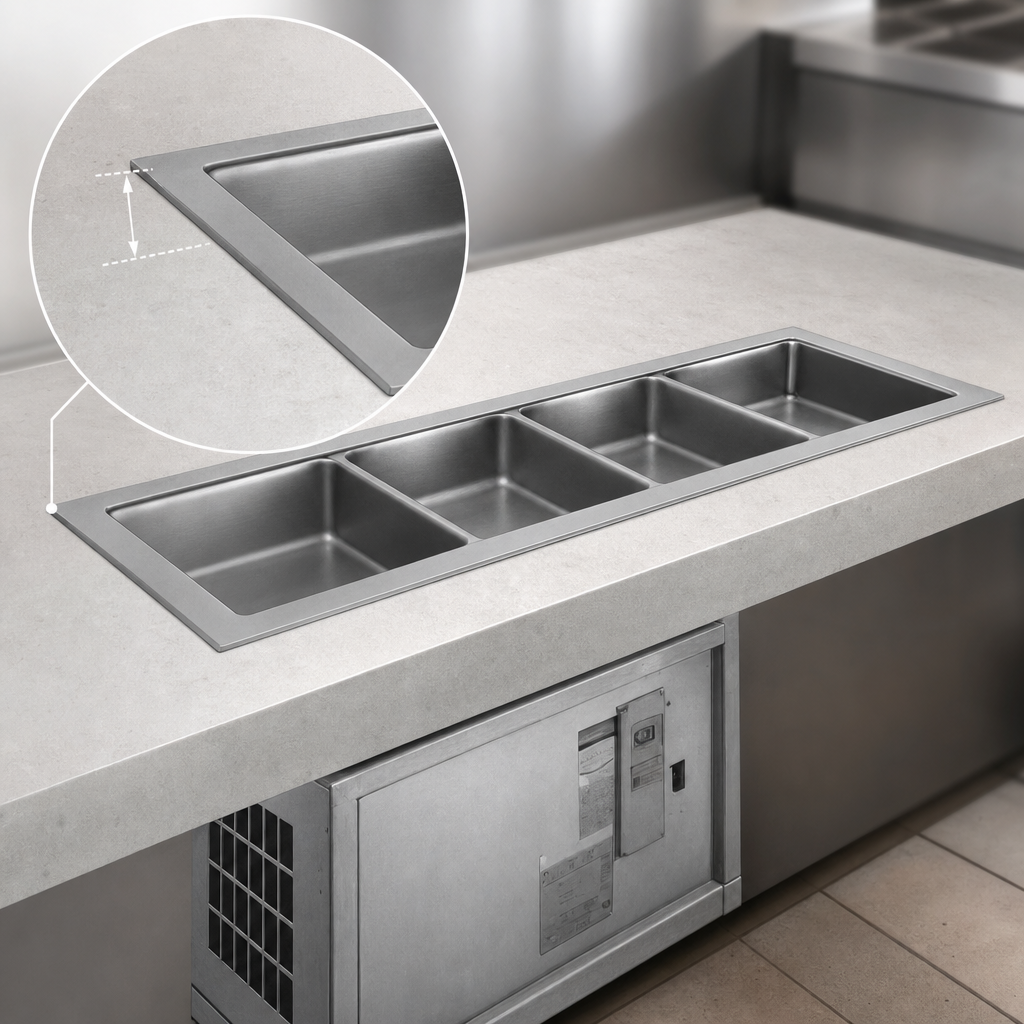

3" Recessed Top

Allows for a flush and integrated installation into countertops, providing a sleek appearance.

3

Insulated Pan

The insulated pan body enhances temperature retention, ensuring food stays cold longer and improving energy efficiency.

Stainless Steel Construction

Features a durable stainless steel inner liner and top, providing a hygienic, corrosion-resistant, and easy-to-clean food preparation surface.

Galvanized Steel Outer Liner

The robust galvanized steel outer liner offers additional durability and protection for the unit's exterior.

Digital Thermostat

Equipped with a digital thermostat for accurate and easy control over the cold pan's temperature, pre-set at the factory for convenience.

Remote Refrigeration Ready

Designed for remote refrigeration systems, including an expansion valve, thermostat bracket, and filter drier (compressor, electrical cord, and hook-up supplied by others).

Easy Drain Connection

Supplied with a nipple and gate valve for simple and efficient draining of the cold pan.

Vinyl Bead Gasket

A vinyl bead gasket ensures complete seating and a secure seal when the unit is dropped into the counter opening.

Type Cold Food Drop-In Unit
Style Remote Refrigeration (Less Compressor)
Installation Type Drop-In
Pan Capacity 5 Full-Size Pans
Pan Size Full-Size (12" x 20")
Controls Digital Thermostat
Interior Finish Stainless Steel
Material Stainless Steel, Galvanized Steel
Drain Connection Required
Shipping Weight 222 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Warranty details not explicitly provided, but improper cleaning or failure to meet operating conditions will void the warranty.

Documents

PDF Cutsheet PDF Download PDF Wiring diagram PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

The RMX-5 unit comes with a digital thermostat, an expansion valve, a thermostat bracket, and a filter drier. Please note that the compressor, electrical cord, electrical box, and electrical hook-up must be supplied by others.
For the RM-5 model, the recommended counter cut-out size is 24 1/2 inches by 71 1/2 inches to ensure proper fit and seating.
Yes, for optimal air circulation, it is recommended that the operator side of the counter be completely open. If installed in an island counter, two grill openings of approximately 18” x 18” each for intake and exhaust at opposite ends are recommended. An additional 24" x 14" opening is also needed for compressor maintenance access.
All food products must be pre-chilled to 34-35 degrees Fahrenheit before being placed in the unit. Food products should also be positioned at least 3 inches below the top of the unit.
To clean, use warm soapy water and rinse thoroughly. It is crucial to never use chloride-based products, steel wool, or abrasive cleaners, as these can scar, mark, corrode, and potentially void the warranty. The condenser coil should also be cleaned regularly.
