Atlas Metal RML-3 Slim-Line 3-Pan Self-Contained Refrigerated Cold Food Drop-In Well

SKU: RML-3
$6,414.22
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

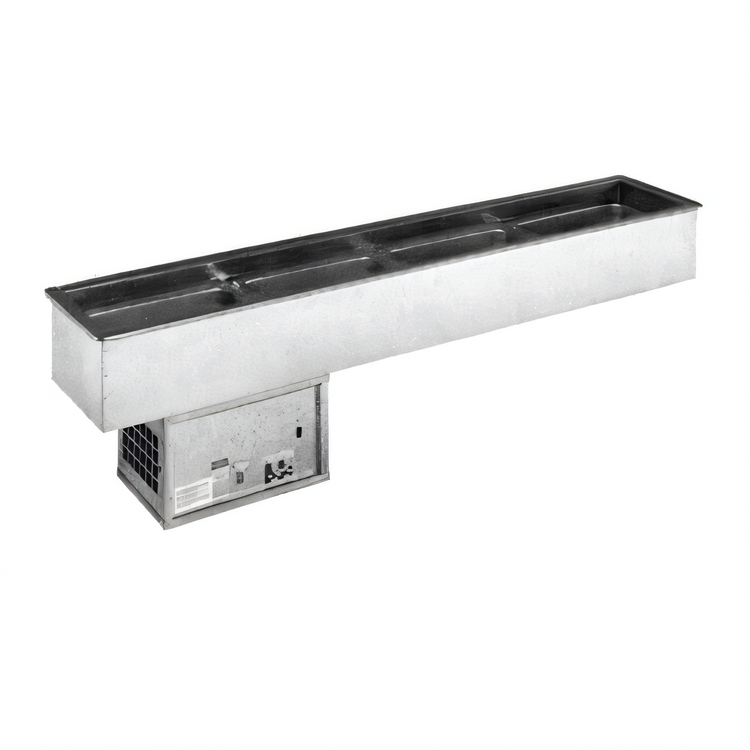

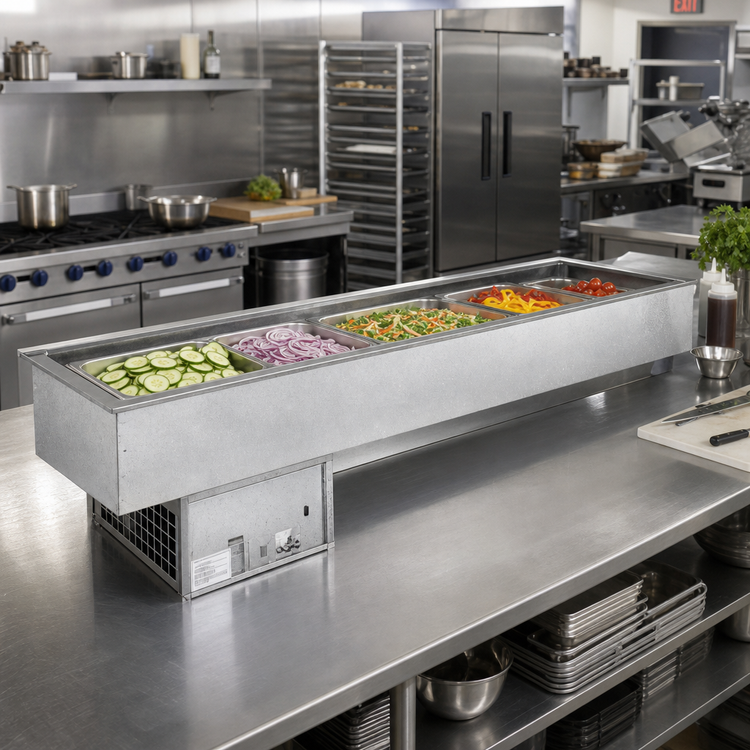

Atlas Metal RML-3 Slim-Line 3-Pan Self-Contained Refrigerated Cold Food Drop-In Well

3-Pan Capacity, Self-Contained Refrigeration, 3-Inch Recessed Top

The Atlas Metal RML-3 Slim-Line cold food drop-in well provides efficient and reliable self-contained refrigeration for keeping food products at safe serving temperatures.

  • Equipped with self-contained refrigeration for easy installation and operation.
  • Designed to hold three full-size (12" x 20") food pans.
  • Features a durable stainless steel inner liner and top for lasting commercial use.
  • Slim-line design with a 3-inch recessed top seamlessly integrates into countertops.
  • NSF 7 certified, ensuring compliance with strict public health and safety standards.

Overall Dimensions:

69.88"W x 18.25"D

Product Weight:

225.0 lb

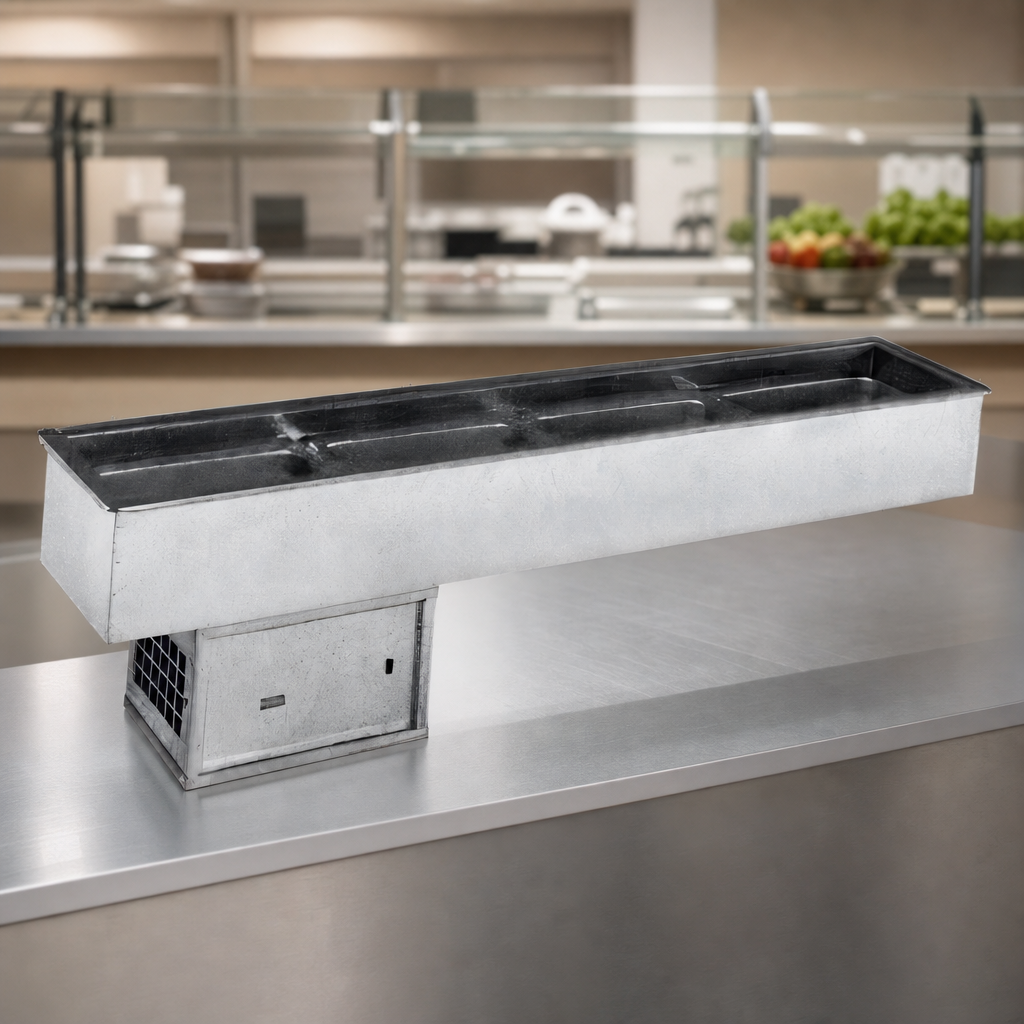

Self-Contained Refrigeration

Includes a built-in compressor, eliminating the need for remote refrigeration lines and simplifying installation.

Self-Contained Refrigeration

Insulated Pan

The pan is insulated to maintain consistent cold temperatures efficiently, reducing energy consumption.

Durable Construction

Constructed with a stainless steel inner liner and top, paired with a galvanized steel outer liner, ensuring durability and easy cleaning.

3-Inch Recessed Top

Designed with a 3-inch recessed top, allowing for flush countertop installation and an attractive, streamlined appearance.

Integrated Controls

Features an on/off thermostat switch with a pilot light for simple temperature management and operational indication.

Easy Drain Connection

Supplied with a nipple and gate valve for convenient and direct connection to a drain.

Secure Seating Gasket

A vinyl gasket ensures a complete and secure seal when dropped into a counter opening.

Type Cold Food Drop-In Unit
Style Self-Contained Refrigeration
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans
Recessed Depth 3 Inches
Material Stainless Steel & Galvanized Steel
Interior Finish Stainless Steel
Exterior Finish Galvanized Steel
Drain Connection Required
Country of Origin USA
Shipping Width 70 Inches
Shipping Depth 19 Inches
Shipping Height null
Shipping Weight 225.0 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Warranty terms not specified in the provided documents.

Documents

PDF Cutsheet PDF Download PDF Troubleshooting manual PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download

Frequently Asked Questions

The recommended counter cut-out size for the RML-3 model is 16 1/2 X 68 1/4 inches for proper installation.
The unit should be turned on one hour before the serving period to allow it to pre-chill to the optimal temperature for food safety.
All food products must be 34-35 degrees Fahrenheit when placed in the unit, and they should not be filled higher than 3 inches below the top of the unit.
It is recommended that the operator side of the counter be completely open for air circulation. If installing in an island counter, provide two 18" x 18" grill openings for intake and exhaust, and a 24" x 14" access opening for compressor maintenance.
Pans should be cleaned with soapy warm water and rinsed thoroughly; never use chloride-based products, steel wool, or abrasive materials. The condenser coil should be cleaned regularly.
