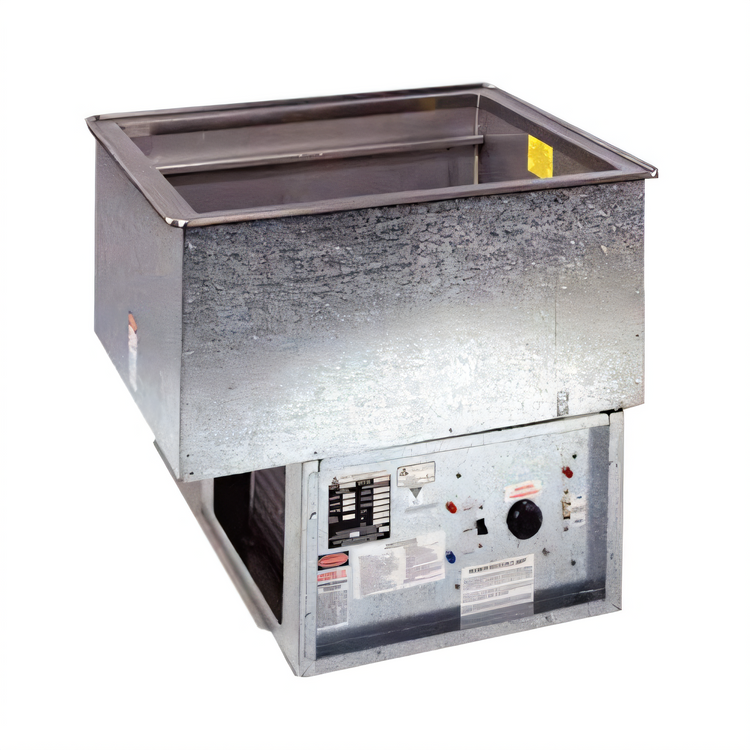

Atlas Metal RM-HP-X-3 3-Pan Hot/Cold Drop-In Food Well with Remote Refrigeration

SKU: RM-HP-X-3
$7,461.49
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells

Atlas Metal RM-HP-X-3 3-Pan Hot/Cold Drop-In Food Well with Remote Refrigeration

Dual Temperature, Full-Size Pans, 3-Inch Recess

Experience ultimate serving flexibility with this Atlas Metal dual-temperature drop-in food well, capable of holding foods hot or cold with a simple flip of a switch.

  • Seamlessly switch between hot and cold serving modes to adapt to diverse menu needs.
  • Designed for remote refrigeration, offering flexibility in compressor placement (compressor not included).
  • Constructed with durable 18 gauge, type 304 stainless steel for lasting commercial use.
  • Accommodates three full-size (12" x 20") food pans, ideal for buffets and serving lines.
  • Fully insulated with high-density fiberglass for superior thermal efficiency and energy savings.
  • Features a factory-applied gasket for easy installation and a watertight seal to the countertop.

Overall Dimensions:

45.5"W x 26.0"D x 27.75"H

Product Weight:

257.0 lb

Dual Temperature Capability

Functions as a hot serving unit or a refrigerated cold pan by simply flipping a switch, providing versatile food service options.

Dual Temperature Capability

Remote Refrigeration Design

Built for remote refrigeration systems, allowing the compressor to be located elsewhere for reduced noise and heat at the service counter. Unit includes expansion valve bracket and filter dryer, but not the compressor.

High-Quality Stainless Steel Construction

Top and inner liner are constructed from 18 gauge, type 304 stainless steel, ensuring durability, corrosion resistance, and easy cleaning. All corners are coved with a minimum 1/4" radius.

Efficient Immersion Heating

Equipped with an immersion-type heating element for reliable and even heating, requiring water to be submerged for proper operation.

Advanced Insulation

Pan is fully insulated with 1-3/8" thick high-density fiberglass on all sides and 1-1/2" thick on the bottom, maximizing efficiency and energy savings.

Easy Installation

Features a factory-applied vinyl gasket that seals the unit to the countertop, preventing seepage and simplifying the installation process.

Integrated Drain System

Includes a 3/4" diameter drain with strainer, 4" copper nipple, and valve for convenient waste water removal.

User-Friendly Controls

Pre-wired with a hot/cold selector switch, dedicated thermostat controls for heating and cooling, and pilot lights for operational status indication. Includes RSHP-X remote control panel for counter mounting.

Accommodates Standard Pans

Designed to hold three standard 12" x 20" food pans with removable separator channels and pan rails, or fractional size pans using optional adapter bars.

Type Hot/Cold Food Well
Style Dual Temperature
Installation Type Drop-In
Pan Capacity 3 Full-Size Pans
Capacity 3 Full-Size Food Pans
Compartments 1
Controls Thermostatic, Hot/Cold Selector Switch
Interior Finish 304 Stainless Steel
Material Stainless Steel / Galvanized Steel
Electrical Heating and Controls Only (Refrigeration Remote)
Voltage 120 Volts
Amps 30 Amps
Watts 2000 Watts (Heating Element)
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-30P
Cord Length 6 Feet
Water Connection Required
Drain Connection Required
Drain Connection Size 3/4 Inch
Counter Cutout Width 44 Inches
Counter Cutout Depth 24.5 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 46 Inches
Shipping Depth 26 Inches
Shipping Height 28 Inches
Shipping Weight 257 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Troubleshooting PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

No, the Atlas Metal RM-HP-X-3 is designed for remote refrigeration and does not include a compressor. It comes with a digital thermostat expansion valve bracket and filter dryer for connection to a remote refrigeration system.
The unit is pre-wired for 120 Volts, 1-Phase, drawing 30 Amps for heating and controls, and comes with a 6-foot cord and a NEMA 5-30P twist-lock plug. The heating element is rated for 2000 Watts.
First, turn the master switch to 'OFF'. For hot mode, close the drain valve and fill the unit with hot water until the heating element is submerged. Then turn the selector to 'HOT' and the master switch to 'ON'. For cold mode, drain any hot water, turn the selector to 'COLD', and then turn the master switch to 'ON'. A safety device ensures the cold cycle won't energize until the liner is below 120 degrees Fahrenheit.
This unit is designed to hold three standard 12" x 20" full-size food pans. It includes removable separator channels and pan rails, and can also accommodate fractional size pans with optional adapter bars.
The Atlas Metal RM-HP-X-3 requires a countertop cutout measuring 44 inches wide by 24.5 inches deep.
