Atlas Metal RM-6 6-Pan Full-Size Drop-In Cold Well with Self-Contained Refrigeration

Full-Size, Drop-In, Self-Contained Refrigeration

Maintain optimal food temperatures and enhance your serving line with the durable and efficient Atlas Metal RM-6 drop-in cold well.

  • Designed to hold six full-size (12" x 20") pans for versatile cold food service.
  • Features self-contained refrigeration for easy installation and operation.
  • Constructed with 18/304 stainless steel top and liner for durability and hygiene.
  • Insulated pan ensures consistent temperature retention for food safety.
  • Simple drop-in design with a vinyl gasket for seamless counter integration.
  • Equipped with a 3/4" drain and gate valve for convenient cleaning.

Overall Dimensions:

86.75"W x 26.0"D x 27.75"H

Product Weight:

389.0 lb

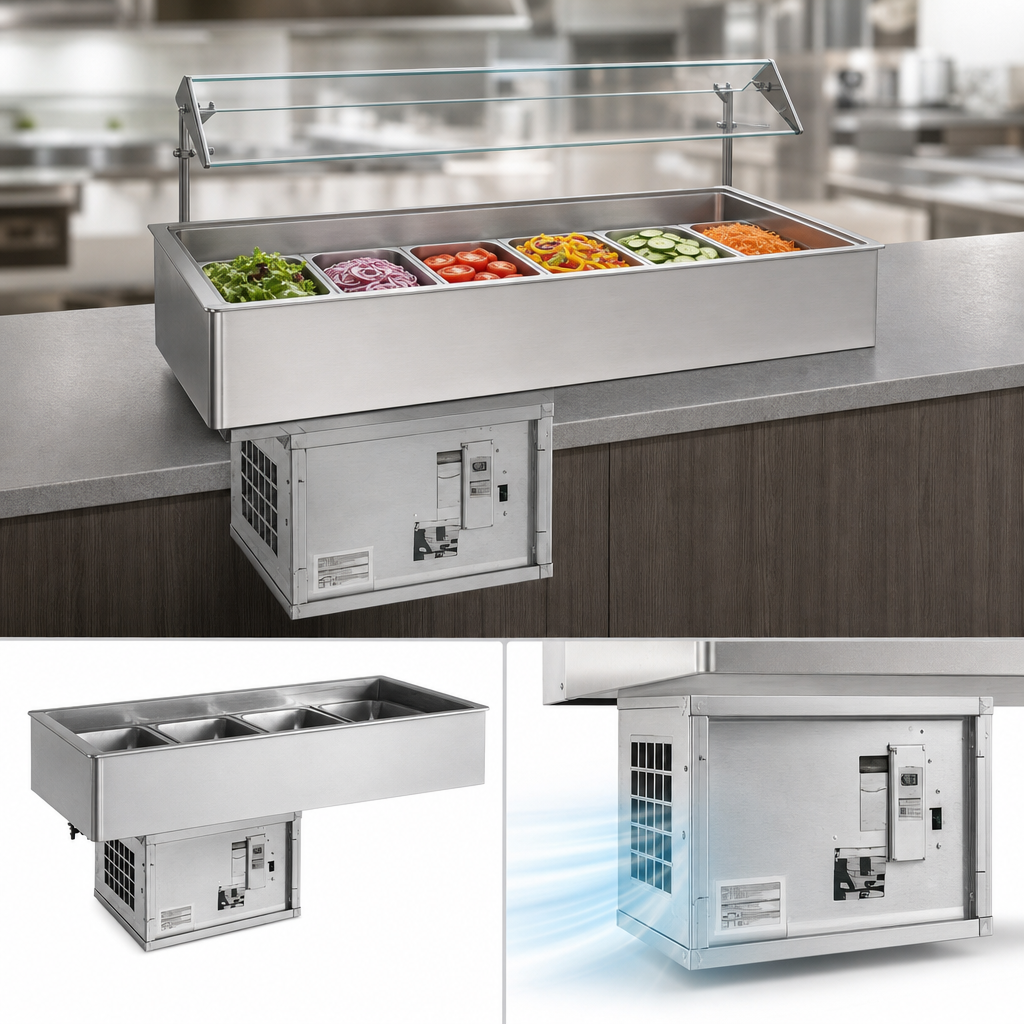

Self-Contained Refrigeration

Eliminates the need for remote refrigeration systems, simplifying installation and reducing setup time.

Self-Contained Refrigeration

Durable Stainless Steel Construction

The top and inner liner are made from 18/304 stainless steel, offering exceptional durability, corrosion resistance, and ease of cleaning, while the outer case is 22 gauge galvanized steel.

Insulated Pan

The fully insulated pan helps maintain consistent cold temperatures, ensuring food safety and reducing energy consumption.

6 Full-Size Pan Capacity

Designed to accommodate six standard 12" x 20" full-size food pans, making it ideal for high-volume cold food service.

Drop-In Installation

Engineered for straightforward drop-in installation into a prepared counter cut-out, featuring a vinyl gasket for a secure and complete seal.

Efficient Drainage System

Includes a 3/4" drain with a strainer, nipple, and gate valve for quick, easy, and sanitary draining.

Convenient Compressor Access

The compressor can be easily accessed for maintenance by removing four screws from the control and rear panels.

Type Cold Well
Style Drop-In
Installation Type Drop-In
Pan Capacity 6 Full-Size Pans (12" x 20")
Interior Finish 304 Stainless Steel
Material Stainless Steel (Top & Liner), Galvanized Steel (Outer Case)
Refrigeration Type Self-Contained
Compressor Horsepower 1/4 HP
Drain Connection Size 3/4 Inches
Drain Connection Required
Cutout Width 85 1/4 Inches
Cutout Depth 24 11/16 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 87 Inches
Shipping Depth 26 Inches
Shipping Height 28 Inches
Shipping Weight 389 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Contact Manufacturer for Details

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Troubleshooting manual PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The RM-6 requires a counter cutout of 85 1/4 inches wide by 24 11/16 inches deep for proper installation.
The unit should be turned on one hour before serving to allow it to reach optimal operating temperature.
Yes, never clean the pans with chloride-based products, steel wool, or abrasive products, as this can scar, mark, corrode, and void the warranty. Use soapy warm water and rinse thoroughly. The condenser coil should also be cleaned regularly.
All food products must be 34-35 degrees Fahrenheit when placed in the unit and must be kept at least 3 inches below the top of the unit. The unit is not designed for 24/7 operation.
For optimal performance, the operator side of the counter should be completely open for air circulation. If installing in an island counter, provide two 18" x 18" grill openings for intake and exhaust, plus a 24" x 14" opening for compressor access.
