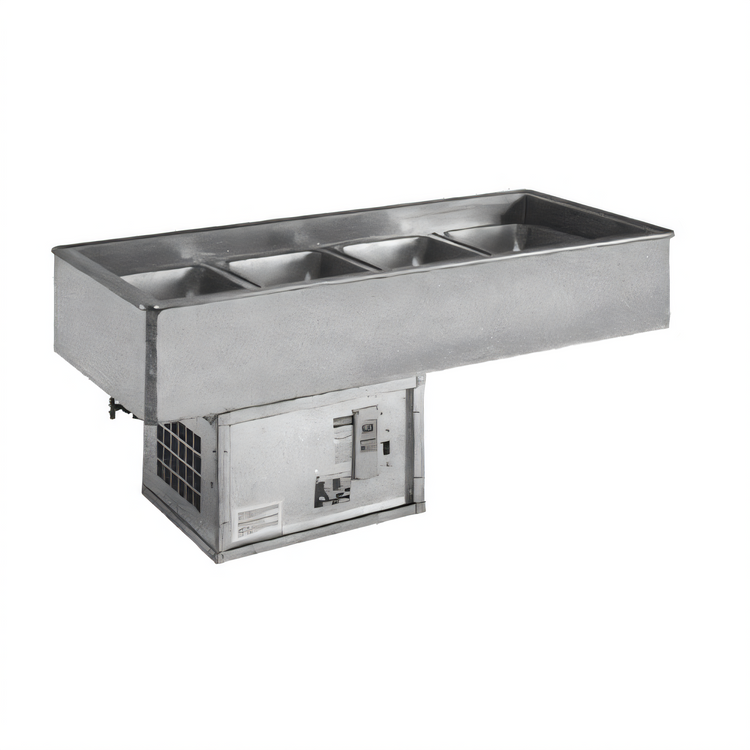

Atlas Metal RM-3 3-Pan Self-Contained Drop-In Cold Food Well

Full-Size Pans, Stainless Steel, Standard Depth

Keep perishable food items at safe and optimal temperatures with the durable and efficient Atlas Metal RM-3 self-contained drop-in cold food well.

  • Designed to hold three 12" x 20" full-size food pans for versatile cold food service.
  • Features an 18/304 stainless steel top and inner liner for durability and hygiene.
  • Self-contained refrigeration system for easy installation and reliable performance.
  • Insulated pan with a 22 gauge galvanized outer case ensures optimal temperature retention.
  • Equipped with a 3/4" drain with strainer and gate valve for convenient cleaning and maintenance.
  • Requires a counter cutout of 24 1/2" x 44" for seamless integration.

Overall Dimensions:

45.5"W x 26.0"D x 27.75"H

Product Weight:

244.0 lb

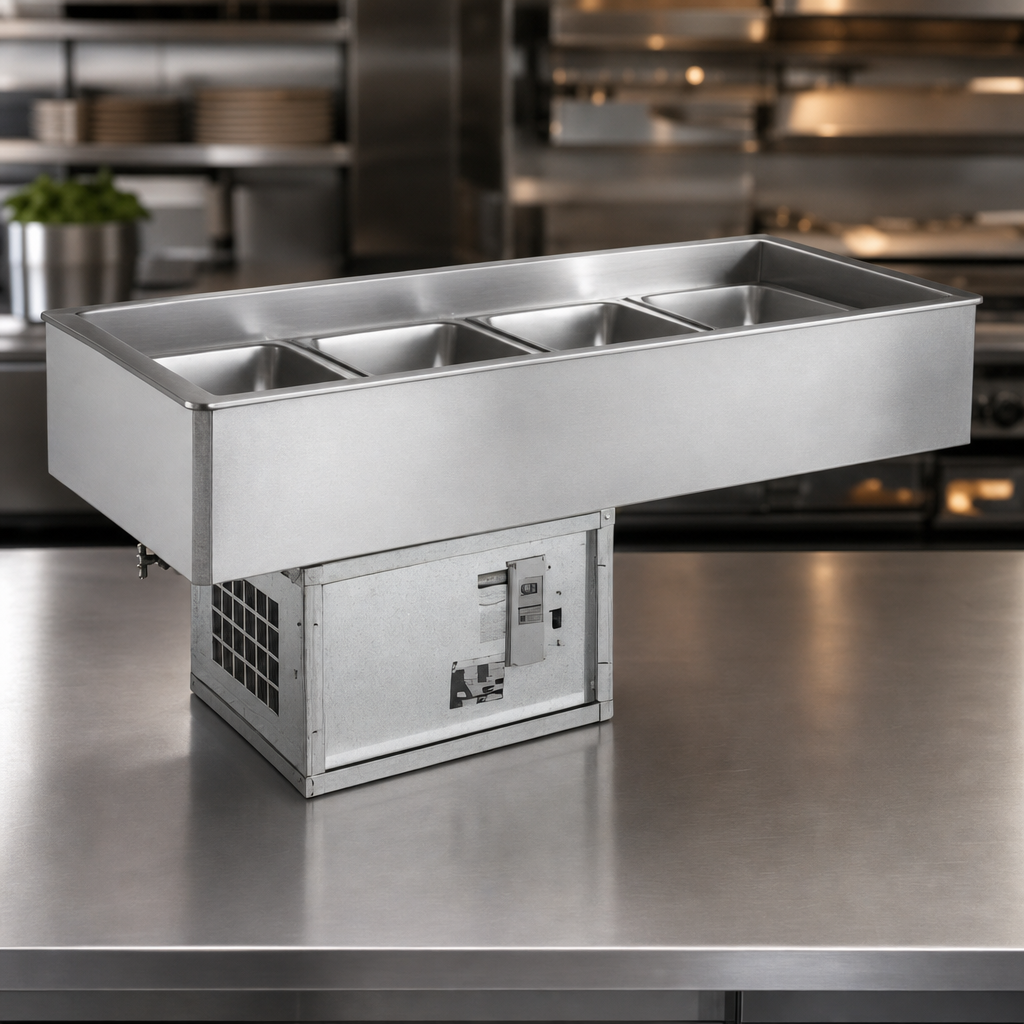

Durable Construction

Constructed with an 18/304 stainless steel top and inner liner, featuring a 3-inch recess, and a 22 gauge galvanized outer case for robust commercial use and longevity.

Durable Construction

Self-Contained Refrigeration

Integrated refrigeration system simplifies installation and provides efficient, consistent cooling for your cold food items.

Three Full-Size Pan Capacity

Accommodates three standard 12" x 20" full-size food pans, making it ideal for a variety of cold food presentations.

Efficient Drainage System

Includes a 3/4" drain with a strainer and a gate valve connection for easy and thorough removal of liquids, ensuring quick cleanup.

Factory Pre-set Thermostat

Comes with a factory pre-set thermostat for optimal operating temperatures, ensuring food safety with minimal adjustment needed.

Drop-In Installation

Designed for simple drop-in installation into a counter, with a vinyl bead gasket that assures complete seating and a non-toxic silicone seal option for added security.

Type Cold Food Well
Style Drop-In
Installation Type Drop-In
Material Stainless Steel, Galvanized Steel
Interior Finish 304 Stainless Steel
Pan Capacity 3 Full-Size Pans
Pan Size 12" x 20"
Compartments 1
Recess Depth 3 Inches
Drain Connection Size 3/4 Inch
Drain Connection Required
Refrigeration Type Self-Contained
Controls Pre-set Thermostat
Shipping Width 46 Inches
Shipping Depth 26 Inches
Shipping Height 28 Inches
Shipping Weight 244 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Warranty is voided by improper cleaning methods.

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Troubleshooting manual PDF Download

Frequently Asked Questions

The Atlas Metal RM-3 requires a counter cutout opening of 24 1/2" x 44" for proper installation.
It is recommended to turn on the unit one hour before serving to allow it to reach its optimal operating temperature.
All food products must be 34-35 degrees Fahrenheit when placed in the unit, and they should be positioned 3 inches below the top of the unit for best performance.
Clean pans using soapy warm water and rinse thoroughly to remove all residues. Do not use chloride-based products, steel wool, or abrasive products, as these can scar, mark, corrode, and void the warranty.
Yes, it is recommended that the operator side of the counter be completely open for air circulation. For island counters, provide two 18" x 18" grill openings for intake and exhaust, and a 24" x 14" opening to access the compressor for maintenance.
Yes, the unit is supplied with a power cord and NEMA plug. Specific amperage and voltage information can be found on the data plate located on the compressor housing.
