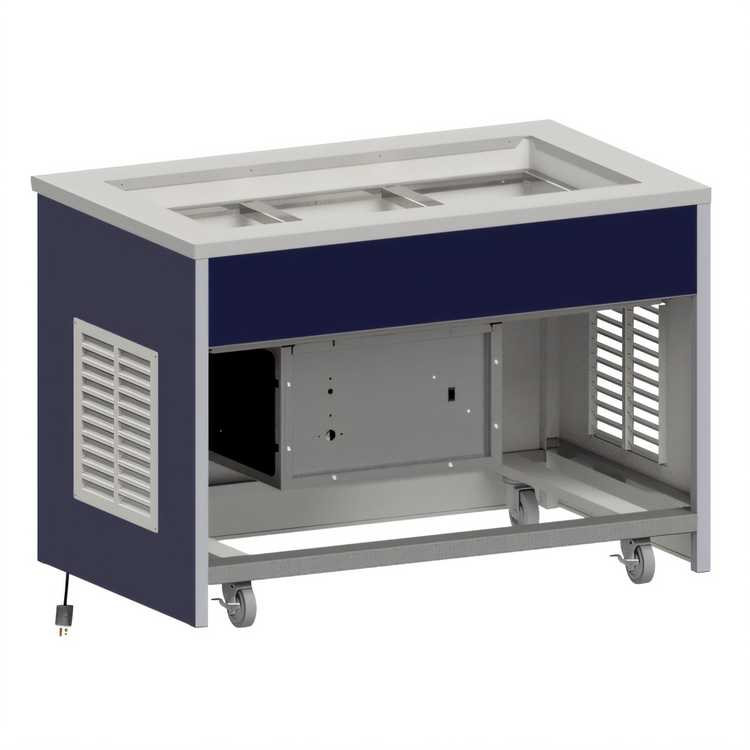

Atlas Metal INFRM-2 36-1/2" Two Pan Refrigerated Cold Food Unit with Open Cabinet Base
Atlas Metal INFRM-2 36-1/2" Two Pan Refrigerated Cold Food Unit with Open Cabinet Base
Mobile, Self-Contained, Laminate Panels, Standard Depth
Ensure your cold food items are kept at optimal serving temperatures with the durable and mobile Atlas Metal INFRM-2 refrigerated cold food unit, designed for seamless integration into any buffet or serving line.
- Maintains consistent cold temperatures with a self-contained refrigeration system.
- Accommodates two full-size 12" x 20" food pans for versatile serving.
- Constructed with a 16 gauge 304 stainless steel top and hi-tensile stainless steel frame for durability.
- Features an open cabinet base with a removable stainless steel undershelf for convenient storage.
- Equipped with 4" swivel casters, two with brakes, for easy mobility and secure positioning.
- Includes a positive self-locking device to connect multiple units seamlessly for extended serving lines.

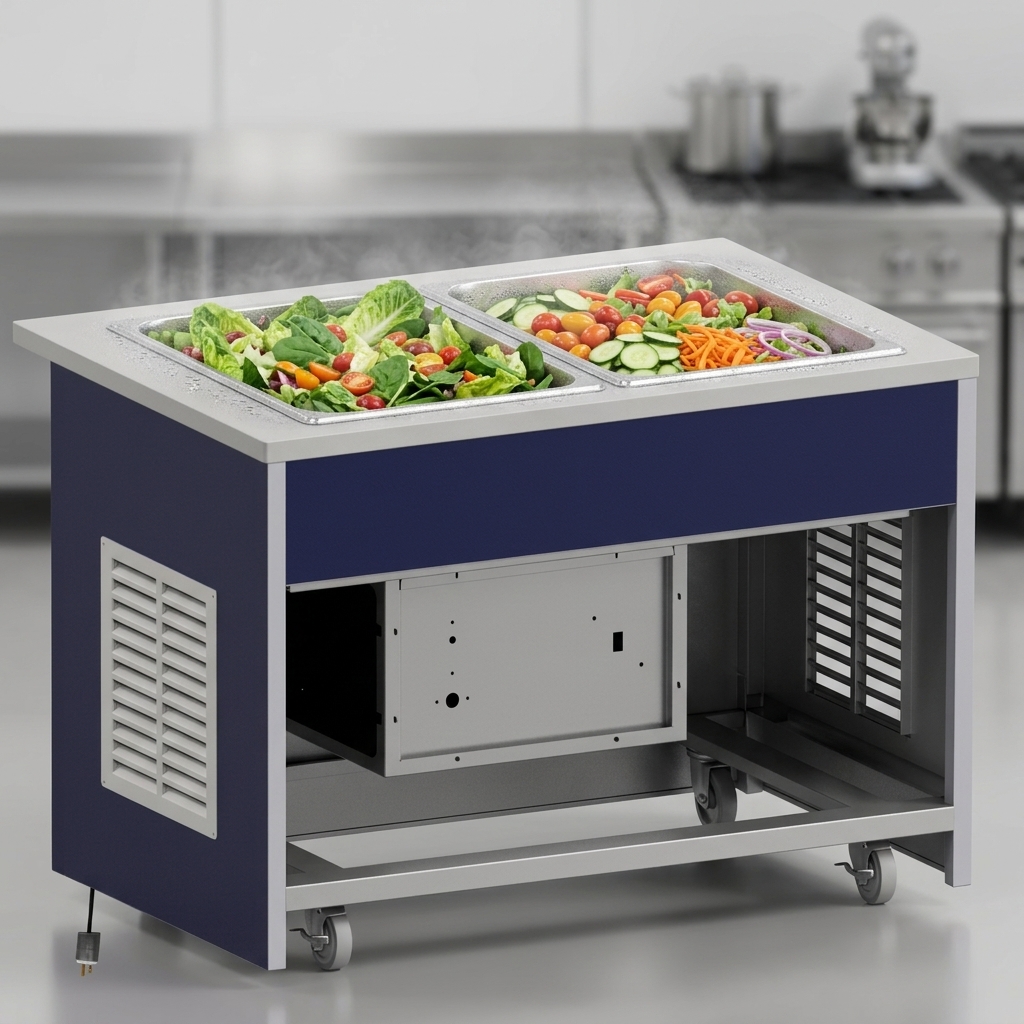

Fully Insulated Cold Pan
The cold pan is fully insulated with high-density polystyrene (1" thick on sides, 2" thick on bottom) for maximum efficiency and energy savings.

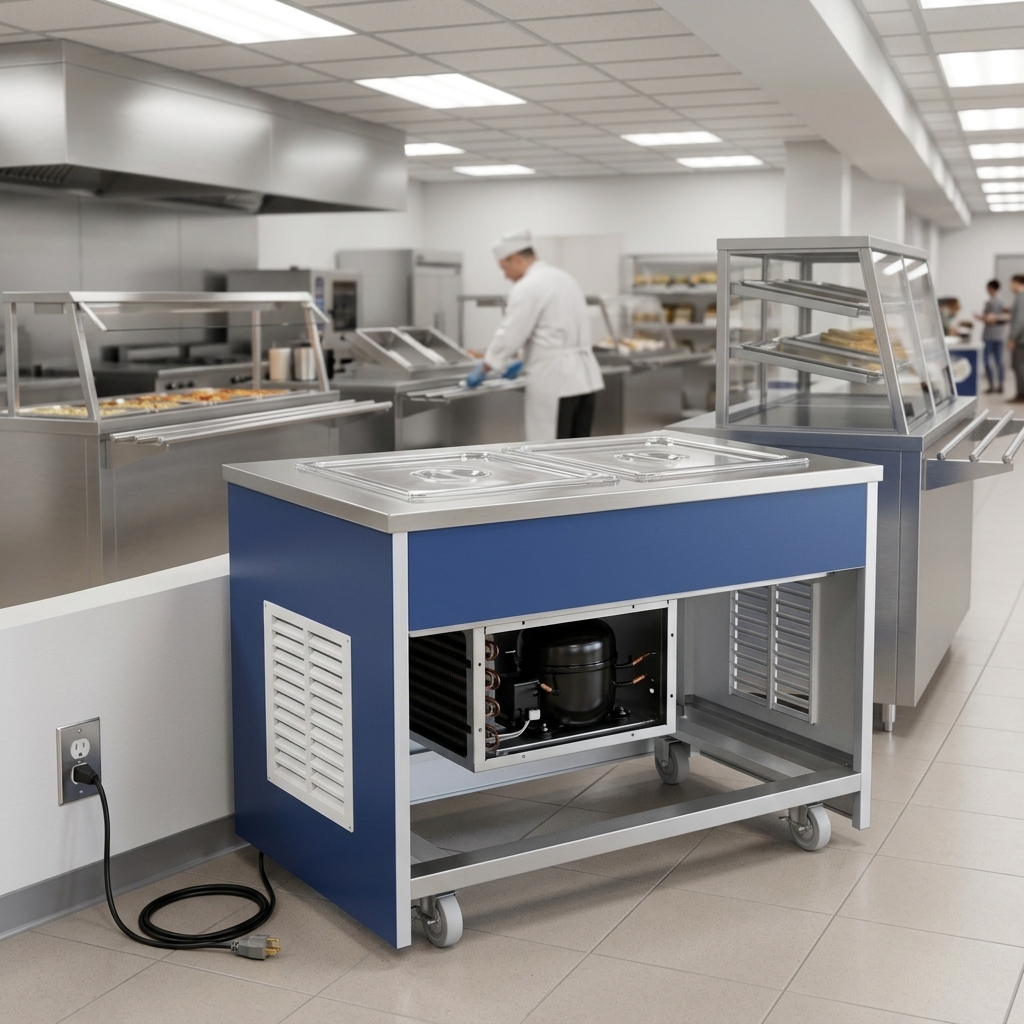

Self-Contained Refrigeration System
Features a hermetically sealed compressor and a digital electronic thermostat/thermometer, making it a plug-and-play unit ready to operate upon arrival with CFC-free refrigerant.

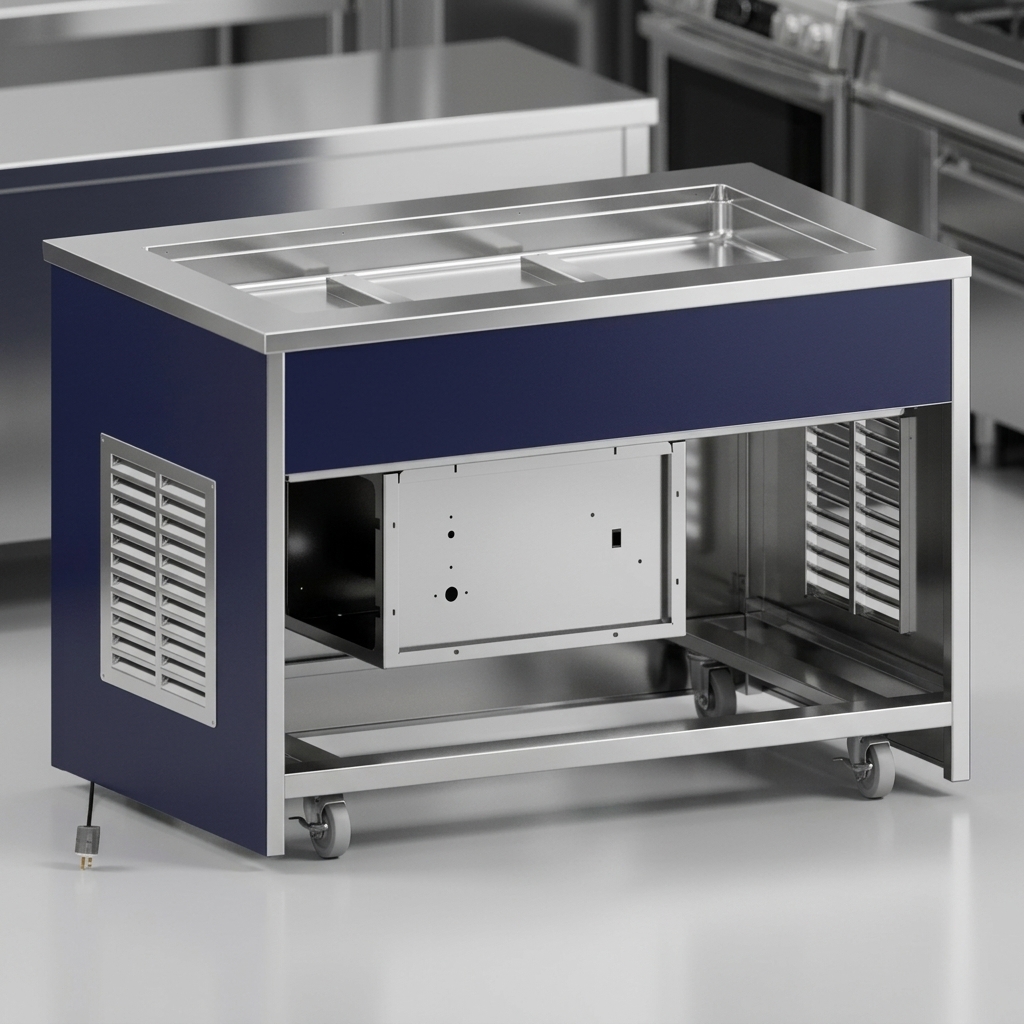

Durable Stainless Steel Construction
Top is constructed of 16 gauge, type 304 stainless steel, die-formed, welded, ground and polished. The cold pan liner is 18 gauge, type 304 stainless steel with 1/4" radius coved corners.
Hi-Tensile Stainless Steel Frame
Frame construction utilizes 1-1/4" x 1-1/4" hi-tensile stainless steel square tubing, featuring welded construction, ground, and polished to a uniform finish.
Laminate Body Panels
Front and ends of the body are constructed from 18 gauge stainless steel with 1/16" thick plastic laminate, providing a customizable finish.
Integral Locking Device
A positive self-locking device is provided to align and retain cart positioning when two or more modular units are joined together.
Removable Stainless Steel Undershelf
Includes a removable stainless steel undershelf for convenient storage beneath the cold pan.
Mobile Design with Locking Casters
Equipped with 4" diameter, non-marking rubber tired, swivel casters with ball bearings and grease fittings, with two casters on the operator's side featuring toe-activated brakes for secure positioning.
Integrated Drain System
The cold pan includes a 3/4" diameter drain with a strainer, 4" PVC nipple, and valve for easy water removal.
Pan Separator Channels
Includes separator channels to hold standard 12" x 20" food pans securely in place.
Specifications
| Type | Refrigerated Cold Food Unit |
|---|---|
| Style | Buffet/Serving Line |
| Installation Type | Floor Model (Mobile) |
| Pan Capacity | 2 (for 12" x 20" food pans) |
| Material | 304 Stainless Steel, Stainless Steel, Plastic Laminate, Galvanized Steel |
| Interior Finish | 304 Stainless Steel |
| Voltage | 120 Volts |
| Amps | 6.2 Amps |
| Phase | 1-Phase |
| Hertz | 60 Hz |
| Plug Type | NEMA 5-15P |
| Cord Length | 6 Feet |
| Refrigeration Type | Self-Contained |
| Refrigerant Type | CFC-Free |
| Drain Connection Size | 3/4" Diameter |
| Drain Connection | Required |
| Shipping Width | 37 Inches |
| Shipping Depth | 32 Inches |
| Shipping Height | 35 Inches |
| Shipping Weight | 330 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
Overall Dimensions:
36.5"W x 31.25"D x 35.0"HProduct Weight:
330.0 lbCertifications & Compliance
Warranty & Protection
1-year parts and labor warranty
