Atlas Metal INFIH-OT-4 Mobile Hot Food Unit with 4 Wells

SKU: INFIH-OT-4
$8,564.85
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Atlas Metal INFIH-OT-4 Mobile Hot Food Unit with 4 Wells

4-Well, Offset Top, Open Cabinet Base, Electric

Designed for versatility and durability, the Atlas Metal INFIH-OT-4 mobile hot food unit ensures your food stays at optimal serving temperatures with individual control and robust construction.

  • Equipped with four 12" x 20" hot food wells, each with independent thermostatic controls for precise temperature management.
  • Features a robust 16 gauge, type 304 stainless steel top and hi-tensile stainless steel frame for commercial longevity.
  • Offers flexible wet or dry operation, accommodating a variety of menu items.
  • Highly mobile with 4" diameter non-marking swivel casters, two with toe-activated brakes for secure positioning.
  • Integrated positive self-locking device allows multiple units to be securely joined for a continuous serving line.
  • Includes a removable stainless steel undershelf for convenient storage of supplies.

Overall Dimensions:

64.0"W x 31.25"D x 35.0"H

Product Weight:

342.0 lb

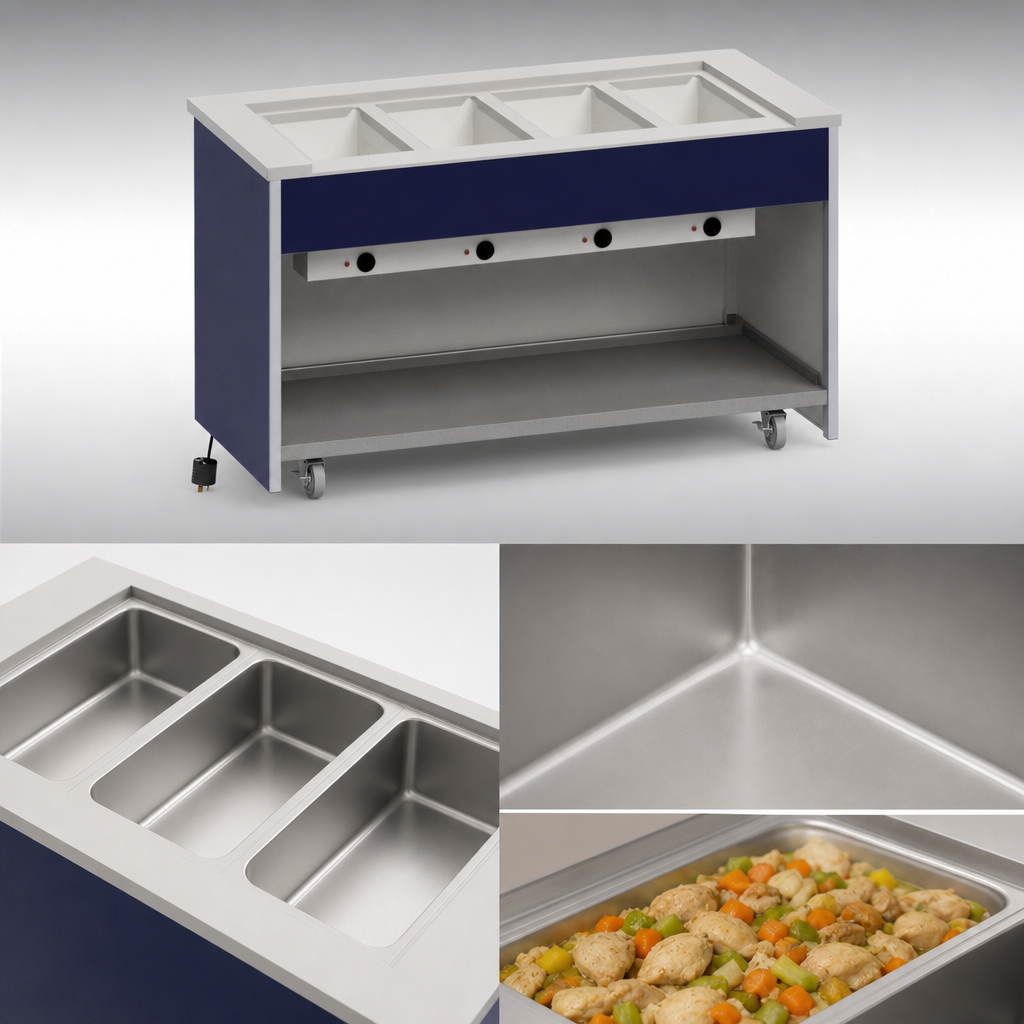

Four Hot Food Wells

Individually controlled 12" x 20" hot food wells, fabricated from 18 gauge stainless steel with one-piece construction and coved corners for easy cleaning and maintenance. Designed for wet or dry operation.

Four Hot Food Wells

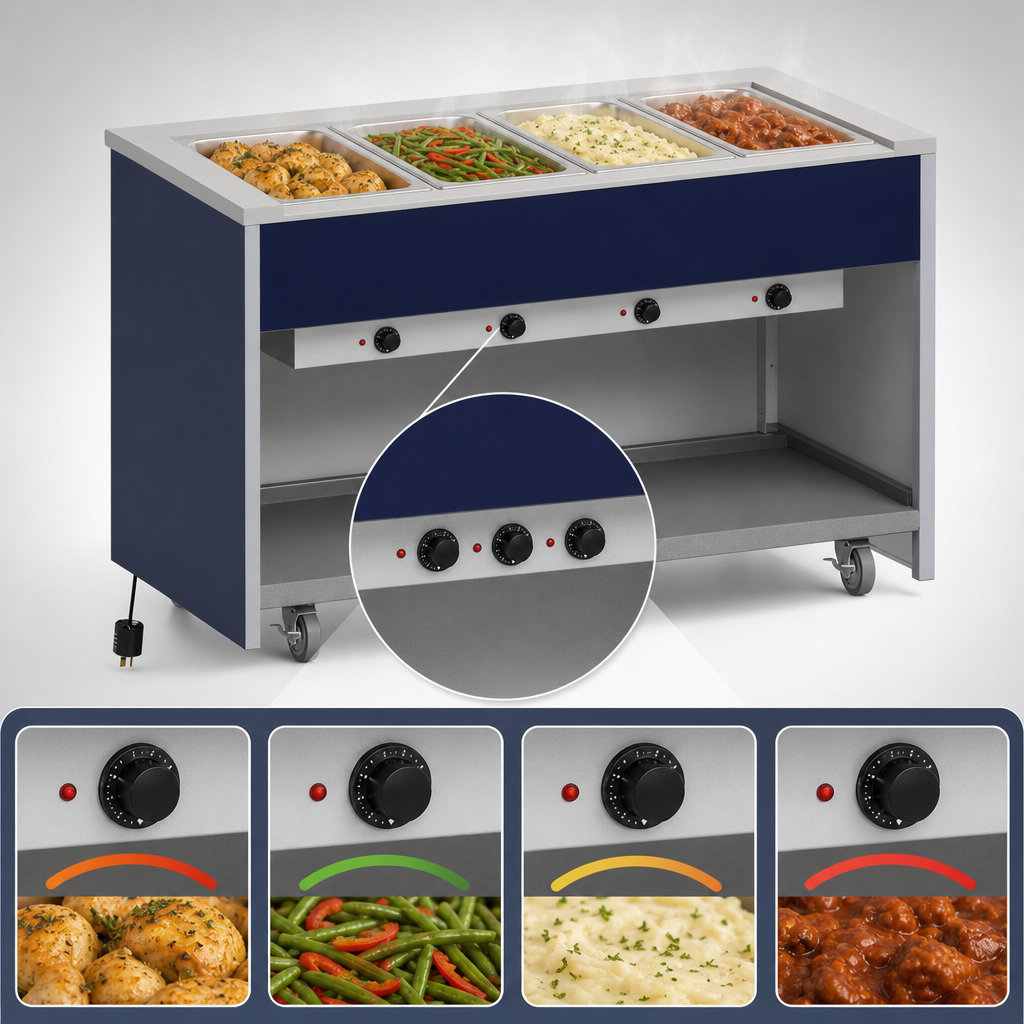

Individual Thermostatic Controls

Each hot food well is independently controlled by its own thermostat, allowing for precise temperature regulation for different food items.

Individual Thermostatic Controls

Durable Stainless Steel Construction

The unit features a 16 gauge, type 304 stainless steel top, 1-1/4" x 1-1/4" hi-tensile stainless steel square tubing frame, and 18 gauge stainless steel body panels with plastic laminate finish for durability and a professional appearance.

Offset Top Design

The 1" offset top is designed to accommodate 18" x 26" bun pans, providing extra functionality for food preparation or holding.

Fully Insulated Wells

Hot food wells are fully insulated with high-density fiberglass insulation (1" thick on sides, 2" thick on bottom) to efficiently retain heat and reduce energy consumption.

Mobile Design

Equipped with 4" diameter, non-marking rubber tired swivel casters with ball bearings and grease fittings. Two casters on the operator's side include toe-activated brakes for secure placement.

Removable Undershelf

Comes standard with a removable stainless steel undershelf for convenient storage.

Integral Locking Device

A positive self-locking device is provided to align and retain cart positioning when two or more carts are joined, creating a stable and level serving line.

Type Hot Food Unit
Style Mobile, Open Cabinet Base, Offset Top
Installation Type Floor Model (With Casters)
Pan Capacity 4 Full-Size (12" x 20")
Controls Individual Thermostatic
Material Stainless Steel with Plastic Laminate Panels
Interior Finish 304 Stainless Steel
Watts 3.4 kW
Voltage 208/240 Volts
Amps 16.4 Amps (208V), 14.2 Amps (240V)
Plug Type NEMA L6-30P (208V), NEMA L6-20P (240V)
Cord Length 6 Feet
Casters 4" Swivel (2 with brakes)
Shipping Width 64 Inches
Shipping Depth 32 Inches
Shipping Height 35 Inches
Shipping Weight 342 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Frequently Asked Questions

The INFIH-OT-4 unit is equipped with four standard 12" x 20" hot food wells, allowing it to hold four full-size pans of food simultaneously.
Yes, the Atlas Metal INFIH-OT-4 is designed for versatile operation and can be used for either wet or dry heating applications to keep food warm.
The INFIH-OT-4 typically operates on 208V or 240V, drawing 3.4 kW for the 850-watt element configuration. It requires a NEMA L6-30P plug for 208V and a NEMA L6-20P plug for 240V.
Yes, each of the four hot food wells is equipped with its own individual thermostatic control and pilot light, allowing for precise and independent temperature management.
The top of the unit is constructed from durable 16 gauge, type 304 stainless steel. The frame is built with hi-tensile stainless steel square tubing, 1-1/4" x 1-1/4".
