Atlas Metal INFIH-5 Mobile Hot Food Unit, 5-Well, Electric

5 Full-Size Wells, Wet/Dry Operation, Individual Thermostatic Controls

This Atlas Metal INFIH-5 mobile hot food unit provides efficient and flexible food warming with individual controls for each well, perfect for any commercial setting.

  • Equipped with five 12" x 20" hot food wells, suitable for both wet and dry operation.
  • Features independent thermostatic controls and pilot lights for precise temperature management in each well.
  • Constructed with a robust 16 gauge, type 304 stainless steel top for durability and hygiene.
  • Designed for mobility with 4" diameter swivel casters, including two with brakes for secure positioning.
  • Includes a removable stainless steel undershelf for convenient storage of supplies.
  • Durable stainless steel frame with customizable plastic laminate panels to match your decor.

Overall Dimensions:

77.75"W x 31.25"D x 35.0"H

Product Weight:

372.0 lb

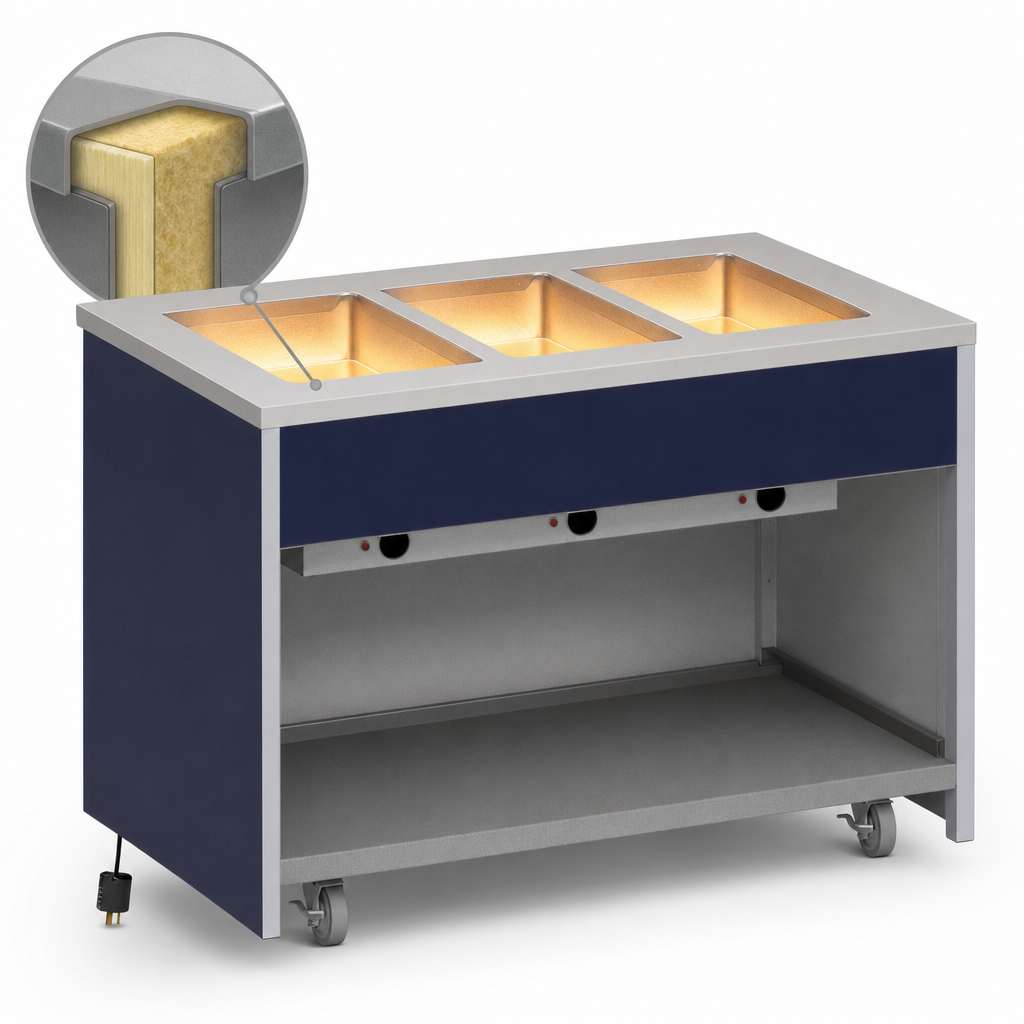

Fully Insulated Hot Food Wells

Each 12" x 20" hot food well is fully insulated with high-density fiberglass (1" thick on sides, 2" on bottom) to ensure optimal heat retention.

Fully Insulated Hot Food Wells

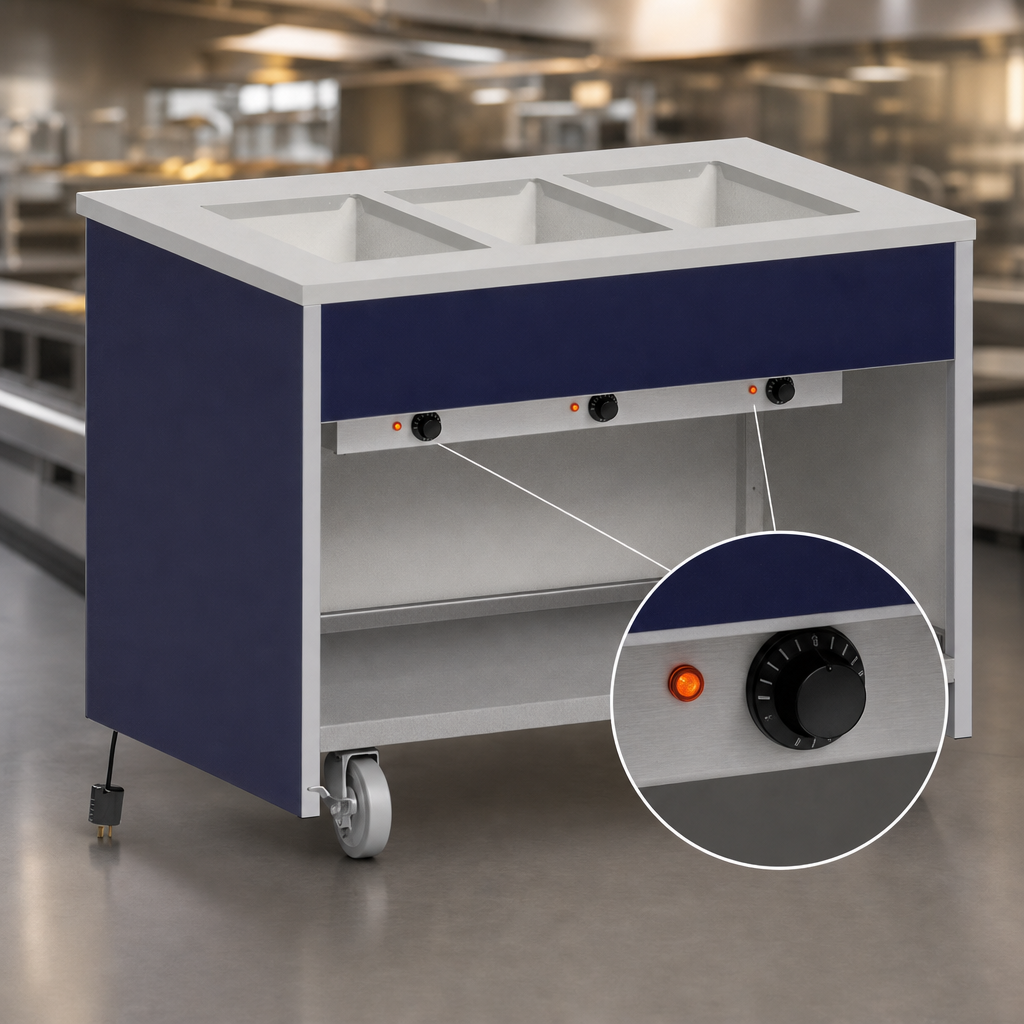

Individual Thermostatic Controls

Each well is equipped with its own 850 watt heating element, wired to an individual thermostat control, complete with a pilot light for easy monitoring.

Individual Thermostatic Controls

Versatile Wet or Dry Operation

The hot food wells can be operated wet (with water) or dry, providing flexibility for various food holding needs.

Robust Stainless Steel Construction

The unit features a 16 gauge, type 304 stainless steel top, a hi-tensile stainless steel square tubing frame, and 18 gauge stainless steel body/panels with 1/16" thick plastic laminate.

Enhanced Mobility

Four 4" diameter, non-marking rubber-tired swivel casters with ball bearings are provided, with two casters on the operator's side featuring toe-activated brakes for stability.

Self-Locking Device

An integral locking device ensures alignment and secure positioning when two or more carts are joined together, keeping tops level.

Removable Undershelf

A stainless steel undershelf is included and is fully removable for easy cleaning and convenient access.

Accessible Electrical Components

The bottom of the outer case can be easily removed, providing access for servicing electrical components.

Type Mobile Hot Food Unit
Style Open Cabinet Base
Installation Type Floor Model (On Casters)
Pan Capacity 5 Full-Size Pans
Pan Size 12" x 20"
Controls Individual Thermostatic
Material Stainless Steel
Interior Finish 304 Stainless Steel
Top Construction 16 Gauge 304 Stainless Steel
Frame Material Stainless Steel Square Tubing
Body & Panel Material 18 Gauge Stainless Steel with Plastic Laminate
Caster Size 4 Inches
Caster Type Swivel with Brakes
Watts 4.25 kW
Voltage 208 Volts
Amps 20.4 Amps
Phase 1-Phase
Plug Type L6-30P
Cord Length 6 Feet
Selling Unit Each
Units Per Case 1
Shipping Width 78 Inches
Shipping Depth 32 Inches
Shipping Height 35 Inches
Shipping Weight 372 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Frequently Asked Questions

The INFIH-5 unit is electrically heated, with each of its five 12" x 20" hot food wells equipped with an 850 watt heating element.
Yes, the individual 12" x 20" hot food wells in the INFIH-5 unit are designed for versatile wet or dry operation, depending on your food holding requirements.
The INFIH-5 is fully mobile, featuring four 4" diameter, non-marking rubber-tired swivel casters with ball bearings. Two of these casters, located on the operator's side, are equipped with toe-activated brakes for secure positioning.
The INFIH-5 features a 16 gauge, type 304 stainless steel top, a hi-tensile stainless steel square tubing frame, and 18 gauge stainless steel body/panels with 1/16" thick plastic laminate front and ends.
Yes, each of the five hot food wells is independently controlled by its own thermostat, allowing for precise temperature management for different food items.
For the standard 850 watt heating elements at 208V, the INFIH-5 uses an L6-30P NEMA plug with a 6-foot long, 3-wire cord.
