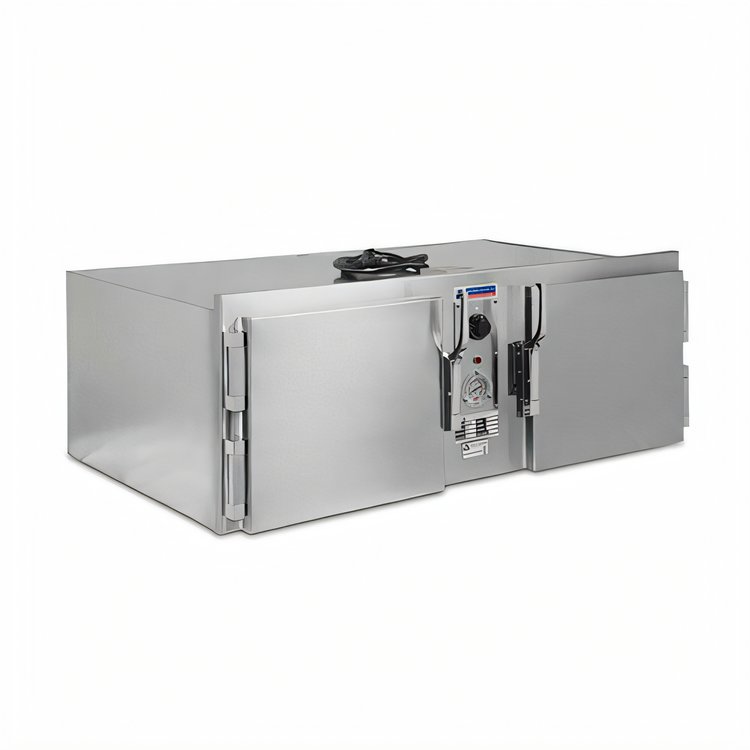

Atlas Metal HB-4 Undercounter Slide-In Electric Heated Base

Full-Size, 12 Pan Capacity, 120V

Efficiently keep food warm and ready for service right where you need it with this space-saving undercounter heated base.

  • Designed for seamless integration, sliding directly into your counter for convenient heated storage.
  • Fully insulated with high-density fiberglass for maximum thermal efficiency and energy savings.
  • Accommodates up to twelve 12" x 20" x 2-1/2" pans, perfect for high-volume operations.
  • Durable 304 stainless steel interior and insulated hinged doors ensure lasting performance and temperature retention.
  • Features an 850-watt element with thermostatic control and a thermometer for precise temperature management.

Overall Dimensions:

55.63"W x 23.63"D x 15.75"H

Product Weight:

264.0 lb

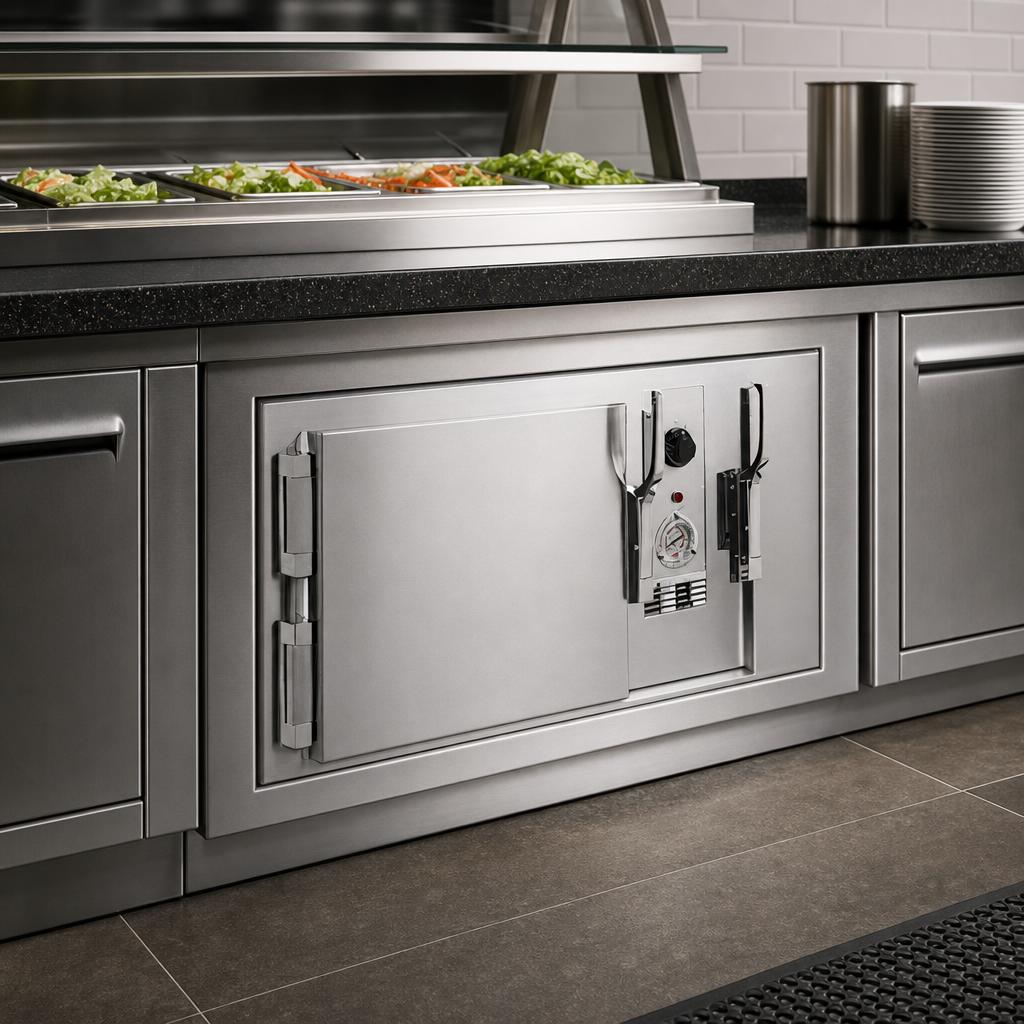

Slide-In Design

Integrates into counters for convenient, out-of-the-way heated storage, ideal for buffet lines or kitchen prep areas.

Slide-In Design

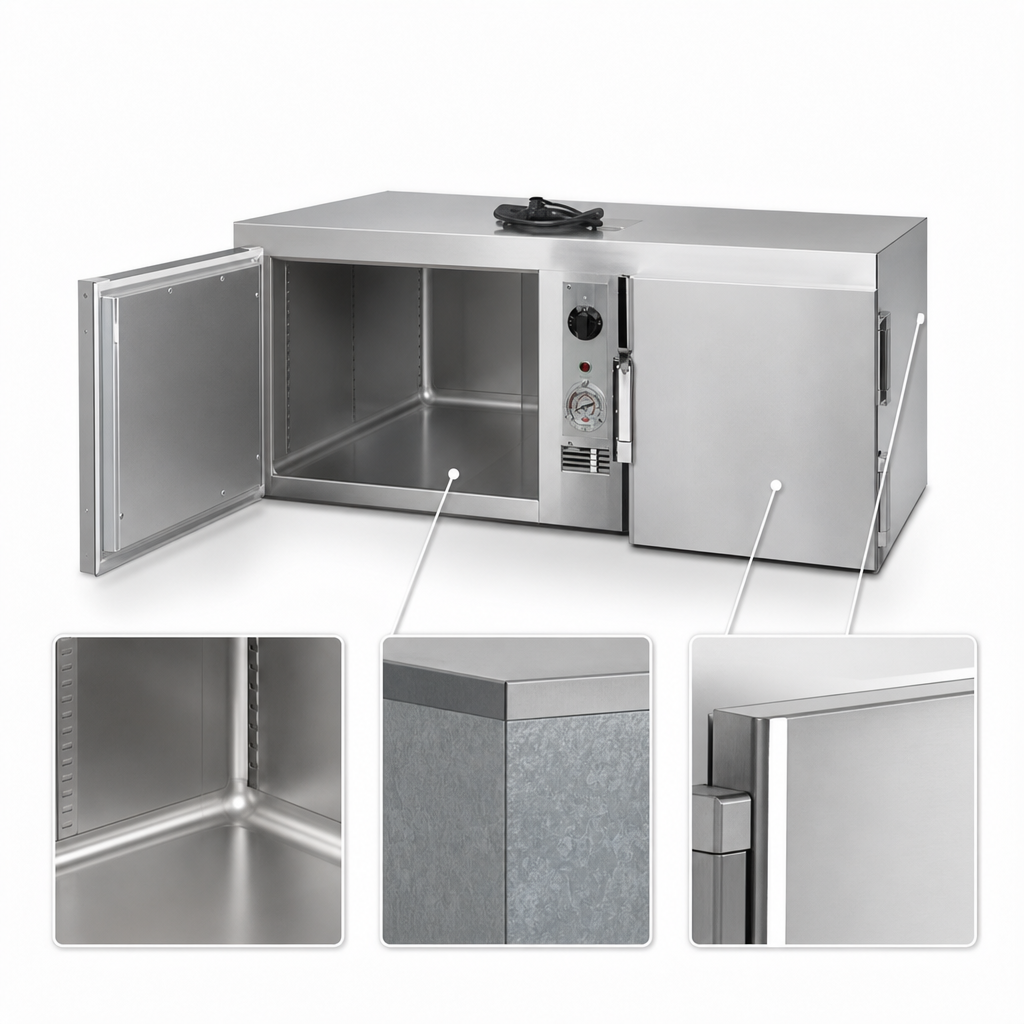

Durable Construction

Double-wall body with 20 gauge Type 304 stainless steel interior liner featuring coved corners, a 22 gauge galvanized steel exterior, and an 18 gauge stainless steel fascia.

Durable Construction

High-Density Insulation

Equipped with 1 inch of high-density fiberglass insulation on all sides for superior heat retention and energy efficiency.

Insulated Hinged Doors

Double-wall 18 gauge Type 304 stainless steel doors are fully insulated, featuring edge-mounted chrome-plated hinges and slam-action latches for secure closure.

Moisture-Proof Gasket

Doors include a moisture-proof gasket to effectively seal in heat and maintain optimal humidity levels for food.

Thermostatic Control

Electrically heated by an 850-watt element, controlled by an on/off thermostat switch and pilot light, with an included thermometer for monitoring internal temperatures.

Removable Pan Slide Assembly

Interior is provided with a removable slide assembly designed to accommodate 12" x 20" pans, facilitating easy loading, organization, and cleaning.

Type Heated Base
Style Undercounter, Slide-In
Installation Type Built-In
Pan Capacity 12 12" x 20" x 2-1/2" Pans
Pan Size 12" x 20"
Watts 850 Watts
Voltage 120 Volts
Amps 7.1 Amps
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Material Stainless Steel, Galvanized Steel
Interior Finish 304 Stainless Steel
Controls Mechanical Thermostat
Selling Unit Each
Units Per Case 1
Shipping Width 56 Inches
Shipping Depth 24 Inches
Shipping Height 16 Inches
Shipping Weight 264.0 lb.

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download PDF Troubleshooting manual PDF Download PDF Parts list PDF Download PDF Installation & operation PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The HB-4 requires a 120-volt, single-phase electrical connection, drawing 7.1 amps and 850 watts. It is supplied with a 6-foot cord and a NEMA 5-15P plug.
The Atlas Metal HB-4 is designed to hold up to twelve 12" x 20" x 2-1/2" full-size pans.
The HB-4 is a slide-in unit designed for undercounter installation, requiring a specific cut-out in your counter surface for a flush fit.
The unit features a 20 gauge Type 304 stainless steel interior liner with coved corners, a 22 gauge galvanized steel exterior wall, and an 18 gauge stainless steel fascia. The doors are also 18 gauge Type 304 stainless steel.
Yes, the HB-4 comes with a 1-Year Parts & Labor Warranty.
