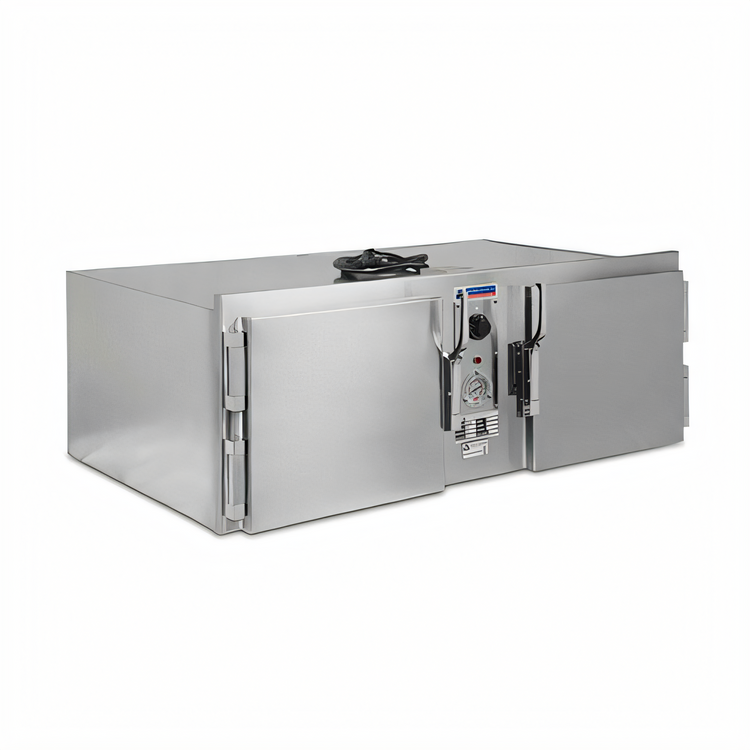

Atlas Metal HB-3 Undercounter Slide-In Heated Base with 4 Full-Size Pan Capacity
Atlas Metal HB-3 Undercounter Slide-In Heated Base with 4 Full-Size Pan Capacity
Electrically Heated, Standard Depth
Efficiently add heated storage directly into your counter space with the Atlas Metal HB-3 slide-in heated base, designed for optimal food holding.

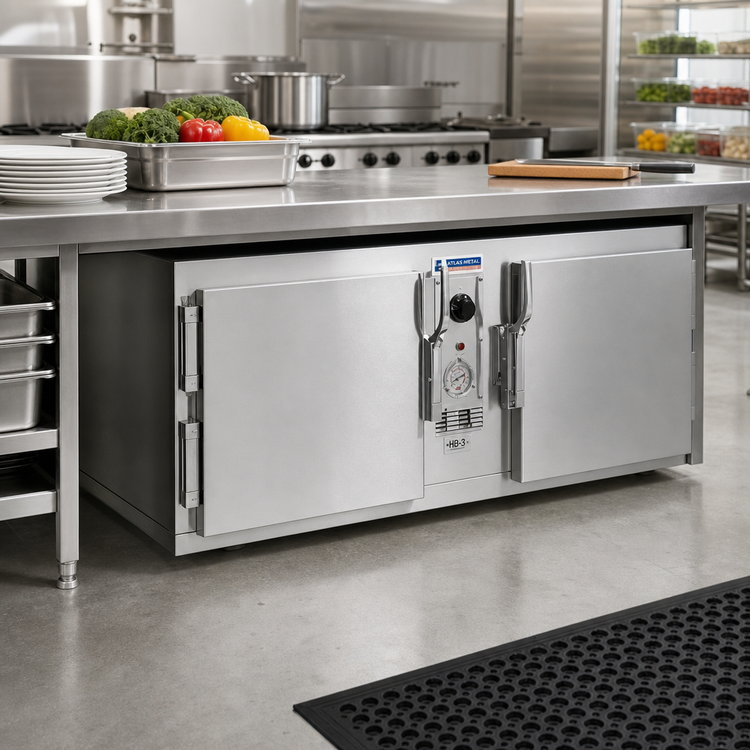

- Designed for undercounter slide-in installation, seamlessly integrating into your workspace.
- Fully insulated double-wall construction ensures maximum heating efficiency and temperature retention.
- Accommodates up to 4 full-size (12" x 20") food pans, keeping contents warm and ready.
- Features easy-to-use thermostat controls for precise temperature management.
- Constructed with durable Type 304 stainless steel interior for long-lasting commercial use.
Overall Dimensions:
41.88"W x 23.63"D x 15.75"HProduct Weight:

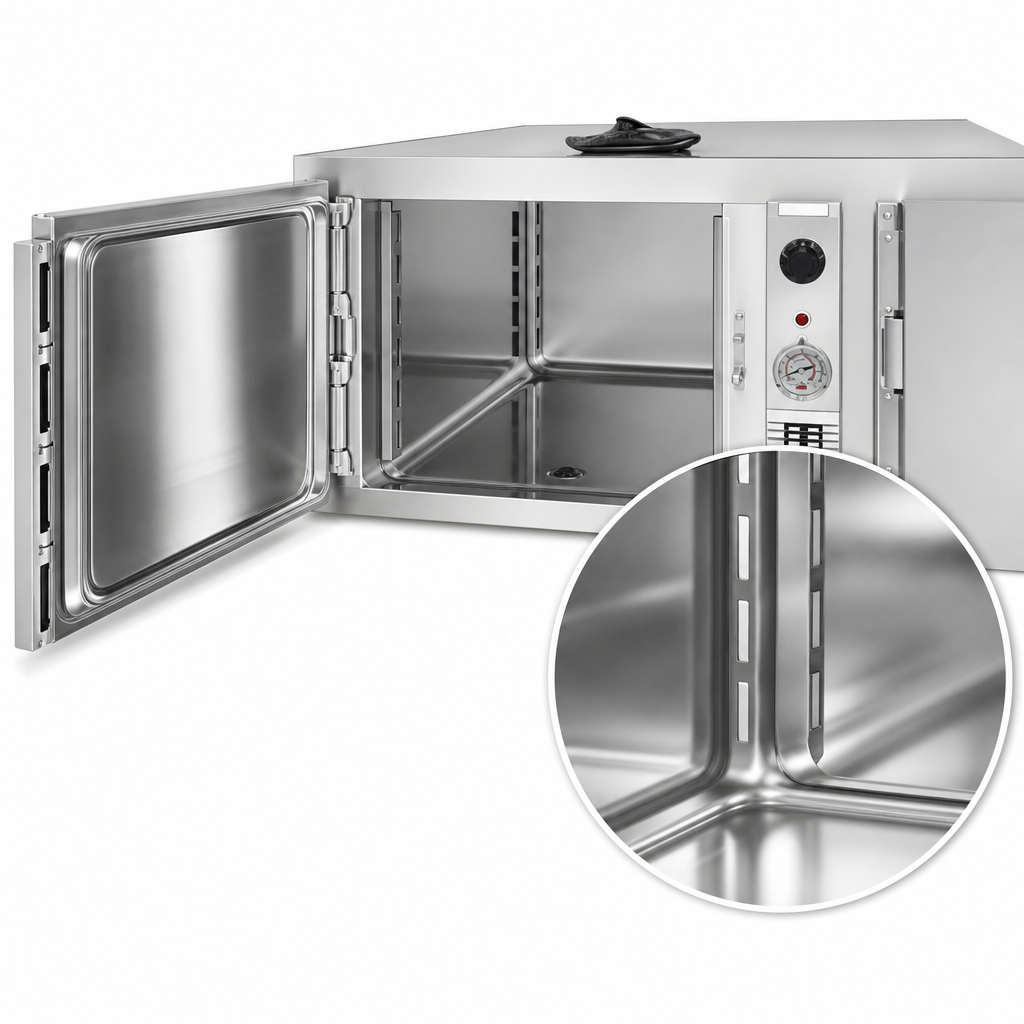

200.0 lb304 Stainless Steel Interior
Double wall construction with 20 gauge, type 304 stainless steel interior liner featuring coved corners for easy cleaning and durability.

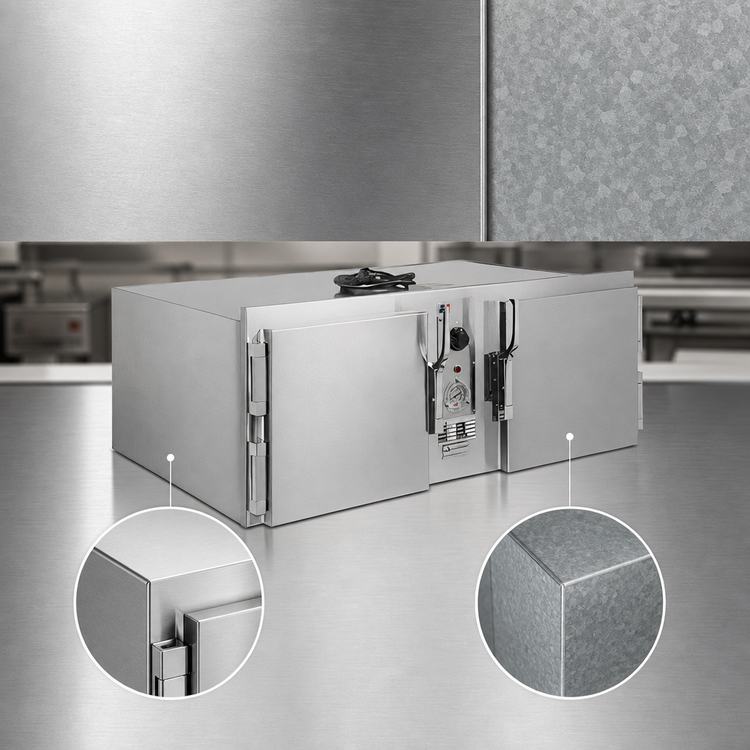

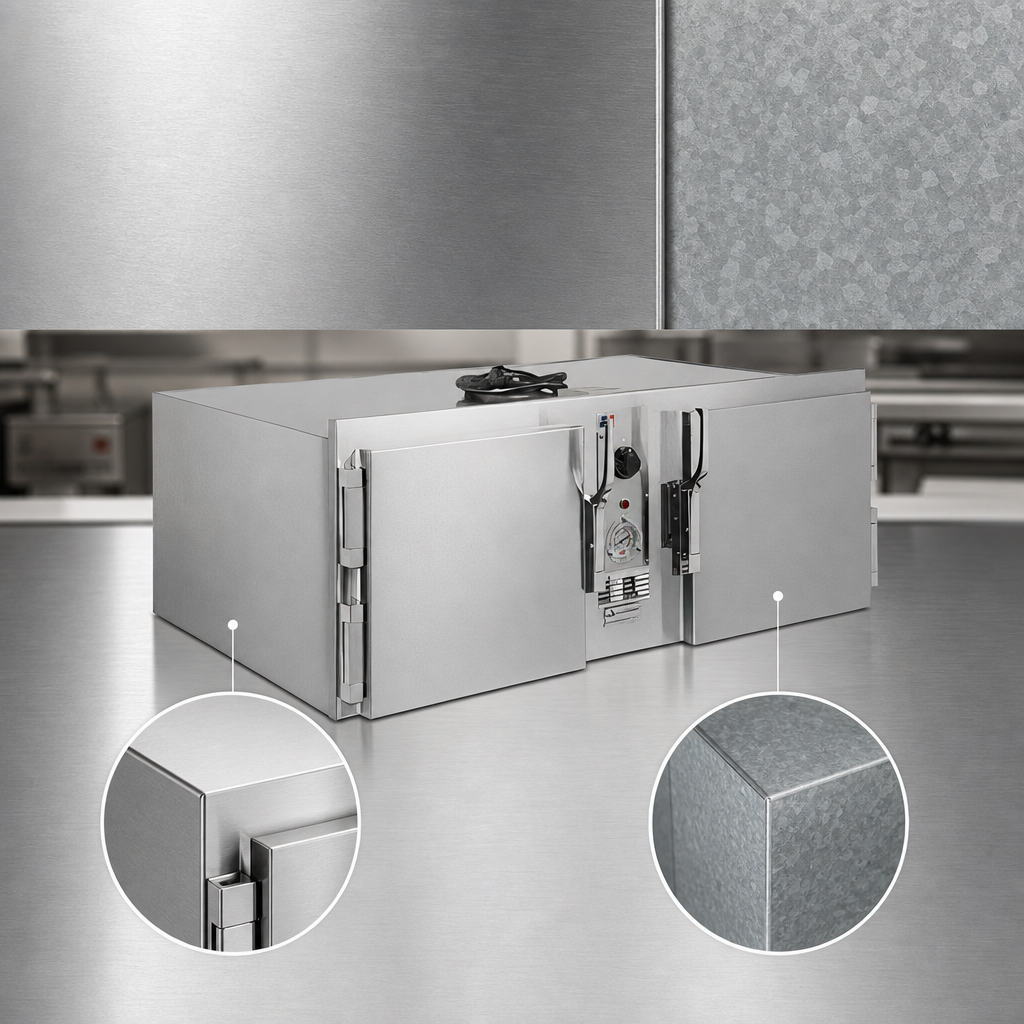

Durable Exterior Construction
The exterior wall is made of 22 gauge galvanized steel, with an 18 gauge stainless steel facia for a robust and professional appearance.
High-Density Insulation
The body is filled with 1 inch of high density fiberglass insulation on all sides, ensuring maximum heating efficiency and temperature retention.
Removable Pan Slide Assembly
Interior is equipped with a removable slide assembly specifically designed to accommodate standard 12" x 20" food pans.
Insulated Hinged Doors
Double wall constructed, 18 gauge, type 304 stainless steel doors are fully insulated with high density fiberglass. They are fitted with edge-mounted, chrome plated hinges and a slam-action latch, complete with a moisture-proof gasket.
Thermostat Control with Pilot Light
Features an 850 watt heating element, pre-wired to an on/off thermostat switch and a pilot light for easy operation and temperature monitoring.
Convenient Electrical Connection
Wired for 15 amp, 120 volt, single-phase operation, complete with a 6-foot long, 3-wire cord and NEMA 5-15P plug for easy setup.
Warranty & Protection
1-Year Parts & Labor Warranty
