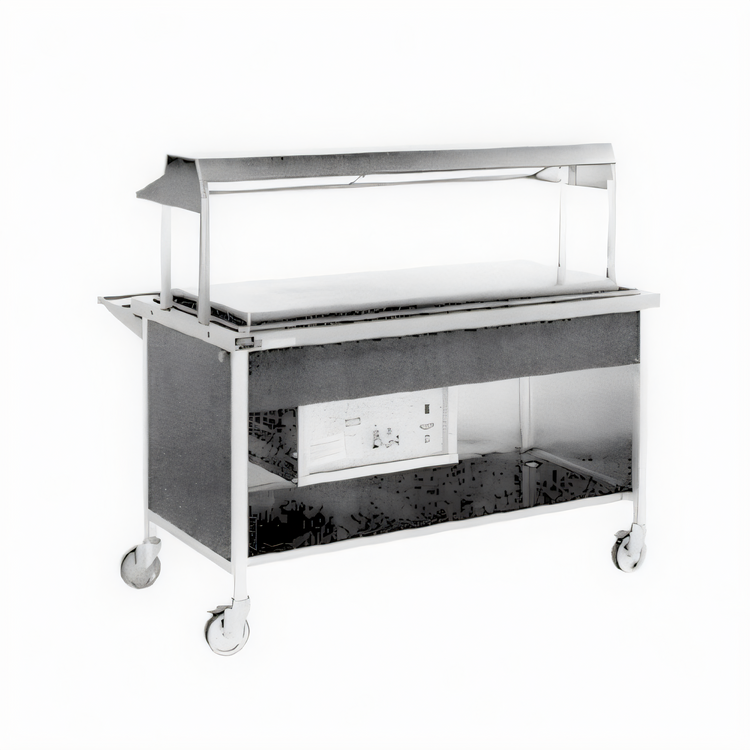

Atlas Metal CARF-5 Mobile Refrigerated Frost Top Serving Counter
77-1/2" Length, Self-Contained Refrigeration, Laminated Panel
This mobile refrigerated frost top serving counter provides an attractive and efficient way to display pre-plated cold foods with flexible placement.
- Ideal for attractive display of pre-plated cold foods with its 'Quick' frost top design.
- Fully insulated construction ensures maximum efficiency and significant energy savings.
- Features a self-contained refrigeration system for easy plug-and-play operation.
- Highly mobile with 5" diameter swivel casters, including two with brakes, for flexible placement.
- Positive self-locking devices allow multiple units to be securely aligned and joined.
- Durable construction with a 16 gauge 304 stainless steel top and a robust aluminum frame.

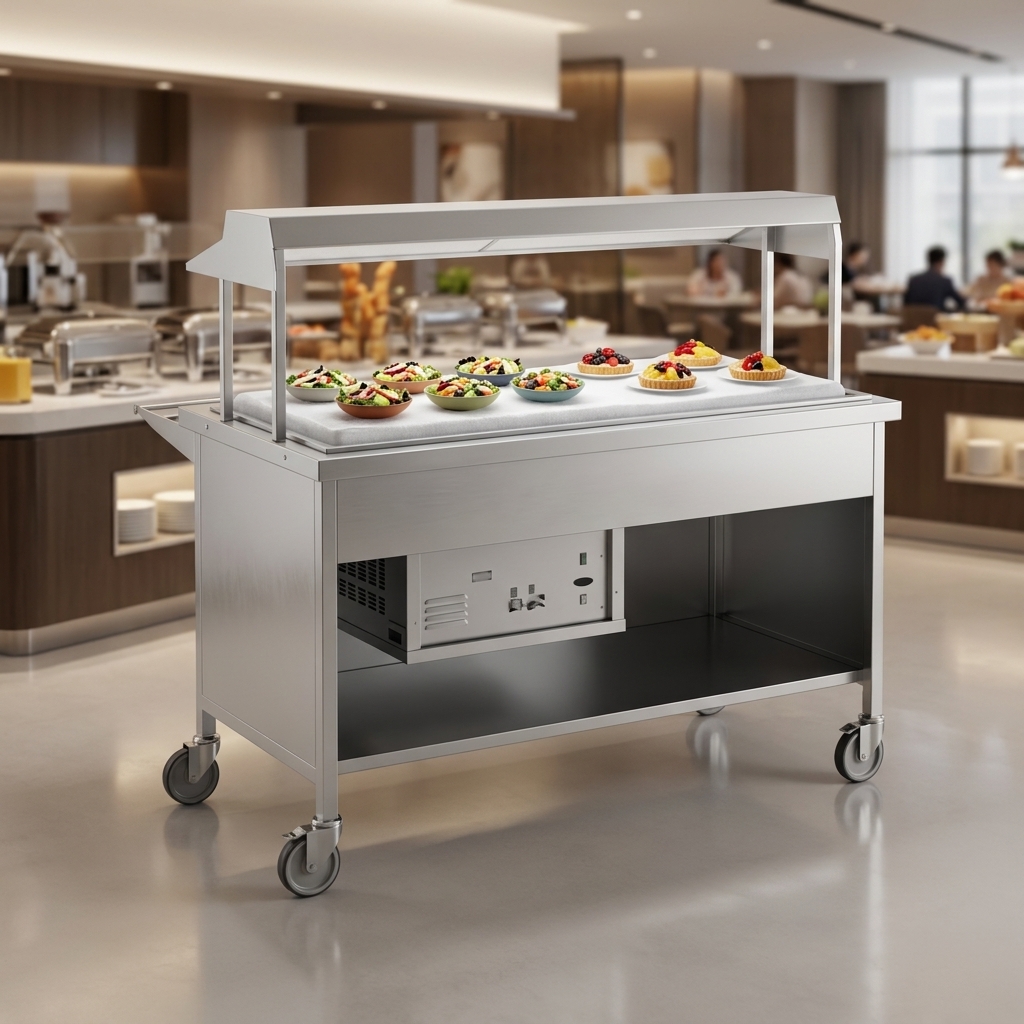

Quick Frost Top Display
The frost top stands 1" above the counter, offering an attractive presentation ideal for pre-plated food items.

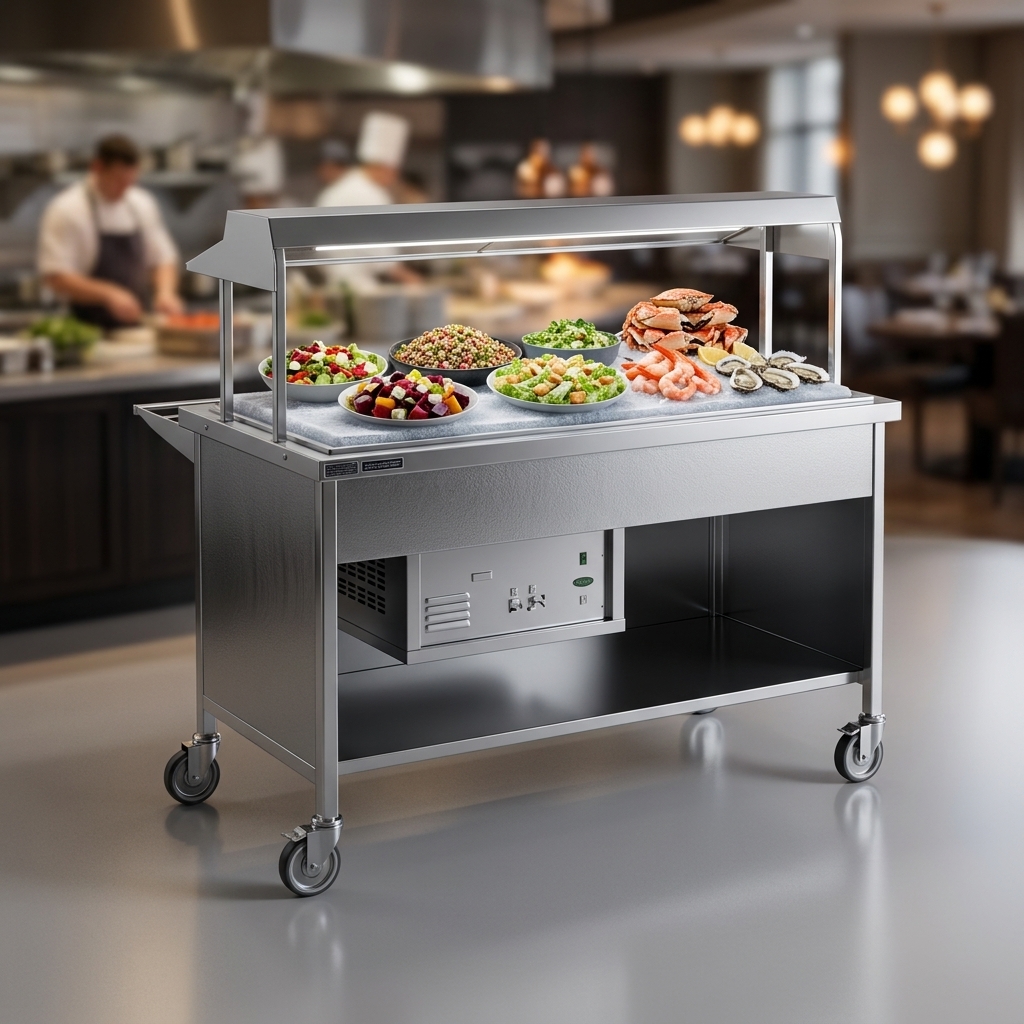

Efficient Insulation
The unit is fully insulated with high-density fiberglass and polystyrene, 1-1/2" thick, to maximize efficiency and conserve energy.

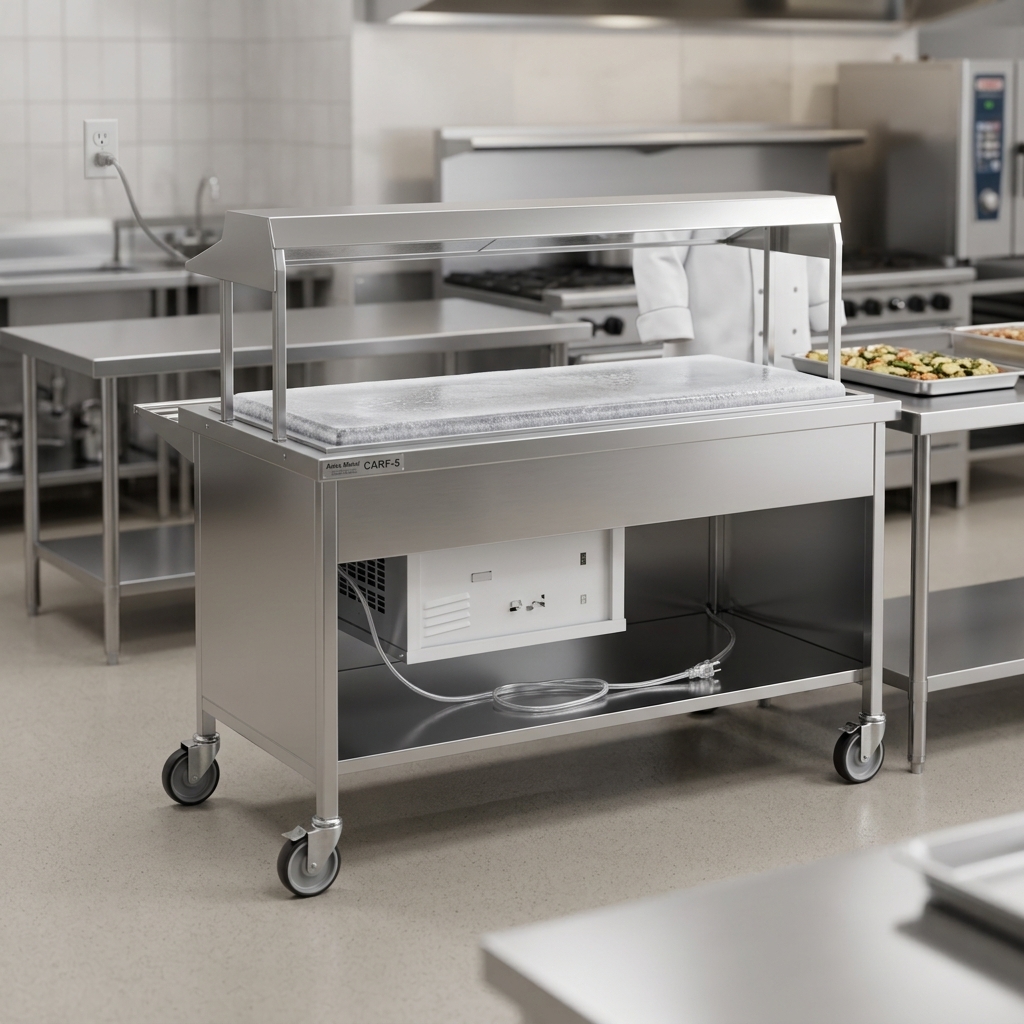

Self-Contained Refrigeration
Equipped with a hermetically sealed compressor and a fully charged CFC-free refrigerant system, it is ready for immediate operation upon plugin.
Durable Stainless Steel Top
The main top is constructed from 16 gauge, type 304 stainless steel, die-formed, welded, ground, and polished for lasting commercial use.
Integrated Frost Top
Includes a WF series drop-in refrigerated frost top made of 18 gauge, type 304 stainless steel with a 14 gauge stainless steel plate with copper tubing.
Robust Frame Construction
The body frame is built from 1-1/4" x 1-1/4" hi-tensile aluminum square tubing with welded construction for strength and stability.
Modular Locking Device
An integral locking mechanism allows for precise alignment and secure retention when two or more carts are joined, ensuring a level display surface.
Condensate Management
A 1/2" full perimeter gutter surrounds the frost top, collecting melted condensate which drains through a 1" IPS drain.
Enhanced Mobility
Features 5" diameter, non-marking rubber tired swivel casters with ball bearings and grease fittings, with two casters on the operator's side equipped with toe-activated brakes.
Specifications
| Type | Frost Top Serving Counter |
|---|---|
| Style | Mobile Modular |
| Installation Type | Floor Model (With Casters) |
| Material (Top) | 16 Gauge 304 Stainless Steel |
| Material (Frost Top) | 18 Gauge 304 Stainless Steel |
| Material (Frame) | 1-1/4" x 1-1/4" Hi-Tensile Aluminum Square Tubing |
| Interior Finish | 304 Stainless Steel |
| Finish (Body) | Plastic Laminate on Aluminum |
| Voltage | 120 Volts |
| Amps | 11.0 Amps |
| Phase | 1-Phase |
| Hertz | 60 Hz |
| Plug Type | NEMA 5-15P |
| Cord Length | 6 Feet |
| Refrigerant Type | CFC Free |
| Refrigeration Type | Self-Contained |
| Drain Connection Size | 1" IPS |
| Drain Connection | Required |
| Frost Plate Size | 19-1/2" x 66-1/2" |
| Caster Size | 5 Inches |
| Controls | On/Off Toggle Switch, Pilot Light |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 78 Inches |
| Shipping Depth | 31 Inches |
| Shipping Height | 35 Inches |
| Shipping Weight | 365 lb. |
Overall Dimensions:
77.5"W x 30.5"D x 35.0"HProduct Weight:
365.0 lbWarranty & Protection
1-Year Parts & Labor Warranty
