Atlas Metal

Atlas Metal CAPT-4 Self-Contained Refrigerated Cold Food Pass-Thru Display Counter, 63-3/4"W, Sliding Glass Doors, 2 Adjustable Shelves

SKU: CAPT-4
$23,529.60
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

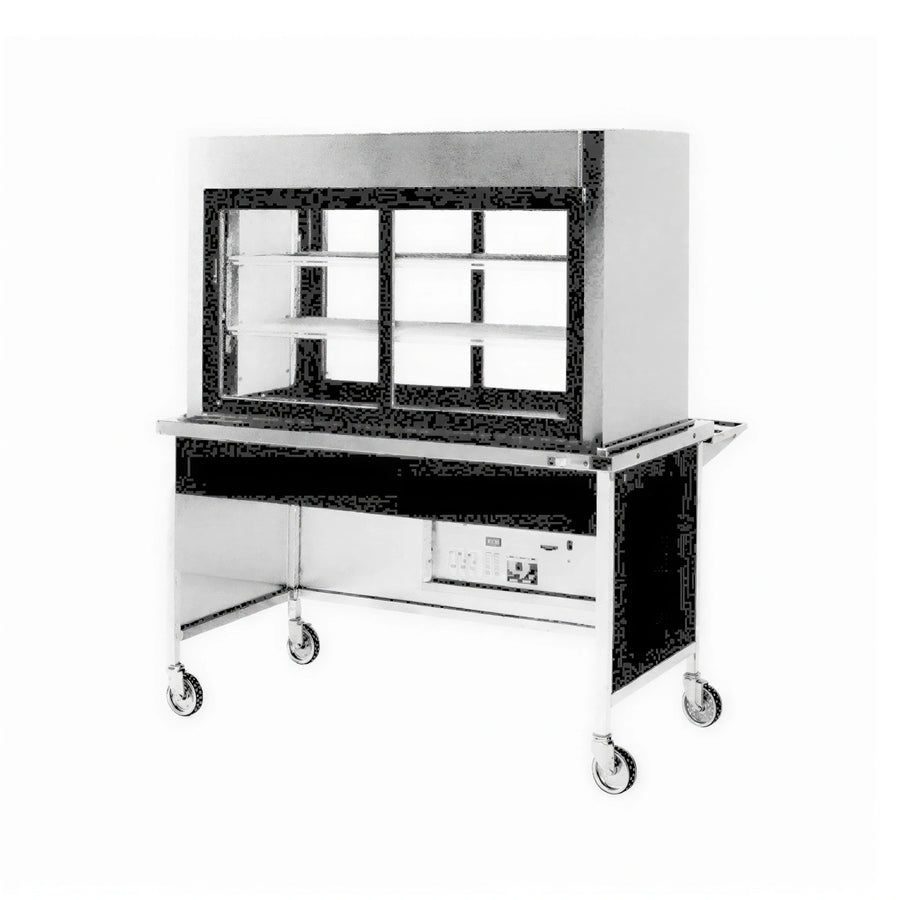

The Atlas Metal CAPT-4 is a self-contained refrigerated cold food pass-thru display counter for self-service presentation.

The display case has a type 304 stainless steel interior and exterior, 2-inch foamed-in-place polyurethane insulation, and sliding, self-closing, thermo-pane insulated glass doors on the customer and operator sides. Two plastic-coated wire shelves adjust on 1-inch increments.

  • 16-gauge type 304 stainless steel top
  • Aluminum square tubing frame with laminated front panel
  • Forced-air evaporator system with internal thermometer
  • Fluorescent light fixtures with a separate on/off switch
  • 5-inch swivel casters, with two brakes

Overall Dimensions:

63.75"W x 30.0"D x 35.0"H

Product Weight:

680.0 lb

Self-contained refrigeration

Includes a fully self-contained condensing unit with thermostat control and a forced-air evaporator system.

Pass-thru glass doors

Sliding, self-closing, thermo-pane insulated glass doors are provided on the customer and operator sides.

Adjustable shelving

Includes two plastic-coated wire shelves that adjust on 1-inch increments.

Stainless steel top

The top is constructed of 16-gauge type 304 stainless steel.

Display case construction

The double-wall display case has type 304 stainless steel interior and exterior surfaces with 2 inches of foamed-in-place polyurethane insulation.

Lighting and temperature monitoring

Includes fluorescent light fixtures with a separate on/off switch and an internal thermometer.

Mobile construction

The unit includes 5-inch swivel casters, with two casters equipped with brakes.

Aluminum frame

The frame is constructed from aluminum square tubing and includes a laminated front panel.

Related Searches

Atlas Metal Best Sellers Display Refrigeration Food Displays & Merchandisers General Refrigerated Display Cases New Arrivals Refrigerated Display Case Equipment Refrigeration & Ice Restaurant Equipment
Product Type Cold food pass-thru display counter
Refrigeration Self-contained refrigeration
Refrigerated Display Capacity 16 cu. ft.
Door Type Sliding, self-closing thermo-pane insulated glass
Shelf Quantity 2
Shelf Adjustment 1-inch increments
Display Case Construction Double-wall type 304 stainless steel interior and exterior
Insulation 2-inch foamed-in-place polyurethane
Top Material 16-gauge type 304 stainless steel
Frame Material Aluminum square tubing
Front Panel Plastic laminate on aluminum
Exterior Finish Laminate exterior
End Material Stainless steel
Caster Size 5 in.
Braked Casters 2
Electrical Voltage 120 V, single phase
Electrical Current 13.5 amps
Compressor 1/2 HP
Power Cord 6 ft., 3-wire cord with NEMA 5-15P plug
Mounting Floor mount
Service Type Self-service

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-Year Parts & Labor Warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. The CAPT-4 has a self-contained refrigeration system with a forced-air evaporator.
It includes two plastic-coated wire shelves adjustable on 1-inch increments.
Yes. Sliding, self-closing, thermo-pane insulated glass doors are provided on the customer and operator sides.
The CAPT-4 is 63.75 inches wide, 30 inches deep, and 35 inches high.
The unit is specified for 120 V, single-phase operation.
It has 5-inch swivel casters, with two casters equipped with brakes.
The cutsheet lists a 1-Year Parts & Labor Warranty.
