Atlas Metal CAHC-6 Dual Temp 6-Pan Full-Size Hot and Cold Buffet Station

SKU: CAHC-6
$14,370.84
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Atlas Metal Best Sellers Food Bars & Buffets Food Wells & Serving Lines Hot and Cold Buffet Station New Arrivals Restaurant Equipment Serving & Display Equipment Serving Counters

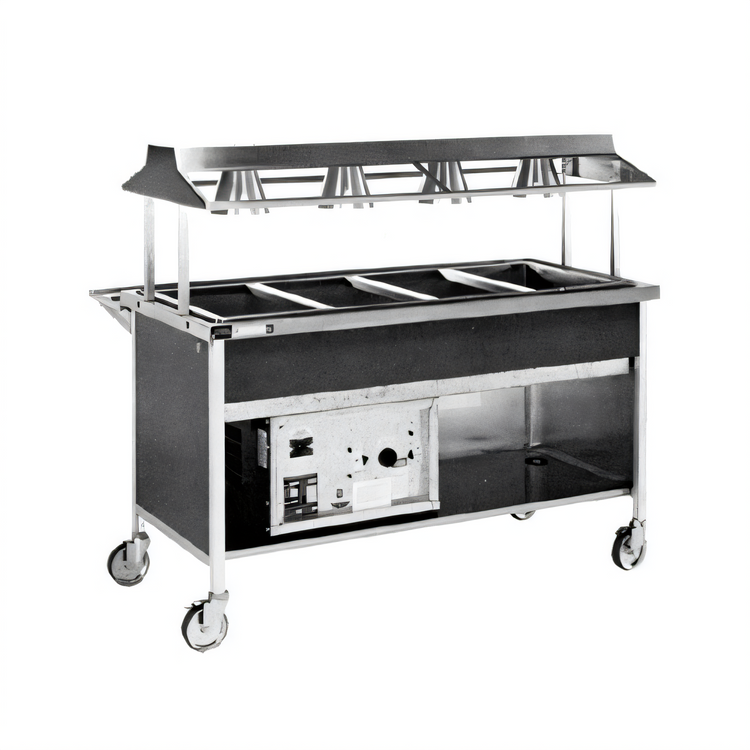

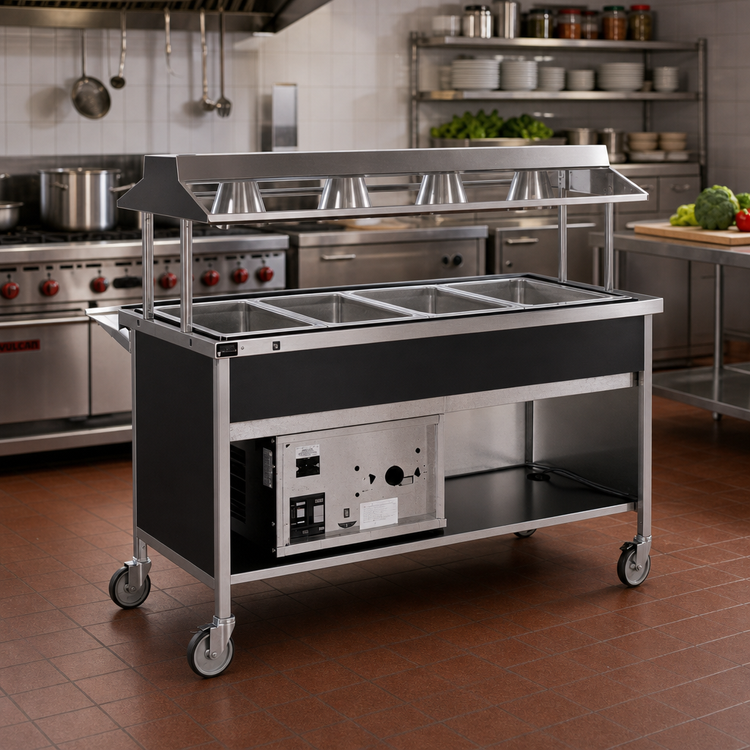

Atlas Metal CAHC-6 Dual Temp 6-Pan Full-Size Hot and Cold Buffet Station

91-1/4" Long, 6-Well Capacity, 120V

Offer ultimate serving flexibility with the Atlas Metal CAHC-6, a mobile dual-temperature unit capable of keeping both hot and cold foods at optimal serving temperatures.

  • Versatile dual-temperature design allows for hot or cold food service with a simple switch.
  • Self-contained refrigeration system ensures easy plug-and-play operation.
  • Accommodates six full-size 12" x 20" food pans, making it ideal for high-volume service.
  • Fully insulated pan and body for maximum efficiency and energy savings.
  • Equipped with 5-inch swivel casters, two with brakes, for easy mobility and secure positioning.
  • Durable construction with 16 gauge stainless steel top and hi-tensile aluminum frame.

Overall Dimensions:

91.25"W x 30.5"D x 35.0"H

Product Weight:

565.0 lb

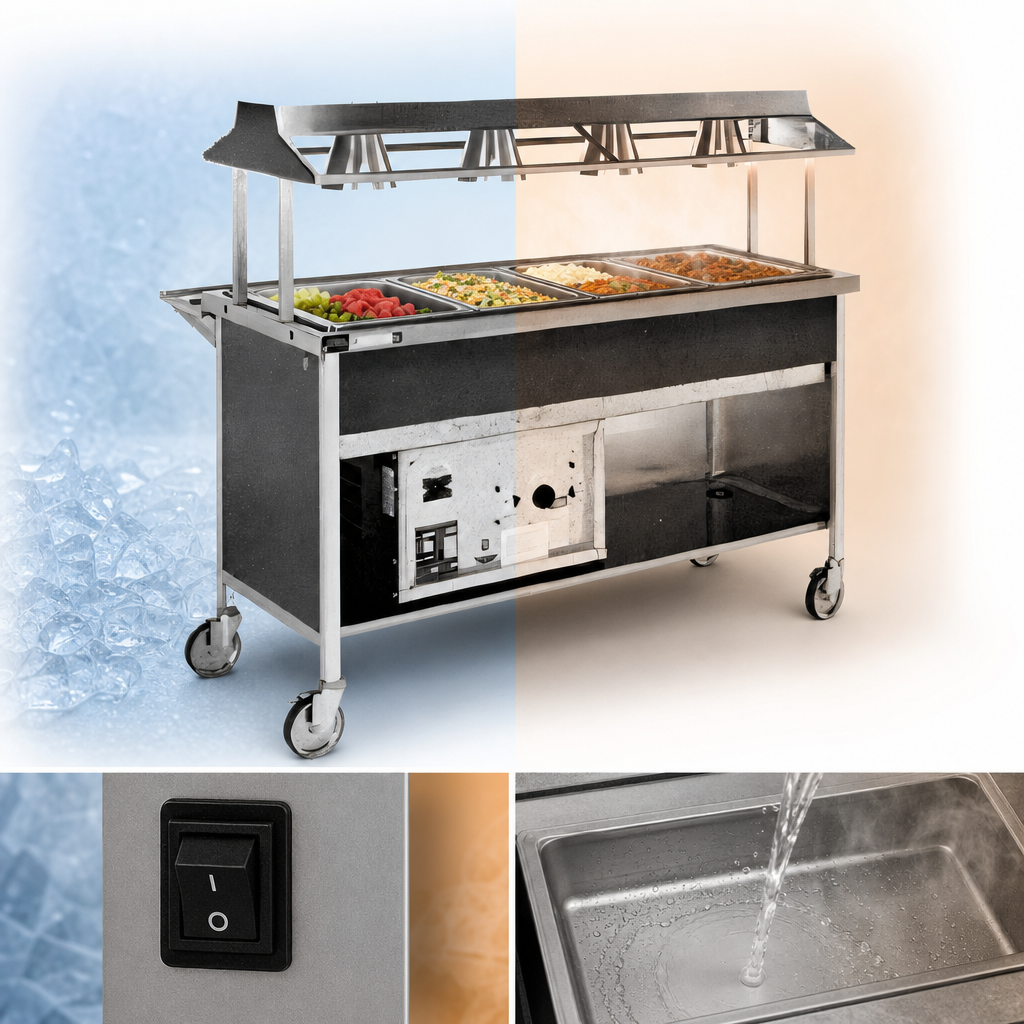

Dual Temp Operation

Converts between hot and cold serving modes with a selector switch. Hot mode requires water in the pan, ensuring safe and effective operation.

Dual Temp Operation

Fully Insulated Pan

The food pan is insulated with 1-3/8" thick high-density polystyrene on all sides and 1-1/2" on the bottom, maximizing efficiency and energy retention.

Self-Contained Refrigeration System

Features a hermetically sealed compressor and thermostat control, pre-charged with CFC-free refrigerant for immediate, reliable cooling.

Immersion Heating Element

An immersion-type heating element with a perforated stainless steel sheath cover provides efficient heat, complete with a safety cut-off if operated dry.

Thermostat Controls

Includes separate thermostat controls for both hot and cold modes, along with pilot lights for easy monitoring and precise temperature management.

Positive Self-Locking Device

An integral locking device is provided to align and securely retain cart positioning when two or more carts are joined, creating a seamless serving line.

Durable Construction

The top is constructed of heavy-duty 16 gauge, type 304 stainless steel, and the frame is made from 1-1/4" x 1-1/4" hi-tensile aluminum square tubing for lasting durability.

Mobile Design

Features 5" diameter non-marking rubber-tired swivel casters, with two casters on the operator's side equipped with toe-activated brakes for easy movement and secure placement.

Easy Maintenance

The interior liner of the food pan is fabricated with 1/4" radius coved corners for easy cleaning and includes a 3/4" drain with strainer, 4" brass nipple, and valve.

Food Pan Capacity

Equipped with separator channels to hold six standard 12" x 20" full-size food pans, offering ample serving capacity.

Type Hot and Cold Buffet Station
Style Dual Temp Food Serving Counter
Installation Type Floor Model (With Casters)
Pan Capacity 6 Full-Size Pans
Pan Size 12 Inches x 20 Inches
Controls Thermostat with Hot/Cold Selector Switch
Material (Top) 304 Stainless Steel
Material (Frame) Aluminum
Interior Finish (Pan) 304 Stainless Steel
Base Finish Laminated Aluminum
Voltage 120 Volts
Amps 15.0 Amps
Watts 1800 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Refrigeration Type Self-Contained
Refrigerant Type CFC Free
Drain Connection Size 3/4 Inch
Drain Connection Required
Shipping Width 92 Inches
Shipping Depth 31 Inches
Shipping Height 35 Inches
Shipping Weight 565 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

1-Year Parts & Labor

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No, the Atlas Metal CAHC-6 features a hot/cold selector switch that prevents dual operation, meaning it can only be set to either hot or cold service at any given time.
The unit is designed with separator channels to hold standard 12" x 20" full-size food pans, allowing for flexible food presentation.
Yes, when operating in hot mode, water must be used in the food pan. For safety, the immersion heating element will only operate when fully submerged and will cut-off automatically if operated dry.
Yes, it is fully mobile and provided with 5-inch diameter, non-marking rubber-tired swivel casters. Two of the casters on the operator's side are equipped with toe-activated brakes for secure positioning.
The CAHC-6 unit requires a 120 Volt, 1-Phase, 15 Amp electrical connection and is provided with a 6-foot cord and a NEMA 5-15P twist lock plug.
