Key specifications

Type
Utility Station
Style
Corner
Installation Type
Floor Model
Material
Aluminum
Top Material
304 Stainless Steel
Undershelf Material
Stainless Steel
Spec sheet
Atlas Metal SKU: CACC

Atlas Metal CACC Corner Utility Station, 30-1/2-Inch Square

$2,093.85
/each
Estimated to ship in 11–14 business days

Made to order. Lead times are estimates and can change with the factory’s production schedule. You can cancel free within 24 hours of ordering if production hasn’t started. Once it starts, canceling may not be possible or may carry the manufacturer’s cancellation fee.

Outlet box
Top construction
Mobility
Tray slide
Factory Add-Ons

Need something else? Contact us.

Included: Atlas Metal warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $194/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Utility Station
Style Corner
Installation Type Floor Model
Material Aluminum
Top Material 304 Stainless Steel
Undershelf Material Stainless Steel
Size 30-1/2 Inch Square
Working Height 35 Inches
Top Gauge 16 Gauge
Undershelf Gauge 18 Gauge
Frame Tube Size 1-1/4 Inch Square Tubing
Caster Diameter 5 Inches
Caster Type Non-Marking Rubber-Tired Swivel
Caster Brakes 2

Description

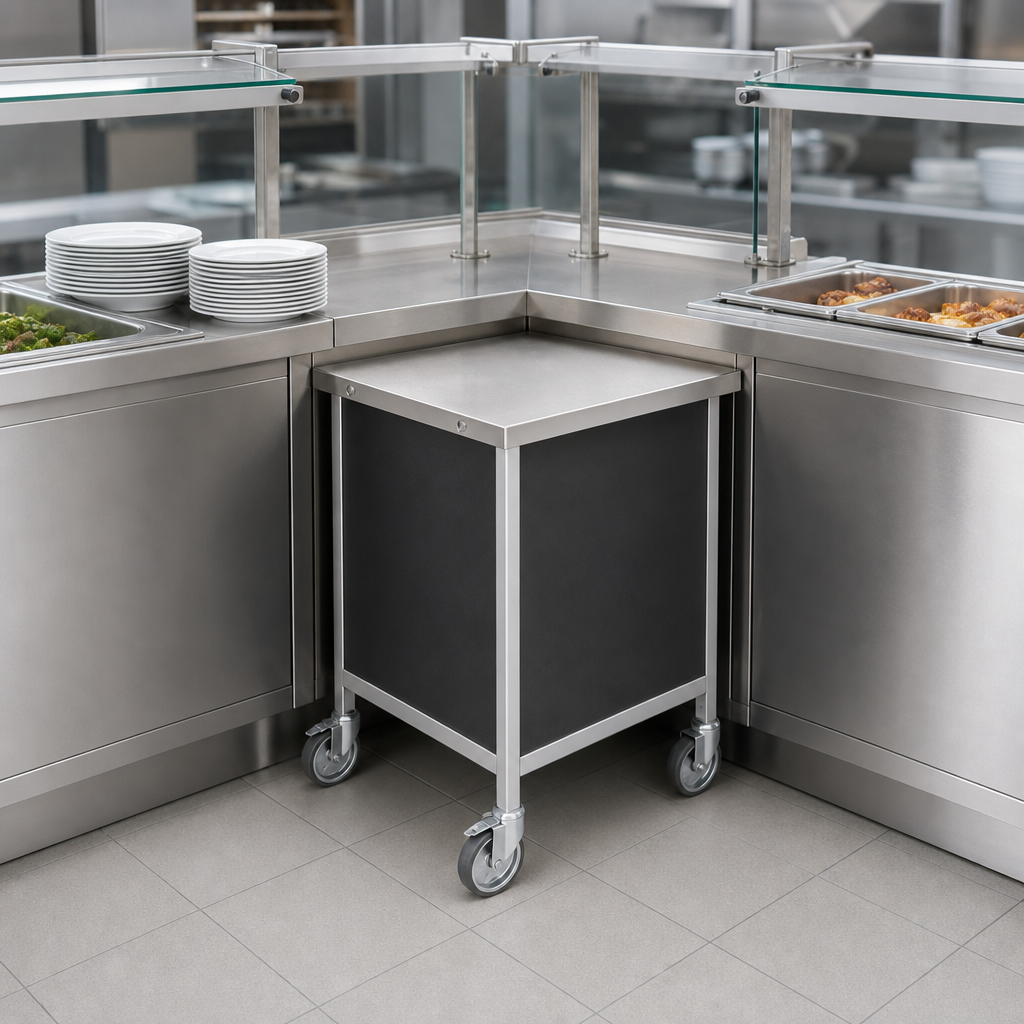

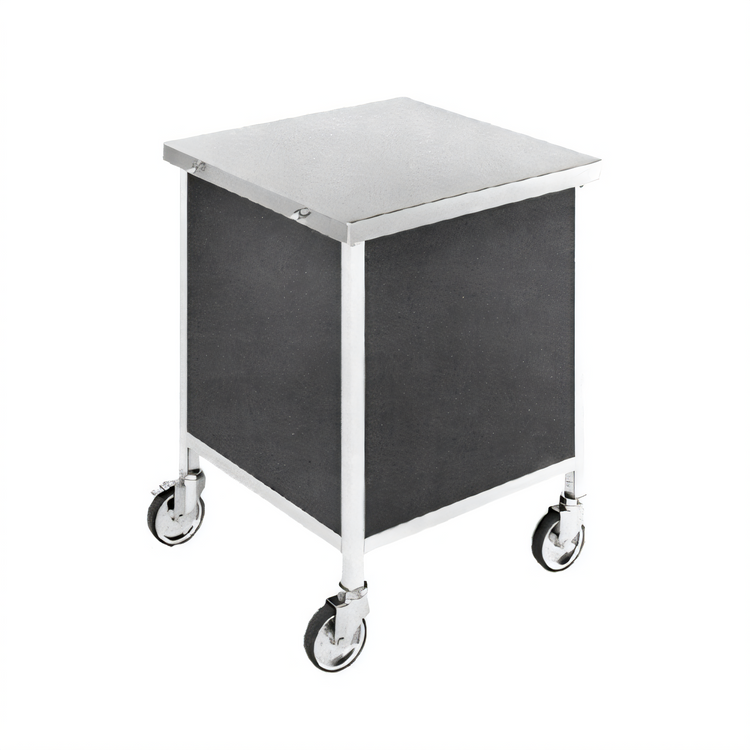

The Atlas Metal CACC is a mobile corner utility station with a 30-1/2-inch square, 16-gauge Type 304 stainless steel top, aluminum square-tubing frame, and stainless steel undershelf.

  • 35-inch working height for utility and serving-line applications.
  • Five 5-inch non-marking rubber-tired swivel casters provide mobility, with two operator-side casters equipped with toe-activated brakes.
  • An integral locking device aligns and retains cart positioning when units are joined.

Overall Dimensions:

30.5"W x 30.5"D x 35.0"H

Product Weight:

165.0 lb

Type 304 Stainless Steel Top

The solid 16-gauge top is die-formed, welded, ground, and polished.

Aluminum Square-Tube Frame

The frame uses high-tensile 1-1/4-inch by 1-1/4-inch aluminum square tubing.

Removable Undershelf

An included 18-gauge stainless steel undershelf provides open lower storage and can be removed.

Mobile Caster Base

Five 5-inch non-marking rubber-tired swivel casters support mobile use.

Toe-Activated Brakes

Both operator-side casters have toe-activated brakes.

Cart-Joining Lock

An integral locking device aligns and retains cart positioning when units are joined.

Frequently Asked Questions

The station is 30.5 inches wide by 30.5 inches deep and 35 inches high.
The solid top is made of 16-gauge Type 304 stainless steel.
Yes. It includes a removable 18-gauge stainless steel undershelf.
Yes. It has five 5-inch non-marking rubber-tired swivel casters.
Two operator-side casters have toe-activated brakes.
Yes. An integral locking device aligns and retains cart positioning when two or more carts are joined.
The product includes a 1-year parts and labor warranty.
