Arctic Industries

Arctic Industries Indoor Walk-In Freezer with Floor and Self-Contained Top-Mount Refrigeration, 6 ft x 9 ft 10 in x 7 ft 8-1/2 in, -10°F Holding

SKU: BL0610-F-SC
$20,235.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Arctic Industries Indoor Walk-In Freezer with Floor and Self-Contained Top-Mount Refrigeration, 6 ft x 9 ft 10 in x 7 ft 8-1/2 in, -10°F Holding

Urethane Foam Insulated Cam-Lock Panels, Digital Thermometer, Door Heater

A compact indoor walk-in freezer package that combines insulated cam-lock construction, a self-contained refrigeration system, and built-in safety features for dependable -10°F holding.

  • Indoor walk-in freezer with an included floor for a complete cold storage installation.
  • Self-contained, top-mount refrigeration simplifies the freezer package.
  • Urethane foam insulated cam-lock panels help maintain cold temperatures.
  • Rated for -10°F holding applications.
  • Includes a digital thermometer, light switch, key lock handle, inside safety release, door heater, and pressure relief valve.
  • 34 x 78 in door includes 24 in high diamond kick plates on the inside and outside.

Overall Dimensions:

70.0"W x 117.25"D x 92.5"H

Product Weight:

1299.0 lb

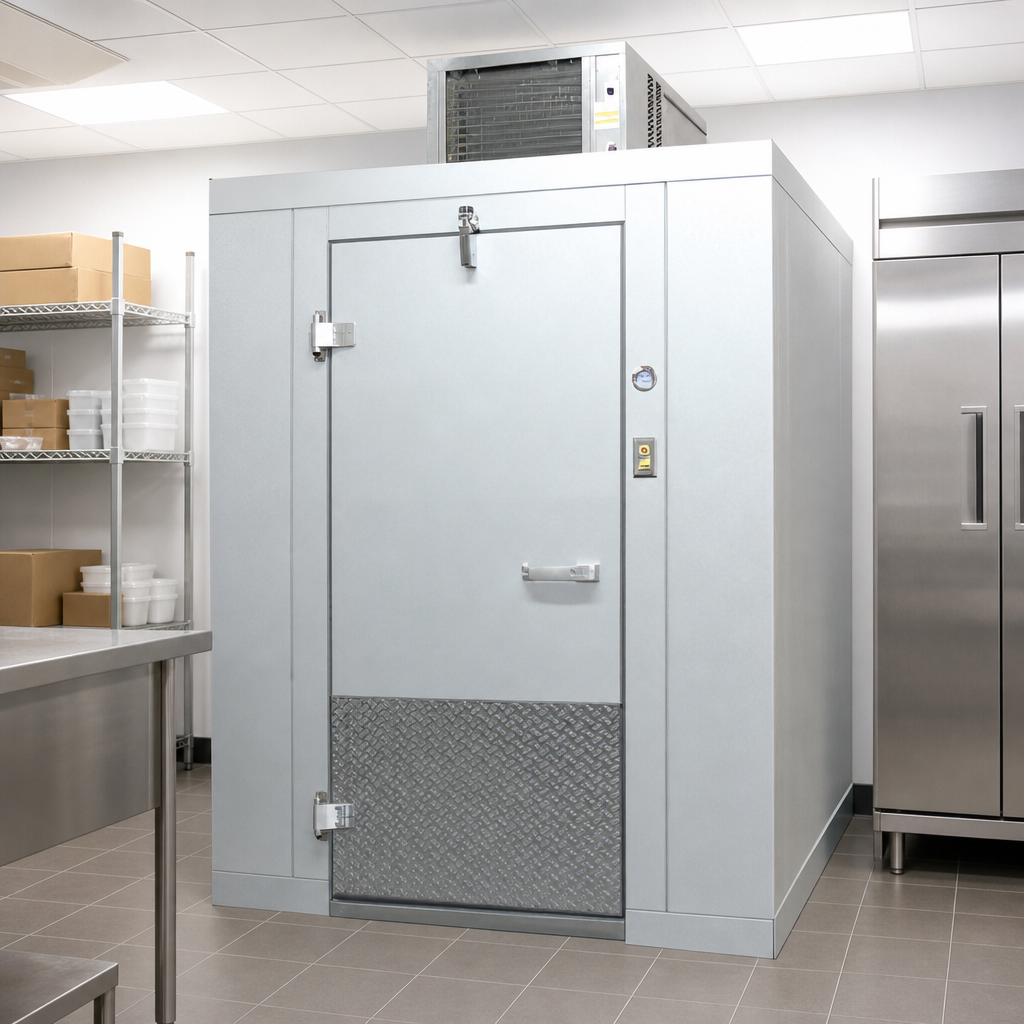

Indoor Walk-In Design

Configured for indoor installation and supplied as a complete walk-in freezer package.

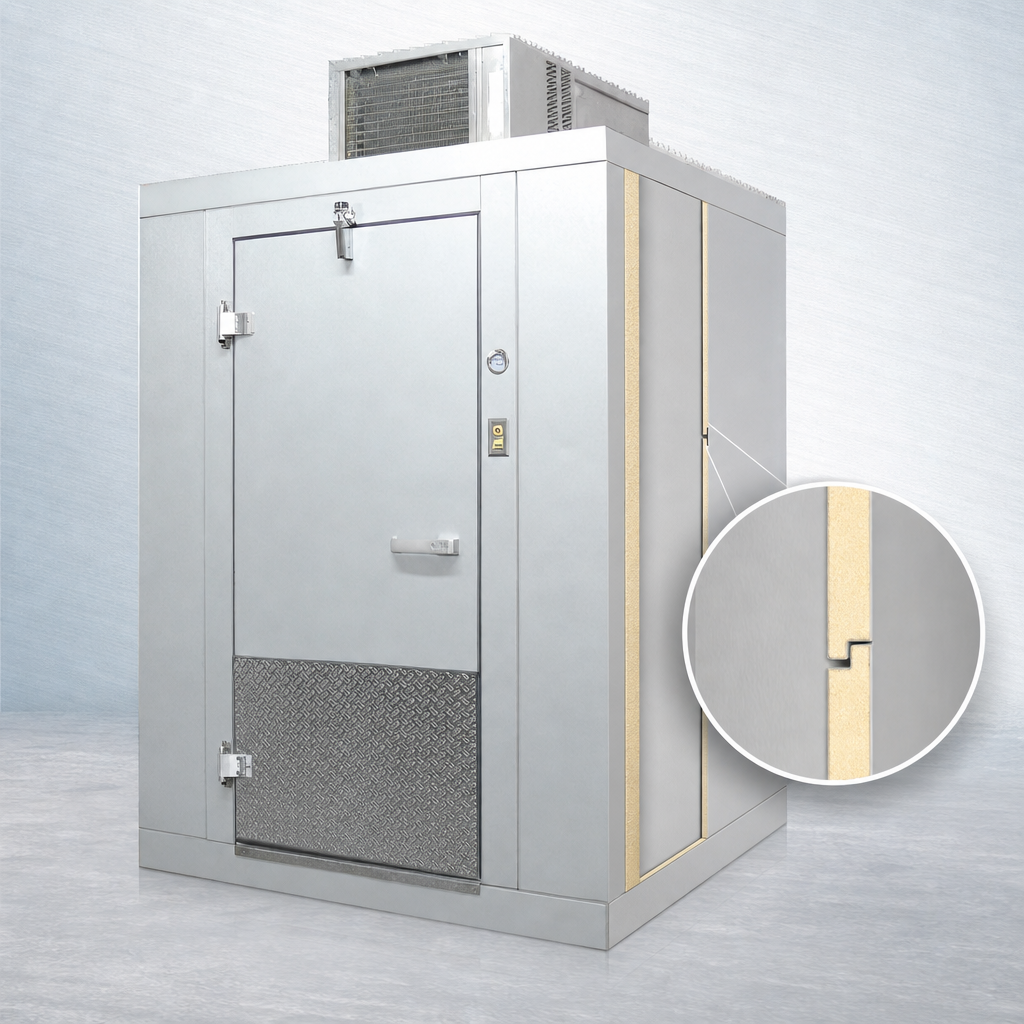

Urethane Foam Insulated Cam-Lock Panels

Insulated cam-lock panel construction helps support temperature retention and assembly.

Insulated Floor

Includes a urethane foam insulated floor with a smooth aluminum finish.

Self-Contained Top-Mount Refrigeration

The refrigeration system is self-contained and top mounted for an all-in-one freezer solution.

-10°F Freezer Holding

Designed for freezer holding applications at -10°F.

Safety Door Hardware

Includes a key lock handle, inside safety release, door heater, and pressure relief valve.

Digital Thermometer and Light Switch

Built-in digital thermometer and light switch support easier monitoring and daily use.

Heavy-Duty Door Assembly

34 x 78 in door with interior and exterior 24 in high diamond kick plates helps protect the entry area.

R448/449 Refrigerant

The self-contained refrigeration system uses R448/449 refrigerant.

Type Walk-In Freezer
Style Self-Contained
Installation Type Built-In
Temperature Range -10°F Holding
Voltage 208-230 Volts
Amps 16.5 Amps
Phase 1-Phase
Hertz 60 Hz
Refrigerant Type R448/449
Finish Acrylume
Shipping Width 70 Inches
Shipping Depth 118 Inches
Shipping Height 93 Inches
Shipping Weight 1677 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

Installation by a certified and licensed contractor is required to keep warranty coverage valid.

Frequently Asked Questions

Yes. The model is specified for indoor installation.
Yes. This walk-in freezer is supplied with a floor.
It is rated for -10°F holding applications.
The self-contained refrigeration system uses R448/449 refrigerant.
The cutsheet lists the walk-in electrical at 115/60/1 with a 2.2 max amp rating, and the refrigeration system at 208-230/60/1 with 16.5 amps.
The drawings show both left- and right-hinge elevations, and the plan view notes right hinge select.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
