Arctic Air  |  SKU: ARCB60

Arctic Air ARCB60 Undercounter & Worktop Refrigeration

$3,599.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Diagram Product catalog Warranty Owner's manual Pan capacity Video
Related Searches
Commercial Work Tables Equipment Stands Kitchen Equipment Tables Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

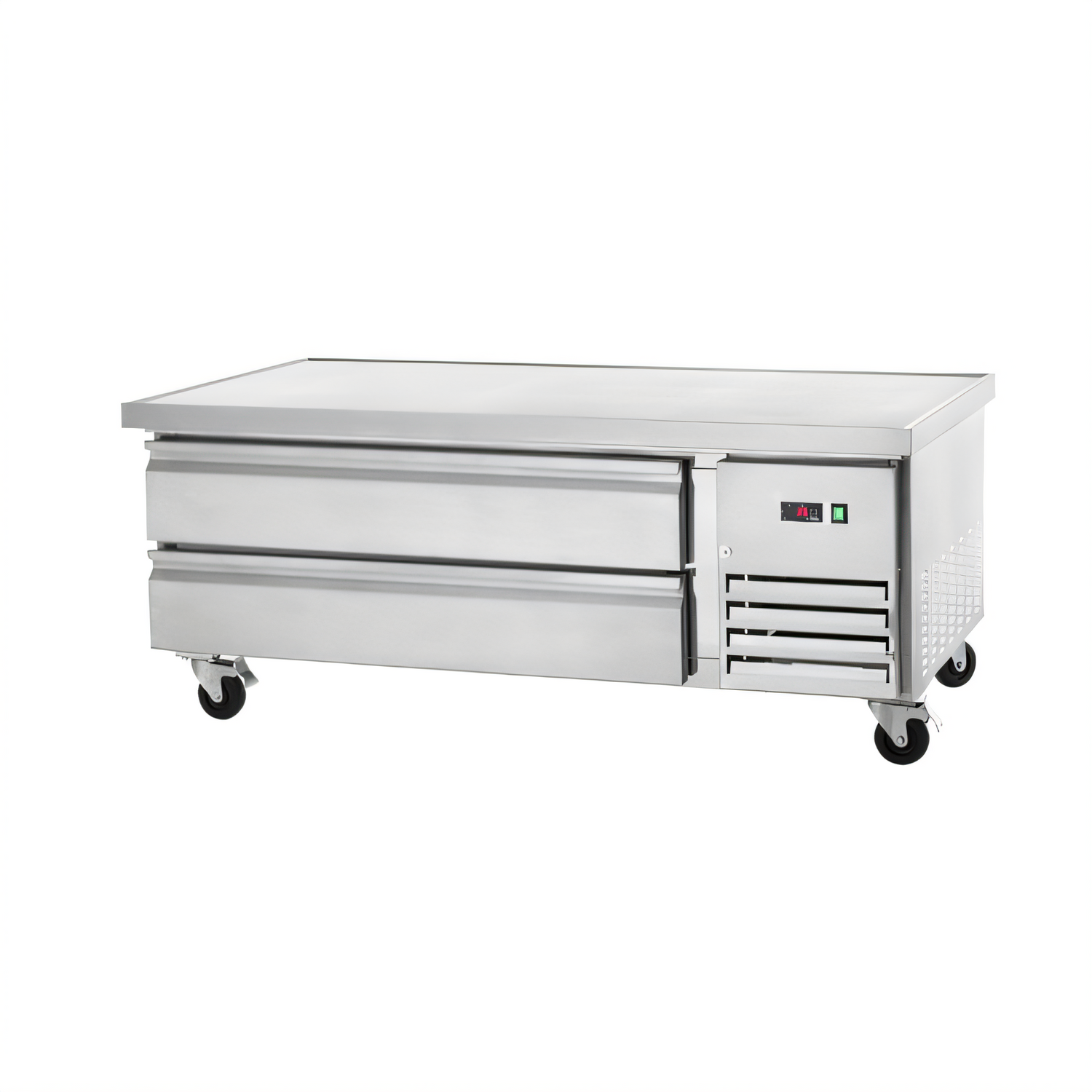

Arctic Air ARCB60 Refrigerated Chef Base

62" wide • 2 full-extension drawers • 6 full-size pan capacity

Chill ingredients right where you cook. The ARCB60 combines a heavy-duty, heat-shielded stainless work surface with powerful side-mounted refrigeration—perfect for supporting griddles, charbroilers, or countertop ovens while keeping meats, sauces, and garnishes between 33 °F and 41 °F.

Key Features

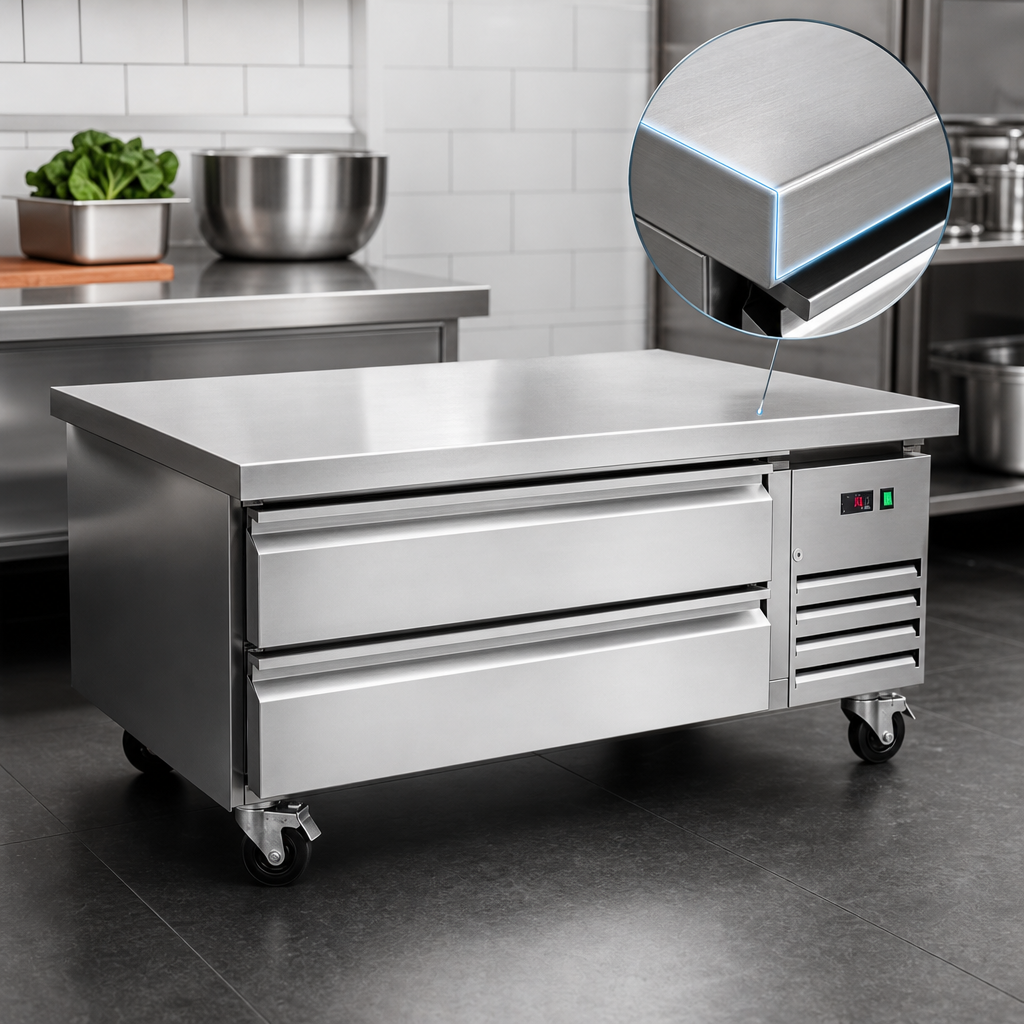

  • Heavy-gauge stainless top with 1" marine edge extension on all sides to catch spills and let 6"-tall cooking equipment sit flush.
  • Ceramic fabric insulation above the foam core stops cook-surface heat from reaching the cabinet.
  • (2) full-extension Fulterer cartridge drawers—both accept 6"-deep full-size hotel pans.
  • Stainless steel hook adapter bars included for quick pan layout; magnetic gaskets pop out for cleaning.
  • Side-mounted, front-breathing capillary tube refrigeration system with eco-friendly R290 hydrocarbon refrigerant.
  • Electronic thermostat with external LED display for one-touch, precise temperature control.
  • Reinforced drawer mounting points built for high-volume kitchens.
  • (4) 5" plate casters—front casters lock for rock-solid stability.
  • cETLus & ETL-Sanitation listed; tested to NSF 7 for open food storage.
  • Covered by a 2-year parts & labor warranty plus 5-year compressor warranty.

At-a-Glance Specifications

Model ARCB60
Exterior Dimensions (W × D × H) 62" × 32" × 27.625" (incl. 5" casters)
Drawers 2 full-extension telescoping
Pan Capacity 6 full-size pans, 6" deep (pans not included)
Holding Temperature 33 °F – 41 °F
Refrigerant R290 hydrocarbon
Compressor / Heat Rejection 1/3 HP, 492 BTU/h
Electrical 115 V / 60 Hz / 1-ph • 2.1 A • 8 ft cord • NEMA 5-15P
Construction Stainless steel front, sides, drawers, liners & frames
Mobility (4) 5" casters (2 locking)
Shipping Weight 270 lb
Certifications cETLus, ETL-Sanitation

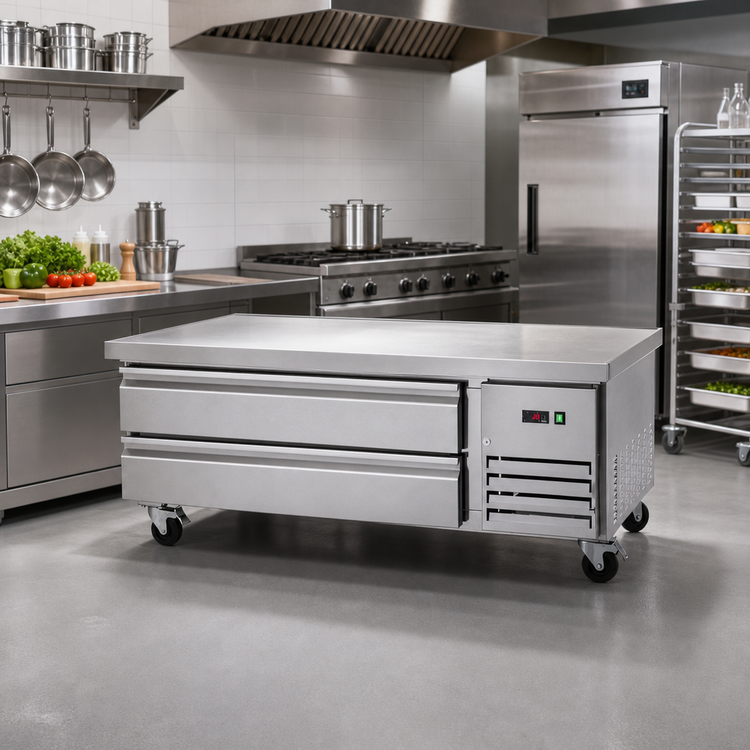

Food pans and countertop cooking equipment shown in photos are sold separately.

Heat-shield advisory: If the cooktop temperature above the chef base exceeds 280 °F, install an approved heat shield to prevent top warping.

Features & Specs

Manufacturer

Arctic Air

Certifications

cETLus, ETL-Sanitation

Height

27.62in

Width

62.0in

Depth

32.0in

Shipping Weight

270.0lbs

Drawer Qty

2 drawers

Refrigeration

self-contained, side mounted

Width

61" - 72" wide

Exterior Finish

all stainless steel exterior

Compressor HP

1/3 HP

Top Finish

stainless steel top

Specifications

Refrigerated Chef Base, 62"W, marine edge top with 1" extension per side, (2) full-extension telescoping cartridge drawers, top & bottom drawers accommodate 6" deep pans, (6) full size pan capacity, side mounted self-contained capillary tube refrigeration, front breathing, electronic thermostat with external LED display, 33°F to 41°F temperature range, reinforced mounting points, stainless steel hook adapter bars, drawer facings, linings & frames, stainless steel front & sides, heavy duty stainless steel top with insulated ceramic fabric layer, (4) 5" plate casters (2 locking), R290 Hydrocarbon refrigerant, 492 BTU/h rejected heated air gain, 1/3 HP, 2.1 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation
