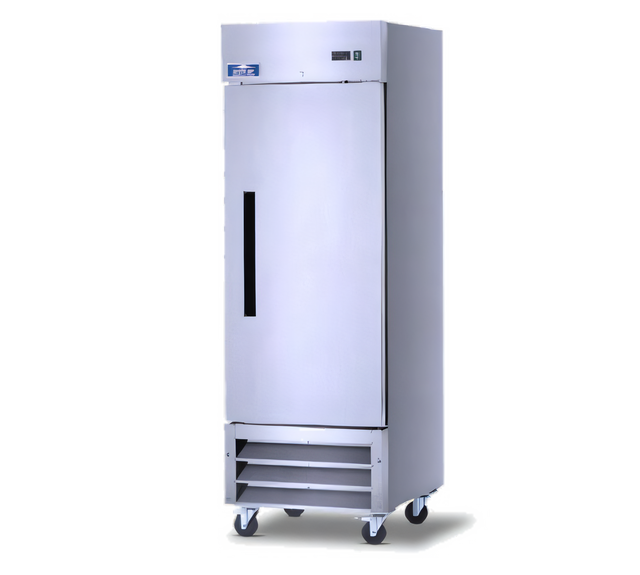

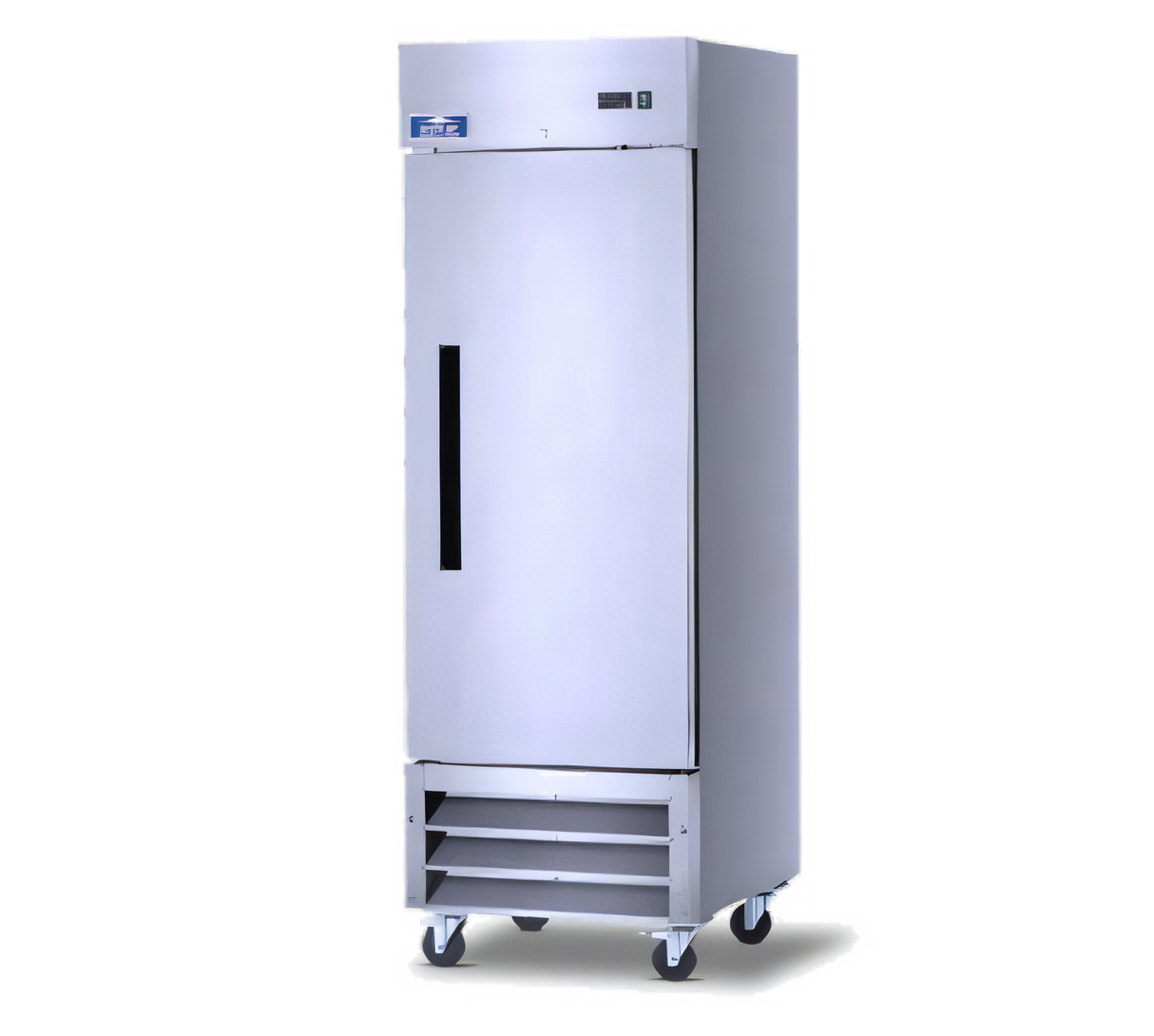

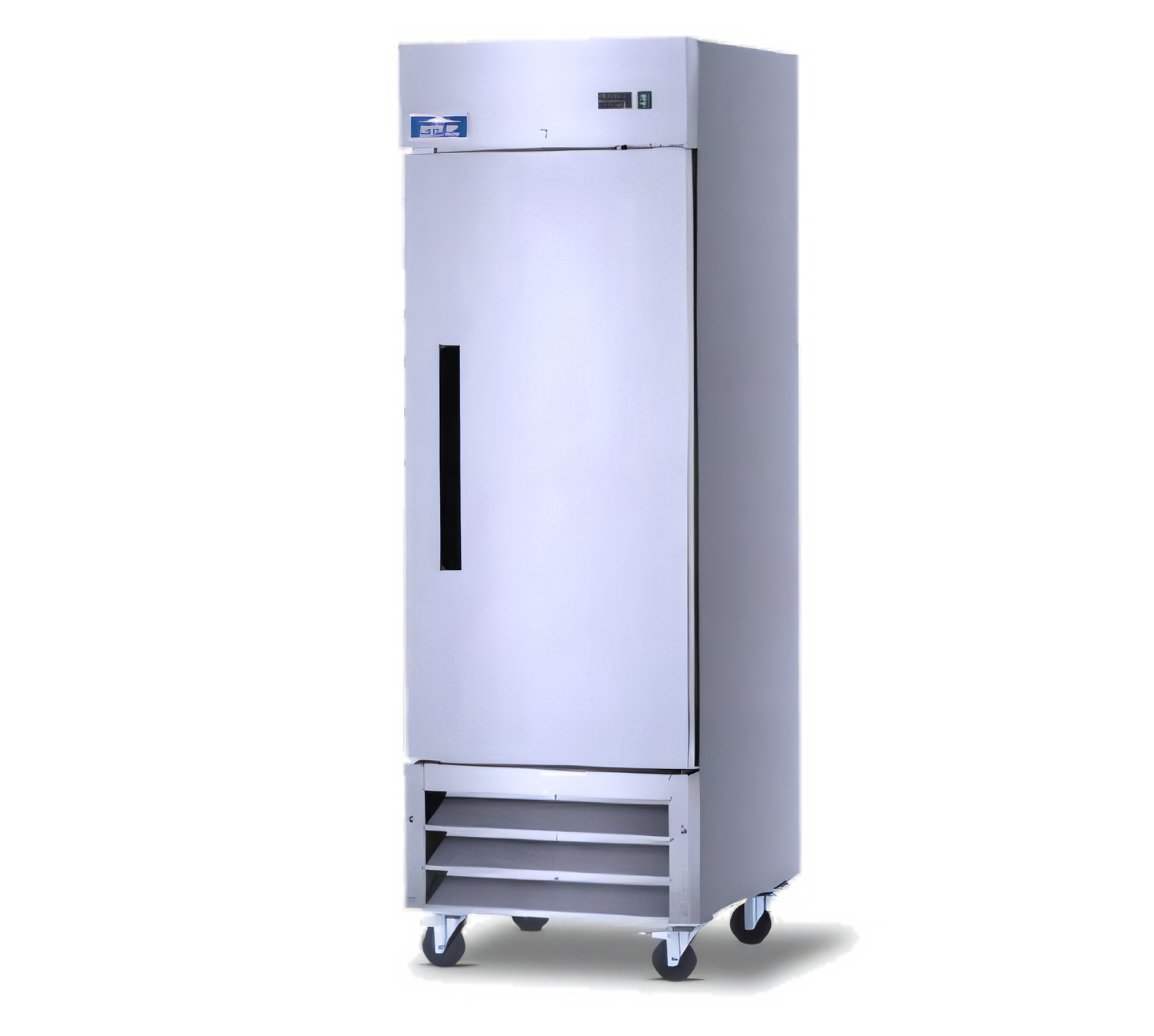

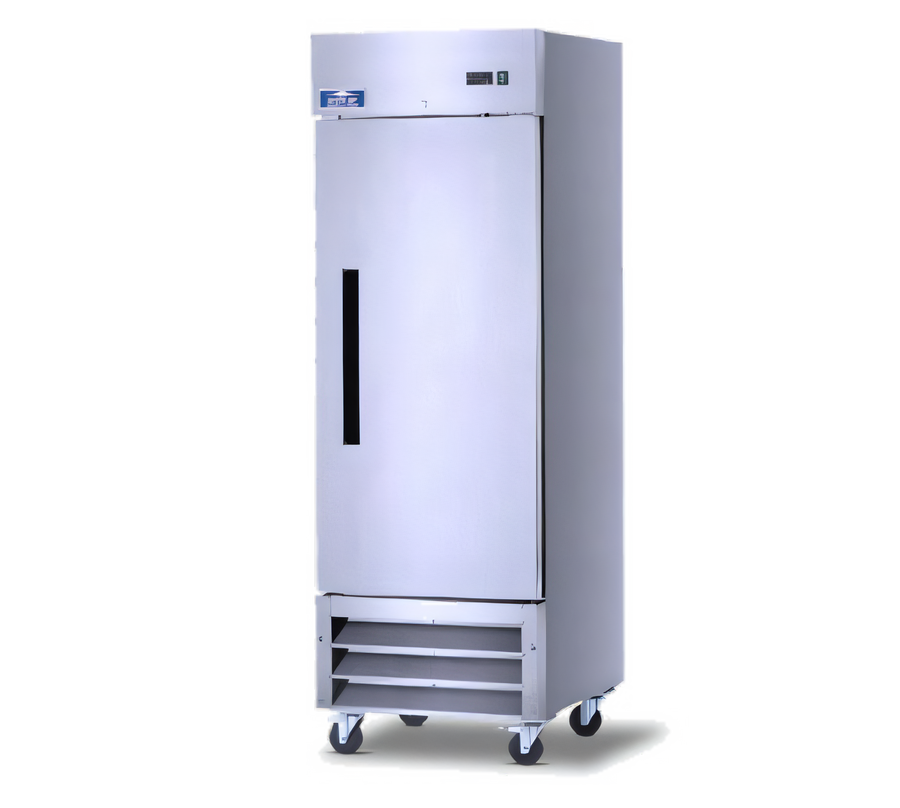

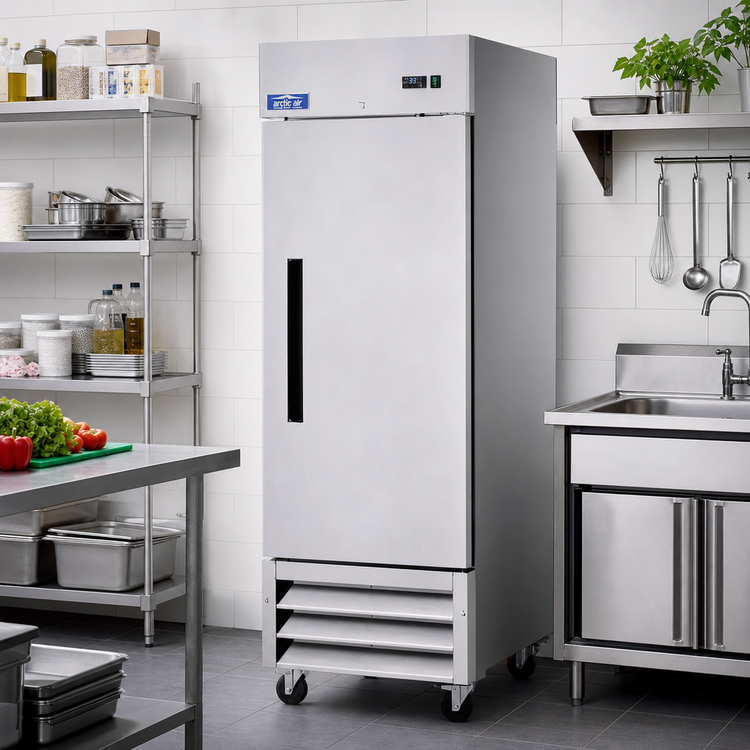

Arctic Air AR23 1-Section Reach-In Refrigerator, 23 Cu. Ft., Bottom-Mounted Self-Contained, Solid Hinged Door

SKU: AR23
$2,199.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

Arctic Air AR23 1-Section Reach-In Refrigerator, 23 Cu. Ft., Bottom-Mounted Self-Contained, Solid Hinged Door

26-3/4-Inch Wide, 115V, Stainless Steel Front & Sides

This compact 23 cu. ft. reach-in refrigerator combines a space-saving footprint with durable stainless steel construction and dependable bottom-mounted cooling.

  • 23.0 cu. ft. capacity in a compact 26-3/4-inch-wide footprint.
  • Electronic thermostat with digital LED display for accurate, easy-to-read temperature control.
  • Solid hinged door is self-closing, lockable, field reversible, and stays open at 90 degrees.
  • Bottom-mounted self-contained refrigeration uses R290 refrigerant for efficient operation.
  • Stainless steel front and sides with a white epoxy-coated aluminum interior and stainless steel floor.
  • Includes three adjustable wire shelves and four 5-1/2-inch casters, two locking.

Overall Dimensions:

26.75"W x 32.75"D x 82.75"H

Product Weight:

310.0 lb

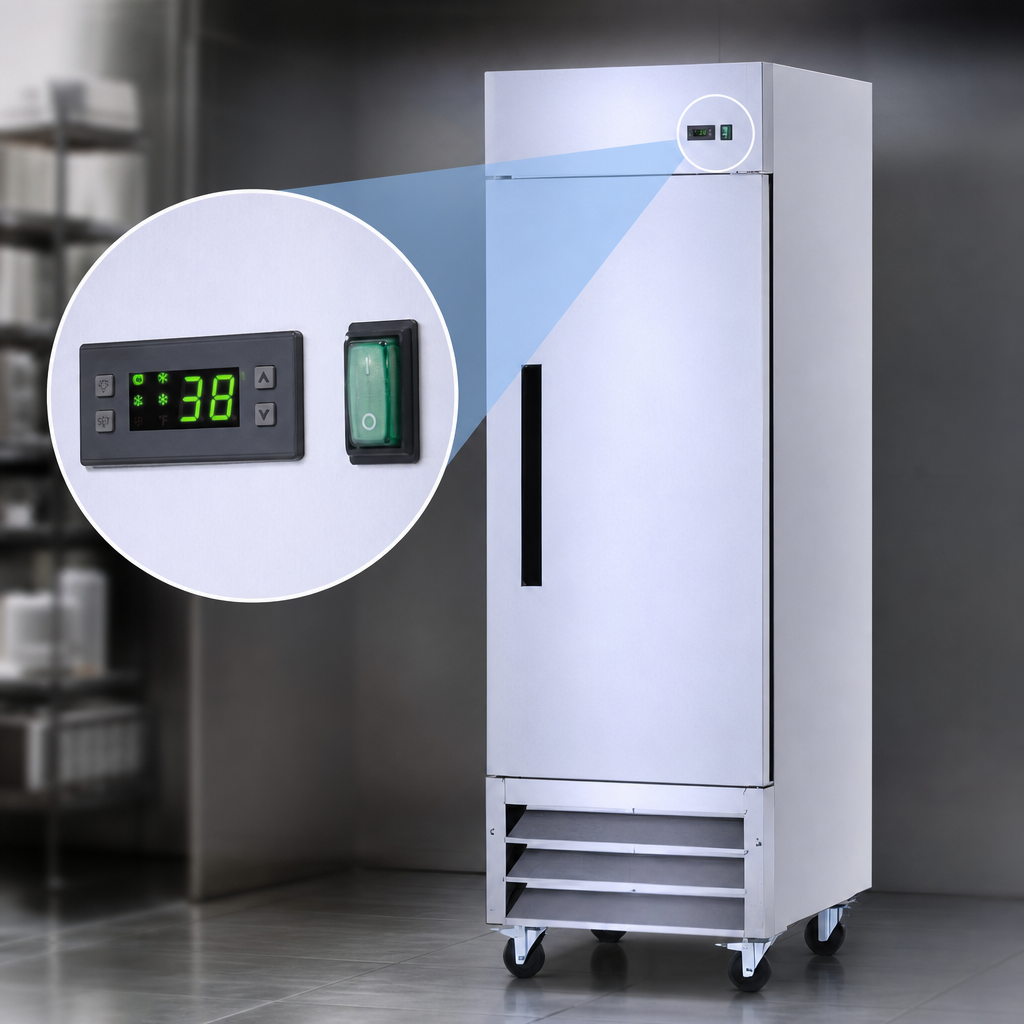

Electronic Thermostat With LED Display

Provides accurate temperature control with a digital LED readout for easy monitoring.

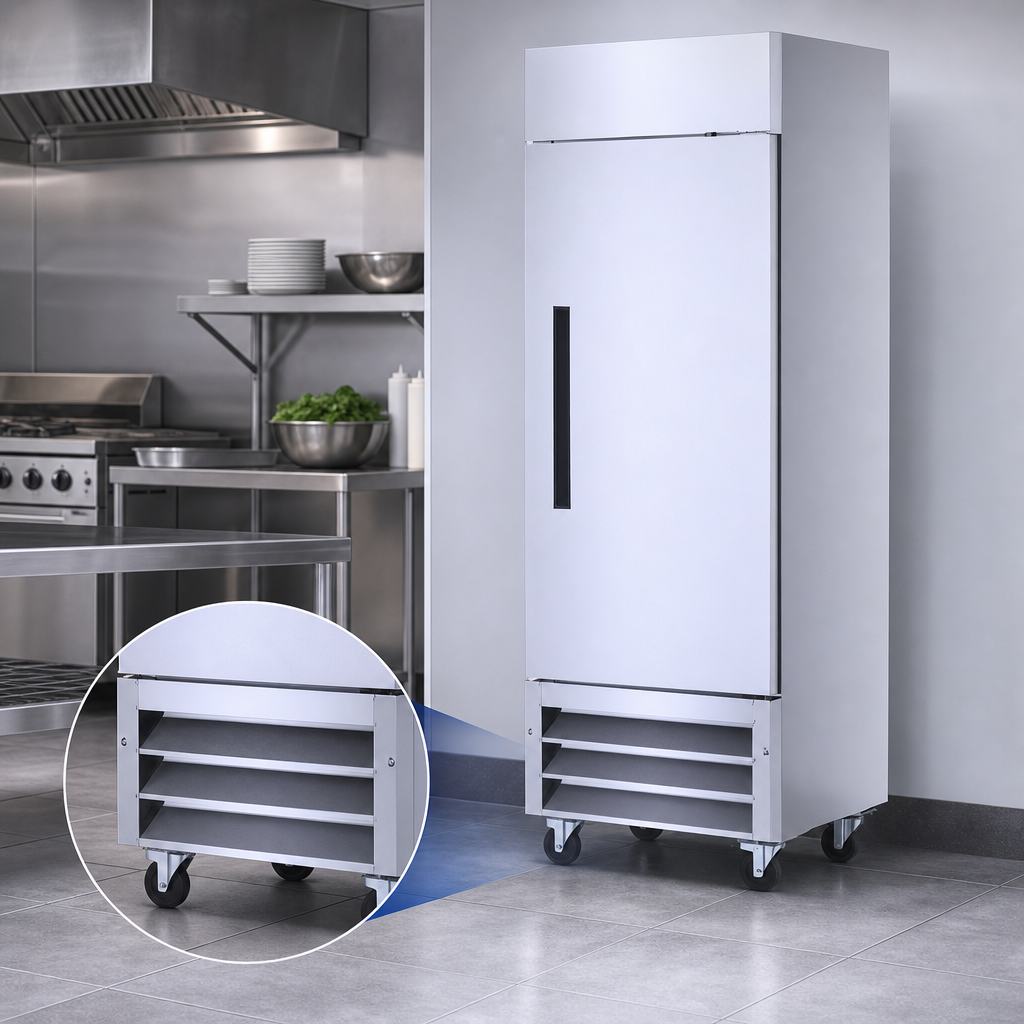

Bottom-Mounted Self-Contained Refrigeration

Self-contained refrigeration is bottom mounted for efficient operation and easier service access.

Solid Hinged Self-Closing Door

The door is lockable, field reversible, and designed to remain open at 90 degrees for loading.

Removable Magnetic Door Gasket

Door gasket can be removed and replaced without tools for easier cleaning and maintenance.

Adjustable Wire Shelves

Three adjustable wire shelves help organize stored product and maximize usable space.

Stainless Steel Exterior

Stainless steel front and sides provide durability and a professional commercial appearance.

White Epoxy-Coated Aluminum Interior

Interior liner is easy to clean and includes a stainless steel floor for added durability.

Locking Casters

Four 5-1/2-inch casters are included, with two locking casters for mobility and stability.

R290 Refrigerant

Uses environmentally friendly R290 hydrocarbon refrigerant.

Type Refrigerator
Style Reach-In
Installation Type Floor Model
Compartments 1
Capacity 23.0 Cu. Ft.
Controls Electronic
Temperature Range 33°F to 41°F
Material Stainless Steel
Interior Finish White Epoxy Coated Aluminum
Refrigeration Type Self-Contained, Bottom Mounted
Refrigerant Type R290
BTU 492 BTU/h
Compressor HP 1/5 HP
Voltage 115 Volts
Amps 3.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Shipping Width 27 Inches
Shipping Depth 33 Inches
Shipping Height 83 Inches
Shipping Weight 310 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year parts and labor; 5-year compressor warranty.

Frequently Asked Questions

It is designed to operate between 33°F and 41°F.
It includes three adjustable wire shelves.
Yes. The solid hinged door is lockable and field reversible. The catalog also notes that door reversal kit 65118K is required for AR23/AF23.
It runs on 115 Volts, 60 Hz, 1-phase power, draws 3.0 amps, and uses a NEMA 5-15P plug.
The standard warranty is 2 years parts and labor plus 5 years on the compressor, under normal use and maintenance.
It uses R290 hydrocarbon refrigerant.
