Arctic Air AFGDM23 Glass Door Merchandisers
Description

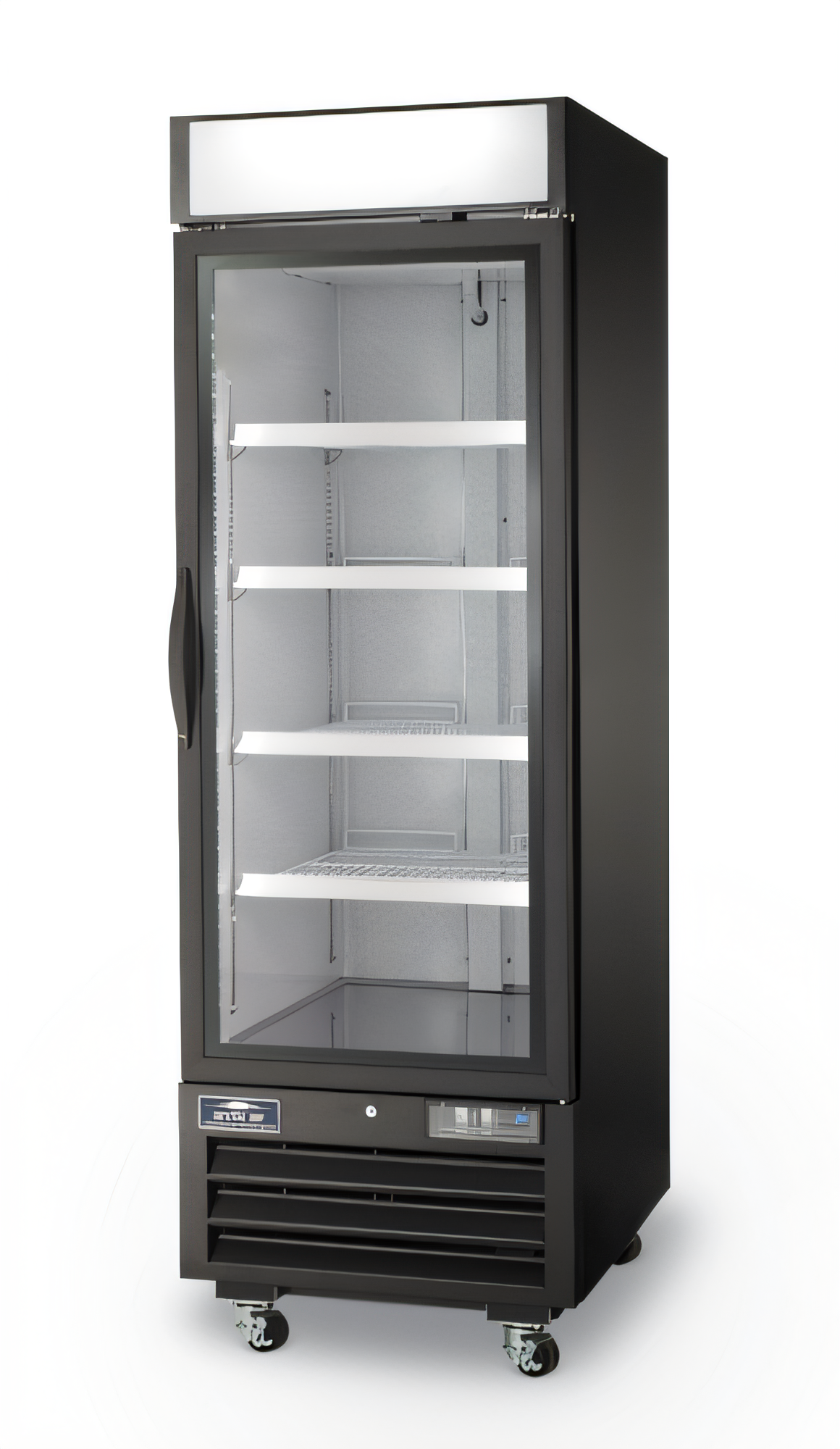

Arctic Air AFGDM23 Glass Door Merchandiser Freezer
27" wide • 23 cu ft • -10 °F to +10 °FPut your frozen grab-&-go items front and center while keeping product at a steady, food-safe temperature. The AFGDM23 combines a heated, anti-fog glass door with brilliant LED lighting and a customizable, back-lit sign panel—perfect for convenience stores, cafeterias, concession stands and retail merchandisers that demand reliability and eye-catching presentation in a compact 27" footprint.
Top reasons operators choose the AFGDM23
- Heated, self-closing right-hinged glass door with lock prevents fogging and reduces energy loss.
- External electronic thermostat with large digital LED read-out for quick, accurate temperature checks.
- Four adjustable, heavy-duty wire shelves (white epoxy finish) with built-in label channels for effortless product organization.
- Bright interior LED lighting plus a blank white, LED back-lit header—ideal for branding or menu graphics.
- Durable black powder-coated exterior; easy-clean white aluminum interior walls and a stainless steel coved-corner floor.
- Bottom-mounted, slide-out 3/4 HP compressor operates in the coolest part of the room for greater efficiency and easier service access.
- Environmentally friendly R290 hydrocarbon refrigerant with a 2,000 BTU/h heat rejection rating.
- Hot-gas condensate loop in the drain pan—no electric heaters, no extra energy cost.
- Set of four 5" casters (front two locking) make cleaning and repositioning a breeze.
- Magnetic door gasket is field-replaceable without tools, minimizing downtime.
Perfect for
- Convenience & grocery stores
- Coffee shops & bakeries
- Theater, stadium & arena concessions
- School & hospital cafeterias
- Hotel lobby markets
Specifications
| Model | AFGDM23 |
|---|---|
| Capacity | 23 cu ft (651 L) |
| Temperature Range | -10 °F to +10 °F (-23 °C to -12 °C) |
| External Dimensions (W × D × H) | 27" × 32" × 81.5" (includes 5" casters) |
| Door | 1 heated, right-hinged, self-closing glass door with lock |
| Shelves (adjustable) | 4 epoxy-coated wire shelves with label channels |
| Compressor HP | 3/4 HP bottom-mounted, slide-out |
| Refrigerant | R290 (Hydrocarbon, environmentally friendly) |
| Electrical | 115 V / 60 Hz / 1-ph • 8 A • NEMA 5-15P • 8' cord |
| Heat Rejection | 2,000 BTU/h |
| Casters | (4) 5" plate casters – 2 locking |
| Certifications | cETLus, ETL-Sanitation (NSF Std. 3 for sealed food storage) |
| Warranty | 2-year parts & labor • 5-year compressor |
Need extra shelves or a custom graphic header? Contact our sales team and we’ll be happy to help you outfit the AFGDM23 for your specific merchandising needs.
