Description

Arctic Air AF23 Single-Door Reach-In Freezer – 23 cu. ft.

Stainless steel | -10 °F – +10 °F | ENERGY STAR®

Engineered for busy commercial kitchens, the compact AF23 keeps product at a steady, ice-cold -10 °F to +10 °F while maximizing floor space. A rugged stainless exterior, smart electronic controls, and an industry-leading warranty make it the freezer you’ll trust shift after shift.

Key Features

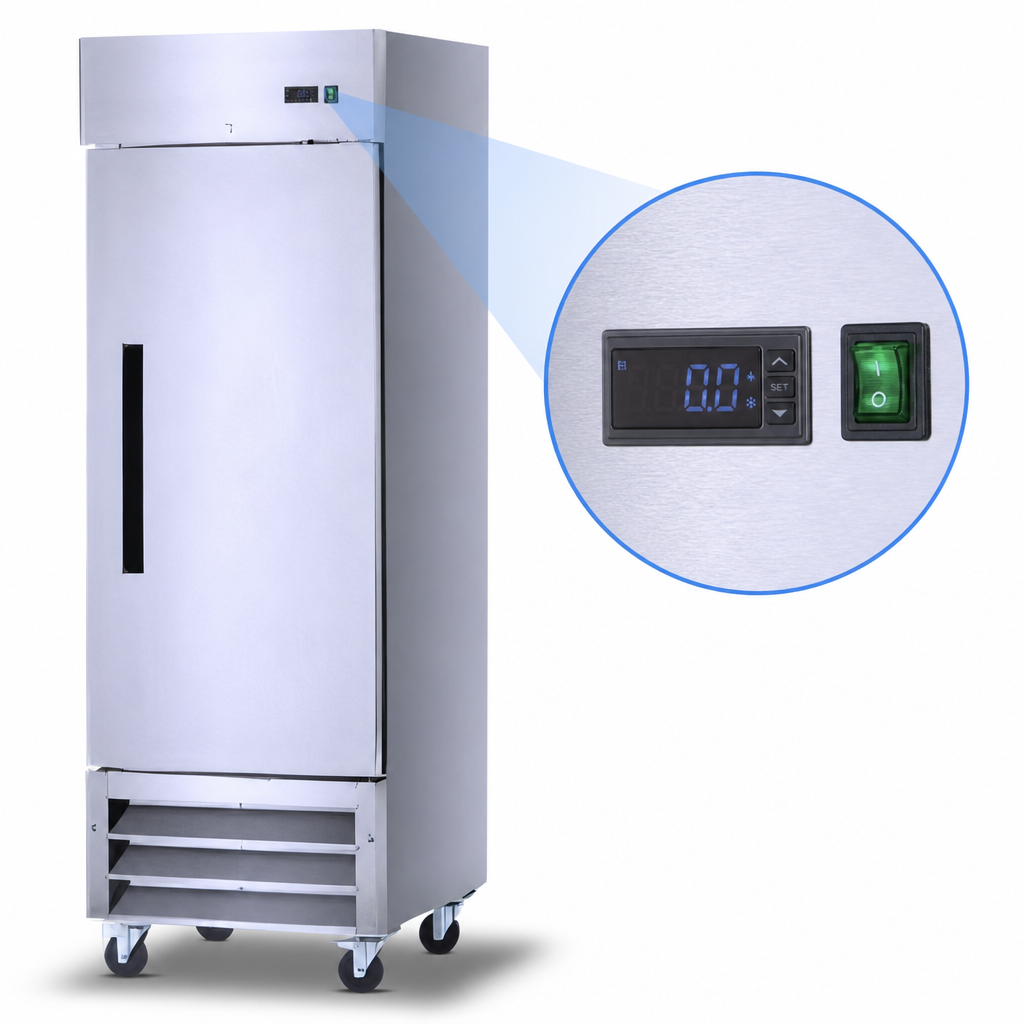

  • Electronic thermostat with external digital LED for quick, precise readings.
  • Self-closing solid door stays open at 90° for safe, hands-free loading and is field-reversible.
  • Lockable recessed handle plus removable magnetic gasket for a tight, tool-free seal.
  • Bright white aluminum interior & stainless steel floor with coved corners for easy wipe-downs.
  • (3) adjustable heavy-duty epoxy-coated wire shelves – fits full-size sheet pans front-to-back.
  • Bottom-mounted 4⁄5 HP compressor on a slide-out rack for cooler air intake and easy service.
  • R290 hydrocarbon refrigerant and 1,600 BTU/h heat rejection for efficient, eco-friendly cooling.
  • Factory-installed door-frame heater prevents condensation in humid environments.
  • (4) 5-1/2″ plate casters included – two with locks for instant mobility and stability.
Built-in Savings
  • ENERGY STAR® qualified – lowers utility costs without sacrificing performance.
  • Hot-gas condensate evaporation eliminates drain lines and manual pan emptying.
  • Full 2-year parts & labor warranty + additional 3-year compressor part warranty.
Specifications
Model AF23
Capacity 23 cu. ft. (651 L)

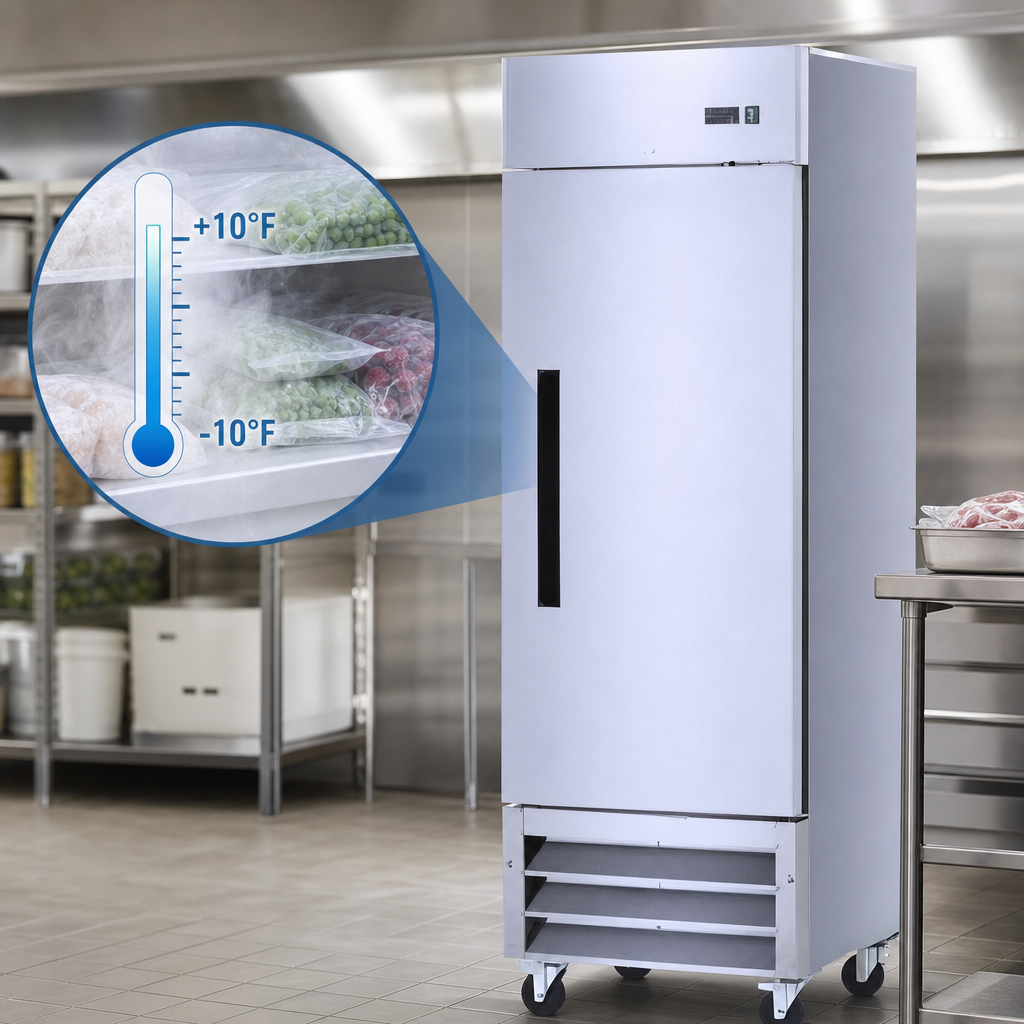

Temperature Range -10 °F to +10 °F (-23 °C to -12 °C)
Exterior Stainless steel front & sides
Interior White aluminum liner with stainless steel floor
Door (1) solid, self-closing, reversible, lockable
Shelves (3) adjustable epoxy-coated wire
Overall Dimensions (W × D × H) 26.75″ × 32.75″ × 82.75″ (includes 6″ casters)
Depth with Door 90° 59.5″
Casters (4) 5-1/2″ (2 locking)
Compressor 4⁄5 HP, bottom-mounted, slide-out
Refrigerant R290 Hydrocarbon
Heat Rejection 1,600 BTU/h
Electrical 115 V / 60 Hz / 1-ph, 8.0 A, NEMA 5-15P
Certifications cETLus, ETL-Sanitation (NSF-7), ENERGY STAR®
Warranty 2 yrs parts & labor | 5 yrs compressor (parts)

Optional stainless steel pan slide rack (#64900K) available; sheet pans longer than 25-3/4″ will not fit.

Important: Install on a dedicated 15 A circuit and maintain at least 3″ of clearance around the unit for proper ventilation.

Features & Specs

Manufacturer

Arctic Air

Certifications

cETLus, ETL-Sanitation, ENERGY STAR

Height

82.75in

Width

26.75in

Depth

32.75in

Shipping Weight

325.0lbs

Energy Efficiency

ENERGY STAR®

Compressor HP

4/5 HP

Door Style

full hinged

Refrigeration

self-contained, bottom mounted

Interior Finish

aluminum, stainless floor

Door Type

solid door(s)

Capacity

10 - 23 cu. ft.

Exterior Finish

stainless steel front & sides

Size

1 section

Specifications

Freezer, reach-in, one-section, 27"W, 23.0 cu. ft. capacity, electronic thermostat with digital LED display, -10°F to +10°F temperature range, (1) solid hinged self-closing door with lock (field reversible), remain open door feature, removable magnetic door gasket, (3) adjustable wire shelves, stainless steel front & sides, white aluminum interior with stainless steel floor, (4) 5-1/2"" casters (2 locking), bottom mounted self-contained refrigeration, R290 Hydrocarbon refrigerant, 1600 BTU/h rejected heated air gain, 4/5 HP, 115v/60/1-ph, 8.0 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®
