Play manufacturer video for Arcobaleno Pasta Equipment ASD20 Pasta Dryer, 60–80 lb Capacity per Cycle, 20 Trays, Programmable Touchpad ControlsArcobaleno Pasta Equipment ASD20 Pasta Dryer, 60–80 lb Capacity per Cycle, 20 Trays, Programmable Touchpad Controls
SKU: ASD20
$19,440.00
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

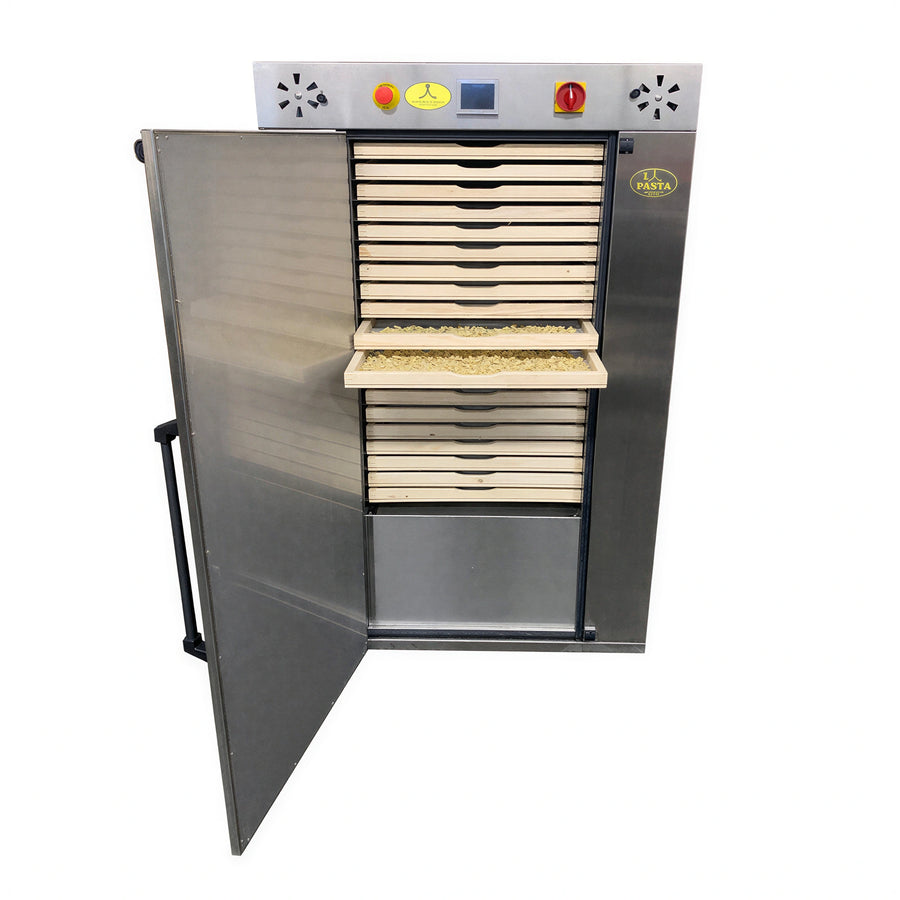

The ASD20 pasta dryer provides 60–80 lb of dry pasta capacity per cycle across 20 trays.
- Programmable recipes: Supports recipes for different pasta shapes and thicknesses.
- Drying control: The programmable touch pad controls ventilation, temperature, humidity, air intake, and exhaust.
- Construction: Stainless steel panels.
- Air movement: Internal fan circulation and an aspirator for expelling humidity.
Overall Dimensions:
40.0"W x 41.0"D x 67.0"HProduct Weight:
700.0 lbProgrammable recipes
Recipes can be programmed for different pasta shapes and thicknesses.
20-tray capacity
The dryer is specified with 20 trays.
Fan-controlled drying
The drying cycle regulates ventilation, temperature, humidity, air intake, and exhaust.
Shape flexibility
Short pasta shapes with similar structure and thickness can be mixed and matched.
Stainless steel panels
The panels are stainless steel.
Air circulation and humidity exhaust
An internal fan provides clockwise and counter-clockwise air circulation, while an aspirator expels humidity.
Dry capacity
60–80 lb per cycle
Fresh capacity
80–100 lb
Tray count
20
Tray size
31.50 in W x 23.75 in D
Pasta per tray
4–5 lb
Control type
Programmable touch pad
Construction
Stainless steel panels
Electrical power
220 V / 60 Hz / single-phase / 10 A
Plug
NEMA L6-15P
Weight
700 lb
Certifications & Compliance
Warranty & Protection
One-year warranty.
Documents
Frequently Asked Questions
The ASD20 is specified for 60–80 lb of dry pasta per cycle.
The ASD20 has 20 trays.
Yes. The product cutsheet specifies programmable recipes for different shapes and thicknesses.
The authoritative specifications list 220 V, 60 Hz, single-phase power at 10 amps with a NEMA L6-15P plug.
The product cutsheet states a one-year warranty.
