Arcobaleno Pasta Equipment

Arcobaleno Pasta Equipment ASC320 Countertop Dough Sheeter, 12-1/2" Sheet Width, Stainless Steel Rollers, Adjustable 0-5/8" Opening

SKU: ASC320
$4,406.40
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

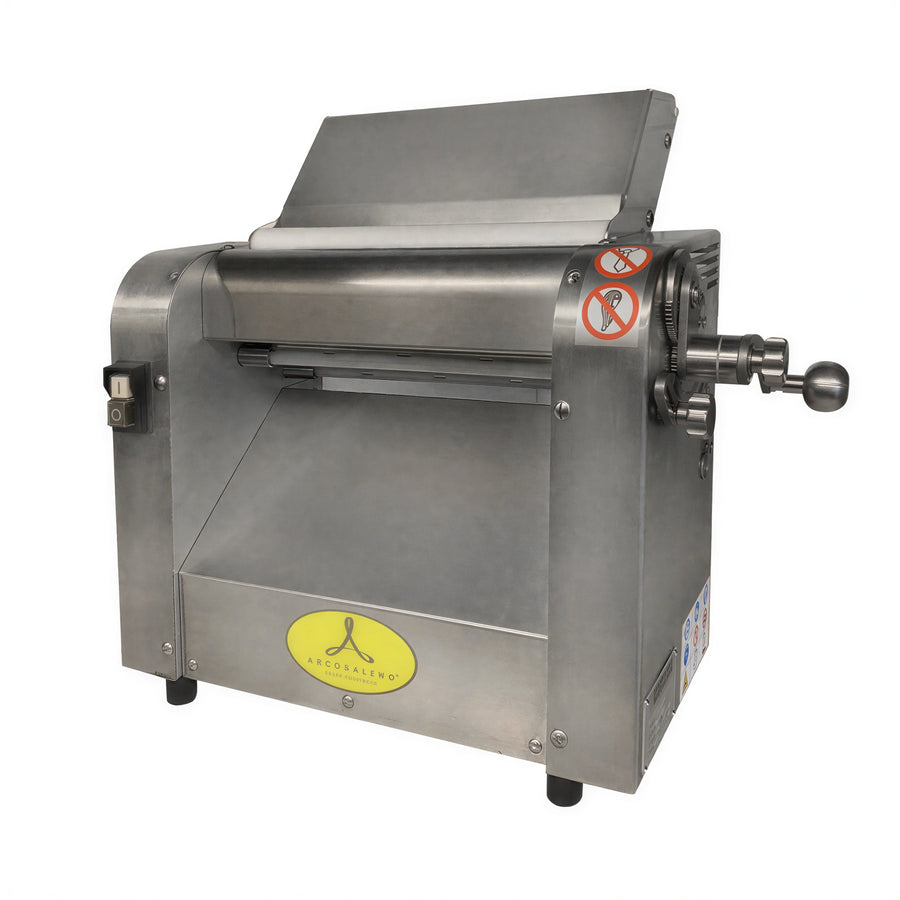

The Arcobaleno Pasta Equipment ASC320 is a countertop dough sheeter for sheets up to 12-1/2 inches wide. It uses smooth stainless steel rollers measuring 2-3/8 inches in diameter.

Two dough feed openings are provided: a 3/8-inch front opening and a 1-1/2-inch back opening. The sheeting roller opening adjusts from 0 to 5/8 inch, or 0 to 15 mm.

  • 10-inch cutter width
  • Pasta cutter molds are not included
  • 120V, single-phase electrical operation with a NEMA 5-15P plug

Overall Dimensions:

22.25"W x 13.0"D x 18.5"H

Product Weight:

115.0 lb

Countertop format

The ASC320 is specified for countertop or bench installation.

Smooth stainless steel rollers

The dough rollers are smooth stainless steel and measure 2-3/8 inches in diameter.

Two dough feed openings

The front opening is 3/8 inch, while the back opening is 1-1/2 inches.

Adjustable sheeting thickness

The sheeting roller opening adjusts from 0 to 5/8 inch, or 0 to 15 mm.

Optional cutter mold connection

The machine includes a drive to connect optional pasta cutter molds; cutter molds are not included.

Removable dough scrapers

The dough scrapers are designed for fast removal and cleaning.

Related Searches

Arcobaleno Pasta Equipment Best Sellers Dough Preparation Equipment Dough Preparation Equipment Dough Preparation Equipment Dough Sheeters Dough Sheeters & Rollers Dough Sheeters & Rollers Equipment Food Prep Equipment Food Preparation Equipment Food Preparation Equipment New Arrivals Restaurant Equipment
Product type Dough sheeter
Installation type Countertop
Dough sheet width Up to 12-1/2 in.
Roller texture Smooth
Roller material Stainless steel
Roller diameter 2-3/8 in.
Dough feed openings 2
Front dough feed opening 3/8 in.
Back dough feed opening 1-1/2 in.
Sheeting roller opening Adjustable 0 to 5/8 in. (0 to 15 mm)
Cutter width 10 in.
Cutter molds Not included
Voltage 120 V
Frequency 60 Hz
Electrical phase 1 phase
Current 5.0 A
Plug type NEMA 5-15P
Motor power 0.5 HP

Warranty & Protection

One-year warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The ASC320 sheets dough up to 12-1/2 inches wide.
The sheeting roller opening is adjustable from 0 to 5/8 inch, or 0 to 15 mm.
The front dough feed opening is 3/8 inch and the back opening is 1-1/2 inches.
No. The cutter molds are not included and are sold separately.
It operates at 120V, 60Hz, single phase, draws 5.0 amps, and uses a NEMA 5-15P plug.
