Arcobaleno Pasta Equipment AGDHA35 Gas Double-Tank Pasta Cooker, (2) 11-Gallon Tanks, Automatic Water Fill

SKU: AGDHA35
$9,512.64
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Arcobaleno Pasta Equipment Best Sellers Commercial Pasta Cookers Cooking Equipment Cooking Equipment Cooking Equipment Equipment New Arrivals Pasta Cooker Pasta Cookers Restaurant Equipment Specialty Cooking Equipment Water Bath Cooking Equipment

The AGDHA35 is a gas pasta cooker with two 11-gallon tanks and automatic water fill. It features variable burner temperature, a water safety sensor, and thermocouple safety valves.

  • 316 stainless steel cooking tanks with stainless steel construction
  • Independent tank operations for gas, water, and drain functions
  • Floor drain and large-diameter starch skimmer

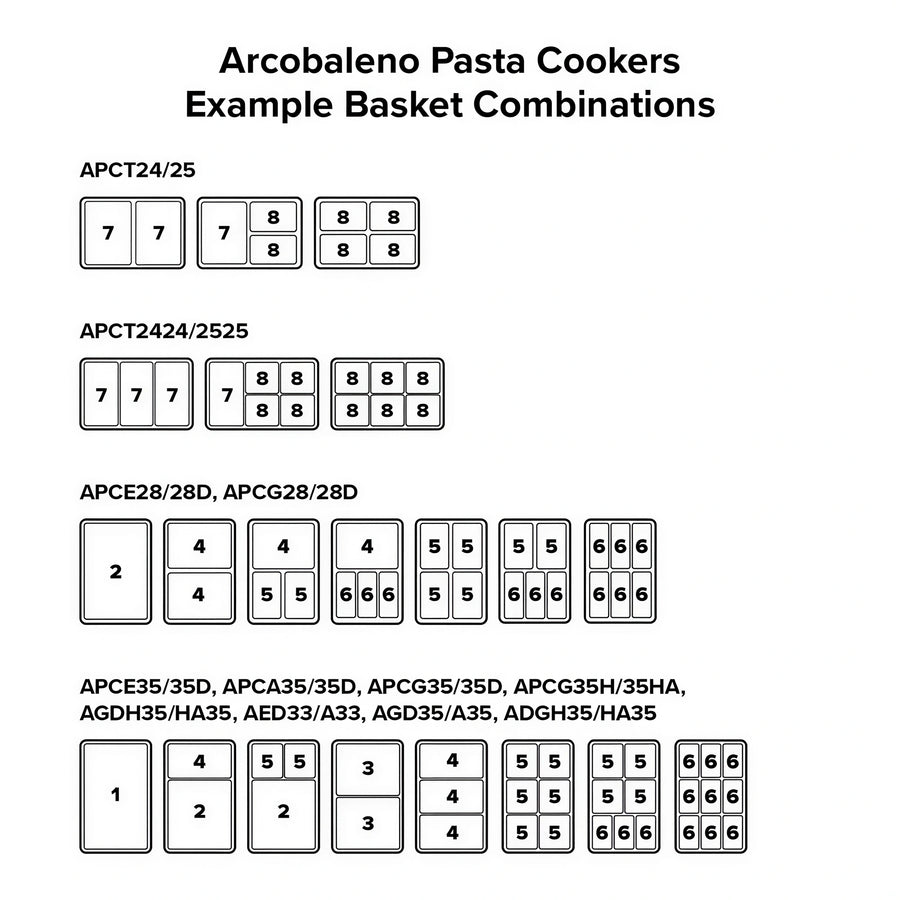

  • Pasta baskets sold separately

Overall Dimensions:

31.5"W x 35.5"D x 45.0"H

Product Weight:

353.0 lb

Automatic water fill

Automatically maintains the water level during operation.

Two-tank design

Provides two 11-gallon pasta cooking tanks.

Variable burner temperature

Includes variable burner temperature control.

Independent tank operations

Gas, water, and drain functions operate independently for each tank.

Water safety sensor

The sensor prevents the tank from running dry.

Thermocouple safety valves

Equipped with thermocouple safety valves.

Stainless steel construction

Features 316 stainless steel cooking tanks and stainless steel construction.

Drain and skimming features

Includes a floor drain and large-diameter starch skimmer.

Product type Gas pasta cooker
Tank quantity 2 tanks
Tank capacity each 11 gallon
Tank dimensions each 12.25 in W x 20 in D x 12.5 in H
Controls Solid state / manual controls
Water fill Automatic
Burner temperature Variable
Total gas input 160,370 BTU (80,185 BTU per tank)
Electrical service 120 V / 60 Hz / 1 ph
Electrical power 0.035 kW
Electrical current 0.57 A at 120 V
Plug NEMA 5-15P
Gas connection 3/4 in NPTM, quantity 1
Gas pressure 7 in WC maximum natural gas / 11 in WC maximum LP
Water connections 3/4 in NPTM, quantity 2
Water pressure 14.5–72.5 psi
Drain connections 1 in NPTM, quantity 2
Tank material 316 stainless steel
Construction Stainless steel
Legs Adjustable

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

One-year parts warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The AGDHA35 has two tanks, each with an 11-gallon capacity.
Yes. The AGDHA35 has automatic water fill that automatically maintains the water level.
Total gas input is 160,370 BTU, with 80,185 BTU per tank.
It requires 120 V, 60 Hz, single-phase electrical service and uses 0.035 kW, or 0.57 amps at 120 V, with a NEMA 5-15P plug.
No. Pasta baskets are sold separately.
The AGDHA35 includes a water safety sensor and thermocouple safety valves.
