Arcobaleno Pasta Equipment AEX130M Floor-Model Pasta Extruder with Double Mixer and Automatic Cutting Knife, Stainless Steel

SKU: AEX130M
$33,540.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Arcobaleno Pasta Equipment Best Sellers Commercial Pasta Machines Commercial Pasta Machines Dough Mixer Accessories Dough Preparation Equipment Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

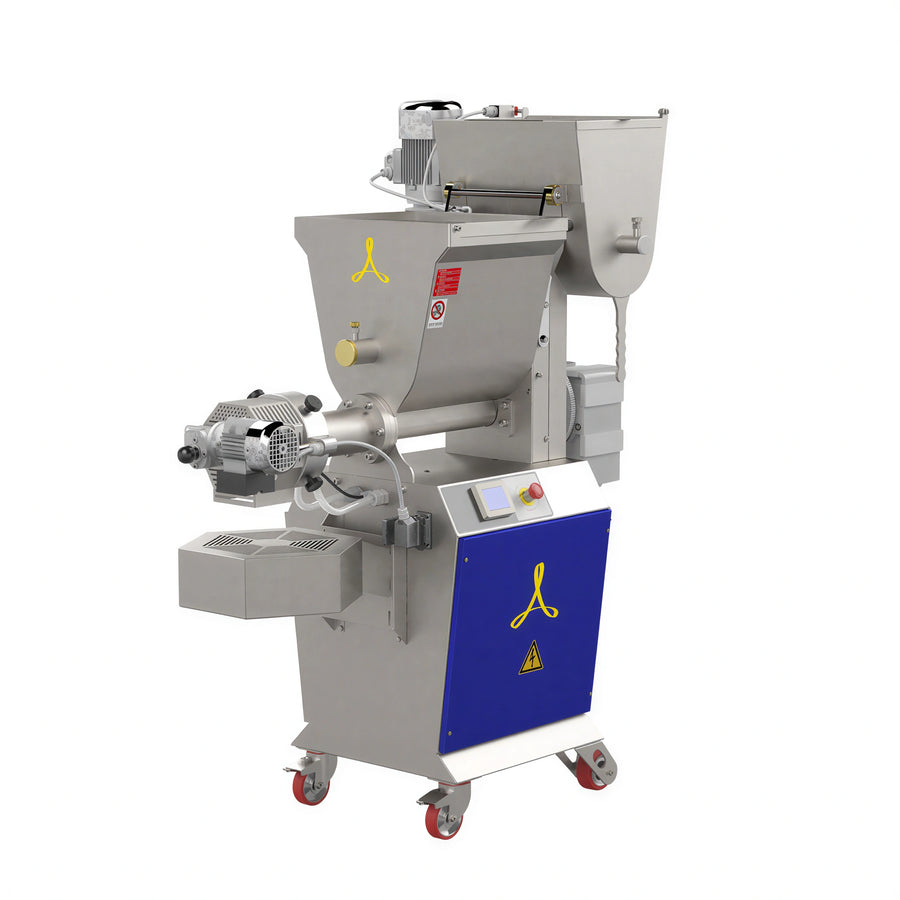

The AEX130M is an industrial floor-model pasta extruder with a double mixer for continuous production. It automatically mixes and extrudes pasta and includes an automatic cutting knife for short pasta shapes.

  • Produces up to 200 lbs./hour; output varies by pasta shape and recipe.
  • Touch-screen control provides preset pasta-shape recipes and variable mixing and extruding speeds.
  • Water cooling with a digital temperature readout helps maintain extrusion temperature.
  • Stainless steel construction includes a removable auger and stainless steel mixing arm.
  • Includes two standard pasta dies and one perforated tray.

Overall Dimensions:

29.5"W x 59.0"D x 65.0"H

Product Weight:

875.0 lb

Double mixer

Equipped with a double mixer for continuous production.

Mixing and extrusion

Automatically mixes and extrudes pasta in one process.

Automatic cutting knife

Included for short pasta shapes.

Touch-screen control

Includes preset pasta-shape recipes, variable mixing and extruding speeds, different cutting speeds, and error alarms.

Water cooling

Water cooling with a digital temperature readout helps maintain extrusion temperature.

Removable components

The auger and stainless steel mixing arm are removable.

Stainless steel construction

The machine is constructed of stainless steel.

Water connections

Pre-plumbed for water-in and water-out lines with a 1/2-inch BARB connection.

Mobility

Mounted on four casters.

Equipment type Industrial pasta extruder with double mixer
Style Floor model
Mixer configuration Double mixer
Hourly production Up to 200 lbs./hour; varies by pasta shape and recipe
Front mixer capacity 33 lbs. flour
Front mixer production 43–45 lbs./batch flour plus liquid
Top mixer capacity 33 lbs. flour
Top mixer production 43–45 lbs./batch flour plus liquid
Construction Stainless steel
Water cooling Included; digital temperature readout
Water/drain connection 1/2-inch BARB
Water line temperature 45–60°F
Water supply 1 gallon/minute; 70 psi maximum
Controls Touch screen
Automatic cutting knife Included for short pasta shapes
Included pasta dies 2 standard pasta dies
Included tray 1 perforated tray
Casters 4
Surface fan Included
Electrical requirements 220V, 3-phase, 60Hz, 12 amps
Plug NEMA L15-20P
Cord length 8 ft
Machine weight 690 lbs.
Weight 875 lbs.

Certifications & Compliance

Warranty & Protection

One-year warranty.

Documents

PDF Cutsheet PDF Download PDF Pasta shapes catalog PDF Download

Frequently Asked Questions

The AEX130M produces up to 200 lbs./hour, with output varying by pasta shape and recipe.
Yes. An automatic cutting knife is included for short pasta shapes.
The machine includes two standard pasta dies and one perforated tray.
It requires 220V, 3-phase, 60Hz power at 12 amps and uses a NEMA L15-20P plug.
The machine measures 29.5 inches wide by 59.0 inches deep by 65.0 inches high, with the knife.
The AEX130M has a one-year warranty.
