Arcobaleno Pasta Equipment

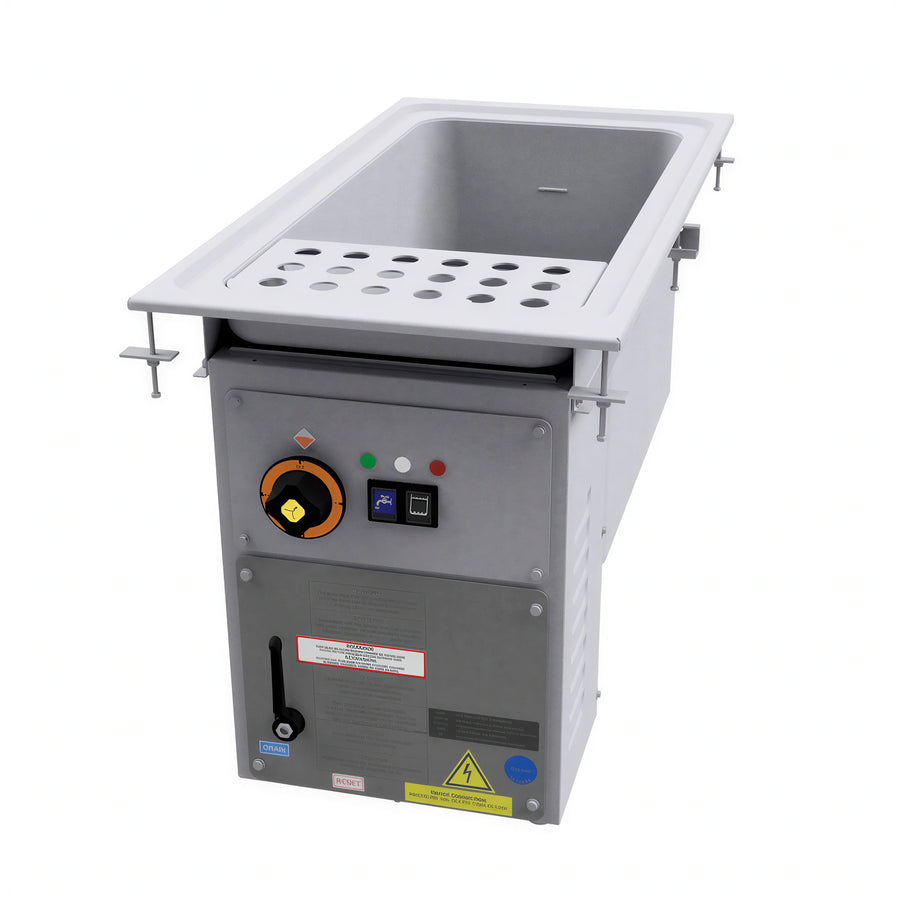

Arcobaleno Pasta Equipment AEDA33 Electric Drop-In Pasta Cooker, Single 11-Gallon Tank, Automatic Water Fill, 3-Position Temperature Control

SKU: AEDA33
$4,289.76
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Arcobaleno Pasta Equipment Best Sellers Commercial Pasta Cookers Cooking Equipment Cooking Equipment Cooking Equipment Equipment New Arrivals Pasta Cooker Pasta Cookers Restaurant Equipment Specialty Cooking Equipment Water Bath Cooking Equipment

The AEDA33 is an electric drop-in pasta cooker with one 11-gallon tank, automatic water fill and three-position temperature control.

It features automatic water-level maintenance for steam or boil operation, a water safety sensor, a large-diameter starch skimmer drain, and built-in water fill and drainage connections. The cooking tank is made from 316 stainless steel, with stainless steel construction and rounded corners.

  • 230 V, 3-phase, 60 Hz electrical service
  • 13.5 kW power rating and 33.89 amps at 230 V
  • Custom integration into a kitchen suite is required
  • Pasta baskets are sold separately

Overall Dimensions:

15.75"W x 31.5"D x 24.0"H

Product Weight:

81.0 lb

Automatic water fill

Automatically fills and maintains the water level for steam or boil operation.

Single 11-gallon tank

Provides one cooking tank with an 11-gallon volume.

Three-position temperature control

Provides three temperature-control positions.

Water safety sensor

Includes a water safety sensor.

316 stainless steel cooking tank

Uses a 316 stainless steel cooking tank.

Built-in water connections

Includes a water fill tap, overflow safety drain and floor drain.

Large-diameter starch skimmer drain

Includes a large-diameter starch skimmer drain.

Drop-in installation

Designed for custom integration into a kitchen suite.

Type Electric drop-in pasta cooker
Tank quantity 1
Tank capacity 11 gallon
Controls Solid state / manual; 3-position temperature control
Water fill Automatic
Tank dimensions 12 in W x 20 in D x 13 in H
Tank material 316 stainless steel
Electrical requirements 230 V, 3-phase, 60 Hz
Power 13.5 kW
Current 33.89 A at 230 V
Water connection 3/4 in NPTM, quantity 1
Water pressure 14.5–72.5 psi
Water drainage 1 in NPT, quantity 1
Machine weight 60 lb
Weight 81 lb
Power cord Supplied; NEMA plug not provided

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

One-year warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. The AEDA33 has automatic water fill and automatically maintains the water level for steam or boil operation.
The cooker has one 11-gallon tank.
The AEDA33 requires 230 V, 3-phase, 60 Hz electrical service and is rated at 13.5 kW and 33.89 amps at 230 V.
The unit uses one 3/4 in NPTM water connection, water pressure of 14.5–72.5 psi, and one 1 in NPT drainage connection.
No. Pasta baskets are sold separately.
Yes. Custom integration into a kitchen suite is required; contact the factory for details.
The power cord is supplied, but a NEMA plug is not provided.
