Arcobaleno Pasta Equipment

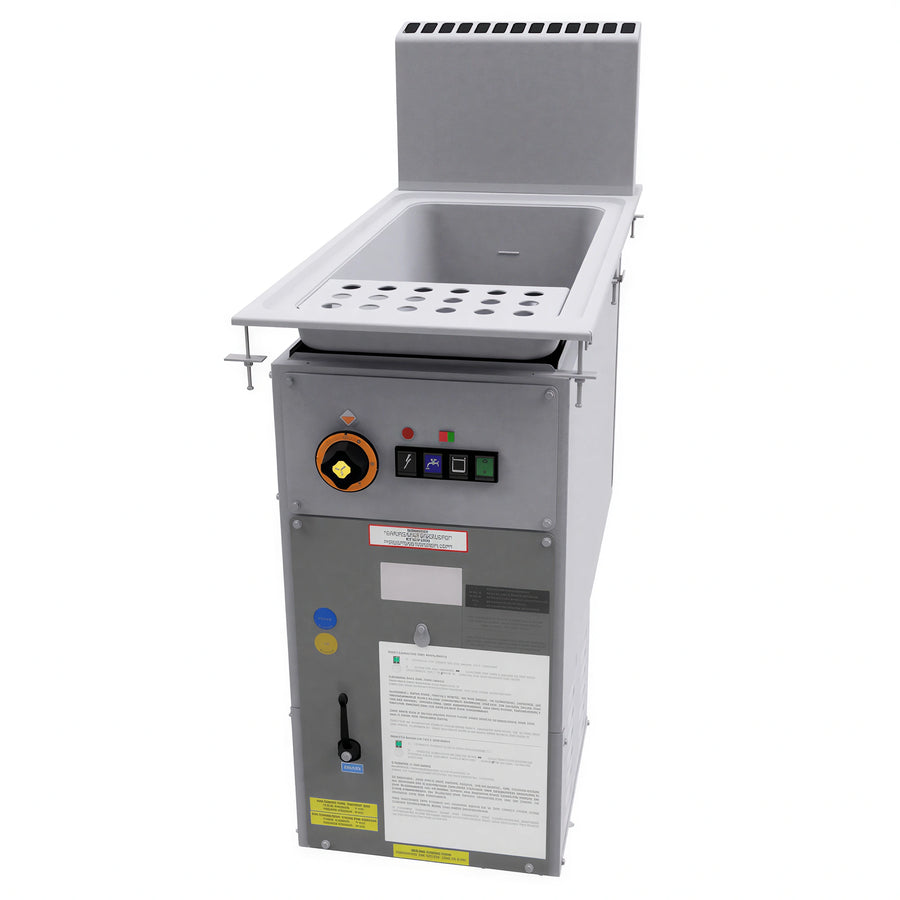

Arcobaleno Pasta Equipment ADGHA35 Gas Drop-In Pasta Cooker, Single 11-Gallon Tank, Automatic Water Fill

SKU: ADGHA35
$6,337.44
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Arcobaleno Pasta Equipment Best Sellers Commercial Pasta Cookers Cooking Equipment Cooking Equipment Cooking Equipment Equipment New Arrivals Pasta Cooker Pasta Cookers Restaurant Equipment Specialty Cooking Equipment Water Bath Cooking Equipment

The ADGHA35 is a gas drop-in pasta cooker with one 11-gallon tank and automatic water fill.

It features variable burner temperature, a water safety sensor, thermocouple safety valves, an 80,185 BTU gas power rating, and a 316 stainless steel cooking tank with stainless steel construction.

The unit includes a built-in water fill tap, overflow safety drain, floor drain, and large-diameter starch skimmer drain. Custom integration into a kitchen suite is required. Pasta baskets are sold separately.

Overall Dimensions:

15.75"W x 35.5"D x 41.5"H

Product Weight:

185.0 lb

Automatic water fill

Automatically maintains water level for steaming or boiling.

Variable burner temperature

The burner temperature is variable.

316 stainless steel cooking tank

The cooking tank is made from 316 stainless steel.

Drain and fill connections

Includes a built-in water fill tap, overflow safety drain, floor drain, and large-diameter starch skimmer drain.

Water safety sensor

Equipped with a water safety sensor.

Thermocouple safety valves

Equipped with thermocouple safety valves.

Gas controls

Equipped with a gas regulator, piezoelectric ignition, and pilot light.

Custom integration

Custom integration into a kitchen suite is required; contact the factory for details.

Product type Pasta cooker
Installation type Drop-in
Fuel type Gas
Fuel compatibility Natural gas installation; LP available upon request at time of order
Tank quantity 1 tank
Tank capacity 11 gallon
Tank dimensions 12 in W x 20 in D x 12.75 in H
Water fill Automatic
Water level control Automatically maintains water level for steaming or boiling
Burner temperature control Variable
Total gas power 80,185 BTU
Cooking tank material 316 stainless steel
Construction material Stainless steel
Gas connection 1/2 in NPTM, 1 connection
Gas pressure 7 in WC maximum NG / 11 in WC maximum LP
Water connection 3/4 in NPTM, 1 connection
Water pressure 14.5-72.5 psi
Water drainage 1 in NPT, 1 connection
Electrical requirement 120 V/1 ph/60 Hz; 0.018 kW; 0.29 A
Power cord Supplied; NEMA plug not provided

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

One-year warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. The ADGHA35 has automatic water fill and automatically maintains water level for steaming or boiling.
The unit has one 11-gallon tank.
No. Pasta baskets are sold separately.
The ADGHA35 is a gas drop-in pasta cooker, and custom integration into a kitchen suite is required.
The unit uses 120 V/1 ph/60 Hz electrical service and is rated at 0.018 kW and 0.29 amps.
The unit measures 15.75 inches wide by 35.5 inches deep by 41.5 inches high.
The unit is equipped for natural gas installation. Liquid propane is available upon request at the time of order.
