Arcobaleno Pasta Equipment

Arcobaleno Pasta Equipment ADC500 Automatic Floor Pasta Cutter, 20-Inch Dough Sheet, Manual Thickness Adjustment, Stainless Steel

SKU: ADC500
$42,600.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Arcobaleno Pasta Equipment Best Sellers Commercial Pasta Machines Dough Mixer Accessories Dough Preparation Equipment Equipment Food Prep Equipment Parts Food Preparation Equipment New Arrivals Pasta Machine Dies & Accessories Restaurant Equipment Restaurant Equipment Parts

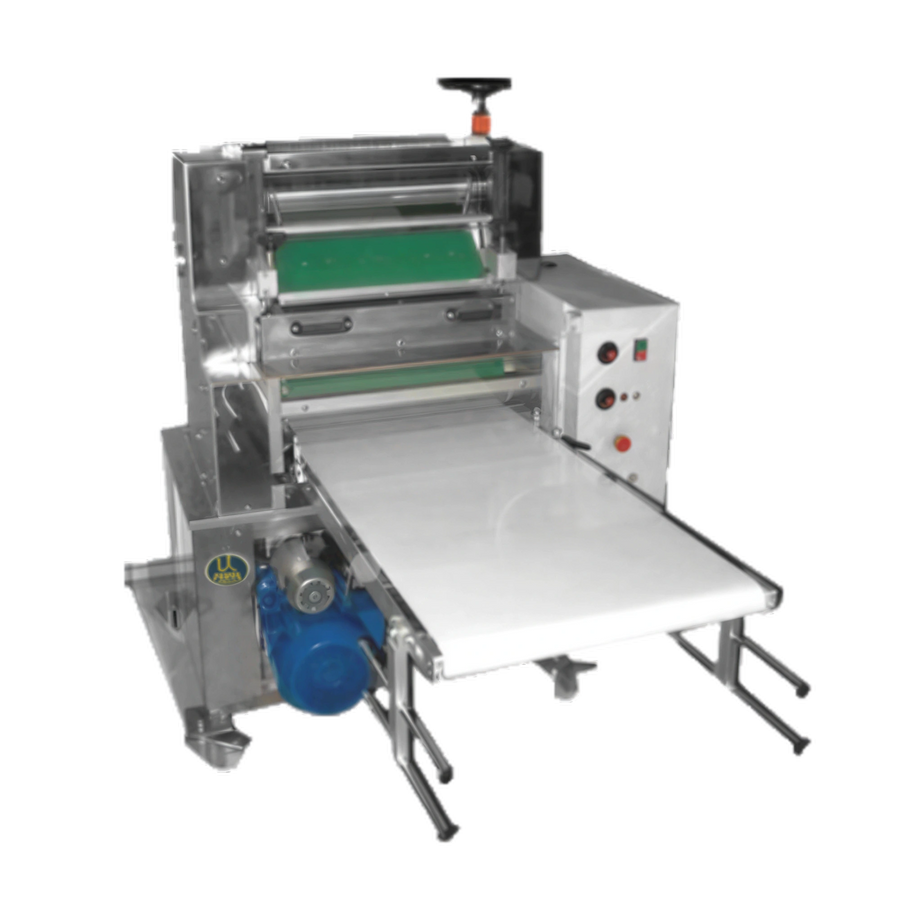

The ADC500 is an automatic floor pasta cutter for producing fresh pasta noodles and lasagna sheets from dough sheets up to 20 inches wide.

Manual thickness adjustment, interchangeable cutting blocks, a variable-speed cutting knife, and a forward conveyor belt support flexible pasta production.

  • Up to 660 lb. of pasta per hour
  • Stainless steel construction with casters and locks
  • Single-hand thickness adjustment down to 1/32 inch

Overall Dimensions:

44.0"W x 59.0"D x 60.0"H

Product Weight:

1475.0 lb

Automatic operation

Designed for automatic pasta cutting in a floor-model configuration.

20-inch dough width

Processes dough sheets up to 20 inches wide.

Manual thickness adjustment

Single-hand adjustment supports uniform dough thickness, down to 1/32 inch.

Interchangeable cutting blocks

Supports interchangeable blocks for cuts including angel hair, spaghetti, linguine, fettuccine, papardelle, tagliatelle, and lasagna sheets.

Variable-speed cutting knife

The cutting knife speed can be varied to regulate pasta cut length.

Forward conveyor belt

A forward conveyor belt moves the pasta through the machine.

Stainless steel construction

The machine uses stainless steel construction.

Casters with locks

The machine is mounted on casters with locks.

Product type Pasta cutter
Installation type Floor model
Operation Automatic
Dough width 20 in
Hourly production Up to 660 lb/hr
Thickness adjustment Manual, adjustable
Minimum dough thickness 1/32 in
Cutting blocks Interchangeable
Cutting knife speed Variable
Conveyor direction Forward
Construction Stainless steel
Motor power 4.5 HP
Electrical 220 V / 60 Hz / 3 phase
Plug NEMA L15-20P
Cord length 8 ft
Net weight 1100 lb
Weight 1475 lb

Warranty & Protection

One-year parts warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The ADC500 processes dough sheets up to 20 inches wide.
Thickness is adjusted manually with a single-hand adjustment, down to 1/32 inch.
The ADC500 has production of up to 660 lb. of pasta per hour.
It requires 220 V, 60 Hz, three-phase power and uses a NEMA L15-20P plug.
Yes. The cutsheet specifies interchangeable cutting blocks for cuts including angel hair, spaghetti, linguine, fettuccine, papardelle, tagliatelle, and lasagna sheets.
The cutsheet specifies a one-year parts warranty.
