APW Wyott (Middleby)  |  SKU: TM-12LDS

APW Wyott (Middleby) TM-12LDS Steam Tables & Food Wells

$1,432.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation instructions Owner's manual Middleby financial flyer Warranty sheet
Related Searches
APW Wyott (Middleby) Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines Hot Well Restaurant Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

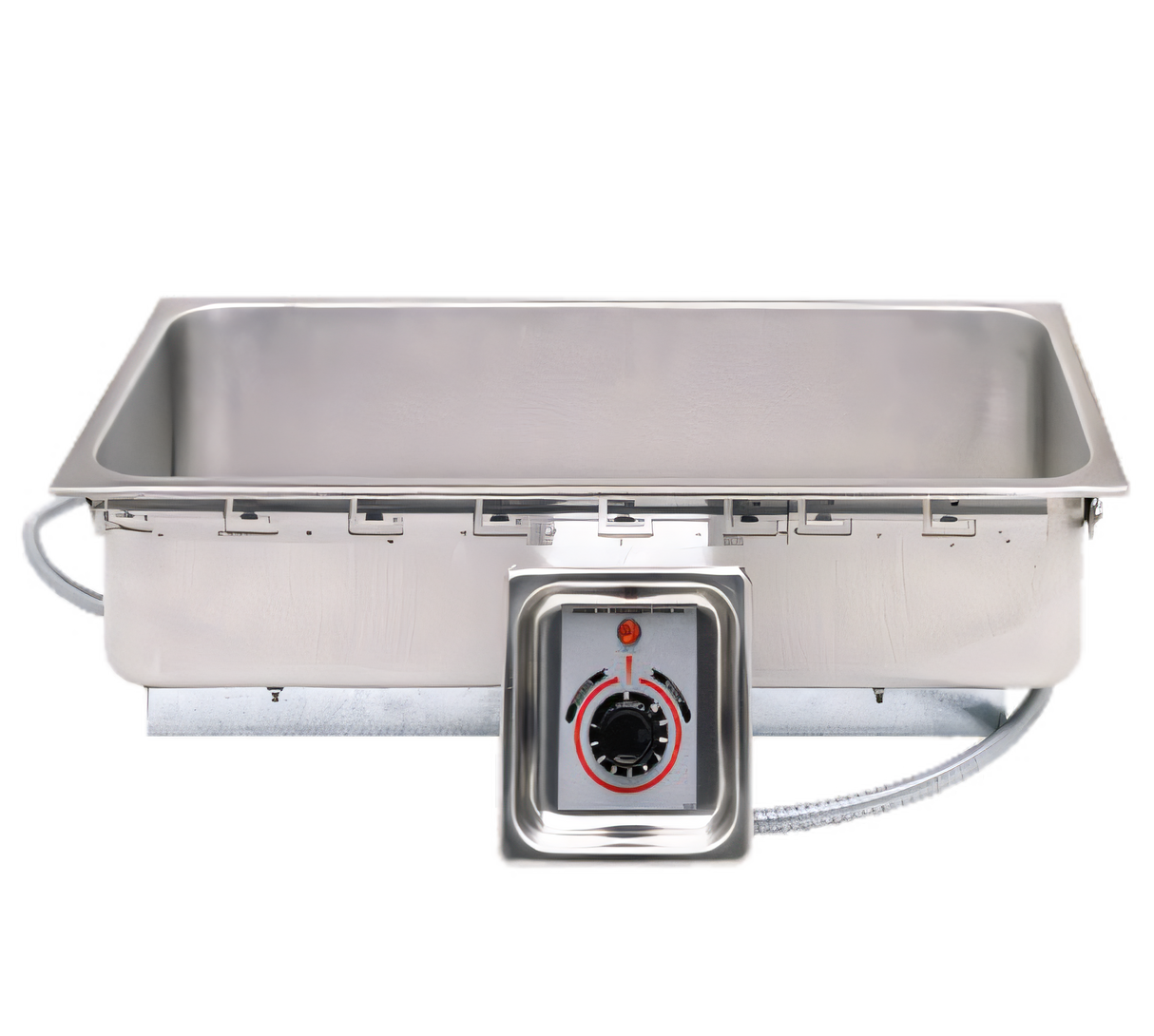

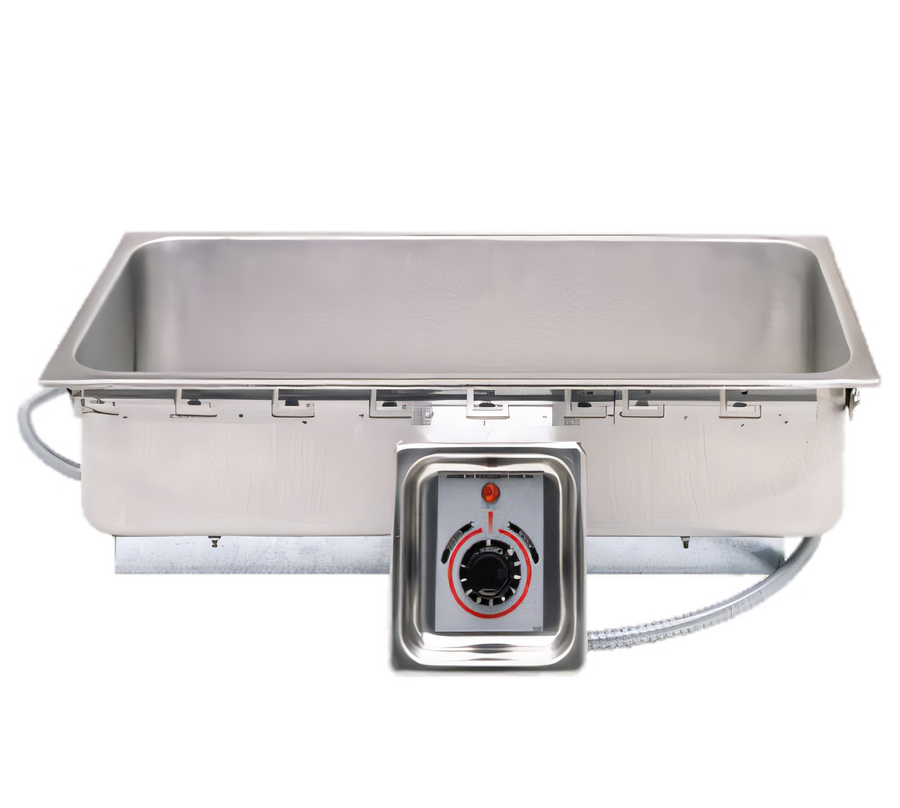

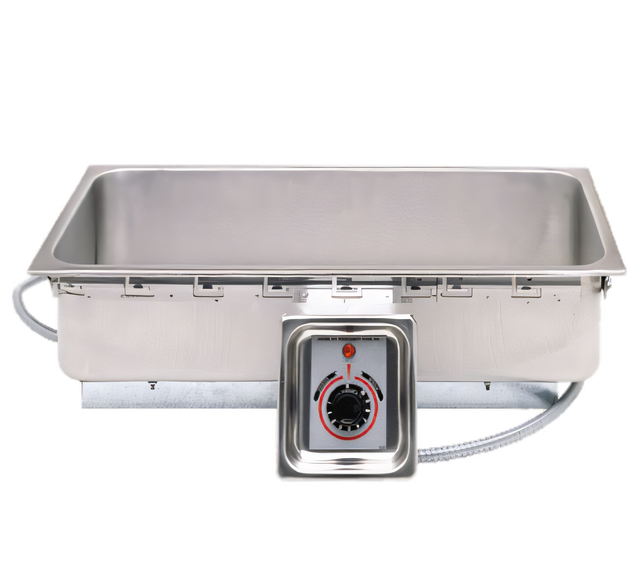

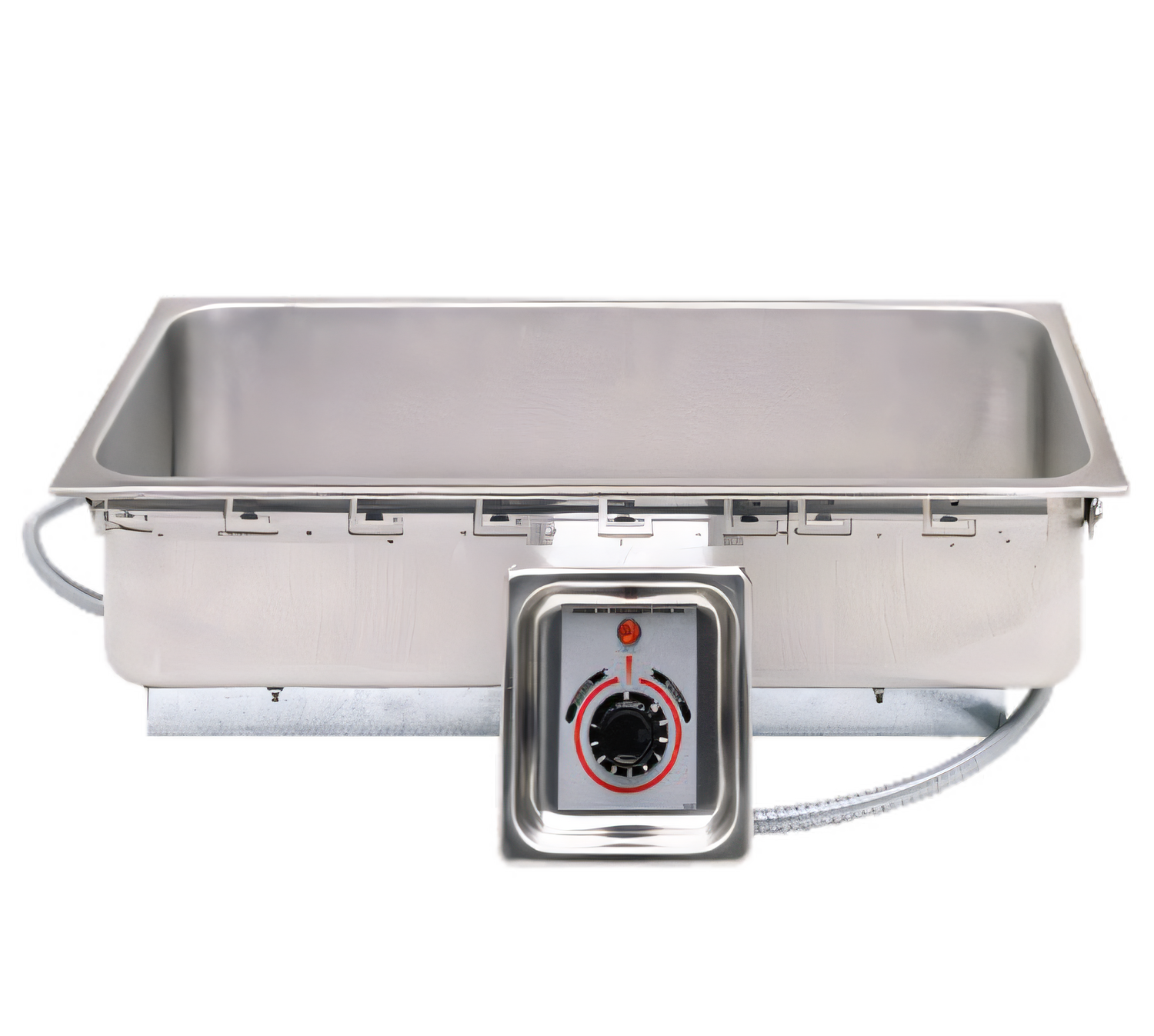

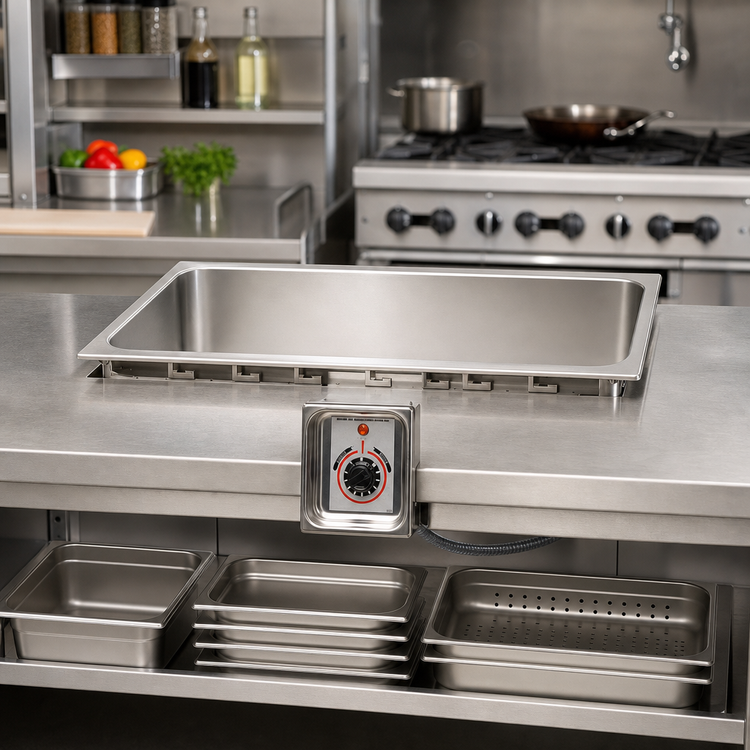

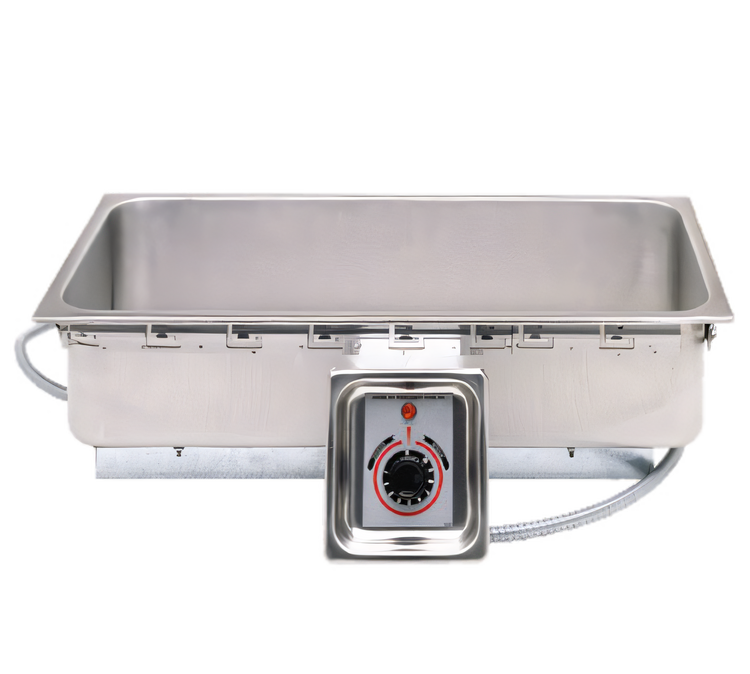

APW Wyott TM-12DLS Drop-In Food Warmer

Half-Size Long • Single Well • 120 V / 750 W

Keep entrées, sides and sauces at perfect serving temperature right in your counter line-up. The TM-12DLS combines heavy-duty stainless-steel construction with energy-efficient heating, giving you a compact, professional solution that’s built to perform shift after shift.

Why you’ll love it

  • Fits one 6" × 20" half-size long pan or assorted fractional insets

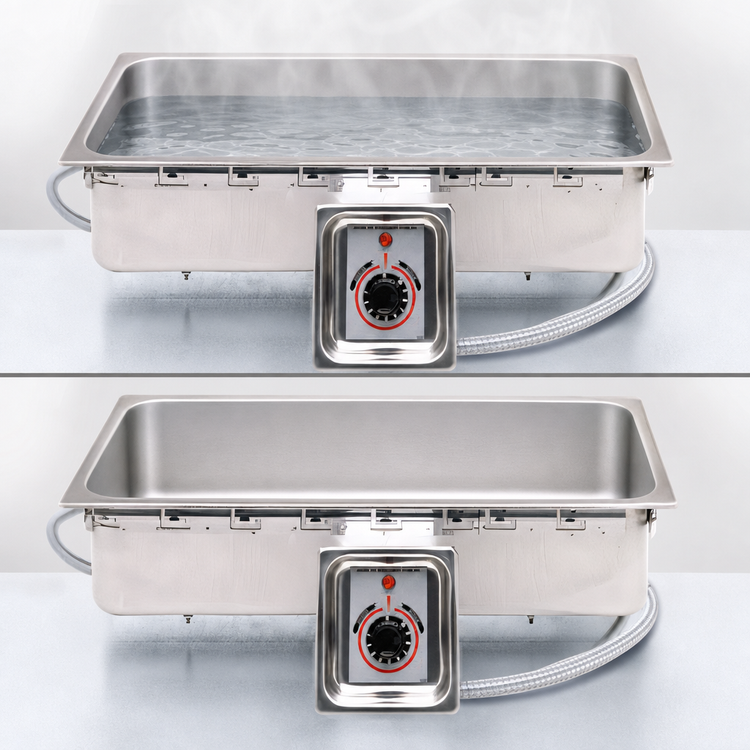

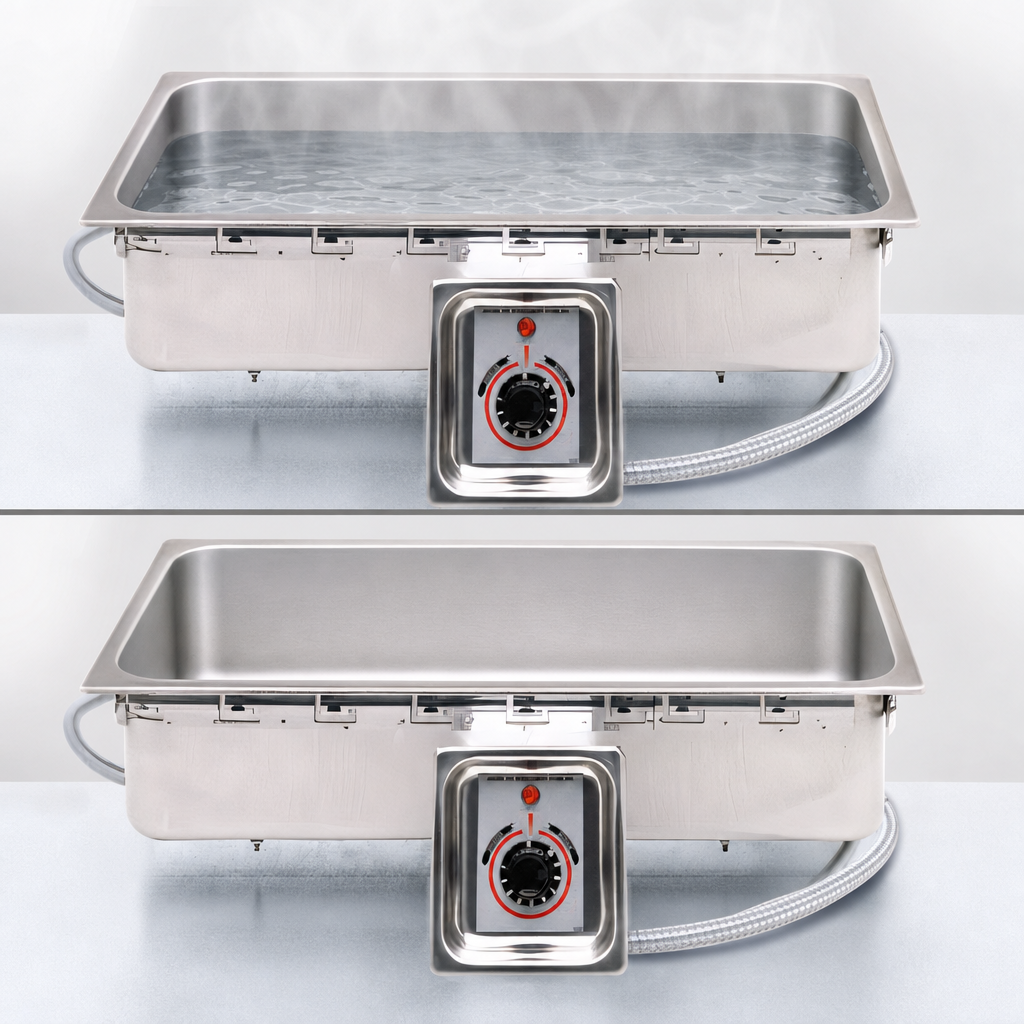

  • Wet or dry operation (water bath recommended for best results)
  • 750-watt tubular element delivers rapid pre-heat and even heat distribution
  • Precise thermostatic control with “ready” indicator light prevents guesswork
  • Built-in ½" drain makes water removal fast and mess-free
  • High-limit safety shuts the unit down before overheating can occur
  • Deep-drawn, one-piece stainless well and top flange wipe clean in seconds
  • Fully insulated sides & bottom reduce standby energy use and speed recovery
  • Recessed front control panel protects settings from accidental changes
  • UR (UL Recognized) for the U.S. and Canada; NSF compliant components

Specifications

Model TM-12DLS
Well capacity 1 half-size long pan (6" × 20"), up to 6" deep
Operation Wet or dry, thermostatically controlled
Drain Yes – ½" NPT with external valve
Wattage / Amps 750 W  |  6.25 A
Voltage / Phase 120 V  |  Single phase
Overall dimensions 6.38" W × 20.75" L × 7.56" H (162 × 527 × 192 mm)
Counter cut-out 5 11/16" W × 20 3/4" L (144 × 527 mm)
Shipping weight 11 lb (5 kg)
Clearances 2" left/right, 1" back, 9" bottom, 2 5/8" front
Certifications UR, cULus
Warranty 1-year parts & labor
For optimal food quality, maintain water level so the heating element is always covered. Follow the included installation guide for mounting and electrical connections.

Features & Specs

Manufacturer

APW Wyott (Middleby)

Certifications

cURus

Height

20.75in

Width

6.38in

Depth

7.56in

Shipping Weight

11.0lbs

Style

individual pans

Drain

with drain

Controls

thermostatic controls

Wet or Dry operation

wet or dry

Construction

stainless steel construction

Pan Capacity

(1) 1/2 size long (6" x 20")

Insulated or Non-Insulated

non-insulated

Specifications

Food Warmer, drop-in, electric, (1) 6" x 20" well, 1/2 long pan size, wet or dry operation, thermostatic control, with drain, uninsulated, EZ lock, stainless steel construction, 750 watts, 120v/1-ph, 6.25 amps, UR
