APW Wyott (Middleby) TM-12LD ULS Steam Tables & Food Wells
Description

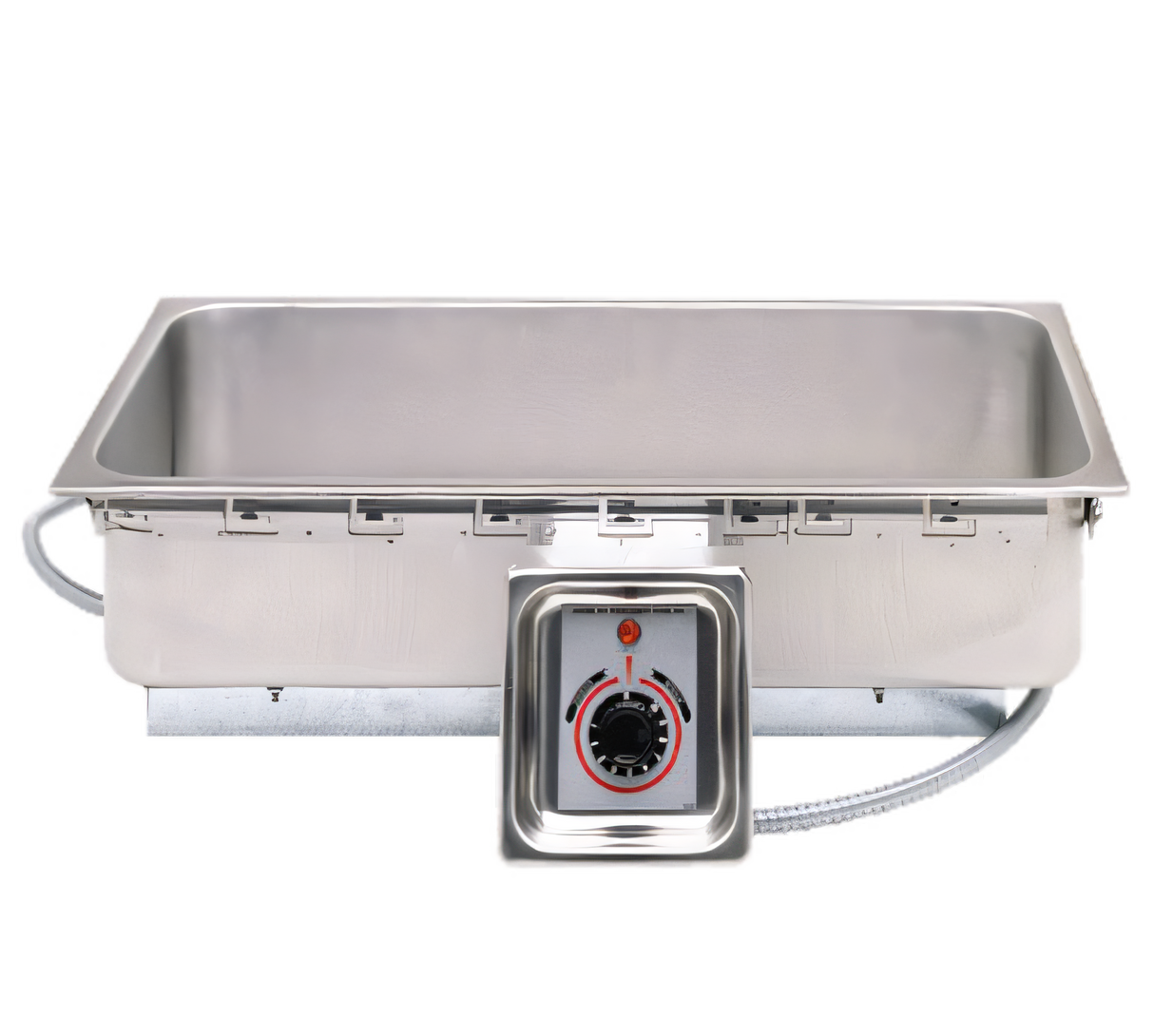

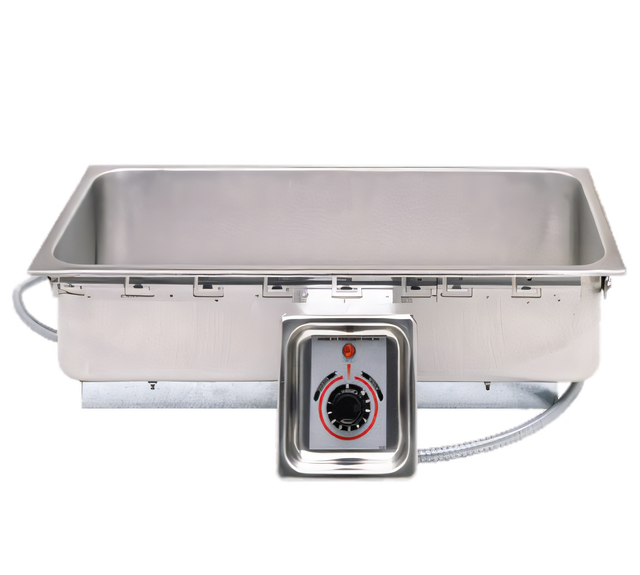

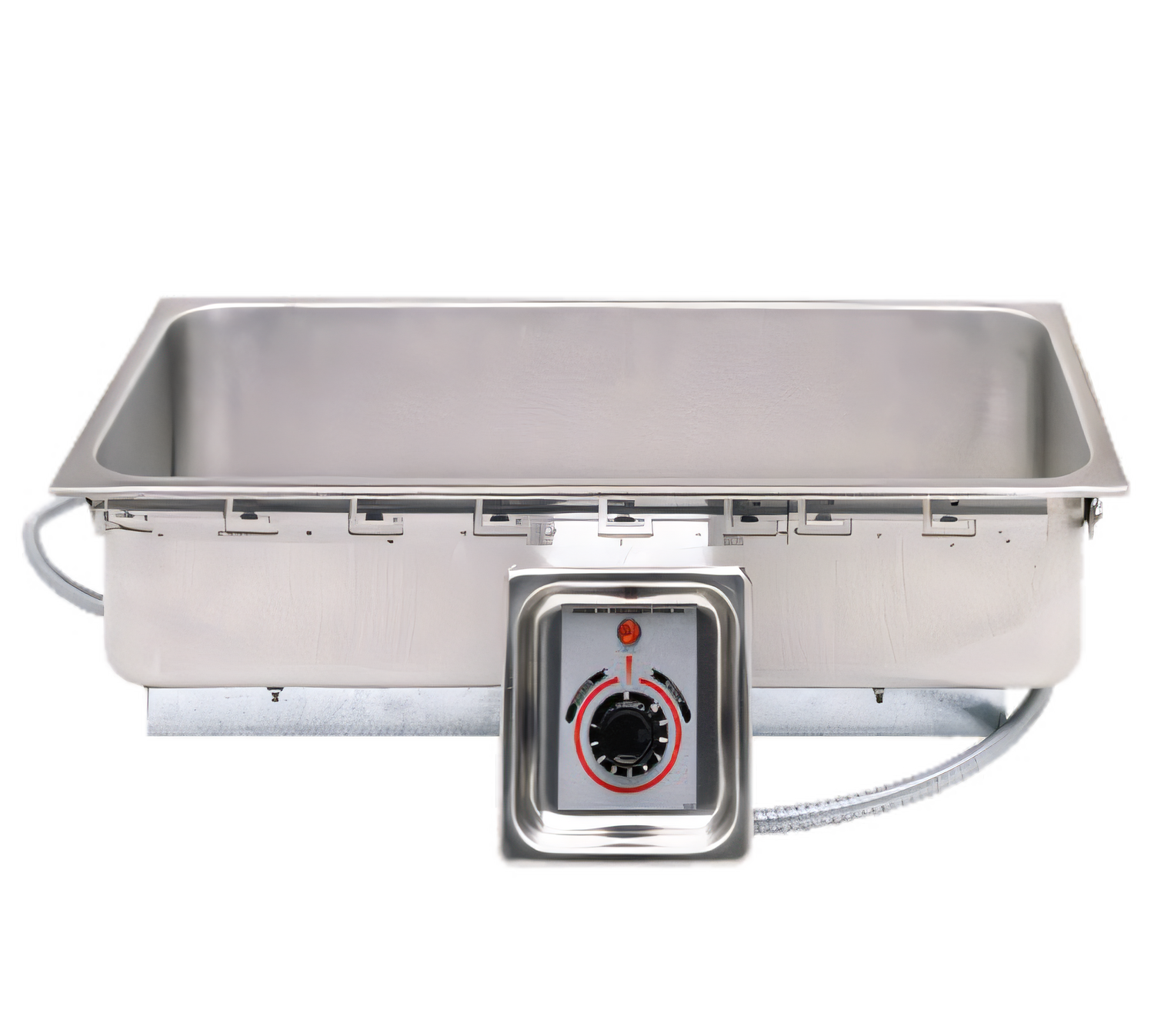

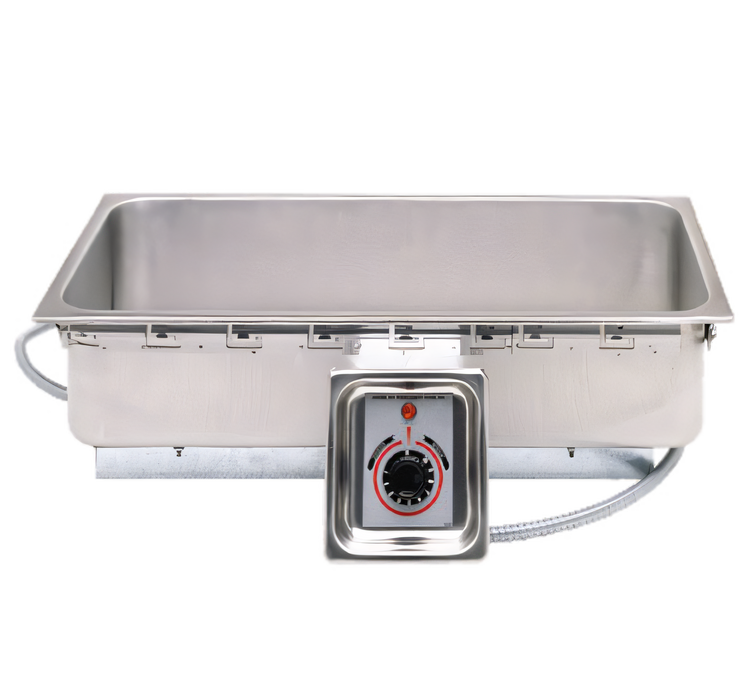

APW Wyott EZ-Lock Drop-In Food Warmer — Half-Size Long Pan, 750 W
Model: TM-12 Series, 1-Well, 120 V / 1-PhKeep entrées, sides, and sauces hot, fresh, and ready for service with the APW Wyott EZ-Lock rectangular drop-in warmer. Engineered for seamless countertop installation, this single-well unit accepts one 6" × 20" half-size long food pan (or fractional equivalents), giving you the flexibility to serve exactly what your menu demands.
Why You’ll Love It
- Wet or dry operation – fill with water for moist heat or use dry for crisp items.
- Accurate thermostatic control with temperature-ready indicator light for worry-free food safety.
- Built-in ½" NPT drain quickly removes water at the end of service & speeds clean-up.

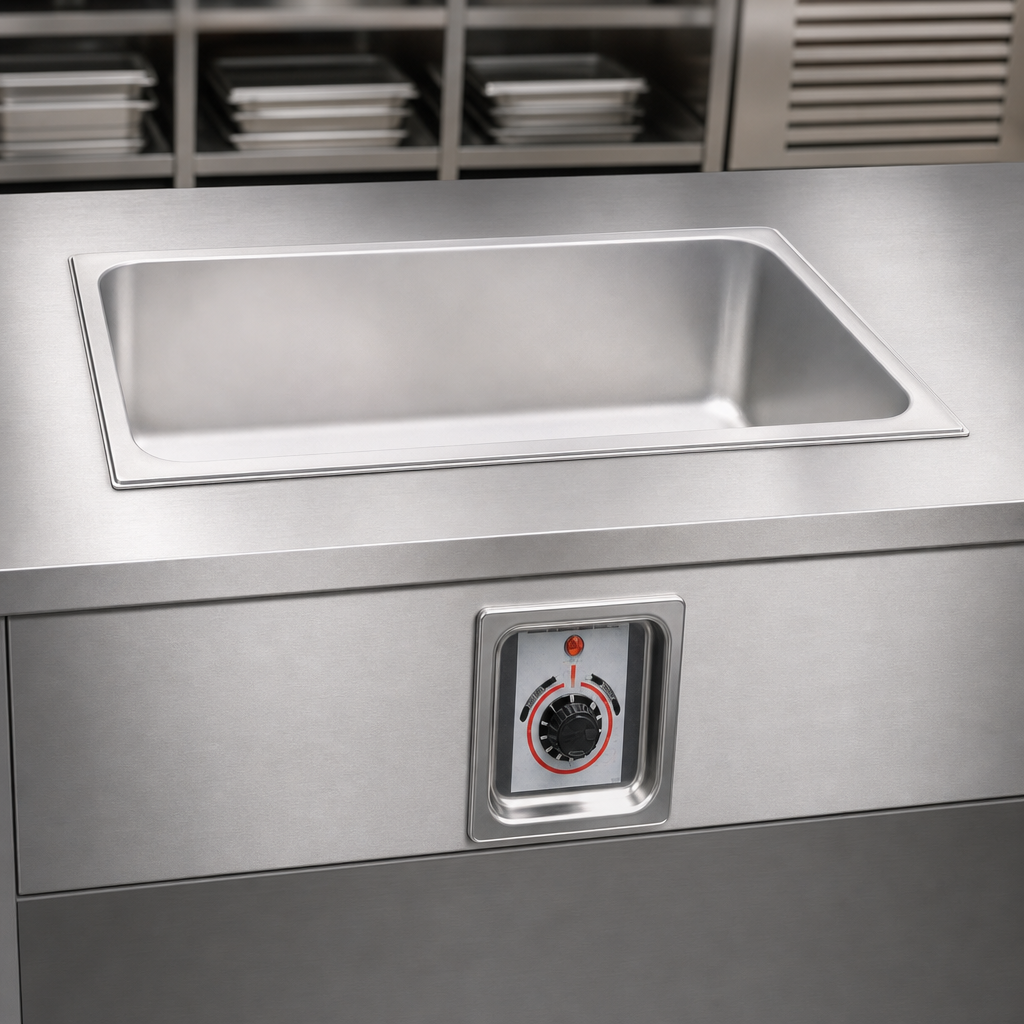

- EZ-Lock mounting system tightens from above the counter for one-person installation.
- Heavy-gauge stainless steel well & flange resist corrosion and daily kitchen abuse.
- Tubular heating element delivers fast pre-heat and even heat distribution.
- High-limit safety prevents overheating and prolongs component life.
- UL listed and ships with a UL-approved electrical kit for easy, code-compliant hookup.
Specifications
| Pan Capacity | 1 × 6" × 20" half-size long pan (or equivalent fractional insets) |
|---|---|
| Overall Dimensions | 6.38" W × 20.75" L × 7.56" H (162 × 527 × 192 mm) |
| Cut-Out Dimensions* | 5.81" W × 19.94" L (148 × 507 mm) |
| Electrical | 120 V / 1-Ph / 750 W / 6.25 A |
| Drain | ½" NPT stainless outlet |
| Construction | One-piece stainless steel flange & deep-drawn well |
| Controls | Front-mounted thermostatic knob with indicator light |
| Certifications | UL Listed (US & Canada) |
| Warranty | 1 year limited parts & labor |
*Always confirm cut-out sizes with the included installation manual before preparing countertops.
Installation Clearances
- Sides: 2" (51 mm)
- Back: 1" (25 mm)
- Front: 2 5⁄8" (67 mm)
- Bottom to metal heat shield: 9" (229 mm)
From cafés and concessions to full-service kitchens, the APW Wyott EZ-Lock drop-in warmer delivers dependable holding power in a compact, energy-efficient package. Add it to your line-up today and serve every plate at just-right temperature.
