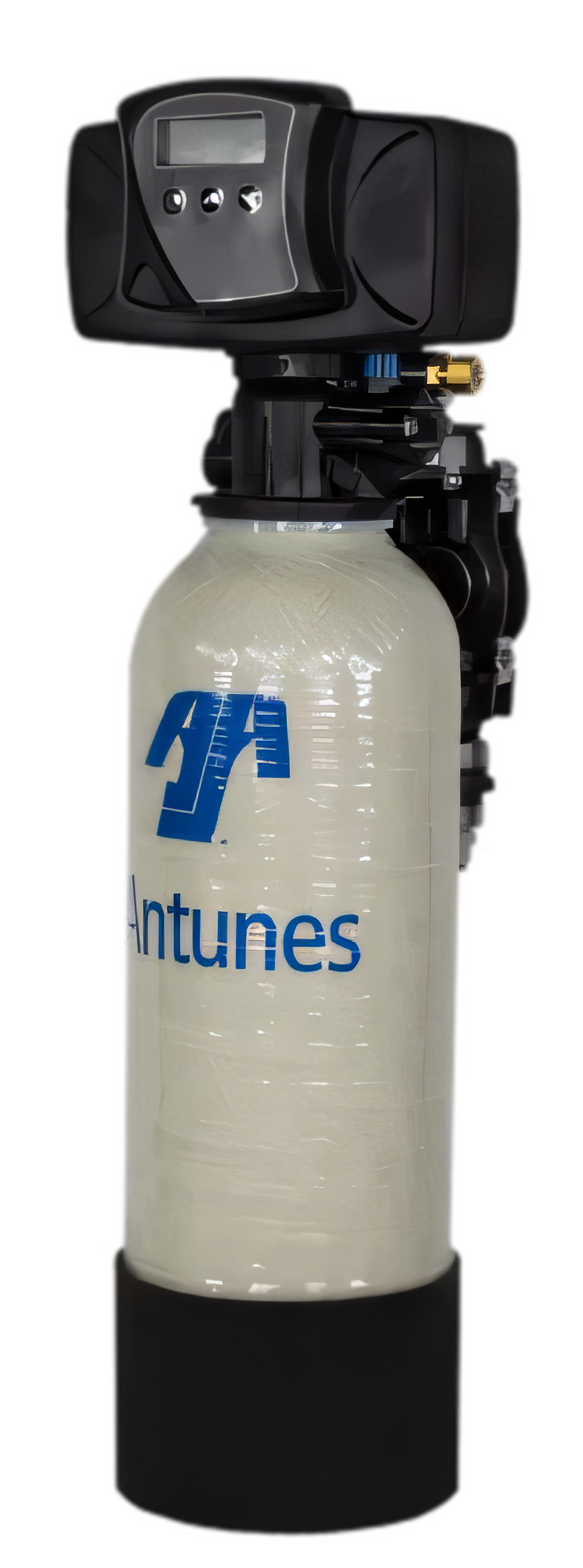

Antunes Commercial Point-of-Use Water Softener System, 6 Inch Wide x 27 Inch High, 120V
Antunes Commercial Point-of-Use Water Softener System, 6 Inch Wide x 27 Inch High, 120V
2,667–6,200 Grain Capacity, 2.9 GPM Max Flow, 3/4 Inch NPT Connections
Compact point-of-use softening helps protect equipment from scale buildup while supplying up to 2.9 GPM of treated water.
- Helps prevent scale buildup on cooking and steam equipment.
- Lowers total hardness below 1 grain per gallon.
- Compact 6-inch-wide point-of-use design for tight install spaces.
- Up to 2.9 GPM maximum flow with a 15 PSI pressure drop at rated flow.
- Operates in 34-110°F water temperatures and 20-125 PSI pressure range.
- Uses 120V, 50/60 Hz, single-phase power with a low 0.33 amp draw.
Overall Dimensions:

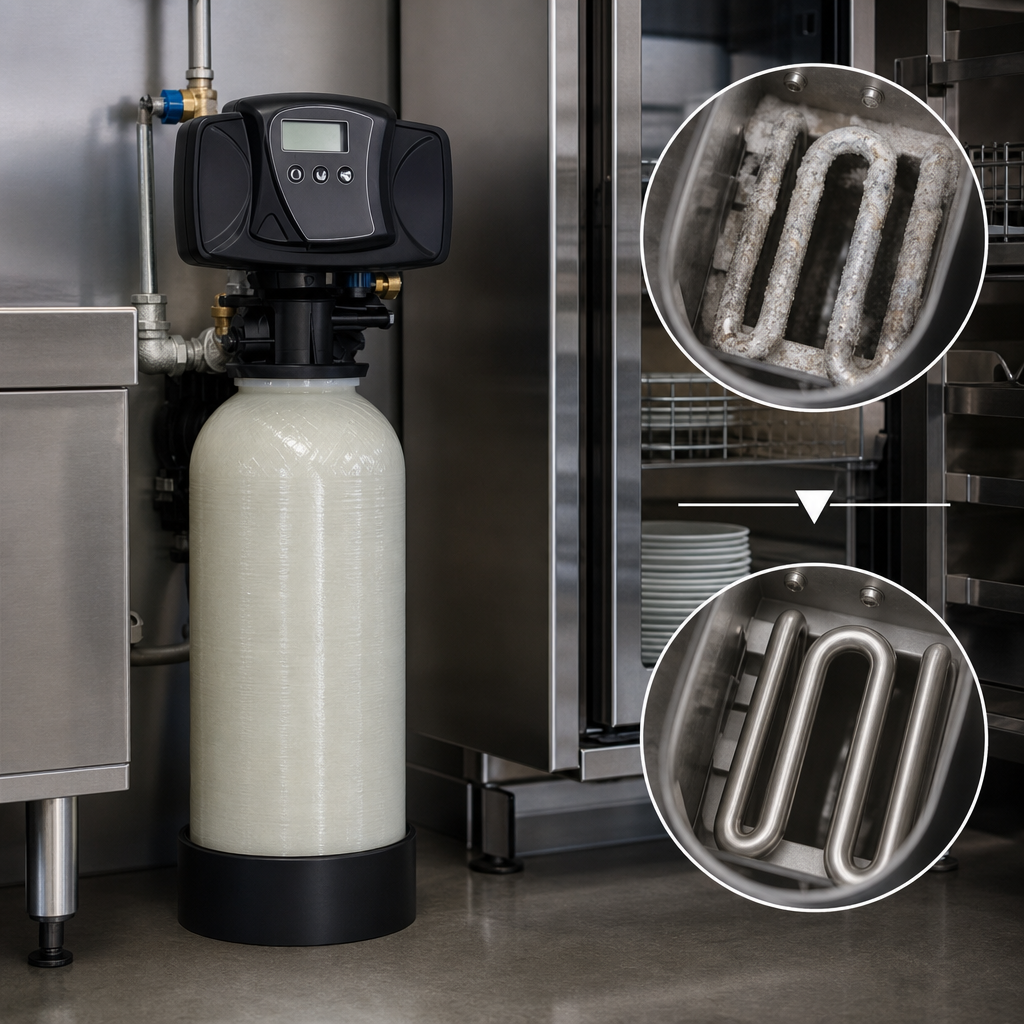

6.0"W x 27.0"HScale Reduction
Reduces total water hardness to help prevent scale formation on connected equipment.
Compact Footprint
The 6-inch-wide point-of-use design is built for low-volume soft water applications.
Rated Softening Capacity
Provides 2,667 grains at 4.0 lbs of salt, 5,400 grains at 9.0 lbs of salt, and 6,200 grains at 15 lbs of salt.
High Flow Support
Supports a maximum flow rate of 2.9 GPM with a 15 PSI pressure drop at rated flow.
Operating Range
Designed to operate from 34-110°F with an operating pressure range of 20-125 PSI.
Electrical Requirements
Requires 120V power, 50/60 Hz, 1-phase service, 40 VA, and 0.33 amps.
Connections
Includes 3/4-inch NPT male inlet and outlet connections and a 1/2-inch drain connection.
