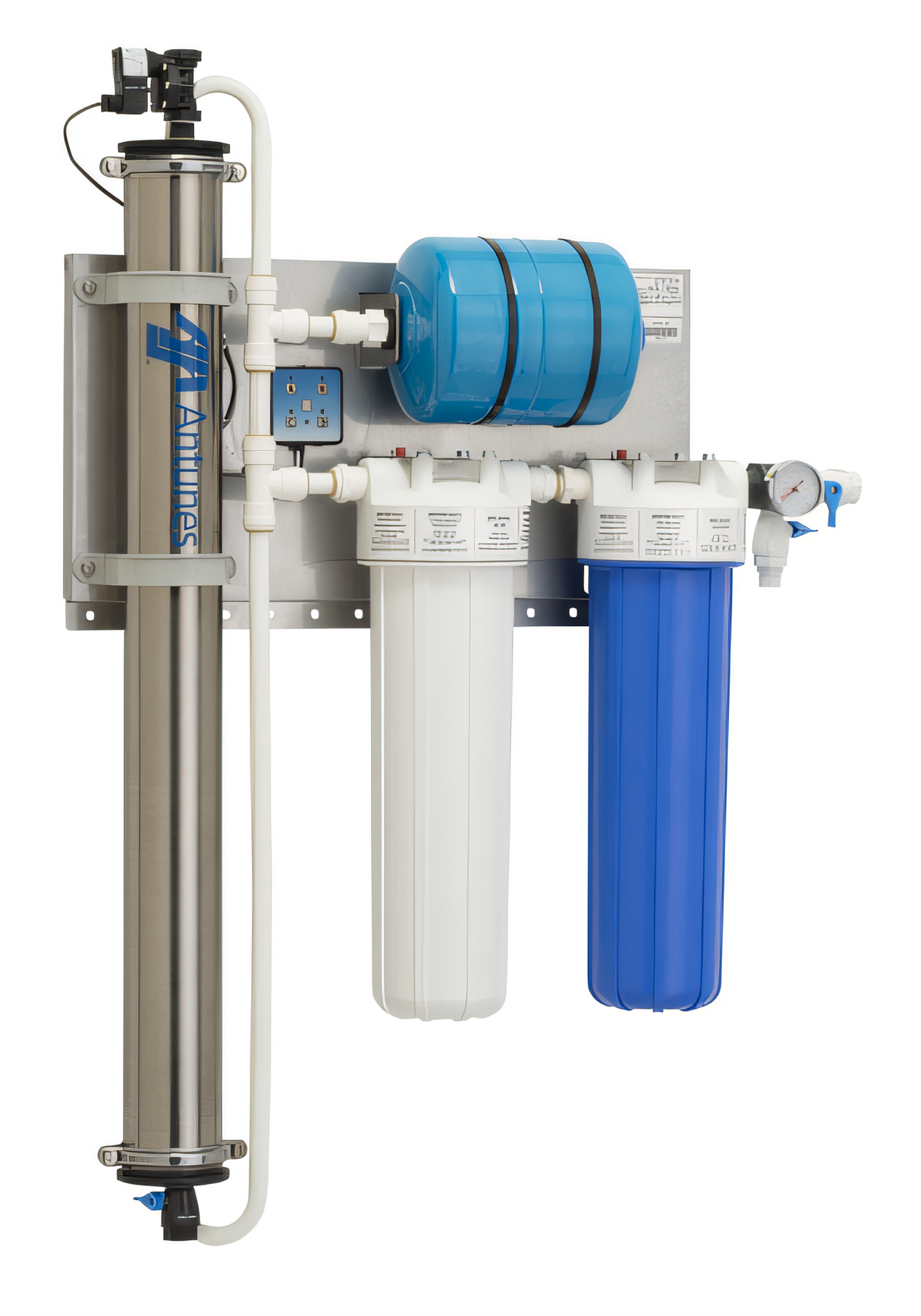

Antunes Vizion VZN-541VE-T5 Vertical Ultrafiltration Water Filter System with Extended Life Carbon and TAC Cartridges, 8 GPM, 500,000-Gallon Capacity

0.015-Micron Filtration, Stainless Steel Housing, 100-240V

This vertical ultrafiltration system combines long-life carbon treatment with TAC scale reduction to deliver cleaner water, reduce maintenance, and protect downstream equipment.

  • 8 GPM vertical ultrafiltration system for commercial water treatment applications.
  • Includes one extended life carbon cartridge and one TAC cartridge for taste/odor control and lime scale reduction.
  • Self-cleaning ultrafilter separates mechanical filtration from carbon treatment to help prevent premature clogging.
  • 0.015-micron nominal pore size provides very fine particle reduction.
  • 500,000-gallon carbon cartridge capacity helps reduce cartridge change-outs and operating cost.
  • Stainless steel ultrafilter housing with 3/4 inch MNPT inlet/outlet and 3/4 inch FNPT drain connections.
  • Operates on 100-240V, 50/60 Hz, single-phase power and includes plug adapters for the US, Europe, Australia, and the UK.

Overall Dimensions:

36.0"W x 9.0"D x 50.0"H

Product Weight:

74.0 lb

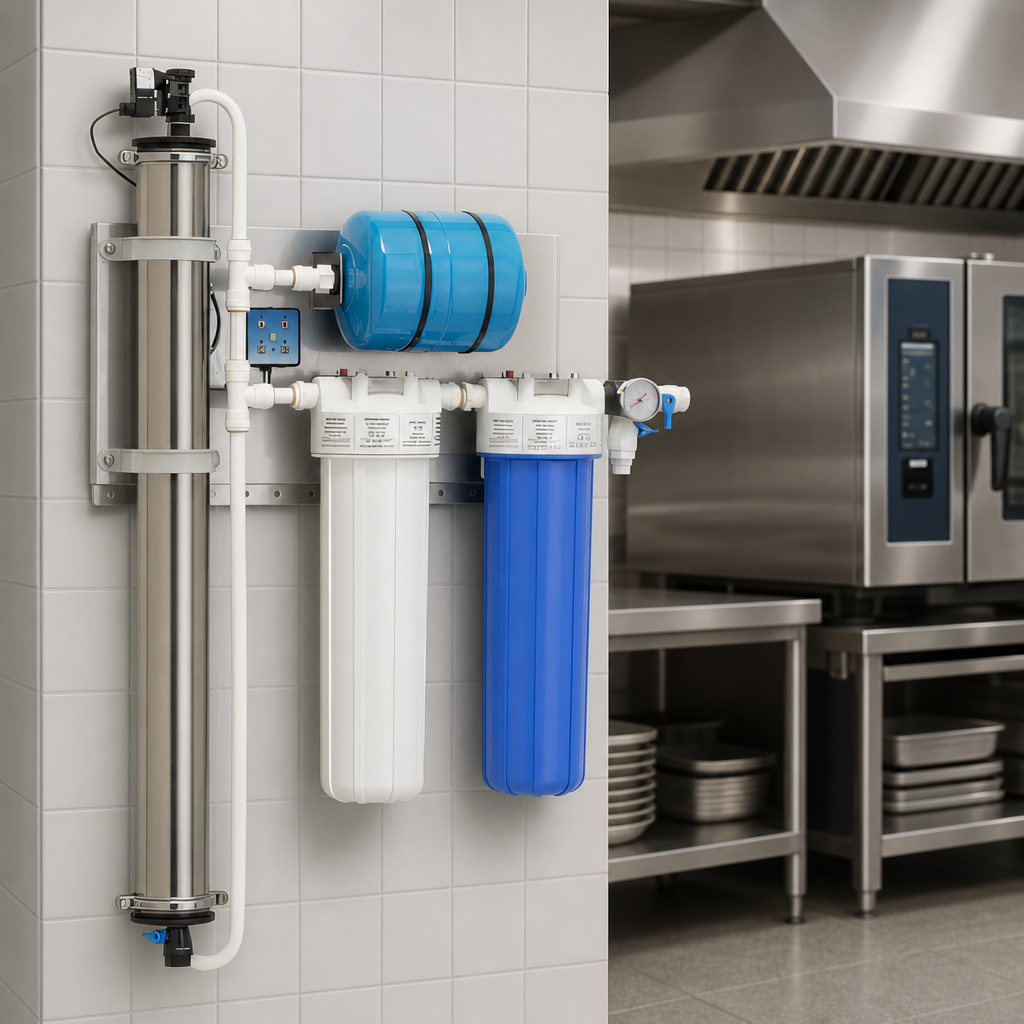

Extended Life Carbon Cartridge

Provides 500,000-gallon capacity to reduce replacement frequency and lower total cost of ownership.

Extended Life Carbon Cartridge

TAC Cartridge Included

Template-assisted crystallization technology helps reduce lime scale buildup and protect equipment.

Self-Cleaning Ultrafilter

Mechanical filtration is separated from taste and odor reduction to help prevent premature clogging.

0.015-Micron Filtration

Delivers very fine filtration for sediment, cyst, and particle reduction.

Stainless Steel Housing

Durable ultrafilter housing designed for commercial water treatment use.

Adjustable Flush Timer

Helps support system performance and maintenance control.

Global Plug Adapters Included

Includes plug adapters for the US, Europe, Australia, and the UK.

High Temperature Capability

Rated for a maximum operating temperature of 104°F (40°C).

Type Ultrafiltration System
Style Vertical
Capacity 500,000 Gallons (1,893,000 Liters)
Filter Quantity 2
Micron Rating 0.015 Microns
Service Flow Rate 8 GPM (30 LPM)
Maximum Operating Pressure 100 PSIG (690 kPa)
Maximum Operating Temperature 104°F (40°C)
pH Range 6.5 to 8.5
Material Stainless Steel
Water Inlet Size 3/4 Inch MNPT
Drain Connection Size 3/4 Inch FNPT
Water Connection Required
Drain Connection Required
Voltage 100-240 Volts
Watts 10 Watts
Amps 0.08 Amps
Phase 1-Phase
Hertz 50/60 Hz
Shipping Weight 74 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes one extended life carbon cartridge and one TAC cartridge.
The system uses 0.015-micron ultrafiltration.
It uses 3/4 inch MNPT inlet/outlet plumbing connections and a 3/4 inch FNPT drain connection.
The system operates on 100-240V, 50/60 Hz, single-phase power and draws 0.08 amps at 10 watts.
The maximum operating temperature is 104°F (40°C).
The extended life carbon cartridge has a 500,000-gallon capacity.
