Antunes

Vizion VZN-541VC Vertical Chloramine Water Filtration System, 13 GPM, 0.015 Micron

SKU: VZN-541VC
$2,329.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Antunes Best Sellers Equipment New Arrivals Plumbing & Water Treatment Restaurant Equipment Water Filters

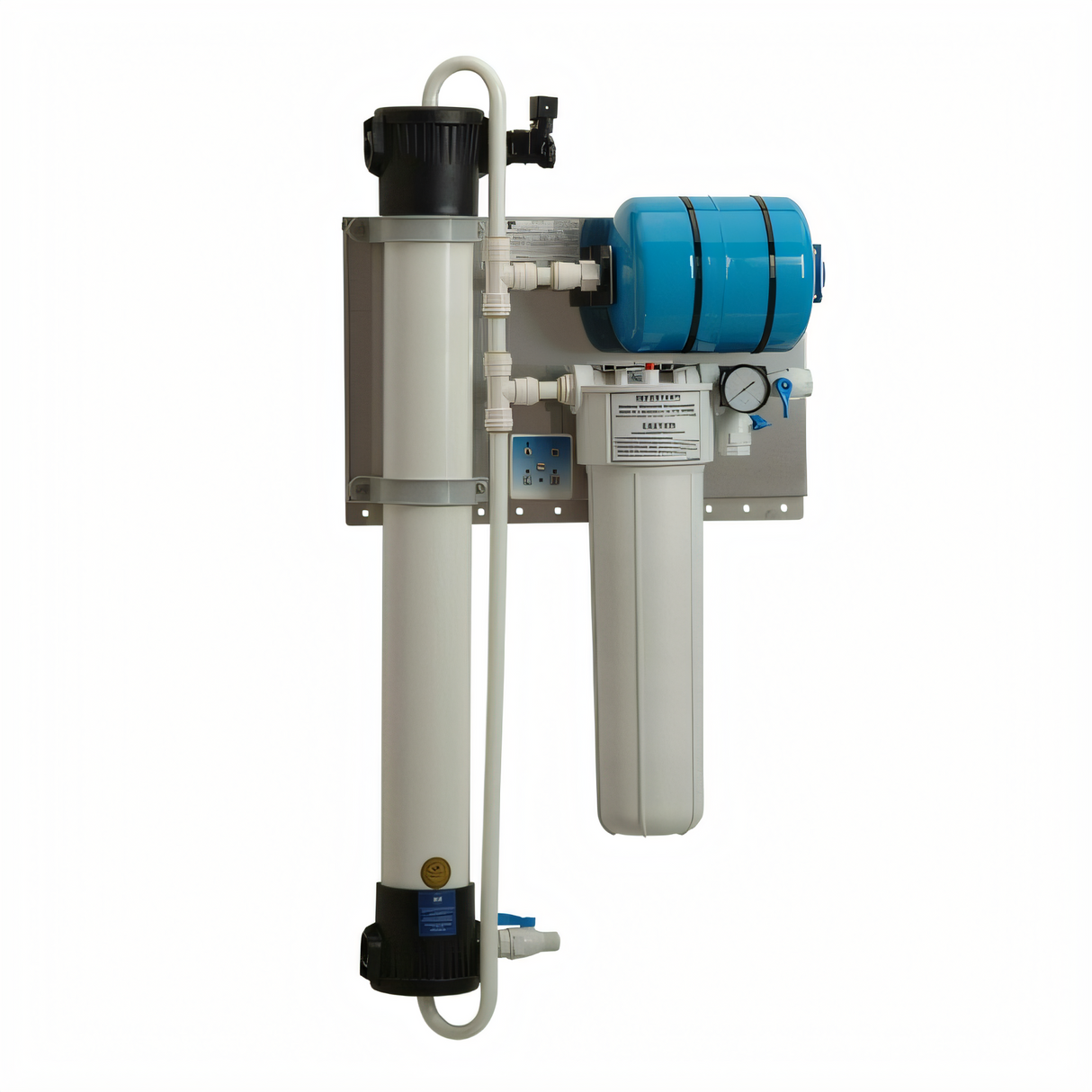

Vizion VZN-541VC Vertical Chloramine Water Filtration System, 13 GPM, 0.015 Micron

Self-Cleaning Ultrafiltration with One Chloramine Cartridge and Universal Voltage

Deliver cleaner beverage water with a self-cleaning vertical filtration system that combines 0.015-micron ultrafiltration and chloramine reduction.

  • Vertical chloramine water filtration system with one cartridge and a self-cleaning ultrafilter.
  • 0.015-micron nominal pore size helps capture sediment, cysts, and fine particles.
  • 13 GPM service flow supports high-demand beverage applications.
  • Chloramine reduction capacity is rated at 21,000 gallons at 5 GPM.
  • Stainless steel ultrafilter housing and separated filtration stages help reduce clogging.
  • 100-240V, 50/60 Hz, single-phase power with cord and plug adapters for US, Europe, Australia, and the UK.
  • NSF certified and rated for up to 104°F (40°C) operation.

Overall Dimensions:

25.0"W x 9.0"D x 50.0"H

Product Weight:

59.0 lb

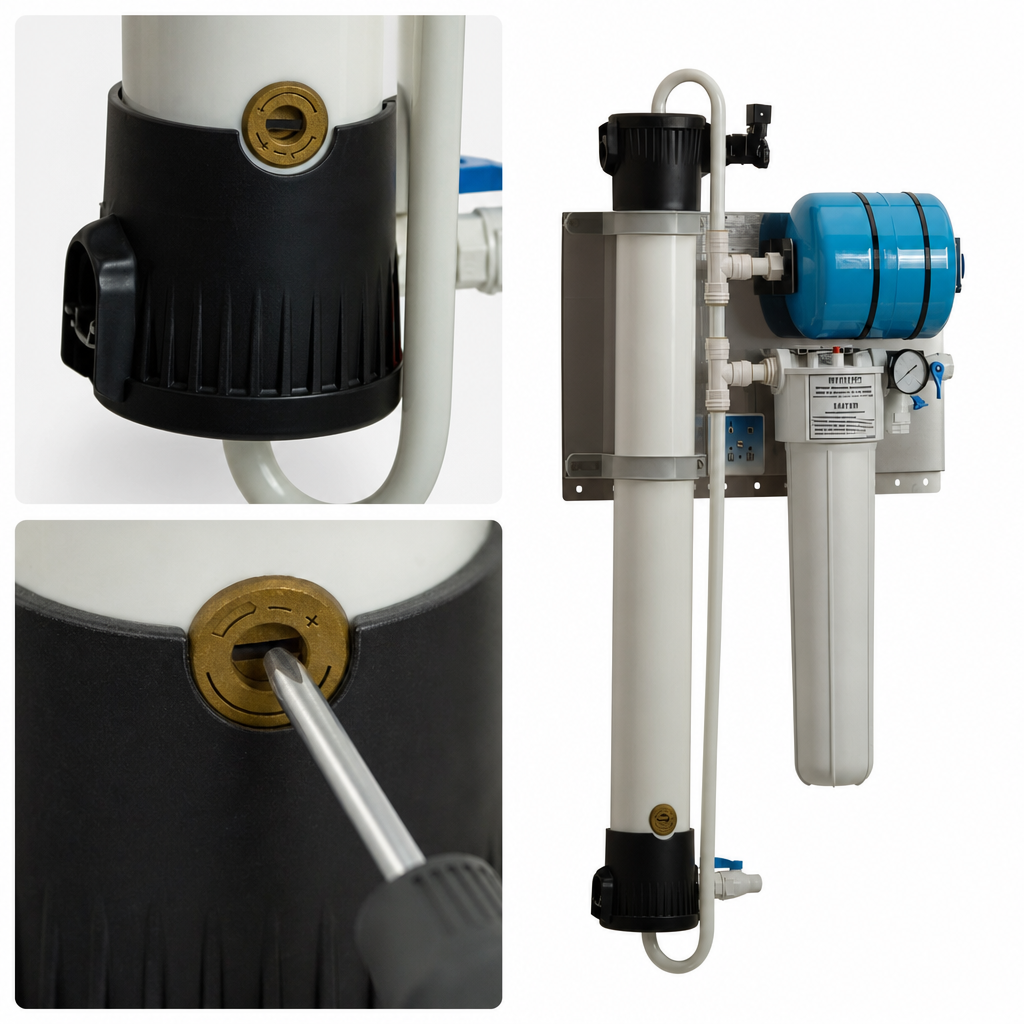

Adjustable Flush Timer

Built-in flush timing helps maintain system performance during operation.

Adjustable Flush Timer

Self-Cleaning Ultrafilter

Mechanical filtration occurs ahead of the chloramine cartridge to reduce premature clogging and extend cartridge life.

Separate Filtration Stages

Separates mechanical filtration from taste and odor reduction for more consistent water treatment performance.

0.015-Micron Ultrafiltration

Fine filtration helps remove sediment, cysts, and very small particles.

Chloramine Reduction Cartridge

One chloramine cartridge is rated for 21,000 gallons at 5 GPM.

Stainless Steel Housing

Durable stainless steel ultrafilter housing is designed for commercial environments.

Universal Power Input

Operates on 100-240V, 50/60 Hz, single-phase power and includes plug adapters for US, Europe, Australia, and the UK.

NSF Certified

Certified for commercial water treatment applications.

Type Chloramine Water Filtration System
Style Vertical
Service Flow Rate 13 GPM (49.2 LPM)
Micron Rating 0.015 Microns
Filter Quantity 1
Capacity 21,000 Gallons at 5 GPM
Temperature Range Up to 104°F (40°C)
Material Stainless Steel
Voltage 100-240 Volts
Amps 0.08 Amps
Watts 10 Watts
Hertz 50/60 Hz
Phase 1-Phase
Plug Type Cord with US, Europe, Australia & UK Plug Adapters
Water Inlet Size 3/4 Inch MNPT
Drain Connection Size 3/4 Inch FNPT
Shipping Width 25 Inches
Shipping Depth 9 Inches
Shipping Height 50 Inches
Shipping Weight 59 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It combines a self-cleaning ultrafilter with a chloramine cartridge, separating mechanical filtration from taste and odor reduction.
The system uses 0.015-micron ultrafiltration.
The service flow rate is 13 gallons per minute (49.2 liters per minute).
It operates on 100-240V, 50/60 Hz, single-phase power, draws 0.08 amps, uses 10 watts, and includes cord and plug adapters for US, Europe, Australia, and the UK.
It uses a 3/4 inch MNPT inlet/outlet connection and a 3/4 inch FNPT drain connection.
Yes, the system is NSF certified.
