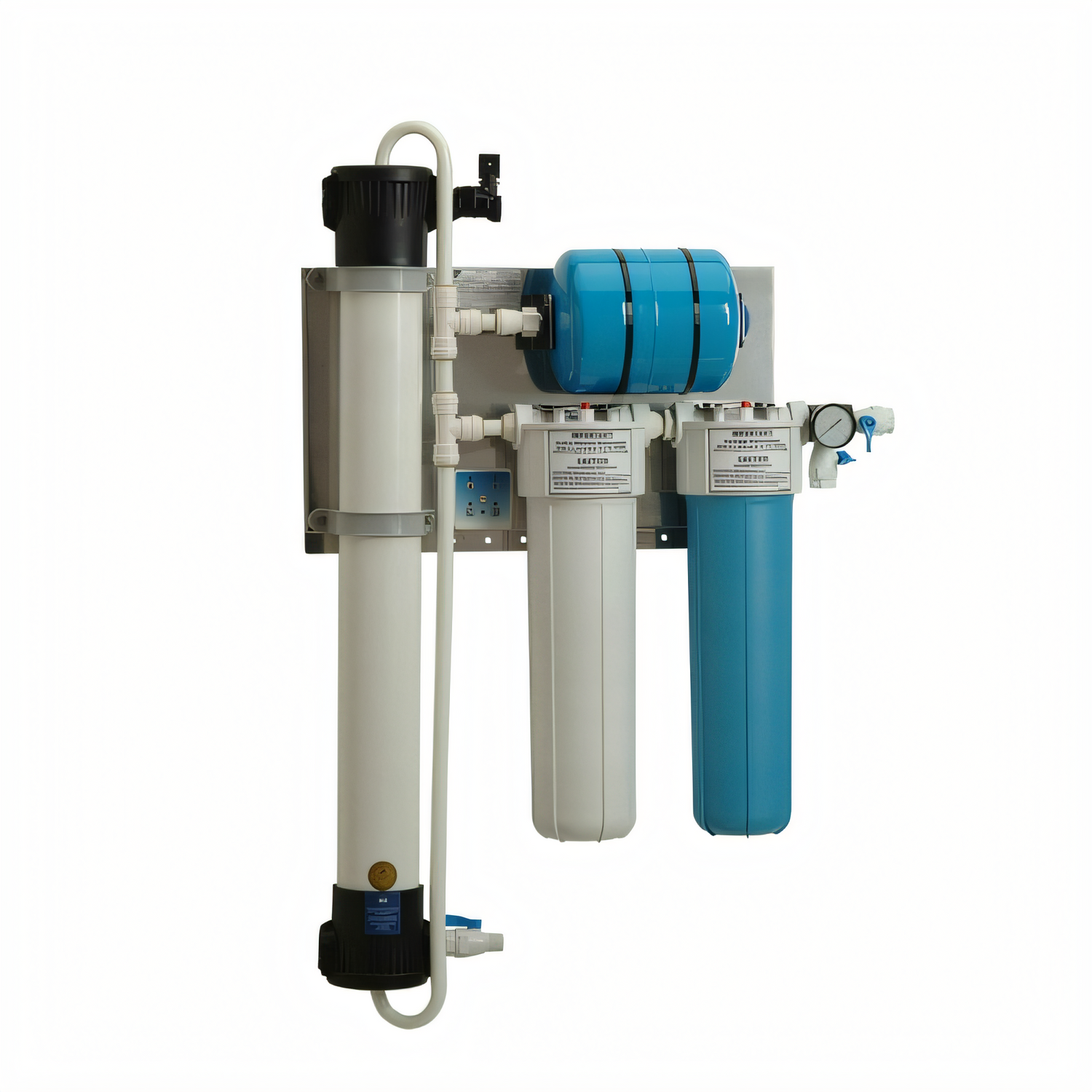

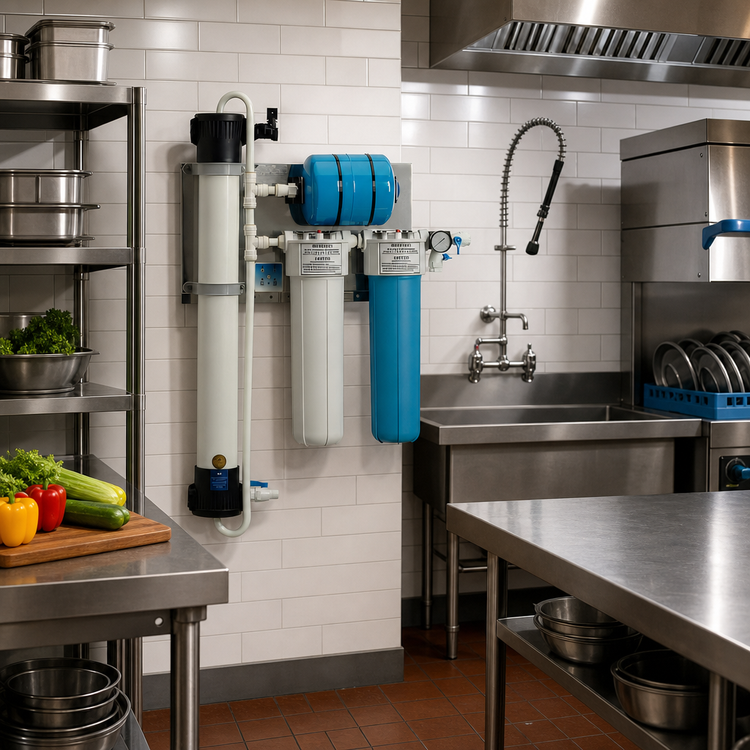

Vizion Vertical Chloramine Water Filtration System with TAC Cartridge, 13 GPM

0.015 Micron Ultrafiltration, Stainless Steel Housing, 100-240V

Protect beverage and foodservice equipment with a vertical filtration system that combines chloramine reduction, TAC scale control, and self-cleaning ultrafiltration.

  • Vertical two-cartridge system designed for chloramine reduction and lime scale control.
  • 0.015 micron ultrafiltration helps reduce fine particles while separating mechanical filtration from taste and odor reduction.
  • Rated for 13 GPM service flow and 21,000 gallons of chloramine reduction at 5 GPM.
  • Stainless steel ultrafilter housing supports durable commercial use.
  • Operates on 100-240V, 50/60 Hz, single-phase power with low 10W draw and 0.08A current.
  • Includes plug adapters for US, Europe, Australia, and UK outlets.
  • NSF tested and certified for verified performance.

Overall Dimensions:

36.0"W x 9.0"D x 50.0"H

Product Weight:

74.0 lb

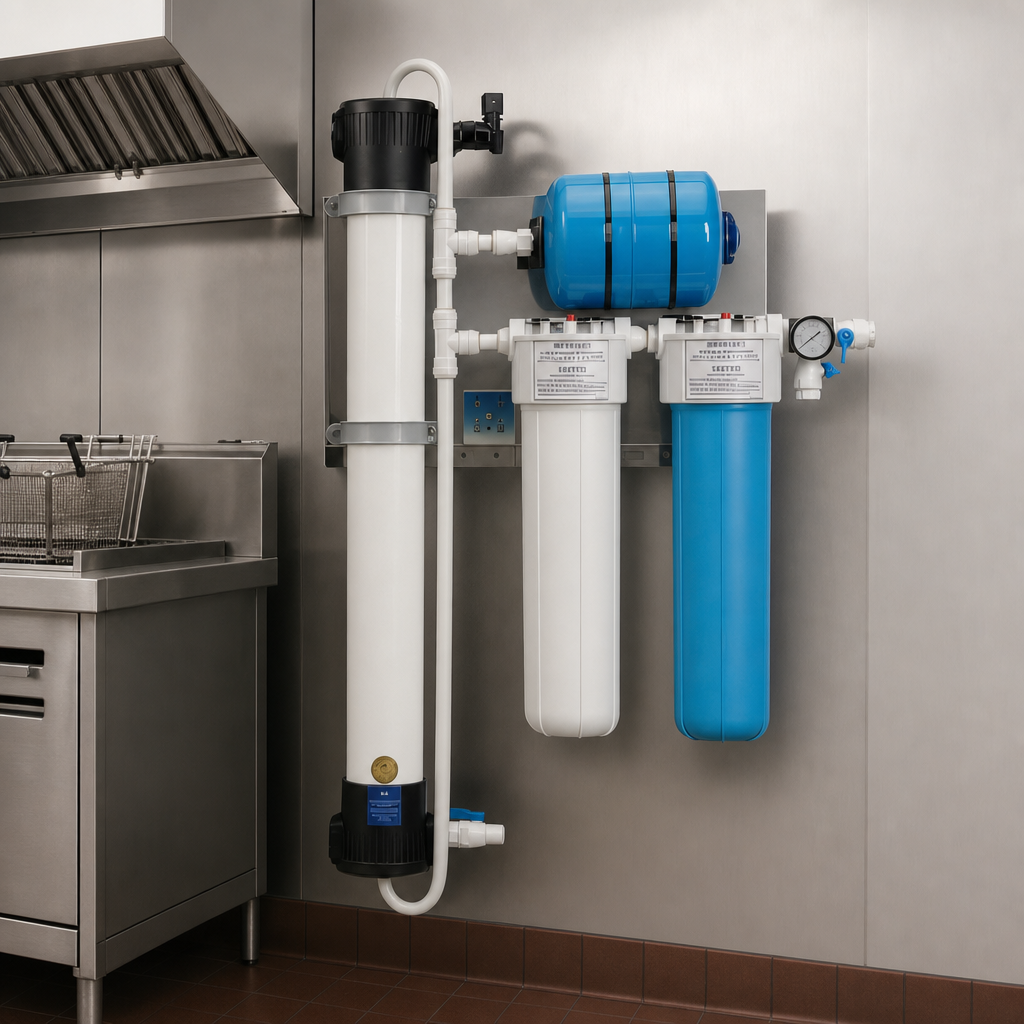

Chloramine And TAC Cartridge Pair

Uses one chloramine cartridge and one template-assisted crystallization (TAC) cartridge to help reduce chloramine and control scale.

0.015 Micron Ultrafiltration

Delivers ultra-fine particle reduction down to 0.015 microns.

Self-Cleaning Ultrafilter

Self-cleaning particle reduction helps minimize buildup and maintain performance.

Separate Filtration Stages

Mechanical filtration is separated from taste and odor reduction to help prevent premature clogging.

Lime Scale Reduction

TAC technology helps protect equipment against lime scale buildup.

Stainless Steel Ultrafilter Housing

Stainless steel housing adds durability in demanding beverage and foodservice environments.

Universal Power Adapters Included

Comes with plug adapters for US, Europe, Australia, and UK use.

NSF Certified

Tested and certified by NSF International.

Type Ultrafiltration System
Style Vertical
Capacity 21,000 Gallons at 5 GPM
Service Flow Rate 13 Gallons Per Minute
Micron Rating 0.015 Microns
Filter Quantity 2
Maximum Operating Temperature 104°F
Material Stainless Steel
Voltage 100-240 Volts
Hertz 50/60 Hz
Phase 1-Phase
Watts 10 Watts
Amps 0.08 Amps
Inlet Connection Size 3/4 Inch MNPT
Outlet Connection Size 3/4 Inch MNPT
Drain Connection Size 3/4 Inch FNPT
Shipping Weight 74 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It uses one chloramine cartridge and one TAC cartridge, along with self-cleaning ultrafiltration and separate mechanical filtration from taste and odor reduction.
The system is rated for 13 gallons per minute.
It uses a 3/4 inch FNPT drain connection and 3/4 inch MNPT inlet and outlet connections.
It operates on 100-240V, 50/60 Hz, single-phase power, draws 0.08 amps, and uses 10 watts.
The maximum operating temperature is 104°F.
Yes. The system is tested and certified by NSF International.
