Antunes

Antunes Vizion VZN-541V-T5 Vertical Ultrafiltration Water Filtration Unit with Carbon and TAC Cartridges, 15 GPM

SKU: VZN-541V-T5
$2,583.54
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers New Arrivals Restaurant Equipment Water Filters

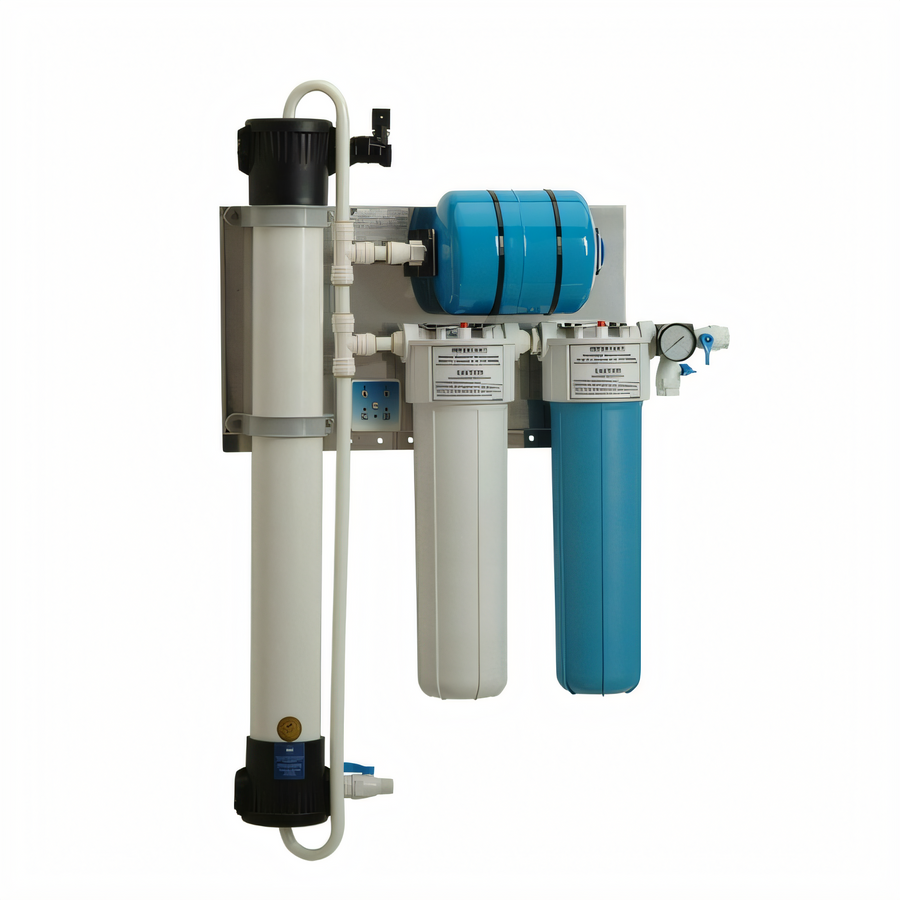

Antunes Vizion VZN-541V-T5 Vertical Ultrafiltration Water Filtration Unit with Carbon and TAC Cartridges, 15 GPM

0.015 Micron, Self-Cleaning, Stainless Steel, 100-240V

This high-flow vertical Vizion system combines ultrafiltration, carbon filtration, and TAC scale protection to deliver cleaner water with less maintenance.

  • Vertical system with one carbon cartridge and one TAC cartridge for filtration and scale control
  • 15 GPM service flow rate for demanding commercial water applications
  • 0.015-micron ultrafiltration helps reduce sediment, cysts, and fine particles
  • Separate mechanical filtration from taste and odor reduction helps improve performance and reduce clogging
  • 100-240V, 50/60/1 power input with plug adapters for US, Europe, Australia, and the UK
  • Stainless steel ultrafilter housing and adjustable flush timer support durable, low-maintenance operation

Overall Dimensions:

36.0"W x 9.0"D x 50.0"H

Product Weight:

74.0 lb

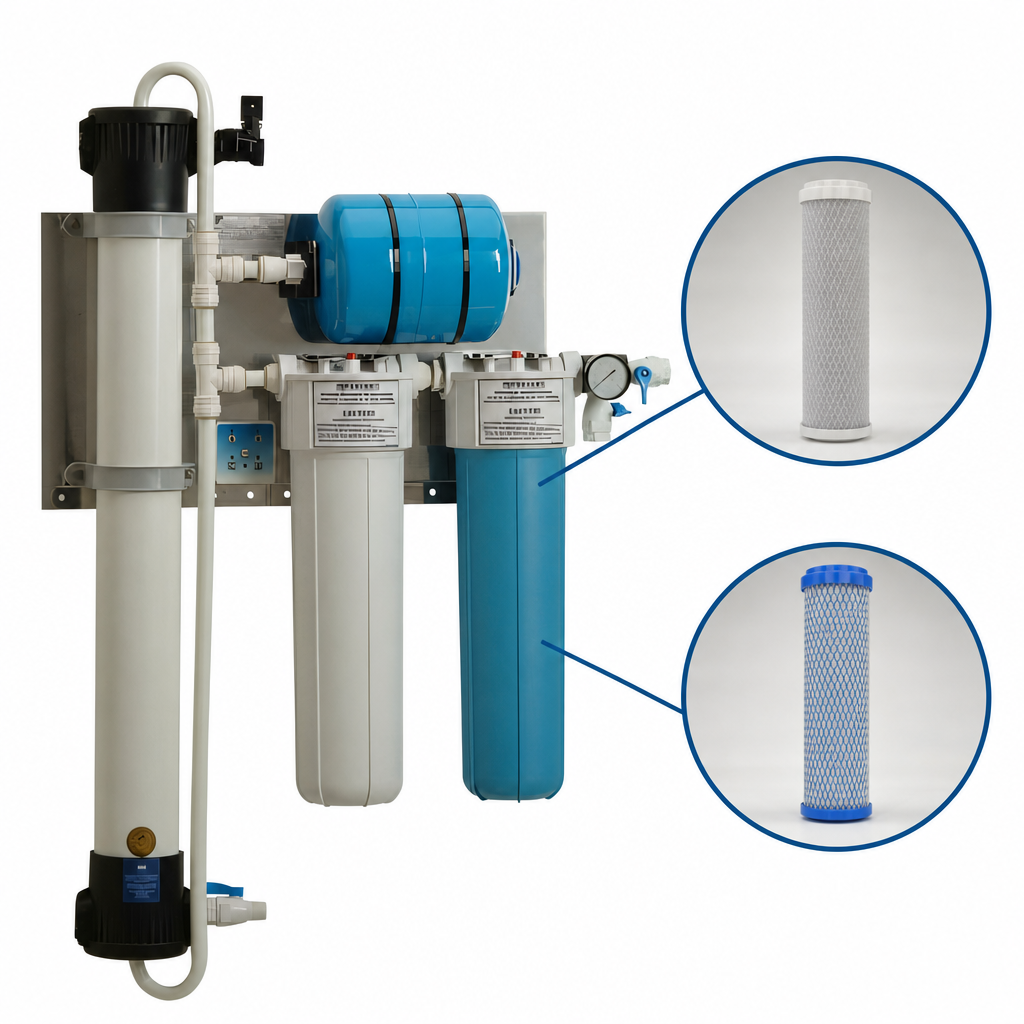

Carbon And TAC Cartridge Configuration

Includes one carbon cartridge and one TAC cartridge to combine filtration with lime scale protection.

Self-Cleaning Ultrafiltration

A self-cleaning ultrafilter helps reduce particle buildup and ongoing maintenance.

Separate Filtration Stages

Mechanical filtration is separated from taste and odor reduction for better performance and longer cartridge life.

0.015-Micron Filtration

Nominal pore size helps remove sediment, cysts, and fine particles as small as 0.015 microns.

15 GPM Service Flow

Supports up to 15 gallons per minute for commercial beverage and water demand.

Stainless Steel Housing

Durable stainless steel ultrafilter housing is built for commercial use.

Wide-Range Electrical Input

Operates on 100-240V, 50/60 Hz, 1-phase power at 10 watts and 0.08 amps.

Plug Adapters Included

Includes plug adapters for the US, Europe, Australia, and the UK.

Adjustable Flush Timer

Built-in flush timer simplifies setup and routine maintenance.

Maximum Operating Temperature

Rated for a maximum operating temperature of 104°F (40°C).

Type Ultrafiltration System
Style Vertical
Service Flow Rate 15 GPM
Micron Rating 0.015 Microns
Filter Quantity 2
Max Operating Temperature 104°F
Max Operating Pressure 100 PSIG
Material Stainless Steel
Water Inlet Size 3/4 Inch FNPT
Drain Connection Size 3/4 Inch FNPT
Water Connection Required
Drain Connection Required
Voltage 100-240 Volts
Watts 10 Watts
Amps 0.08 Amps
Hertz 50/60 Hz
Phase 1-Phase
Controls Adjustable Flush Timer
Selling Unit Each
Units Per Case 1
Shipping Weight 74 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It uses one carbon cartridge and one TAC cartridge.
The TAC cartridge helps protect equipment against lime scale buildup.
The ultrafilter has a nominal pore size of 0.015 microns.
It operates on 100-240V, 50/60 Hz, 1-phase power at 10 watts and 0.08 amps.
The unit uses 3/4 Inch FNPT inlet, outlet, and drain connections, plus a 3/4 Inch GHT rinse connection.
The maximum operating temperature is 104°F (40°C).
